- Page 1 CABINET PARTS REFRIGERATOR For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Part No. W10268064 Rev. A 3−09 Litho In U.S.A. (mat) (eeb)
-

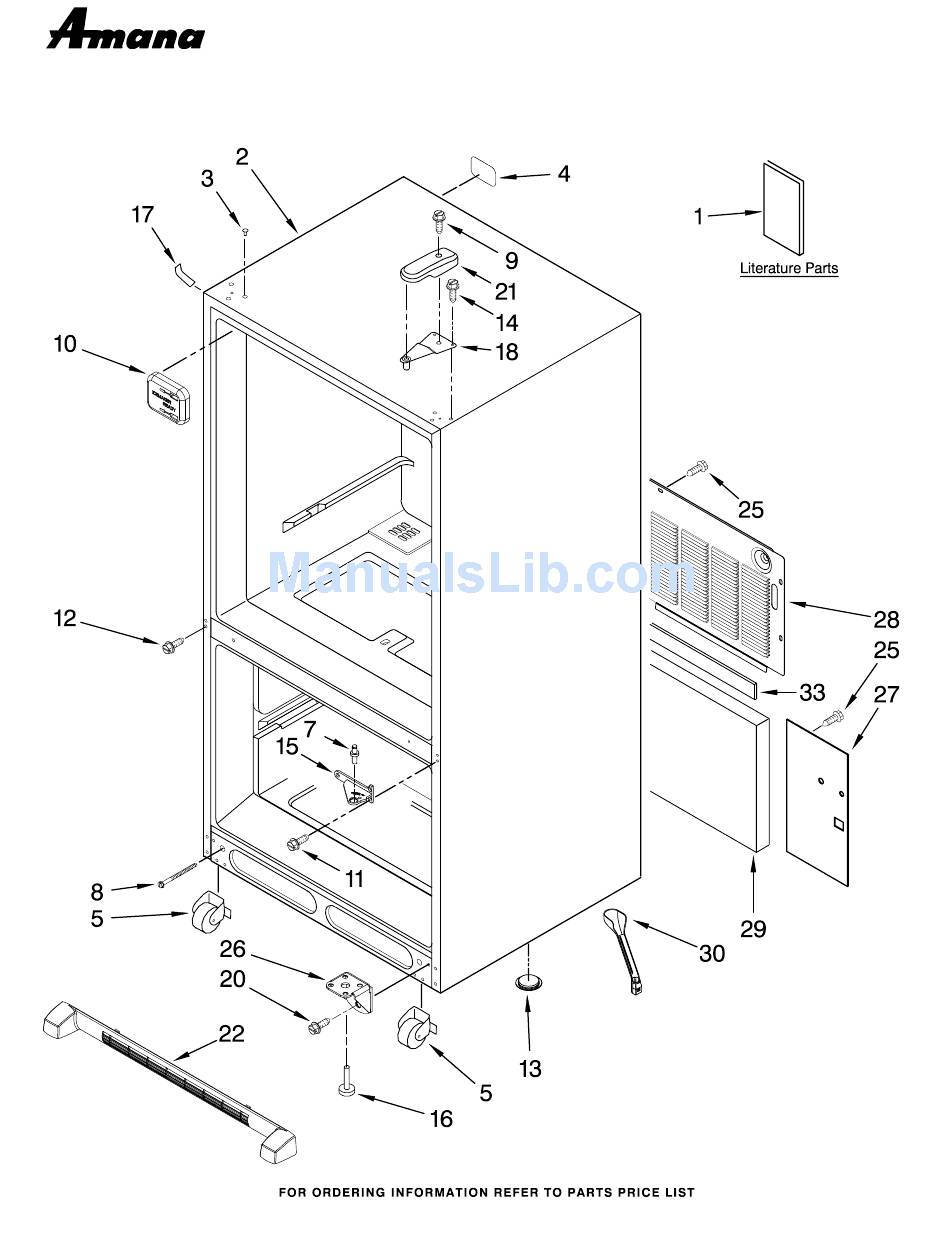

Page 2: Cabinet Parts
CABINET PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10175445 Owners Manual W10183296 Energy Tag W10238840 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310731 Black 12249902 Label, Fill Tube 12580304 Roller Assembly 10351006 Pin, Center Hinge 12606103 Bolt, Adjusting (Rear) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) W10268064... - Page 4 REFRIGERATOR LINER PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806301 Bracket, Control and Lights 12816501 Overlay 12806406 Housing, Electronic Control 12868513 Board, Control C3680310 Switch, Light 12806501 Cover, Light 12806601 Housing, Light 9 W10194422V Bulb, Light (2) 12570701 Socket, Light (2) 12806801 Insert,...
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) W10268064... - Page 6 FREEZER LINER PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 12804901 Cover, Light 5 12812901WD Shaft 12570701 Socket, Light 12990521 Screw (8) 9 W10194422V Bulb, Light 12476401 Housing, Frz.
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) W10268064... - Page 8 REFRIGERATOR DOOR PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) Stainless Steel W10203482 Left W10182772 Right 12744905 Door, Compartment 12369502 Tray, Dairy 12557204 Bucket (2) (Medium) 12528501 Nameplate Gasket, Door Magnetic W10164031 Black Handle, Door W10159105 Stainless Steel 12991703 Screw...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) W10268064... - Page 10 FREEZER DOOR PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10174587 Stainless Steel Handle, Door W10159105 Stainless Steel 13001201 Mount, Handle Gasket, Door W10164033 Black 12991703 Screw W10268064...
-
Page 11: Shelf Parts
SHELF PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) W10268064... - Page 12 SHELF PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION 12710606 Ladder, Side 12990513 Screw (6) 12435807 Ladder, Center 12990515 Screw (2) 12204808 Glass, Shelf (4) 12990302 Screw (4) 12204823 Glass, Crisper 12530901 Frame, Crisper 10946012 Trim, Rear (4) 12530805 Knob, Control 12530701 Rail, Center Crisper...
-
Page 13: Unit Parts
UNIT PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) W10268064... - Page 14 UNIT PARTS For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 12225401WD Tray, Drip 12992301 Screw Following Parts Not Illustrated 12990701 Screw 12825803 Blade, Fan and Optional Parts Not Included 3 W10210982 Basepan 12726401 Evaporator 12990511 Screw 12225702 Right Side...
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Model: ABL1922FES3, ABR1922FES3 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ICE MAKER TORX SCREW WRENCH PAINT, BULK (1 qt.) FIELD INSTALLABLE 1117510 Torx Key W10261234 IC13B 799344 White (Uncut) 799340 Black (Uncut) PAINT, TOUCH−UP (1/2oz.) ACCESSORIES...
