Amana ABL2222FES Product Dimensions

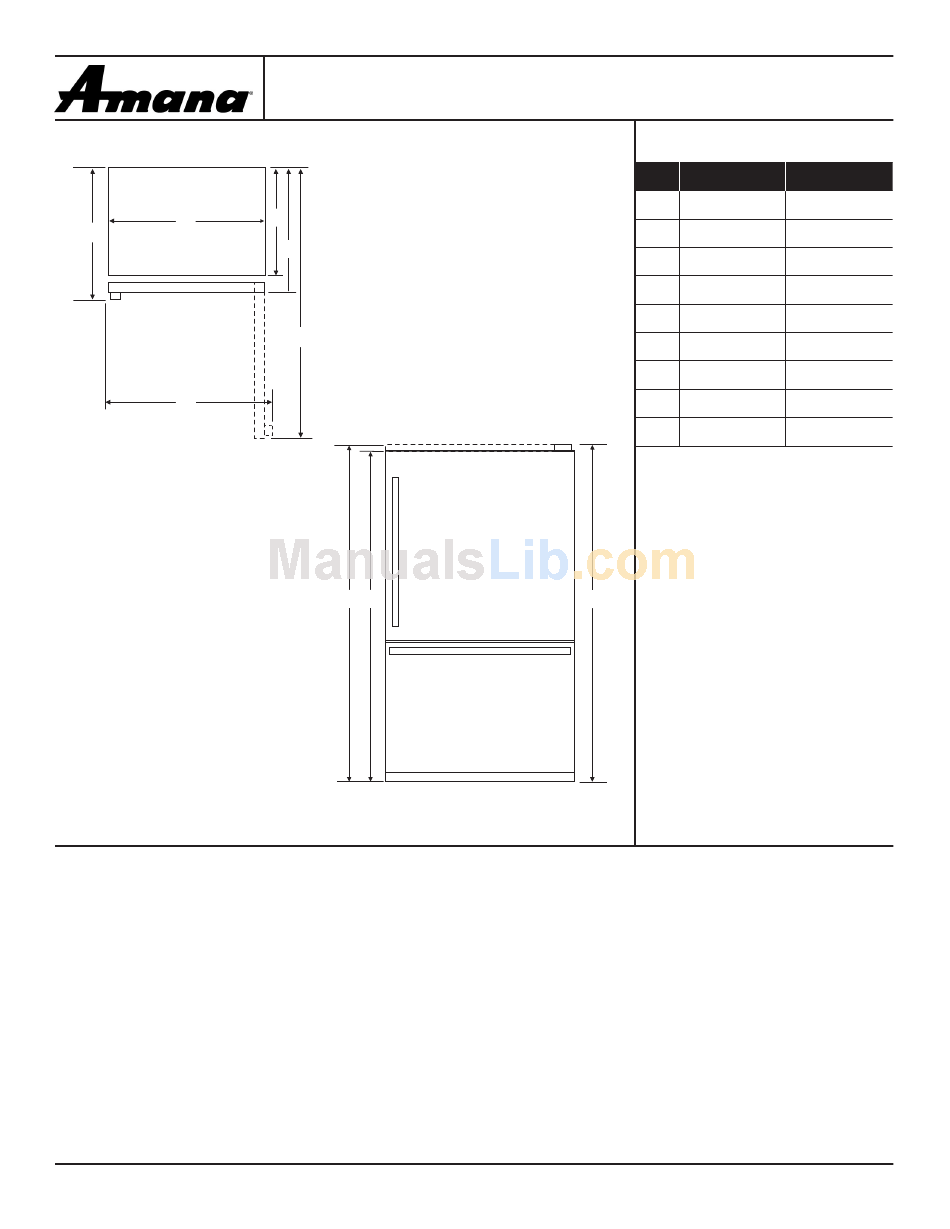

Top View
A
B
F

NOTES:

1. Depth with doors closed, including handle.
2. Depth with doors closed, excluding handle.
3. Depth with doors open at 90 degrees.
4. Width with doors open at 90 degrees, including handles.
5. Height to top of refrigerator
6. Height to top of refrigerator including door hinge.
7. Height to top of refrigerator door trim (if needed for trim models).
8. When installing refrigerator in or near a corner, allow enough room
for door to open without interfering with cabinet drawers or hardware.
Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit.
Use required fuse (15 amp) or comparable circuit breaker.
Important:Because of continuing product improvements, Amana reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.
BOTTOM-FREEZER REFRIGERATORS
C
D
E
J G
Front View
H
Style of product may vary from picture
PRODUCT DIMENSIONS
INCHES CENTIMETERS
A
32 5/8
B
1
33
C
28
D
2
30 3/4
E
3
62 1/8 157.8
F
4
34 7/8
G
5
68 5/8 174.3
H
6
69 7/8 177.5
J
7
N/A

MODEL SKUs

ABL2222FES
2006-02-22 at 16:31:13 CST
