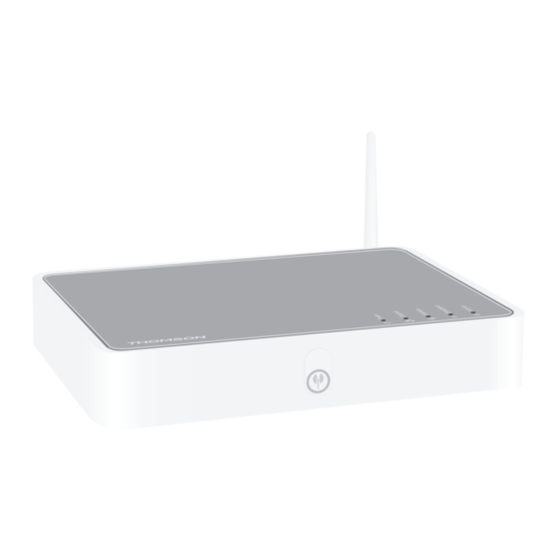

THOMSON TG576 v7 Reference Manual

Wireless multi-user adsl2+ gateway
Hide thumbs Also See for TG576 v7:
1
2
3
4
Table Of Contents
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
Table of Contents

Advertisement

Quick Links

See also: Setup and User's Manual
THOMSON TG576 v7 and TG585 v7
Wireless Multi-User ADSL2+ Gateway
CLI Reference Guide R8.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG576 v7 and is the answer not in the manual?

Questions and answers

Related Manuals for THOMSON TG576 v7

Summary of Contents for THOMSON TG576 v7

  • Page 1 THOMSON TG576 v7 and TG585 v7 Wireless Multi-User ADSL2+ Gateway CLI Reference Guide R8.2...
  • Page 3 THOMSON TG576 v7 and TG585 v7 CLI Reference Guide R8.2...
  • Page 4 THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

  • Page 5: Table Of Contents

    Contents Contents: ? Command....................27 .. Command....................29 atm Commands....................31 atm cac config............................. 33 atm cac list............................34 atm cac overbooking.......................... 35 atm debug aal5stats..........................36 atm debug gstats..........................37 atm debug portstats..........................38 atm debug traceconfig........................39 atm flush.............................. 40 atm ifadd.............................. 41 atm ifattach............................
  • Page 6 Contents atm qosbook config..........................62 atm qosbook ctdadd........................... 63 atm qosbook ctddelete........................64 atm qosbook ctdlist..........................65 atm qosbook delete..........................66 atm qosbook flush..........................67 atm qosbook list..........................68 config Commands..................69 config delete............................70 config dump............................71 config flush............................72 config list..............................73 config load............................74 config save............................75 connection Commands................
  • Page 7 Contents cwmp debug traceconfig........................100 cwmp server config.......................... 101 debug Command..................103 dhcp Commands..................105 dhcp client debug clear........................109 dhcp client debug stats........................110 dhcp client debug traceconfig......................111 dhcp client flush..........................112 dhcp client ifadd..........................113 dhcp client ifattach..........................114 dhcp client ifconfig..........................115 dhcp client ifdelete..........................116 dhcp client ifdetach...........................117 dhcp client iflist..........................
  • Page 8 Contents dhcp rule add............................ 140 dhcp rule debug traceconfig......................141 dhcp rule delete..........................142 dhcp rule flush..........................143 dhcp rule list............................144 dhcp server config..........................145 dhcp server debug clear........................146 dhcp server debug stats........................147 dhcp server debug traceconfig......................148 dhcp server flush..........................149 dhcp server lease add........................
  • Page 9 Contents dhcp spoofing config........................178 dhcp spoofing debug traceconfig....................179 dhcp spoofing delete........................180 dhcp spoofing detach........................181 dhcp spoofing flush.......................... 182 dhcp spoofing list..........................183 dhcp spoofing option-add........................ 184 dhcp spoofing option-delete......................185 dns Commands..................187 dns client config..........................188 dns client dnsadd..........................189 dns client dnsdelete..........................
  • Page 10 Contents dsd debug connection list........................214 dsd debug proxy..........................215 dsd debug recycling..........................216 dsd debug stats..........................217 dsd intercept config.......................... 218 dsd syslog config..........................219 dsd syslog list............................220 dyndns Commands..................221 dyndns add............................222 dyndns delete............................ 223 dyndns flush............................224 dyndns host add..........................225 dyndns host delete..........................226 dyndns host flush..........................227 dyndns host list..........................
  • Page 11 Contents eth bridge dynvlan list........................254 eth bridge filter add.......................... 255 eth bridge filter attach........................256 eth bridge filter config........................257 eth bridge filter delete........................258 eth bridge filter detach........................259 eth bridge filter forwarding......................260 eth bridge filter fwdintfadd......................261 eth bridge filter fwdintfdel....................... 262 eth bridge filter ifadd........................263 eth bridge filter ifdel.........................
  • Page 12 Contents eth bridge unknownvlan iflist......................292 eth bridge vlan ifadd........................293 eth bridge vlan ifconfig........................294 eth bridge vlan ifdelete........................295 eth bridge vlan iflist..........................296 eth bridge xtratag add........................297 eth bridge xtratag config........................298 eth bridge xtratag delete........................299 eth bridge xtratag flush........................300 eth bridge xtratag list........................
  • Page 13 Contents eth filter operand prioritydelete.......................330 eth filter operand reset........................331 eth filter operand vidadd........................332 eth filter operand viddelete......................333 eth filter template add........................334 eth filter template config........................335 eth filter template delete........................336 eth filter template flush........................337 eth filter template list........................338 eth filter template ruleadd.......................
  • Page 14 Contents eth switch share list..........................367 eth switch storm ifconfig......................... 368 eth switch storm iflist........................369 eth vlan add............................370 eth vlan delete...........................371 eth vlan flush.............................372 eth vlan list............................373 exit Command....................375 expr Commands..................377 expr add............................. 378 expr delete............................381 expr flush............................382 expr list...............................383 expr modify............................384 firewall Commands..................387...
  • Page 15 Contents firewall rule modify...........................408 help Command...................411 hostmgr Commands..................413 hostmgr add............................414 hostmgr clear.............................415 hostmgr config..........................416 hostmgr delete..........................417 hostmgr flush............................ 418 hostmgr list............................419 ids Commands................... 421 ids clear.............................. 422 ids config............................423 ids parser list............................. 424 ids parser modify..........................425 ids pattern clear..........................
  • Page 16 Contents igmp proxy debug traceconfig......................446 igmp proxy flush..........................447 igmp proxy grouplist........................448 igmp proxy ifconfig...........................449 igmp proxy iflist..........................450 igmp proxy mbslist........................... 451 interface Command................... 453 ip Commands..................... 455 ip arpadd............................457 ip arpdelete............................458 ip arplist............................. 459 ip auto flush............................460 ip auto ifadd............................
  • Page 17 Contents ip mcast flush............................ 484 ip mcast rtadd........................... 485 ip mcast rtdelete..........................486 ip mcast rtlist.............................487 ip rtadd............................... 488 ip rtconfig............................489 ip rtdelete............................490 ip rtlist..............................491 ipqos Commands..................493 ipqos config............................494 ipqos ef config...........................495 ipqos ef list............................496 ipqos ef stats.............................
  • Page 18 Contents language delete..........................521 language list............................522 mbus Commands..................523 mbus client authenticate........................524 mbus client config..........................525 mbus client exec..........................526 mbus client register.......................... 528 mbus client termsession........................529 mbus client unregister........................530 mbus debug clearstats........................531 mbus debug loadobjects........................532 mbus debug stats..........................533 mbus debug traceconfig........................534 mbus debug unloadobjects......................535 mbus listcontexts..........................
  • Page 19 Contents mlp debug stats..........................557 mlp debug traceconfig........................558 mlp flush............................559 mlp import............................560 mlp privilege add..........................561 mlp privilege addzone........................562 mlp privilege config.......................... 563 mlp privilege delete.......................... 564 mlp privilege list..........................565 mlp privilege removezone........................566 mlp role add............................567 mlp role addpriv..........................568 mlp role config..........................
  • Page 20 Contents ppp ifdelete............................596 ppp ifdetach............................597 ppp iflist............................. 598 ppp ifscan............................599 ppp relay flush..........................600 ppp relay ifadd..........................601 ppp relay ifconfig..........................602 ppp relay ifdelete..........................603 ppp relay iflist............................604 ppp relay sesslist..........................605 ppp rtadd............................606 ppp rtdelete............................607 pptp Commands..................609 pptp flush............................
  • Page 21 Contents service host delete..........................632 service host disable.......................... 633 service host flush..........................634 service host list..........................635 service host rule add........................636 service host rule delete........................637 service host stats..........................638 service host triggerlist........................639 service system ifadd......................... 640 service system ifdelete........................641 service system ipadd........................
  • Page 22 Contents system config............................ 668 system debug autosave........................669 system debug stats........................... 670 system dst............................671 system flush............................673 system locale............................. 674 system ra config..........................675 system reboot............................ 676 system reset............................677 system settime..........................678 system timedreboot.......................... 679 systemlog Commands................681 systemlog flush..........................682 systemlog send..........................683 systemlog show..........................
  • Page 23 Contents tod schedule add..........................705 tod schedule dayadd.........................706 tod schedule daydelete........................707 tod schedule delete...........................708 tod schedule list..........................709 tod schedule modify......................... 710 tod schedule timeadd........................711 tod schedule timedelete........................712 traceroute Command................713 upgrade Commands.................. 715 upgrade config..........................716 upgrade debug sesslist........................717 upgrade debug traceconfig......................
  • Page 24 Contents wireless ifconfig..........................741 wireless macacl add..........................742 wireless macacl config........................743 wireless macacl delete........................744 wireless macacl flush........................745 wireless macacl list........................... 746 wireless macacl modify........................747 wireless macacl register........................748 wireless multiuni add........................749 wireless multiuni delete........................750 wireless multiuni flush........................751 wireless multiuni list.........................752 wireless multiuni scanresults......................753 wireless qos apacconfig........................
  • Page 25 Contents xdsl debug multimode........................777 xdsl debug traceconfig........................778 xdsl info..............................779 xdsl maxspeed...........................780 xdsl version............................781 E-DOC-CTC-20071119-0014 v2.0...
  • Page 26 ? Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 27: Command

    ? Command ? Command Displays this help information E-DOC-CTC-20071119-0014 v2.0...
  • Page 28 .. Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 29: Command

    .. Command .. Command Exits group selection. E-DOC-CTC-20071119-0014 v2.0...

  • Page 30: Atm Commands

    atm Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 31: Atm Commands

    atm Commands atm Commands atm cac config Configure ATM connection admission see page 33 control. atm cac list List all CAC parameters. see page 34 atm cac overbooking Configure ATM overbooking see page 35 parameters. atm debug aal5stats Display AAL5 port specific atm see page 36 statistics.
  • Page 32 atm Commands atm phonebook delete Delete a phonebook entry. see page 58 atm phonebook flush Flush all phonebook entries. see page 59 atm phonebook list Display the phonebook. see page 60 atm qosbook add Add a new qosbook entry. see page 61 atm qosbook config Modify the qosbook configuration.

  • Page 33: Atm Cac Config

    atm Commands atm cac config Configure ATM connection admission control. SYNTAX: atm cac config port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> state = <{disabled|enabled}> where: port The port for which CAC is configured. REQUIRED state Enable/disable CAC for an ATM port. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 34: Atm Cac List

    atm Commands atm cac list List all CAC parameters. E-DOC-CTC-20071119-0014 v2.0...

  • Page 35: Atm Cac Overbooking

    atm Commands atm cac overbooking Configure ATM overbooking parameters. SYNTAX: atm cac overbooking [rt = <number{0-1000}>] [nrt = <number{0-1000}>] where: The realtime overbooking percentage. OPTIONAL The non-realtime overbooking percentage. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 36: Atm Debug Aal5Stats

    atm Commands atm debug aal5stats Display AAL5 port specific atm statistics. SYNTAX: atm debug aal5stats port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> vpi = <number{0-31}> [vci = <number{0-511}>] [clear = <{disabled|enabled}>] where: port The port number for which statistics will be REQUIRED retrieved.

  • Page 37: Atm Debug Gstats

    atm Commands atm debug gstats Display ATM global statistics. SYNTAX: atm debug gstats [clear = <{disabled|enabled}>] where: clear Clear the statistics after request. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 38: Atm Debug Portstats

    atm Commands atm debug portstats Display port specific atm statistics. SYNTAX: atm debug portstats port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> [clear = <{disabled|enabled}>] where: port The port for which statistics will be retrieved. REQUIRED clear Clear the statistics after the request. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 39: Atm Debug Traceconfig

    atm Commands atm debug traceconfig Display/Modify AAL5 debug trace configuration. SYNTAX: atm debug traceconfig [len = <number>] [intf = <{atm_Internet}>] [state = <{disabled|enabled}>] where: Maximum number of AAL5 payload bytes that OPTIONAL will be shown (0-2000, global setting). intf The name of the ATM interface to configure. OPTIONAL state Enable/disable AAL5 debug tracing.

  • Page 40: Atm Flush

    atm Commands atm flush Flush all ATM interfaces. E-DOC-CTC-20071119-0014 v2.0...

  • Page 41: Atm Ifadd

    atm Commands atm ifadd Create a new ATM interface. SYNTAX: atm ifadd intf = <string> where: intf The name for the new ATM interface. If not REQUIRED specified, the destination will double as interface name. E-DOC-CTC-20071119-0014 v2.0...

  • Page 42: Atm Ifattach

    atm Commands atm ifattach Attach an ATM interface. SYNTAX: atm ifattach intf = <{}> where: intf The name of the ATM interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 43: Atm Ifconfig

    atm Commands atm ifconfig Modify an ATM interface. SYNTAX: atm ifconfig intf = <{atm_Internet}> [dest = <{}>] [qos = <{default}>] [clp = <{0|1|classification}>] [clpthresh = <number{0-15}>] [encaps = <{llc|vcmux}>] [fcs = <{disabled|enabled|auto}>] [ulp = <{mac|ip|ppp}>] [retry = <number{0-65535}>] where: intf The name of the ATM interface to configure.

  • Page 44: Atm Ifdelete

    atm Commands atm ifdelete Delete an ATM interface. SYNTAX: atm ifdelete intf = <{}> where: intf The name of the ATM interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 45: Atm Ifdetach

    atm Commands atm ifdetach Detach an ATM interface. SYNTAX: atm ifdetach intf = <{}> where: intf The name of the ATM interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 46: Atm Iflist

    atm Commands atm iflist Display the ATM interfaces. SYNTAX: atm iflist [intf = <{atm_Internet}>] where: intf The name of an ATM interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 47: Atm Oam Cc List

    atm Commands atm oam cc list Display CC configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 48: Atm Oam Cc Modify

    atm Commands atm oam cc modify Modify CC on the connection. SYNTAX: atm oam cc modify port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> vpi = <number{0-31}> [vci = <number{0-511}>] [transmit = <{disabled|enabled}>] [receive = <{disabled|enabled}>] [auto = <{disabled|enabled}>] [span = <{segment|end2end}>] where: port The ATM port number.

  • Page 49: Atm Oam Cc Send

    atm Commands atm oam cc send Send CC activate/deactivate to connection. SYNTAX: atm oam cc send port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> vpi = <number{0-31}> [vci = <number{0-511}>] [span = <{segment|end2end}>] [action = <{activate|deactivate}>] [direction = <{source|sink|both}>] where: port The ATM port number. REQUIRED The Virtual Path Identifier.

  • Page 50: Atm Oam Config

    atm Commands atm oam config Modify the ATM OAM settings. SYNTAX: atm oam config [clp = <number{0-1}>] [loopbackid = <string>] where: The CLP bit value of the OAM cells. OPTIONAL loopbackid The loopback id (hexadecimal string) for OPTIONAL processing of segment loopback cells. E-DOC-CTC-20071119-0014 v2.0...

  • Page 51: Atm Oam List

    atm Commands atm oam list Display the ATM OAM settings. E-DOC-CTC-20071119-0014 v2.0...

  • Page 52: Atm Oam Modify

    atm Commands atm oam modify Modify the ATM OAM data blocking mode. SYNTAX: atm oam modify port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> blocking = <{disabled|enabled}> where: port The port for which OAM blocking is configured. REQUIRED blocking Enable/disable OAM blocking. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 53: Atm Oam Ping

    atm Commands atm oam ping Send ATM loopback cells. SYNTAX: atm oam ping dest = <{atm_pvc_8_35}> [count = <number{1-1000000}>] [interval = <number{100-1000000}>] where: dest The destination address for the request. REQUIRED count The number of pings to send. OPTIONAL interval The interval in milliseconds between packets.

  • Page 54: Atm Oam Vclb Add

    atm Commands atm oam vclb add Create a loopback connection for VC SYNTAX: atm oam vclb add port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> vpi = <number{0-31}> [vci = <number{0-511}>] where: port The ATM port number. REQUIRED The Virtual Path Identifier. REQUIRED The Virtual Channel Identifier.

  • Page 55: Atm Oam Vclb Del

    atm Commands atm oam vclb del Delete a loopback connection for VC SYNTAX: atm oam vclb del port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> vpi = <number{0-31}> [vci = <number{0-511}>] where: port The ATM port number. REQUIRED The Virtual Path Identifier. REQUIRED The Virtual Channel Identifier.

  • Page 56: Atm Oam Vclb List

    atm Commands atm oam vclb list List all VC loopback connections E-DOC-CTC-20071119-0014 v2.0...

  • Page 57: Atm Phonebook Add

    atm Commands atm phonebook add Add a new phonebook entry. SYNTAX: atm phonebook add name = <string> addr = <atmchannel : PVC syntax is [port.]vpi.vci port=dsl0|dsl1|...> where: name The phonebook name for this destination. REQUIRED addr The address for this destination. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 58: Atm Phonebook Delete

    atm Commands atm phonebook delete Delete a phonebook entry. SYNTAX: atm phonebook delete name = <{}> where: name The name of the phonebook to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 59: Atm Phonebook Flush

    atm Commands atm phonebook flush Flush all phonebook entries. E-DOC-CTC-20071119-0014 v2.0...

  • Page 60: Atm Phonebook List

    atm Commands atm phonebook list Display the phonebook. E-DOC-CTC-20071119-0014 v2.0...

  • Page 61: Atm Qosbook Add

    atm Commands atm qosbook add Add a new qosbook entry. SYNTAX: atm qosbook add name = <string> [txctd = <{default}>] [rxctd = <{default}>] where: name The name for the new QoS entry. REQUIRED txctd The name of the CTD for transmit (upstream) OPTIONAL direction.

  • Page 62: Atm Qosbook Config

    atm Commands atm qosbook config Modify the qosbook configuration. SYNTAX: atm qosbook config [format = <{bytes|cells}>] where: format The input, output format of the qosbook. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 63: Atm Qosbook Ctdadd

    atm Commands atm qosbook ctdadd Add a new connection traffic descriptor. SYNTAX: atm qosbook ctdadd name = <string> conformance = <{UBR|CBR|VBR|UBR.1|UBR.2| UBR.mdcr|CBR.1|VBR.1|VBR.2|VBR.3|VBR.c|VBR.nt| VBR.t|GFR.1|GFR.2}> [peakrate = <number{0-27786}>] [sustrate = <number{0-27786}>] [maxburst = <number{48-12240}>] [minrate = <number{0-27786}>] [maxframe = <number{0-255}>] [celldelay = <number>] [realtime = <{enabled|disabled}>] [framediscard = <{enabled|disabled}>] where:...

  • Page 64: Atm Qosbook Ctddelete

    atm Commands atm qosbook ctddelete Delete a connection traffic descriptor. SYNTAX: atm qosbook ctddelete name = <{default}> [force = <{disabled|enabled}>] where: name The name of the CTD entry to delete. REQUIRED force Force delete even when the entry is still in use. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 65: Atm Qosbook Ctdlist

    atm Commands atm qosbook ctdlist Display all connection traffic descriptors. E-DOC-CTC-20071119-0014 v2.0...

  • Page 66: Atm Qosbook Delete

    atm Commands atm qosbook delete Delete a qosbook entry. SYNTAX: atm qosbook delete name = <{default}> [force = <{disabled|enabled}>] where: name The name of the qosbook entry to delete. REQUIRED force Force delete even when the entry is still in use. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 67: Atm Qosbook Flush

    atm Commands atm qosbook flush Flush all qosbook entries. E-DOC-CTC-20071119-0014 v2.0...

  • Page 68: Atm Qosbook List

    atm Commands atm qosbook list Display the qosbook. E-DOC-CTC-20071119-0014 v2.0...

  • Page 69: Config Commands

    config Commands config Commands config delete Delete a user configuration file. see page 70 config dump Show the saved configuration file see page 71 config flush Flush the loaded configuration. see page 72 config list Show the current configuration set see page 73 config load Load saved or default configuration.

  • Page 70: Config Delete

    config Commands config delete Delete a user configuration file. SYNTAX: config delete [filename = <user configuration filename>] where: filename configuration file to erase OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 71: Config Dump

    config Commands config dump Show the saved configuration file E-DOC-CTC-20071119-0014 v2.0...

  • Page 72: Config Flush

    config Commands config flush Flush the loaded configuration. SYNTAX: config flush [flush_ip = <{enabled|disabled}>] where: flush_ip Flush IP settings or not. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 73: Config List

    config Commands config list Show the current configuration set SYNTAX: config list [templates = <{disabled|enabled}>] where: templates list template files OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 74: Config Load

    config Commands config load Load saved or default configuration. SYNTAX: config load [load_ip = <{enabled|disabled}>] [defaults = <{disabled|enabled}>] [flush = <{enabled|disabled}>] [echo = <{disabled|enabled}>] [filename = <string>] where: load_ip Load IP settings or not. OPTIONAL defaults Load default instead of saved configuration. OPTIONAL flush Flush current configuration before loading new...

  • Page 75: Config Save

    config Commands config save Store current configuration to backup file SYNTAX: config save filename = <user configuration filename> where: filename Filename for backupfile of current configuration REQUIRED E-DOC-CTC-20071119-0014 v2.0...
  • Page 76 connection Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 77: Connection Commands

    connection Commands connection Commands connection appconfig Modify a CONN/NAT application see page 78 helper configuration connection appinfo Display CONN/NAT application see page 79 specific info connection applist Display the available CONN/NAT see page 80 application helpers. connection bind Create a CONN/NAT application see page 81 helper/port binding.

  • Page 78: Connection Appconfig

    connection Commands connection appconfig Modify a CONN/NAT application helper configuration SYNTAX: connection appconfig application = <{IP6TO4|PPTP|ESP|IKE|SIP| JABBER|CU/SeeMe|RAUDIO(PNA)|RTSP|ILS|H245| H323|IRC|GAME(UDP)|CONE(UDP)|LOOSE(UDP)|FTP}> [trace = <{disabled|enabled}>] [timeout = <number{0-32000}>] [childqos = <{DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [floating = <{disabled|enabled}>] [proxy = <{disabled|enabled}>] [tracelevel = <number{1-4}>] [SIP_ALG = <{disabled|enabled}>] [RTP_predict_for_term_SIP_ALG = <{disabled| enabled}>] where:...

  • Page 79: Connection Appinfo

    connection Commands connection appinfo Display CONN/NAT application specific info SYNTAX: connection appinfo application = <{IP6TO4|PPTP|ESP|IKE|SIP| JABBER|CU/SeeMe|RAUDIO(PNA)|RTSP|ILS|H245| H323|IRC|GAME(UDP)|CONE(UDP)|LOOSE(UDP)|FTP}> where: application The name of a CONN/NAT application helper as REQUIRED listed by ':connection applist'. E-DOC-CTC-20071119-0014 v2.0...

  • Page 80: Connection Applist

    connection Commands connection applist Display the available CONN/NAT application helpers. E-DOC-CTC-20071119-0014 v2.0...

  • Page 81: Connection Bind

    connection Commands connection bind Create a CONN/NAT application helper/port binding. SYNTAX: connection bind application = <{IP6TO4|PPTP|ESP|IKE|SIP| JABBER|CU/SeeMe|RAUDIO(PNA)|RTSP|ILS|H245| H323|IRC|GAME(UDP)|CONE(UDP)|LOOSE(UDP)|FTP}> port = <port-range> where: application The name of a CONN/NAT application helper as REQUIRED listed by ':connection applist'. port The port number or range this application REQUIRED handler should work on.

  • Page 82: Connection Bindlist

    connection Commands connection bindlist Display the CONN/NAT application helper/port bindings. E-DOC-CTC-20071119-0014 v2.0...

  • Page 83: Connection Clean

    connection Commands connection clean Clean connection database by forcing timeouts. SYNTAX: connection clean [level = <number{0-9}>] where: level Scrubbing level. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 84: Connection Clear

    connection Commands connection clear Kill all connections. E-DOC-CTC-20071119-0014 v2.0...

  • Page 85: Connection Config

    connection Commands connection config Modify global connection configuration. SYNTAX: connection config [configchangemode = <{immediate|delayed}>] [probes = <{disabled|enabled}>] [udptrackmode = <{strict|loose}>] where: configchangemode Select how config changes are handled. OPTIONAL probes Enable/disable alive probes on idle connections. OPTIONAL udptrackmode UDP connection tracking mode. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 86: Connection Debug

    connection Commands connection debug Connection debug commands. SYNTAX: connection debug [trace = <{disabled|enabled}>] where: trace Enable/disable traces. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 87: Connection Describe

    connection Commands connection describe Describe the streams of a connection. SYNTAX: connection describe [id = <number{0-2048}>] where: The connection ID to describe. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 88: Connection Flush

    connection Commands connection flush Flush the connection configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 89: Connection Info

    connection Commands connection info Display all modules with some info. E-DOC-CTC-20071119-0014 v2.0...

  • Page 90: Connection List

    connection Commands connection list Display the currently known connections. SYNTAX: connection list [nr = <number{1-2048}>] [history = <{disabled|enabled}>] where: The number of connections to display. OPTIONAL history If enabled, show history. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 91: Connection Refresh

    connection Commands connection refresh Invalidate all cached decisions. E-DOC-CTC-20071119-0014 v2.0...

  • Page 92: Connection Stats

    connection Commands connection stats Display connection and stream statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 93: Connection Timerclear

    connection Commands connection timerclear Clear connection timeout to default. SYNTAX: connection timerclear [timer = <{tcpidle|tcpneg|tcpkill|udpidle| udpkill|icmpkill|ipidle|ipkill|aiprefresh}>] where: timer The name of the connection idle timer. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 94: Connection Timerconfig

    connection Commands connection timerconfig Modify connection timeout handling. SYNTAX: connection timerconfig [timer = <{tcpidle|tcpneg|tcpkill|udpidle| udpkill|icmpkill|ipidle|ipkill|aiprefresh}>] [value = <number{0-86400}>] where: timer The name of the connection idle timer. OPTIONAL value The timer expire value in seconds. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 95: Connection Unbind

    connection Commands connection unbind Delete a CONN/NAT application helper/port binding. SYNTAX: connection unbind application = <{IP6TO4|PPTP|ESP|IKE|SIP| JABBER|CU/SeeMe|RAUDIO(PNA)|RTSP|ILS|H245| H323|IRC|GAME(UDP)|CONE(UDP)|LOOSE(UDP)|FTP}> port = <port-range> where: application The name of a CONN/NAT application helper as REQUIRED listed by ':connection applist'. port The port number or range this application REQUIRED handler should work on.

  • Page 96: Cwmp Commands

    cwmp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 97: Cwmp Commands

    cwmp Commands cwmp Commands cwmp config Configure the cwmpd as seen from see page 98 the ACS. cwmp debug traceconfig Enable or disable tracing. see page 100 cwmp server config Configure the cwmpd towards the see page 101 ACS. E-DOC-CTC-20071119-0014 v2.0...

  • Page 98: Cwmp Config

    cwmp Commands cwmp config Configure the cwmpd as seen from the ACS. SYNTAX: cwmp config [state = <{disabled|enabled}>] [mode = <{read-only|full}>] [periodicInform = <{disabled|enabled}>] [periodicInfInt = <number>] [sessionTimeout = <number>] [noIpTimeout = <number>] [maxEnvelopes = <number>] [connectionRequest = <{disabled|enabled}>] [connectionReqPath = <string>] [connectionReqUserName = <quoted string>] [connectionReqPsswd = <password>] [connectionReqAuth = <{none|basic|digest}>]...
  • Page 99 cwmp Commands connectionReqAuth Set the authentication type of modem CWMP OPTIONAL server for asynchronous connects. qos-class Set the quality of service class for outgoing OPTIONAL CWMP data. bootdelayrange Set the delay on boot before inform is sent. OPTIONAL upgradedelay Set whether to delay upgrade if services are OPTIONAL active.

  • Page 100: Cwmp Debug Traceconfig

    cwmp Commands cwmp debug traceconfig Enable or disable tracing. SYNTAX: cwmp debug traceconfig [level = <number>] where: level Set the tracelevel (0-1) OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 101: Cwmp Server Config

    cwmp Commands cwmp server config Configure the cwmpd towards the ACS. SYNTAX: cwmp server config [url = <string>] [username = <string>] [password = <password>] where: Set the HTTP URL used to contact the ACS OPTIONAL server. username Set the username for ACS Digest Authentication. OPTIONAL password Set the password for ACS Digest Authentication.

  • Page 102: Debug Command

    debug Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 103: Debug Command

    debug Command debug Command Execute a 'Trace & Debug' command. For qualified personnel only. SYNTAX: debug exec cmd = <quoted string> where: Quoted 'Trace & Debug' command string REQUIRED E-DOC-CTC-20071119-0014 v2.0...
  • Page 104 dhcp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 105: Dhcp Commands

    dhcp Commands dhcp Commands dhcp client debug clear Clear DHCP client statistics see page 109 dhcp client debug stats Print DHCP client statistics see page 110 dhcp client debug traceconfig Modify DHCP client trace see page 111 configuration dhcp client flush Delete all DHCP clients.
  • Page 106 dhcp Commands dhcp relay delete Delete an entry from the DHCP see page 132 forward list. dhcp relay flush Flushes the DHCP relay settings. see page 133 dhcp relay ifconfig Configure a relay interface. see page 134 dhcp relay iflist Show the configuration of the relay see page 135 interfaces.
  • Page 107 dhcp Commands dhcp server option instlist List all DHCP server option instances see page 157 dhcp server option ruleadd Add a selection rule to a DHCP server see page 158 option instance dhcp server option ruledelete Delete a selection rule from a DHCP see page 159 server option instance dhcp server option tmpladd...
  • Page 108 dhcp Commands dhcp spoofing list List the available Spoofing- see page 183 Associations dhcp spoofing option-add Add a DHCP Option Code to a see page 184 Spoofing-Association. dhcp spoofing option-delete Delete a DHCP Option Code from a see page 185 Spoofing-Association.

  • Page 109: Dhcp Client Debug Clear

    dhcp Commands dhcp client debug clear Clear DHCP client statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 110: Dhcp Client Debug Stats

    dhcp Commands dhcp client debug stats Print DHCP client statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 111: Dhcp Client Debug Traceconfig

    dhcp Commands dhcp client debug traceconfig Modify DHCP client trace configuration SYNTAX: dhcp client debug traceconfig [state = <{disabled|enabled}>] where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 112: Dhcp Client Flush

    dhcp Commands dhcp client flush Delete all DHCP clients. E-DOC-CTC-20071119-0014 v2.0...

  • Page 113: Dhcp Client Ifadd

    dhcp Commands dhcp client ifadd Create a DHCP client. SYNTAX: dhcp client ifadd intf = <{Internet|LocalNetwork}> where: intf The name of the interface on which a DHCP REQUIRED Client is defined. E-DOC-CTC-20071119-0014 v2.0...

  • Page 114: Dhcp Client Ifattach

    dhcp Commands dhcp client ifattach Activate a DHCP client. SYNTAX: dhcp client ifattach intf = <> where: intf The name of the interface on which a DHCP REQUIRED Client is defined. E-DOC-CTC-20071119-0014 v2.0...

  • Page 115: Dhcp Client Ifconfig

    dhcp Commands dhcp client ifconfig Configure a DHCP client. SYNTAX: dhcp client ifconfig intf = <> [label = <{None|DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [metric = <number{0-255}>] [dnsmetric = <number{0-100}>] [broadcast = <{disabled|enabled}>] [serverroute = <{disabled|enabled}>] [followlabel = <{disabled|enabled}>] where: intf The name of the dynamic interface to be REQUIRED configured.

  • Page 116: Dhcp Client Ifdelete

    dhcp Commands dhcp client ifdelete Delete a DHCP client. SYNTAX: dhcp client ifdelete intf = <> where: intf The name of the interface on which a DHCP REQUIRED Client is defined. E-DOC-CTC-20071119-0014 v2.0...

  • Page 117: Dhcp Client Ifdetach

    dhcp Commands dhcp client ifdetach De-activate a DHCP client and releases its lease. SYNTAX: dhcp client ifdetach intf = <> where: intf The name of the interface on which a DHCP REQUIRED Client is defined. E-DOC-CTC-20071119-0014 v2.0...

  • Page 118: Dhcp Client Iflist

    dhcp Commands dhcp client iflist List DHCP clients. SYNTAX: dhcp client iflist [intf = <>] [expand = <{disabled|enabled}>] where: intf The name of the interface on which a DHCP OPTIONAL Client is defined. expand Expand enabled/disabled. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 119: Dhcp Client Ifrenew

    dhcp Commands dhcp client ifrenew Renew a DHCP lease. SYNTAX: dhcp client ifrenew intf = <> where: intf The name of the interface on which a DHCP REQUIRED Client is defined. E-DOC-CTC-20071119-0014 v2.0...

  • Page 120: Dhcp Client Rqoptions Add

    dhcp Commands dhcp client rqoptions add Add a DHCP Option Code to the Parameter Request List. SYNTAX: dhcp client rqoptions add intf = <> option = <{subnet-mask|time-offset|default- routers|time-servers|ien116-name-impress- servers|resource-location-servers|host- name|boot-file-size|merit-dump|domain-name| swap-server|root-path|extensions-path|ip- forwarding|non-local-source-routing|policy- filter|max-dgram-reassembly|default-ip-ttl| path-mtu-aging-timeout|path-mtu-plateau-table| interface-mtu|all-subnets-local|broadcast- address|perform-mask-discovery|...} or number> [index = <number{0-255}>] where: intf The name of the interface on which a DHCP...

  • Page 121: Dhcp Client Rqoptions Delete

    dhcp Commands dhcp client rqoptions delete Delete a DHCP Option Code from the Parameter Request List. SYNTAX: dhcp client rqoptions delete intf = <> option = <{subnet-mask|time-offset|default- routers|time-servers|ien116-name-impress- servers|resource-location-servers|host- name|boot-file-size|merit-dump|domain-name| swap-server|root-path|extensions-path|ip- forwarding|non-local-source-routing|policy- filter|max-dgram-reassembly|default-ip-ttl| path-mtu-aging-timeout|path-mtu-plateau-table| interface-mtu|all-subnets-local|broadcast- address|perform-mask-discovery|...} or number> where: intf The name of the interface on which a DHCP REQUIRED Client is defined.

  • Page 122: Dhcp Client Rqoptions List

    dhcp Commands dhcp client rqoptions list List all DHCP Option Codes in the Parameter Request List. SYNTAX: dhcp client rqoptions list [intf = <>] where: intf The name of the interface on which a DHCP OPTIONAL Client is defined. E-DOC-CTC-20071119-0014 v2.0...

  • Page 123: Dhcp Client Rqoptions Optionlist

    dhcp Commands dhcp client rqoptions optionlist List all DHCP Option Codes that can be used in the Parameter Request List. E-DOC-CTC-20071119-0014 v2.0...

  • Page 124: Dhcp Client Txoptions Add

    dhcp Commands dhcp client txoptions add Add an option. SYNTAX: dhcp client txoptions add intf = <> option = <{subnet-mask|time-offset|default- routers|time-servers|ien116-name-impress- servers|resource-location-servers|host- name|boot-file-size|merit-dump|domain-name| swap-server|root-path|extensions-path|ip- forwarding|non-local-source-routing|policy- filter|max-dgram-reassembly|default-ip-ttl| path-mtu-aging-timeout|path-mtu-plateau-table| interface-mtu|all-subnets-local|broadcast- address|perform-mask-discovery|...} or number> [enterprise = <number{1-2147483647}>] [suboption = <number{1-254}>] value = <Value : (type)value; type being 8- bit, 16-bit, 32-bit, addr, >...

  • Page 125: Dhcp Client Txoptions Delete

    dhcp Commands dhcp client txoptions delete Delete an option. SYNTAX: dhcp client txoptions delete intf = <> option = <{subnet-mask|time-offset|default- routers|time-servers|ien116-name-impress- servers|resource-location-servers|host- name|boot-file-size|merit-dump|domain-name| swap-server|root-path|extensions-path|ip- forwarding|non-local-source-routing|policy- filter|max-dgram-reassembly|default-ip-ttl| path-mtu-aging-timeout|path-mtu-plateau-table| interface-mtu|all-subnets-local|broadcast- address|perform-mask-discovery|...} or number> [enterprise = <number{1--1}>] [suboption = <number{1-254}>] where: intf The name of the interface on which a DHCP REQUIRED Client is defined.

  • Page 126: Dhcp Client Txoptions List

    dhcp Commands dhcp client txoptions list List all options. SYNTAX: dhcp client txoptions list [intf = <>] [expand = <{disabled|enabled}>] where: intf The name of the interface on which a DHCP OPTIONAL Client is defined. expand Expand enabled/disabled. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 127: Dhcp Client Txoptions Optionlist

    dhcp Commands dhcp client txoptions optionlist Lists all DHCP Option Codes that can be used. E-DOC-CTC-20071119-0014 v2.0...

  • Page 128: Dhcp Relay Add

    dhcp Commands dhcp relay add Add an entry to the DHCP forward list. SYNTAX: dhcp relay add name = <string> where: name The forward entry name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 129: Dhcp Relay Config

    dhcp Commands dhcp relay config Sets the relay configuration settings. SYNTAX: dhcp relay config [agentinfo = <{disabled|enabled}>] [agentmismatch = <{disabled|enabled}>] where: agentinfo Set the relay agent info status (RFC3046). OPTIONAL agentmismatch Forward/Drop DHCP reply packet when a relay OPTIONAL agent info mismatch is detected (RFC3046). E-DOC-CTC-20071119-0014 v2.0...

  • Page 130: Dhcp Relay Debug Stats

    dhcp Commands dhcp relay debug stats Print DHCP relay statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 131: Dhcp Relay Debug Traceconfig

    dhcp Commands dhcp relay debug traceconfig Modify DHCP relay trace configuration SYNTAX: dhcp relay debug traceconfig [state = <{disabled|enabled}>] where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 132: Dhcp Relay Delete

    dhcp Commands dhcp relay delete Delete an entry from the DHCP forward list. SYNTAX: dhcp relay delete name = <{LocalNetwork_to_127.0.0.1}> where: name The forward entry name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 133: Dhcp Relay Flush

    dhcp Commands dhcp relay flush Flushes the DHCP relay settings. E-DOC-CTC-20071119-0014 v2.0...

  • Page 134: Dhcp Relay Ifconfig

    dhcp Commands dhcp relay ifconfig Configure a relay interface. SYNTAX: dhcp relay ifconfig intf = <{LocalNetwork|Internet}> [relay = <{disabled|enabled}>] [maxhops = <number{0-16}>] [remoteid = <password>] [trusted = <{disabled|enabled}>] where: intf The name of the relay interface to configure. REQUIRED relay Set the relay status.

  • Page 135: Dhcp Relay Iflist

    dhcp Commands dhcp relay iflist Show the configuration of the relay interfaces. SYNTAX: dhcp relay iflist [intf = <{LocalNetwork|Internet}>] where: intf The name of the relay interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 136: Dhcp Relay List

    dhcp Commands dhcp relay list List the DHCP forward list. SYNTAX: dhcp relay list [name = <{LocalNetwork_to_127.0.0.1}>] where: name The forward entry name. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 137: Dhcp Relay Modify

    dhcp Commands dhcp relay modify Modify an entry from the DHCP forward list. SYNTAX: dhcp relay modify name = <{LocalNetwork_to_127.0.0.1}> [addr = <ip-address>] [intf = <{None|LocalNetwork|Internet}>] [giaddr = <ip-address>] [script = <>] where: name The forward entry name. REQUIRED addr The DHCP server IP address.

  • Page 138: Dhcp Relay Ruleadd

    dhcp Commands dhcp relay ruleadd Add a selection rule to a DHCP forward entry SYNTAX: dhcp relay ruleadd name = <{LocalNetwork_to_127.0.0.1}> [key = <{or|and}>] rulename = <> where: name The name of the forward entry. REQUIRED The logical key of the selection rule. OPTIONAL rulename The name of the DHCP selection rule.

  • Page 139: Dhcp Relay Ruledelete

    dhcp Commands dhcp relay ruledelete Delete a selection rule from a DHCP forward entry SYNTAX: dhcp relay ruledelete name = <{LocalNetwork_to_127.0.0.1}> rulename = <> where: name The name of the forward entry. REQUIRED rulename The name of the DHCP selection rule. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 140: Dhcp Rule Add

    dhcp Commands dhcp rule add Add a rule for DHCP conditional selection SYNTAX: dhcp rule add name = <string> type = <{option|mac|vci|uci}> option [!] = <{subnet-mask|time-offset| default-routers|time-servers|ien116-servers| impress-servers|resource-location-servers| host-name|boot-file-size|merit-dump|domain- name|swap-server|root-path|extensions-path| ip-forwarding|non-local-source-routing|policy- filter|max-dgram-reassembly|default-ip-ttl| path-mtu-aging-timeout|path-mtu-plateau-table| interface-mtu|all-subnets-local|broadcast- address|perform-mask-discovery|...} or number> [enterprise = <number{1-2147483647}>] [suboption = <number{1-254}>] [value = <Value : (type)value;...

  • Page 141: Dhcp Rule Debug Traceconfig

    dhcp Commands dhcp rule debug traceconfig Modify DHCP rule trace configuration SYNTAX: dhcp rule debug traceconfig [state = <{disabled|enabled}>] where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 142: Dhcp Rule Delete

    dhcp Commands dhcp rule delete Delete a DHCP rule SYNTAX: dhcp rule delete name = <> where: name The name of the DHCP rule. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 143: Dhcp Rule Flush

    dhcp Commands dhcp rule flush Flush all DHCP rules E-DOC-CTC-20071119-0014 v2.0...

  • Page 144: Dhcp Rule List

    dhcp Commands dhcp rule list List all DHCP rules E-DOC-CTC-20071119-0014 v2.0...

  • Page 145: Dhcp Server Config

    dhcp Commands dhcp server config Print DHCP server configuration settings SYNTAX: dhcp server config [state = <{disabled|enabled}>] where: state Enable/Disable the DHCP server. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 146: Dhcp Server Debug Clear

    dhcp Commands dhcp server debug clear Clear DHCP server statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 147: Dhcp Server Debug Stats

    dhcp Commands dhcp server debug stats Print DHCP server statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 148: Dhcp Server Debug Traceconfig

    dhcp Commands dhcp server debug traceconfig Modify DHCP server trace configuration SYNTAX: dhcp server debug traceconfig [state = <{disabled|enabled}>] where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 149: Dhcp Server Flush

    dhcp Commands dhcp server flush Flush all DHCP server pool and lease entries E-DOC-CTC-20071119-0014 v2.0...

  • Page 150: Dhcp Server Lease Add

    dhcp Commands dhcp server lease add Add a DHCP server lease SYNTAX: dhcp server lease add clientid = <clientid> pool = <{LAN_private}> [addr = <ip-address>] [offset = <number>] [leasetime = <number>] [expirytime = <number>] [gateway = <ip-address|0|none>] [macaddr = <hardware-address>] where: clientid The DHCP client identification string of the host.

  • Page 151: Dhcp Server Lease Delete

    dhcp Commands dhcp server lease delete Delete a DHCP server lease SYNTAX: dhcp server lease delete [clientid = <clientid>] [index = <number>] [expand = <{disabled|enabled}>] where: clientid The DHCP client identification string. OPTIONAL index The DHCP server lease table index. OPTIONAL expand Expand enabled/disabled.

  • Page 152: Dhcp Server Lease Flush

    dhcp Commands dhcp server lease flush Flush all DHCP server leases SYNTAX: dhcp server lease flush [pool = <{LAN_private}>] where: pool The name of the DHCP server pool. Only the OPTIONAL leases belonging to this pool will be deleted. E-DOC-CTC-20071119-0014 v2.0...

  • Page 153: Dhcp Server Lease List

    dhcp Commands dhcp server lease list List all DHCP server leases SYNTAX: dhcp server lease list [clientid = <clientid>] [index = <number>] [expand = <{disabled|enabled}>] where: clientid The DHCP client identification string. OPTIONAL index The DHCP server lease table index. OPTIONAL expand Expand enabled/disabled.

  • Page 154: Dhcp Server Option Flush

    dhcp Commands dhcp server option flush Flush all DHCP server option templates and instances E-DOC-CTC-20071119-0014 v2.0...

  • Page 155: Dhcp Server Option Instadd

    dhcp Commands dhcp server option instadd Add a DHCP server option instance SYNTAX: dhcp server option instadd name = <string> tmplname = <> [policy = <{requested|always|rules}>] [dynamic = <{disabled|enabled}>] [maxuse = <number{1-255}>] [enterprise = <number{1-2147483647}>] [suboption = <number{1-254}>] value = <Value : (type)value; type being 8- bit, 16-bit, 32-bit, addr, >...

  • Page 156: Dhcp Server Option Instdelete

    dhcp Commands dhcp server option instdelete Delete a DHCP server option instance SYNTAX: dhcp server option instdelete name = <> [enterprise = <number{1--1}>] [suboption = <number{1-254}>] where: name The name of the DHCP server option instance. REQUIRED enterprise The enterprise number (see http://www.iana.org/ OPTIONAL assignments/enterprise- numbers) suboption...

  • Page 157: Dhcp Server Option Instlist

    dhcp Commands dhcp server option instlist List all DHCP server option instances SYNTAX: dhcp server option instlist [name = <>] where: name The name of the DHCP server option instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 158: Dhcp Server Option Ruleadd

    dhcp Commands dhcp server option ruleadd Add a selection rule to a DHCP server option instance SYNTAX: dhcp server option ruleadd name = <> [key = <{or|and}>] rulename = <> where: name The name of the DHCP server option instance. REQUIRED The logical key of the selection rule.

  • Page 159: Dhcp Server Option Ruledelete

    dhcp Commands dhcp server option ruledelete Delete a selection rule from a DHCP server option instance SYNTAX: dhcp server option ruledelete name = <> rulename = <> where: name The name of the DHCP server option instance. REQUIRED rulename The name of the DHCP selection rule. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 160: Dhcp Server Option Tmpladd

    dhcp Commands dhcp server option tmpladd Add a DHCP server option template SYNTAX: dhcp server option tmpladd name = <string> optionid = <number{1-254}> [dynamic = <{disabled|enabled}>] where: name The name of the DHCP server option template. REQUIRED optionid Specify the DHCP server option code. REQUIRED dynamic Enable/Disable option template as dynamic.

  • Page 161: Dhcp Server Option Tmpldelete

    dhcp Commands dhcp server option tmpldelete Delete a DHCP server option template SYNTAX: dhcp server option tmpldelete name = <> where: name The name of the DHCP server option template. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 162: Dhcp Server Option Tmpllist

    dhcp Commands dhcp server option tmpllist List all DHCP server option templates E-DOC-CTC-20071119-0014 v2.0...

  • Page 163: Dhcp Server Policy

    dhcp Commands dhcp server policy Print DHCP server policy settings SYNTAX: dhcp server policy [verifyfirst = <{disabled|enabled}>] [trustclient = <{disabled|enabled}>] [rtbehaviour = <{traditional|standard|msft}>] where: verifyfirst Enable/Disable IP address conflict network OPTIONAL probing before handing out an address to a client. trustclient Whether or not the IP address suggested by a OPTIONAL...

  • Page 164: Dhcp Server Pool Add

    dhcp Commands dhcp server pool add Add a DHCP server pool SYNTAX: dhcp server pool add name = <string> [index = <number>] where: name The name of the DHCP server pool. REQUIRED index The number of the pool before which you want OPTIONAL the new pool to be added.

  • Page 165: Dhcp Server Pool Config

    dhcp Commands dhcp server pool config Configure a DHCP server pool SYNTAX: dhcp server pool config name = <{LAN_private}> [state = <{disabled|enabled}>] [intf = <{Internet|LocalNetwork}>] [index = <number>] [poolstart = <ip-address>] [poolend = <ip-address>] [netmask = <ip-mask(dotted or cidr)>] [gateway = <ip-address|0|none>] [server = <ip-address|none>] [primdns = <ip-address|none>] [secdns = <ip-address|none>]...
  • Page 166 dhcp Commands secdns The IP address of the secondary DNS server for OPTIONAL DHCP clients. dnsmetric The DHCP server pool DNS route metric. OPTIONAL primwins The IP address of the primary WINS server for OPTIONAL DHCP clients. secwins The IP address of the secondary WINS server for OPTIONAL DHCP clients.

  • Page 167: Dhcp Server Pool Delete

    dhcp Commands dhcp server pool delete Delete a DHCP server pool SYNTAX: dhcp server pool delete name = <{LAN_private}> where: name The name of the DHCP server pool. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 168: Dhcp Server Pool Flush

    dhcp Commands dhcp server pool flush Flush all DHCP server pools E-DOC-CTC-20071119-0014 v2.0...

  • Page 169: Dhcp Server Pool List

    dhcp Commands dhcp server pool list List all DHCP server pools SYNTAX: dhcp server pool list [name = <{LAN_private}>] where: name The name of the DHCP server pool. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 170: Dhcp Server Pool Optadd

    dhcp Commands dhcp server pool optadd Add an option instance to the DHCP server pool SYNTAX: dhcp server pool optadd name = <{LAN_private}> instname = <> where: name The name of the DHCP server pool. REQUIRED instname The name of the DHCP server option instance. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 171: Dhcp Server Pool Optdelete

    dhcp Commands dhcp server pool optdelete Delete an option instance from the DHCP server pool SYNTAX: dhcp server pool optdelete name = <{LAN_private}> instname = <> where: name The name of the DHCP server pool. REQUIRED instname The name of the DHCP server option instance. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 172: Dhcp Server Pool Rtadd

    dhcp Commands dhcp server pool rtadd Add a route to the DHCP server pool SYNTAX: dhcp server pool rtadd name = <{LAN_private}> dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [gateway = <ip-address|0>] where: name The name of the DHCP server pool. REQUIRED The IP destination address of the route for DHCP REQUIRED...

  • Page 173: Dhcp Server Pool Rtdelete

    dhcp Commands dhcp server pool rtdelete Delete a route from the DHCP server pool SYNTAX: dhcp server pool rtdelete name = <{LAN_private}> dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [gateway = <ip-address|0>] where: name The name of the DHCP server pool. REQUIRED The IP destination address of the route for DHCP REQUIRED...

  • Page 174: Dhcp Server Pool Ruleadd

    dhcp Commands dhcp server pool ruleadd Add a selection rule to the DHCP server pool SYNTAX: dhcp server pool ruleadd name = <{LAN_private}> [key = <{or|and}>] rulename = <> where: name The name of the DHCP server pool. REQUIRED The logical key of the selection rule. OPTIONAL rulename The name of the DHCP selection rule.

  • Page 175: Dhcp Server Pool Ruledelete

    dhcp Commands dhcp server pool ruledelete Delete a selection rule from the DHCP server pool SYNTAX: dhcp server pool ruledelete name = <{LAN_private}> rulename = <> where: name The name of the DHCP server pool. REQUIRED rulename The name of the DHCP selection rule. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 176: Dhcp Spoofing Add

    dhcp Commands dhcp spoofing add Add a Spoofing-Association SYNTAX: dhcp spoofing add name = <string> pool_name = <{LAN_private}> ifname = <> where: name The name of the Association. REQUIRED pool_name The name of the pool to be associated. REQUIRED ifname The name of the interface on which a DHCP REQUIRED Client is defined.

  • Page 177: Dhcp Spoofing Attach

    dhcp Commands dhcp spoofing attach Enable a Spoofing-Association SYNTAX: dhcp spoofing attach name = <{|||}> where: name The name of the Association. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 178: Dhcp Spoofing Config

    dhcp Commands dhcp spoofing config Display/modify dhcp spoofing state SYNTAX: dhcp spoofing config [state = <{enabled|disabled}>] where: state Enable/Disable spoofing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 179: Dhcp Spoofing Debug Traceconfig

    dhcp Commands dhcp spoofing debug traceconfig Display/modify DHCP spoofing trace configuratin SYNTAX: dhcp spoofing debug [state = <{disabled|enabled}>] traceconfig where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 180: Dhcp Spoofing Delete

    dhcp Commands dhcp spoofing delete Delete a Spoofing-Association SYNTAX: dhcp spoofing delete name = <{|||}> where: name The name of the Association. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 181: Dhcp Spoofing Detach

    dhcp Commands dhcp spoofing detach Disable a Spoofing-Association SYNTAX: dhcp spoofing detach name = <{|||}> where: name The name of the Association. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 182: Dhcp Spoofing Flush

    dhcp Commands dhcp spoofing flush Flush all the associations and the options. E-DOC-CTC-20071119-0014 v2.0...

  • Page 183: Dhcp Spoofing List

    dhcp Commands dhcp spoofing list List the available Spoofing-Associations SYNTAX: dhcp spoofing list [name = <{|||}>] where: name The name of the Association. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 184: Dhcp Spoofing Option-Add

    dhcp Commands dhcp spoofing option-add Add a DHCP Option Code to a Spoofing-Association. SYNTAX: dhcp spoofing option-add name = <{|||}> option = <number> where: name The name of the Association. REQUIRED option The option id. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 185: Dhcp Spoofing Option-Delete

    dhcp Commands dhcp spoofing option-delete Delete a DHCP Option Code from a Spoofing-Association. SYNTAX: dhcp spoofing option-delete name = <{|||}> option = <number> where: name The name of the Association. REQUIRED option The option id. REQUIRED E-DOC-CTC-20071119-0014 v2.0...
  • Page 186 dns Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 187: Dns Commands

    dns Commands dns Commands dns client config Modify the DNS resolver see page 188 configuration. dns client dnsadd Add a DNS server. see page 189 dns client dnsdelete Delete a DNS server. see page 190 dns client dnslist List all DNS servers. see page 191 dns client flush Remove all DNS servers.

  • Page 188: Dns Client Config

    dns Commands dns client config Modify the DNS resolver configuration. SYNTAX: dns client config [timeout = <number{1-900}>] [retry = <number{0-10}>] [state = <{disabled|enabled}>] [search = <{disabled|enabled}>] [list = <string>] [trace = <{disabled|enabled}>] where: timeout The query timeout in seconds. OPTIONAL retry The number of query retries before giving up.

  • Page 189: Dns Client Dnsadd

    dns Commands dns client dnsadd Add a DNS server. SYNTAX: dns client dnsadd addr = <string> [port = <number>] where: addr The DNS server IP address. REQUIRED port The DNS server port number. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 190: Dns Client Dnsdelete

    dns Commands dns client dnsdelete Delete a DNS server. SYNTAX: dns client dnsdelete index = <number{1-99}> where: index The index number (shown by the 'list' REQUIRED command) of the server to delete. E-DOC-CTC-20071119-0014 v2.0...

  • Page 191: Dns Client Dnslist

    dns Commands dns client dnslist List all DNS servers. E-DOC-CTC-20071119-0014 v2.0...

  • Page 192: Dns Client Flush

    dns Commands dns client flush Remove all DNS servers. E-DOC-CTC-20071119-0014 v2.0...

  • Page 193: Dns Client Nslookup

    dns Commands dns client nslookup DNS lookup for a domain name or an address. SYNTAX: dns client nslookup host = <string> where: host The DNS domain name string to query. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 194: Dns Server Config

    dns Commands dns server config DNS server configuration settings SYNTAX: dns server config [domain = <string>] [timeout = <number{0-2147483646}>] [suppress = <number>] [state = <{disabled|enabled}>] [trace = <{disabled|enabled}>] [syslog = <{disabled|enabled}>] [WANDownSpoofing = <{disabled|enabled}>] [WDSpoofedIP = <ip-address>] where: domain The DNS server domain name. OPTIONAL timeout The forwarded DNS query timeout.

  • Page 195: Dns Server Debug Clear

    dns Commands dns server debug clear Clear the DNS server/forwarder statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 196: Dns Server Debug Spoof Clear

    dns Commands dns server debug spoof clear Clear the intercept cache table E-DOC-CTC-20071119-0014 v2.0...

  • Page 197: Dns Server Debug Spoof Getaddress

    dns Commands dns server debug spoof getaddress Get the real ip for the given spoofed ip SYNTAX: dns server debug spoof addr = <ip-address> getaddress where: addr The spoofed ip to look up. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 198: Dns Server Debug Spoof Getflags

    dns Commands dns server debug spoof getflags Get the error flags for the given spoofed ip SYNTAX: dns server debug spoof addr = <ip-address> getflags where: addr The spoofed ip to look up. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 199: Dns Server Debug Spoof List

    dns Commands dns server debug spoof list List the intercept cache table. E-DOC-CTC-20071119-0014 v2.0...

  • Page 200: Dns Server Debug Spoof Update

    dns Commands dns server debug spoof update update the intercept cache table E-DOC-CTC-20071119-0014 v2.0...

  • Page 201: Dns Server Debug Stats

    dns Commands dns server debug stats Print the DNS server/forwarder statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 202: Dns Server Flush

    dns Commands dns server flush Flush all local DNS hosts and routes. E-DOC-CTC-20071119-0014 v2.0...

  • Page 203: Dns Server Host Add

    dns Commands dns server host add Add a local DNS host SYNTAX: dns server host add name = <string> [addr = <ip-address>] [ttl = <number>] where: name The name of an IP host to add. REQUIRED addr The IP address of the host. OPTIONAL The lifetime of the host.

  • Page 204: Dns Server Host Delete

    dns Commands dns server host delete Delete a local DNS host SYNTAX: dns server host delete name = <string> where: name The name of an IP host to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 205: Dns Server Host Flush

    dns Commands dns server host flush Flush all local DNS hosts E-DOC-CTC-20071119-0014 v2.0...

  • Page 206: Dns Server Host List

    dns Commands dns server host list List all local DNS hosts E-DOC-CTC-20071119-0014 v2.0...

  • Page 207: Dns Server Route Add

    dns Commands dns server route add Creates a DNS forwarding entry or template SYNTAX: dns server route add dns = <ip-address> [src = <ip-address>] [srcmask = <ip-mask(dotted or cidr)>] [domain = <string>] [metric = <number{0-100}>] [label = <{None|DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [intf = <{loop|Internet|LocalNetwork}>] where: The IP address of a DNS server.

  • Page 208: Dns Server Route Delete

    dns Commands dns server route delete Deletes a DNS forwarding entry or template SYNTAX: dns server route delete dns = <ip-address> [domain = <string>] [intf = <{loop|Internet|LocalNetwork}>] where: The IP address of a DNS server. REQUIRED domain The DNS domain string. OPTIONAL intf The interface associated with the DNS entry or...

  • Page 209: Dns Server Route Flush

    dns Commands dns server route flush Removes all DNS forwarding entries and templates E-DOC-CTC-20071119-0014 v2.0...

  • Page 210: Dns Server Route List

    dns Commands dns server route list Lists all DNS forwarding entries and templates E-DOC-CTC-20071119-0014 v2.0...

  • Page 211: Dsd Commands

    dsd Commands dsd Commands dsd config Display/modify DSD framework see page 212 configuration dsd debug config Display/modify DSD debug settings see page 213 dsd debug connection list Display internal connection pool see page 214 usage dsd debug proxy Display/modify HTTPI fixed proxy see page 215 settings dsd debug recycling...

  • Page 212: Dsd Config

    dsd Commands dsd config Display/modify DSD framework configuration SYNTAX: dsd config [state = <{disabled|automatic}>] where: state DSD framework operation mode OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 213: Dsd Debug Config

    dsd Commands dsd debug config Display/modify DSD debug settings SYNTAX: dsd debug config [turbomode = <{disabled|enabled}>] where: turbomode Enable/disable turbomode OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 214: Dsd Debug Connection List

    dsd Commands dsd debug connection list Display internal connection pool usage SYNTAX: dsd debug connection list [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 215: Dsd Debug Proxy

    dsd Commands dsd debug proxy Display/modify HTTPI fixed proxy settings SYNTAX: dsd debug proxy [state = <{disabled|enabled}>] [dest = <ip-address>] [port = <{at-echo|at-nbp|at-rtmp|at-zis|auth| bgp|biff|bootpc|bootps|chargen|data|gopher| h323|httpproxy|ike|ils|imap2|imap3|ingres- net|ipcserver|ipx|irc-o|irc-u|kerberos|ldap| login|netbios-dgm|netbios-ns|netbios-ssn| netwall|netware-ip|new-rwho|nfds|nicname|nntp| ntalk|ntp|pcmail-srv|pop2|pop3|printer|qotd| realaudio|rip|rtelnet|rtsp|sip|smtp|snmp| snmptrap|snpp|sntp|sql*net|sql-net|sqlserv| sunrpc|syslog|systat|talk|telnet|...} or number>] where: state Enable/disable fixed proxy redirecting OPTIONAL dest Destination IP where requests will be forwarded...

  • Page 216: Dsd Debug Recycling

    dsd Commands dsd debug recycling Display/modify HTTPI recycling settings SYNTAX: dsd debug recycling [state = <{disabled|enabled}>] [interval = <number>] [httpidle = <number>] [otheridle = <number>] where: state Enable/disable stream recycling OPTIONAL interval Time between successive activity checks OPTIONAL httpidle Minimal idle count for recycling (filtered) http OPTIONAL streams otheridle...

  • Page 217: Dsd Debug Stats

    dsd Commands dsd debug stats Display/clear DSD framework and module statistics SYNTAX: dsd debug stats [name = <{intercept|urlfilter|recycling| syslog|all}>] [clear = <{no|yes}>] where: name Specify the name of a module OPTIONAL clear Clear the specified statistics OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 218: Dsd Intercept Config

    dsd Commands dsd intercept config Display/modify HTTP Intercept configuration SYNTAX: dsd intercept config [WDSpoofedIP = <ip-address>] [servertimeout = <number>] [connecterrorurl = <string>] [categoryerrorurl = <string>] [monitorintercepturl = <string>] [unauthorizedrequrl = <string>] [imageredirect = <{disabled|enabled}>] [imageredirecturl = <string>] [alwaysuseip = <{disabled|enabled}>] where: WDSpoofedIP IP address indicating unavailable WAN...

  • Page 219: Dsd Syslog Config

    dsd Commands dsd syslog config Display/modify HTTPI logging configuration SYNTAX: dsd syslog config [syslog = <{none|unauthorized|errors| intercepted|all}>] where: syslog Define which type of events to log OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 220: Dsd Syslog List

    dsd Commands dsd syslog list Display HTTPI log file E-DOC-CTC-20071119-0014 v2.0...

  • Page 221: Dyndns Commands

    dyndns Commands dyndns Commands dyndns add Add a dynamic DNS client. see page 222 dyndns delete Delete a dynamic DNS client. see page 223 dyndns flush Delete all dynamic DNS clients. see page 224 dyndns host add Add a fully qualified host name see page 225 dyndns host delete Delete a host name...

  • Page 222: Dyndns Add

    dyndns Commands dyndns add Add a dynamic DNS client. SYNTAX: dyndns add name = <string> where: name The dynamic DNS client name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 223: Dyndns Delete

    dyndns Commands dyndns delete Delete a dynamic DNS client. SYNTAX: dyndns delete name = <> where: name The dynamic DNS client name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 224: Dyndns Flush

    dyndns Commands dyndns flush Delete all dynamic DNS clients. E-DOC-CTC-20071119-0014 v2.0...

  • Page 225: Dyndns Host Add

    dyndns Commands dyndns host add Add a fully qualified host name SYNTAX: dyndns host add group = <> name = <string> where: group The dynamic DNS host group. REQUIRED name The name of an IP host to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 226: Dyndns Host Delete

    dyndns Commands dyndns host delete Delete a host name SYNTAX: dyndns host delete name = <> where: name The name of an IP host to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 227: Dyndns Host Flush

    dyndns Commands dyndns host flush Delete all host names E-DOC-CTC-20071119-0014 v2.0...

  • Page 228: Dyndns Host List

    dyndns Commands dyndns host list List all host names E-DOC-CTC-20071119-0014 v2.0...

  • Page 229: Dyndns List

    dyndns Commands dyndns list List all dynamic DNS clients. E-DOC-CTC-20071119-0014 v2.0...

  • Page 230: Dyndns Modify

    dyndns Commands dyndns modify Modify a dynamic DNS client. SYNTAX: dyndns modify name = <> [intf = <{Internet}>] [user = <string>] [password = <password>] [group = <>] [mx = <string>] [backmx = <{disabled|enabled}>] [wildcard = <{disabled|enabled}>] [offline = <{disabled|enabled}>] [service = <{dyndns|statdns|custom|No-IP| DtDNS|gnudip}>] [status = <{disabled|enabled}>] [trace = <{disabled|enabled}>]...

  • Page 231: Dyndns Service List

    dyndns Commands dyndns service list List all dynamic DNS services E-DOC-CTC-20071119-0014 v2.0...

  • Page 232: Dyndns Service Modify

    dyndns Commands dyndns service modify Modify specific dynamic DNS service settings SYNTAX: dyndns service modify name = <{dyndns|statdns|custom|No-IP|DtDNS| gnudip}> [server = <string>] [port = <{at-echo|at-nbp|at-rtmp|at-zis|auth| bgp|biff|bootpc|bootps|chargen|data|gopher| h323|httpproxy|ike|ils|imap2|imap3|ingres- net|ipcserver|ipx|irc-o|irc-u|kerberos|ldap| login|netbios-dgm|netbios-ns|netbios-ssn| netwall|netware-ip|new-rwho|nfds|nicname|nntp| ntalk|ntp|pcmail-srv|pop2|pop3|printer|qotd| realaudio|rip|rtelnet|rtsp|sip|smtp|snmp| snmptrap|snpp|sntp|sql*net|sql-net|sqlserv| sunrpc|syslog|systat|talk|telnet|...} or number>] [request = <string>] [updateinterval = <number{0-2097120}>] [retryinterval = <number{0-600}>] [max_retry = <number{1-5}>] where:...

  • Page 233: Env Commands

    env Commands env Commands env flush Remove all non-system environment see page 234 variables. env get Gets an environment variable. see page 235 env list List all environment variables. see page 236 env set Sets an environment variable. see page 237 env unset Deletes an environment variable.

  • Page 234: Env Flush

    env Commands env flush Remove all non-system environment variables. E-DOC-CTC-20071119-0014 v2.0...

  • Page 235: Env Get

    env Commands env get Gets an environment variable. SYNTAX: env get var = <{_ETHERNET|_COMPANY_NAME|_COMPANY_URL| _PROD_NAME|_PROD_URL|_PROD_SERIAL_NBR|_FII| _BUILD|_BOOTLOADER_VERSION|_BUILDVARIANT| _MODEM_ACCESS_CODE|__SEC_MODEM_ACCESS_CODE| _OUI|_CUSTOVARIANT|_PHYSLAYERTYPE|_BUILDNAME| _PRL|_FIA|_BOARD_NAME|_COMPANY_ID|_COPYRIGHT| _TPVERSION|_PROD_ID|_PROD_FRIENDLY_NAME| _VARIANT_ID|_VARIANT_FRIENDLY_NAME| _MACADDR|_LMACADDR|_WL0_WEPKEY_SERIAL| _WL0_WPAKEY_SERIAL|_WL0_SSID_SERIAL| _WL0_SSID_PREFIX|_WL_VERSION}> where: The name of the variable. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 236: Env List

    env Commands env list List all environment variables. E-DOC-CTC-20071119-0014 v2.0...

  • Page 237: Env Set

    env Commands env set Sets an environment variable. SYNTAX: env set var = <string> value = <translated string> where: The name of the variable. REQUIRED value A translated quoted string defining the variable REQUIRED value. E-DOC-CTC-20071119-0014 v2.0...

  • Page 238: Env Unset

    env Commands env unset Deletes an environment variable. SYNTAX: env unset var = <{_ETHERNET|_COMPANY_NAME|_COMPANY_URL| _PROD_NAME|_PROD_URL|_PROD_SERIAL_NBR|_FII| _BUILD|_BOOTLOADER_VERSION|_BUILDVARIANT| _MODEM_ACCESS_CODE|__SEC_MODEM_ACCESS_CODE| _OUI|_CUSTOVARIANT|_PHYSLAYERTYPE|_BUILDNAME| _PRL|_FIA|_BOARD_NAME|_COMPANY_ID|_COPYRIGHT| _TPVERSION|_PROD_ID|_PROD_FRIENDLY_NAME| _VARIANT_ID|_VARIANT_FRIENDLY_NAME| _MACADDR|_LMACADDR|_WL0_WEPKEY_SERIAL| _WL0_WPAKEY_SERIAL|_WL0_SSID_SERIAL| _WL0_SSID_PREFIX|_WL_VERSION}> where: The name of the variable. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 239: Eth Commands

    eth Commands eth Commands eth bridge add Add a new bridge instance. see page 245 eth bridge clear Clear bridge statistics. see page 246 eth bridge config Modify/Display the bridge see page 247 configuration settings. eth bridge delete Delete a bridge instance. see page 248 eth bridge dynvlan actlist Display the active MAC entries for the...
  • Page 240 eth Commands eth bridge ifattach Attach a bridge interface. see page 268 eth bridge ifconfig Modify a bridge interface see page 269 configuration. eth bridge ifdelete Delete a bridge interface. see page 271 eth bridge ifdetach Detach a bridge interface. see page 272 eth bridge ifflush flush the bridge interfaces: detach/...
  • Page 241 eth Commands eth bridge unknownvlan ifdelete Delete bridge interface from unknown see page 291 'VLAN'. eth bridge unknownvlan iflist Display all interfaces of the unknown see page 292 'VLAN'. eth bridge vlan ifadd Add bridge interface to virtual LAN. see page 293 eth bridge vlan ifconfig Modify bridge interface from virtual see page 294...
  • Page 242 eth Commands eth dot1x port list List PAEs. see page 318 eth filter operand add Add a filter operand. see page 319 eth filter operand config Set the operand to a certain type (will see page 320 reset content first). eth filter operand delete Delete a filter operand.
  • Page 243 eth Commands eth ifconfig Modify an ETH interface. see page 347 eth ifdelete Delete an ETH interface. see page 348 eth ifdetach Detach an ETH interface. see page 349 eth iflist Display the ETH interfaces. see page 350 eth switch group flush To set all ports to the default settings see page 351 (all ports in group 0).
  • Page 244 eth Commands eth vlan flush Flush all virtual LAN's. see page 372 eth vlan list Display all virtual LAN's. see page 373 E-DOC-CTC-20071119-0014 v2.0...

  • Page 245: Eth Bridge Add

    eth Commands eth bridge add Add a new bridge instance. SYNTAX: eth bridge add brname = <string> where: brname The name of the new bridge instance. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 246: Eth Bridge Clear

    eth Commands eth bridge clear Clear bridge statistics. SYNTAX: eth bridge clear [brname = <{bridge}>] where: brname The name of a bridge instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 247: Eth Bridge Config

    eth Commands eth bridge config Modify/Display the bridge configuration settings. SYNTAX: eth bridge config [brname = <{bridge}>] [age = <number{10-1000000}>] [filter = <{none|no_WAN_broadcast}>] [vlan = <{disabled|enabled}>] [precedencemap = <string>] where: brname The name of a bridge instance. OPTIONAL The lifetime (in seconds) of a dynamically OPTIONAL learned MAC address.

  • Page 248: Eth Bridge Delete

    eth Commands eth bridge delete Delete a bridge instance. SYNTAX: eth bridge delete brname = <{bridge}> where: brname The name of a bridge instance. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 249: Eth Bridge Dynvlan Actlist

    eth Commands eth bridge dynvlan actlist Display the active MAC entries for the dynamic VLAN membership. E-DOC-CTC-20071119-0014 v2.0...

  • Page 250: Eth Bridge Dynvlan Add

    eth Commands eth bridge dynvlan add Add a dynamic VLAN membership entry. SYNTAX: eth bridge dynvlan add [id = <number{0-100000}>] hwaddr = <masked-hardware-address> vlan = <{default}> [remvlan = <{default}>] where: The id of the dynamic VLAN membership entry. OPTIONAL hwaddr The (masked) ethernet MAC address of the REQUIRED dynamic VLAN membership entry.

  • Page 251: Eth Bridge Dynvlan Config

    eth Commands eth bridge dynvlan config Modify the dynamic VLAN membership configuration. SYNTAX: eth bridge dynvlan config [timeout = <number{0-100000}>] where: timeout Timeout in seconds for the dynamic entries. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 252: Eth Bridge Dynvlan Delete

    eth Commands eth bridge dynvlan delete Delete a dynamic VLAN membership entry. SYNTAX: eth bridge dynvlan delete id = <number{0-100000}> where: REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 253: Eth Bridge Dynvlan Flush

    eth Commands eth bridge dynvlan flush Flush all dynamic VLAN membership entries. E-DOC-CTC-20071119-0014 v2.0...

  • Page 254: Eth Bridge Dynvlan List

    eth Commands eth bridge dynvlan list Display a dynamic VLAN membership entry. E-DOC-CTC-20071119-0014 v2.0...

  • Page 255: Eth Bridge Filter Add

    eth Commands eth bridge filter add Add a filter. SYNTAX: eth bridge filter add brname = <{bridge}> name = <string> [filter = <{}>] where: brname The name of an bridge. REQUIRED name The name of the filter. REQUIRED filter Ethernet filter to used OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 256: Eth Bridge Filter Attach

    eth Commands eth bridge filter attach Enable a filter. SYNTAX: eth bridge filter attach brname = <{bridge}> name = <{}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 257: Eth Bridge Filter Config

    eth Commands eth bridge filter config Change filter configuration SYNTAX: eth bridge filter config brname = <{bridge}> name = <{}> [filter = <{}>] where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED filter Ethernet filter to used OPTIONAL...

  • Page 258: Eth Bridge Filter Delete

    eth Commands eth bridge filter delete Delete a filter. SYNTAX: eth bridge filter delete brname = <{bridge}> name = <{}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 259: Eth Bridge Filter Detach

    eth Commands eth bridge filter detach Disable a filter. SYNTAX: eth bridge filter detach brname = <{bridge}> name = <{}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 260: Eth Bridge Filter Forwarding

    eth Commands eth bridge filter forwarding Action: set forwarding configuration. SYNTAX: eth bridge filter forwarding brname = <{bridge}> name = <{}> mode = <{ToFwdIntfsOnly|AlsoToFwdIntfs| NotToFwdIntfs|Drop}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED mode The forwarding type to set.

  • Page 261: Eth Bridge Filter Fwdintfadd

    eth Commands eth bridge filter fwdintfadd Add Forwarding interface: filter action. SYNTAX: eth bridge filter fwdintfadd brname = <{bridge}> name = <{}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED intf The name of the bridge interface to add.

  • Page 262: Eth Bridge Filter Fwdintfdel

    eth Commands eth bridge filter fwdintfdel Remove Forwarding interface: filter action. SYNTAX: eth bridge filter fwdintfdel brname = <{bridge}> name = <{}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED intf The name of the bridge interface to remove.

  • Page 263: Eth Bridge Filter Ifadd

    eth Commands eth bridge filter ifadd Connect an interface with a filter. SYNTAX: eth bridge filter ifadd brname = <{bridge}> name = <{}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED intf The name of the bridge interface to add.

  • Page 264: Eth Bridge Filter Ifdel

    eth Commands eth bridge filter ifdel Remove an interface from a filter. SYNTAX: eth bridge filter ifdel brname = <{bridge}> name = <{}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> where: brname The name of an bridge. REQUIRED name The name of the filter to configure. REQUIRED intf The name of the bridge interface to remove.

  • Page 265: Eth Bridge Filter List

    eth Commands eth bridge filter list Display the bridge filters. SYNTAX: eth bridge filter list brname = <{bridge}> [name = <{}>] [expand = <{disabled|enabled}>] where: brname The name of an bridge. REQUIRED name The name of an filter. OPTIONAL expand Expanded listing.

  • Page 266: Eth Bridge Flush

    eth Commands eth bridge flush Flush all bridge instances with their interfaces and properties. SYNTAX: eth bridge flush [brname = <{bridge}>] where: brname The name of a bridge instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 267: Eth Bridge Ifadd

    eth Commands eth bridge ifadd Add a new bridge interface. SYNTAX: eth bridge ifadd [brname = <{bridge}>] intf = <string> where: brname The name of a bridge instance. OPTIONAL intf The new bridge interface name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 268: Eth Bridge Ifattach

    eth Commands eth bridge ifattach Attach a bridge interface. SYNTAX: eth bridge ifattach [brname = <{bridge}>] intf = <{}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 269: Eth Bridge Ifconfig

    eth Commands eth bridge ifconfig Modify a bridge interface configuration. SYNTAX: eth bridge ifconfig [brname = <{bridge}>] intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> [dest = <{}>] [portstate = <{disabled|learning|forwarding}>] [retry = <number{0-65535}>] [priotag = <{disabled|enabled}>] [vlan = <{default}>] [prioconfig = <{disabled|overwrite|increase}>] [ipprec = <{disabled|precedence|dscp}>] [priority = <number{0-7}>] [regenprio = <string>] [ingressfiltering = <{disabled|enabled}>]...
  • Page 270 eth Commands regenprio The priority regeneration table for tagged OPTIONAL ingress packets. ingressfiltering Enable/disable discard of tagged ingress packets OPTIONAL if the interface is not part of the VLAN. acceptvlanonly Enable/disable receipt of tagged ingress packets. OPTIONAL mcastfilter Enable/disable discard of multicast packets for OPTIONAL this interface.

  • Page 271: Eth Bridge Ifdelete

    eth Commands eth bridge ifdelete Delete a bridge interface. SYNTAX: eth bridge ifdelete [brname = <{bridge}>] intf = <{ethport1|ethport2|ethport3|ethport4| WLAN}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 272: Eth Bridge Ifdetach

    eth Commands eth bridge ifdetach Detach a bridge interface. SYNTAX: eth bridge ifdetach [brname = <{bridge}>] intf = <{ethport1|ethport2|ethport3|ethport4| WLAN}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 273: Eth Bridge Ifflush

    eth Commands eth bridge ifflush flush the bridge interfaces: detach/delete all interfaces. SYNTAX: eth bridge ifflush [brname = <{bridge}>] where: brname The name of a bridge instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 274: Eth Bridge Iflist

    eth Commands eth bridge iflist Display the current bridge interfaces. SYNTAX: eth bridge iflist [brname = <{bridge}>] [intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}>] where: brname The name of a bridge instance. OPTIONAL intf The name of a bridge interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 275: Eth Bridge Igmpsnooping Clear

    eth Commands eth bridge igmpsnooping clear Clear snooping statistics. SYNTAX: eth bridge igmpsnooping clear [brname = <{bridge}>] [intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}>] where: brname The name of a bridge instance. OPTIONAL intf The bridge interface currently to be cleared. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 276: Eth Bridge Igmpsnooping Config

    eth Commands eth bridge igmpsnooping config Configure bridge instance IGMP Snooping flags. SYNTAX: eth bridge igmpsnooping config [brname = <{bridge}>] [state = <{disabled|enabled}>] [floodrp = <{disabled|enabled}>] [floodmcast = <{disabled|enabled}>] where: brname The name of a bridge instance. OPTIONAL state Enable/Disable the IGMP Snooping. OPTIONAL floodrp Enable/Disable flooding reports to all ports.

  • Page 277: Eth Bridge Igmpsnooping Ifconfig

    eth Commands eth bridge igmpsnooping ifconfig Configure bridge interface IGMP snooping flags and mode. SYNTAX: eth bridge igmpsnooping [brname = <{bridge}>] ifconfig intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> [portmode = <{Host|Router|Auto}>] [fastleave = <{disabled|enabled}>] [exptrack = <{disabled|enabled}>] [mrdp = <{disabled|enabled}>] [rgmp = <{disabled|enabled}>] where: brname The bridge instance currently to be configured.

  • Page 278: Eth Bridge Igmpsnooping Iflist

    eth Commands eth bridge igmpsnooping iflist Display bridge interface IGMP status. SYNTAX: eth bridge igmpsnooping iflist [brname = <{bridge}>] [intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}>] where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 279: Eth Bridge Igmpsnooping List

    eth Commands eth bridge igmpsnooping list Display bridge instance snooped groups. SYNTAX: eth bridge igmpsnooping list [brname = <{bridge}>] where: brname The name of a bridge instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 280: Eth Bridge List

    eth Commands eth bridge list Display the current bridge instances. SYNTAX: eth bridge list [brname = <{bridge}>] where: brname The name of a bridge instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 281: Eth Bridge Macadd

    eth Commands eth bridge macadd Add a static MAC address to a bridge interface. SYNTAX: eth bridge macadd [brname = <{bridge}>] intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> hwaddr = <hardware-address> [vlan = <{default}>] where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface.

  • Page 282: Eth Bridge Macdelete

    eth Commands eth bridge macdelete Remove a MAC address from the database. SYNTAX: eth bridge macdelete [brname = <{bridge}>] hwaddr = <hardware-address> [vlan = <{default}>] where: brname The name of a bridge instance. OPTIONAL hwaddr The ethernet MAC address of the entry. REQUIRED vlan The VLAN.

  • Page 283: Eth Bridge Maclist

    eth Commands eth bridge maclist Display the MAC address database. SYNTAX: eth bridge maclist [brname = <{bridge}>] where: brname The name of a bridge instance. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 284: Eth Bridge Rule Add

    eth Commands eth bridge rule add Add a new constraint to the VLAN learning system. SYNTAX: eth bridge rule add type = <{shared|independant}> vlan = <{default}> [vlan2 = <{default}>] [isi = <number{0-32}>] where: type Type of constraint. REQUIRED vlan The VLAN where the constraint belongs to. REQUIRED vlan2 The second VLAN for a shared constraint.

  • Page 285: Eth Bridge Rule Delete

    eth Commands eth bridge rule delete Delete a constraint from the VLAN learning system. SYNTAX: eth bridge rule delete index = <number{0-32}> where: index Index of the constraint. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 286: Eth Bridge Rule Flush

    eth Commands eth bridge rule flush Flush all constraints from the VLAN learning system. E-DOC-CTC-20071119-0014 v2.0...

  • Page 287: Eth Bridge Rule List

    eth Commands eth bridge rule list Display all constraints from the VLAN learning system. E-DOC-CTC-20071119-0014 v2.0...

  • Page 288: Eth Bridge Select

    eth Commands eth bridge select Select the default bridge for configuring interfaces from (if not setting SYNTAX: eth bridge select brname = <{bridge}> where: brname The name of a bridge instance. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 289: Eth Bridge Unknownvlan Ifadd

    eth Commands eth bridge unknownvlan ifadd Add bridge interface to unknown 'VLAN'. SYNTAX: eth bridge unknownvlan ifadd [brname = <{bridge}>] intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> [untagged = <{disabled|enabled}>] where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface to add to the REQUIRED unknown 'VLAN'.

  • Page 290: Eth Bridge Unknownvlan Ifconfig

    eth Commands eth bridge unknownvlan ifconfig Modify bridge interface from unknown 'VLAN'. SYNTAX: eth bridge unknownvlan [brname = <{bridge}>] ifconfig intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> [untagged = <{disabled|enabled}>] where: brname The name of a bridge instance. OPTIONAL intf The bridge interface from the unknown 'VLAN' REQUIRED to configure.

  • Page 291: Eth Bridge Unknownvlan Ifdelete

    eth Commands eth bridge unknownvlan ifdelete Delete bridge interface from unknown 'VLAN'. SYNTAX: eth bridge unknownvlan [brname = <{bridge}>] ifdelete intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface to remove from REQUIRED the unknown 'VLAN'.

  • Page 292: Eth Bridge Unknownvlan Iflist

    eth Commands eth bridge unknownvlan iflist Display all interfaces of the unknown 'VLAN'. E-DOC-CTC-20071119-0014 v2.0...

  • Page 293: Eth Bridge Vlan Ifadd

    eth Commands eth bridge vlan ifadd Add bridge interface to virtual LAN. SYNTAX: eth bridge vlan ifadd name = <{default}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> [untagged = <{disabled|enabled}>] where: name The VLAN name. REQUIRED intf The name of the bridge interface to add to the REQUIRED VLAN.

  • Page 294: Eth Bridge Vlan Ifconfig

    eth Commands eth bridge vlan ifconfig Modify bridge interface from virtual LAN. SYNTAX: eth bridge vlan ifconfig name = <{default}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> untagged = <{disabled|enabled}> where: name The VLAN name. REQUIRED intf The bridge interface from the VLAN to configure. REQUIRED untagged Enable/disable interface as untagged for this...

  • Page 295: Eth Bridge Vlan Ifdelete

    eth Commands eth bridge vlan ifdelete Delete bridge interface from virtual LAN. SYNTAX: eth bridge vlan ifdelete name = <{default}> intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> where: name The VLAN name. REQUIRED intf The name of the bridge interface to remove from REQUIRED the VLAN.

  • Page 296: Eth Bridge Vlan Iflist

    eth Commands eth bridge vlan iflist Display all vitual LAN's. E-DOC-CTC-20071119-0014 v2.0...

  • Page 297: Eth Bridge Xtratag Add

    eth Commands eth bridge xtratag add Add an extra tag mapping entry. SYNTAX: eth bridge xtratag add [brname = <{bridge}>] intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> innervid = <{[1-4094]|all|}> outervid = <{[1-4094]|notag|transparent|}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface.

  • Page 298: Eth Bridge Xtratag Config

    eth Commands eth bridge xtratag config Configure an extra tag mapping entry. SYNTAX: eth bridge xtratag config [brname = <{bridge}>] intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> innervid = <{[1-4094]|all|}> outervid = <{[1-4094]|notag|transparent|}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface.

  • Page 299: Eth Bridge Xtratag Delete

    eth Commands eth bridge xtratag delete Delete an extra tag mapping entry. SYNTAX: eth bridge xtratag delete [brname = <{bridge}>] intf = <{OBC|ethport1|ethport2|ethport3| ethport4|WLAN}> innervid = <{[1-4094]|all|}> where: brname The name of a bridge instance. OPTIONAL intf The name of the bridge interface. REQUIRED innervid The inner VLAN id [all,1-4094] (all = all inner vid...

  • Page 300: Eth Bridge Xtratag Flush

    eth Commands eth bridge xtratag flush Flush all extra tag mapping entries. E-DOC-CTC-20071119-0014 v2.0...

  • Page 301: Eth Bridge Xtratag List

    eth Commands eth bridge xtratag list Display all extra tag mapping entries. E-DOC-CTC-20071119-0014 v2.0...

  • Page 302: Eth Device Ifconfig

    eth Commands eth device ifconfig Configure ethernet interface. SYNTAX: eth device ifconfig intf = <{ethif1|ethif2|ethif3|ethif4|wlif1}> [type = <{auto|10BaseTHD|10BaseTFD|100BaseTHD| 100BaseTFD} or number>] [state = <{enabled|disabled}>] where: intf The name of a physical interface. REQUIRED type The ethernet type. OPTIONAL state The interface state. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 303: Eth Device Iflist

    eth Commands eth device iflist Show status of ethernet interfaces. E-DOC-CTC-20071119-0014 v2.0...

  • Page 304: Eth Dot1X Creds Add

    eth Commands eth dot1x creds add Add a new credentials object. SYNTAX: eth dot1x creds add name = <string> type = <{EAP-MD5}> username = <string> password = <password> where: name Name of the credentials. REQUIRED type Type of credentials. REQUIRED username The username for remote EAP-MD5 REQUIRED...

  • Page 305: Eth Dot1X Creds Delete

    eth Commands eth dot1x creds delete Delete a credentials object. SYNTAX: eth dot1x creds delete name = <{}> where: name Name of the credentials. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 306: Eth Dot1X Creds List

    eth Commands eth dot1x creds list List credentials objects. SYNTAX: eth dot1x creds list [name = <{}>] where: name The credentials object to list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 307: Eth Dot1X Creds Modify

    eth Commands eth dot1x creds modify Edit an existing credentials object. SYNTAX: eth dot1x creds modify name = <{}> type = <{EAP-MD5}> [username = <string>] [password = <password>] where: name The credentials object to modify. REQUIRED type Type of credentials. REQUIRED username The username for remote EAP-MD5...

  • Page 308: Eth Dot1X Flush

    eth Commands eth dot1x flush Flush entire 802.1X configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 309: Eth Dot1X Link Add

    eth Commands eth dot1x link add Add 802.1X support to an interface. SYNTAX: eth dot1x link add intf = <{ethoa_8_35}> [maxpeers = <number>] [unknowns = <{enabled|disabled}>] where: intf Interface to support 802.1X. REQUIRED maxpeers Maximum number of peers (ports) to support. OPTIONAL unknowns Permit authentication against unknown peers.

  • Page 310: Eth Dot1X Link Attach

    eth Commands eth dot1x link attach Attach an 802.1X interface. SYNTAX: eth dot1x link attach intf = <{}> where: intf The 802.1X link to attach. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 311: Eth Dot1X Link Config

    eth Commands eth dot1x link config Configure 802.1X settings on an interface. SYNTAX: eth dot1x link config intf = <{}> [maxpeers = <number>] [unknowns = <{enabled|disabled}>] where: intf The 802.1X link to configure. REQUIRED maxpeers Maximum number of peers (ports) to support. OPTIONAL unknowns Permit authentication against unknown peers.

  • Page 312: Eth Dot1X Link Delete

    eth Commands eth dot1x link delete Remove 802.1X support from an interface. SYNTAX: eth dot1x link delete intf = <{}> where: intf The 802.1X link to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 313: Eth Dot1X Link Detach

    eth Commands eth dot1x link detach Detach an 802.1X interface. SYNTAX: eth dot1x link detach intf = <{}> where: intf The 802.1X link to detach. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 314: Eth Dot1X Link List

    eth Commands eth dot1x link list List 802.1X-enabled interfaces. SYNTAX: eth dot1x link list [intf = <{}>] where: intf The 802.1X link to list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 315: Eth Dot1X Port Add

    eth Commands eth dot1x port add Add a new PAE. SYNTAX: eth dot1x port add name = <string> [intf = <{}>] [mode = <{Supplicant}>] [credentials = <{}>] [pctrl = <{Auto|ForceAuthorized| ForceUnauthorized}>] [mac = <hardware-address>] where: name Name of the port. REQUIRED intf The link the port controls.

  • Page 316: Eth Dot1X Port Config

    eth Commands eth dot1x port config Configure an existing PAE. SYNTAX: eth dot1x port config name = <{}> [intf = <{}>] [mode = <{Supplicant}>] [credentials = <{}>] [pctrl = <{Auto|ForceAuthorized| ForceUnauthorized}>] [mac = <hardware-address>] where: name Name of the port. REQUIRED intf The link the port controls.

  • Page 317: Eth Dot1X Port Delete

    eth Commands eth dot1x port delete Delete a PAE. SYNTAX: eth dot1x port delete name = <{}> where: name The name of the port. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 318: Eth Dot1X Port List

    eth Commands eth dot1x port list List PAEs. SYNTAX: eth dot1x port list [name = <{}>] where: name The name of the controlled port. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 319: Eth Filter Operand Add

    eth Commands eth filter operand add Add a filter operand. SYNTAX: eth filter operand add operand = <string> where: operand The name of the new operand operand. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 320: Eth Filter Operand Config

    eth Commands eth filter operand config Set the operand to a certain type (will reset content first). SYNTAX: eth filter operand config operand = <{}> type = <{CheckDAClass|CheckFrameClass| CheckVLANPriority|CheckVID|CheckIPProto| CheckSize|Match|Modify|CheckCheckSum| UpdateCheckSum}> operator = <{Equal|Less|LessEqual|InSet}> protocollevel = <{EthernetFrame|Protocol| EthernetPayload|ULPHeader|ULPPayload}> length = <number> mask = <string>...
  • Page 321 eth Commands offset At which offset from protocol level in bytes the REQUIRED Match/Modify action should start (in bytes). priority The VLAN priority to filter on. OPTIONAL size The size of the frame at this protocol level. REQUIRED The VID to filter on. OPTIONAL protocol The protocol level of the checksum.

  • Page 322: Eth Filter Operand Delete

    eth Commands eth filter operand delete Delete a filter operand. SYNTAX: eth filter operand delete operand = <{}> where: operand The name of the operand to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 323: Eth Filter Operand Flush

    eth Commands eth filter operand flush Remove all filter operands (this will only delete the ones not in use: flush E-DOC-CTC-20071119-0014 v2.0...

  • Page 324: Eth Filter Operand Frameclassadd

    eth Commands eth filter operand frameclassadd Add another frameclass in the set. SYNTAX: eth filter operand operand = <{}> frameclassadd frameclass = <{Eth2|SNAPEType|SNAP8021H| SNAPOther|LLCNLPID|LLCOther}> where: operand The name of an operand. REQUIRED frameclass The frame class to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 325: Eth Filter Operand Frameclassdelete

    eth Commands eth filter operand frameclassdelete Delete a frameclasse from the set. SYNTAX: eth filter operand operand = <{}> frameclassdelete frameclass = <{Eth2|SNAPEType|SNAP8021H| SNAPOther|LLCNLPID|LLCOther}> where: operand The name of an operand. REQUIRED frameclass The frameclass to remove. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 326: Eth Filter Operand Ipprotoadd

    eth Commands eth filter operand ipprotoadd Add another ip protocol in the set. SYNTAX: eth filter operand ipprotoadd operand = <{}> ipprotocol = <number{0-255}> where: operand The name of an operand. REQUIRED ipprotocol The IP protocol to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 327: Eth Filter Operand Ipprotodelete

    eth Commands eth filter operand ipprotodelete Delete a ip protocol from the set. SYNTAX: eth filter operand operand = <{}> ipprotodelete ipprotocol = <{}> where: operand The name of an operand. REQUIRED ipprotocol The IP protocol to remove. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 328: Eth Filter Operand List

    eth Commands eth filter operand list Display the filter operands. SYNTAX: eth filter operand list [operand = <{}>] [expand = <{disabled|enabled}>] where: operand The name of an operand. OPTIONAL expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 329: Eth Filter Operand Priorityadd

    eth Commands eth filter operand priorityadd Add another priority in the set. SYNTAX: eth filter operand priorityadd operand = <{}> priority = <number{0-7}> where: operand The name of an operand. REQUIRED priority The vlan priority to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 330: Eth Filter Operand Prioritydelete

    eth Commands eth filter operand prioritydelete Delete a ip priority from the set. SYNTAX: eth filter operand operand = <{}> prioritydelete priority = <{}> where: operand The name of an operand. REQUIRED priority The vlan priority to remove. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 331: Eth Filter Operand Reset

    eth Commands eth filter operand reset Reset an operand to its default initial state (removes all content, set to SYNTAX: eth filter operand reset operand = <{}> where: operand The name of an operand. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 332: Eth Filter Operand Vidadd

    eth Commands eth filter operand vidadd Add another VID in the set. SYNTAX: eth filter operand vidadd operand = <{}> vid = <number{1-4095}> where: operand The name of an operand. REQUIRED The VID to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 333: Eth Filter Operand Viddelete

    eth Commands eth filter operand viddelete Delete a VID from the set. SYNTAX: eth filter operand viddelete operand = <{}> vid = <{}> where: operand The name of an operand. REQUIRED The VID to remove. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 334: Eth Filter Template Add

    eth Commands eth filter template add Add a filter. SYNTAX: eth filter template add filter = <string> [location = <{Ingress|Egress|VID|Priority}>] [level = <number{0-65535}>] [tracing = <{disabled|enabled}>] [mark = <{disabled|enabled}>] where: filter The name of the filter. REQUIRED location The filter location. OPTIONAL level The filter level (lower level is processed first =...

  • Page 335: Eth Filter Template Config

    eth Commands eth filter template config Config a filter. SYNTAX: eth filter template config filter = <{}> [location = <{Ingress|Egress|VID|Priority}>] [level = <number{0-65535}>] [tracing = <{disabled|enabled}>] [mark = <{disabled|enabled}>] where: filter The name of an filter. REQUIRED location The filter location. OPTIONAL level The filter level (lower level is processed first =...

  • Page 336: Eth Filter Template Delete

    eth Commands eth filter template delete Delete a filter. SYNTAX: eth filter template delete filter = <{}> where: filter The name of an filter. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 337: Eth Filter Template Flush

    eth Commands eth filter template flush Remove all filters. E-DOC-CTC-20071119-0014 v2.0...

  • Page 338: Eth Filter Template List

    eth Commands eth filter template list Display the filters. SYNTAX: eth filter template list [filter = <{}>] [expand = <{disabled|enabled}>] where: filter The name of an filter. OPTIONAL expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 339: Eth Filter Template Ruleadd

    eth Commands eth filter template ruleadd Connect an operand rule with a filter. SYNTAX: eth filter template ruleadd filter = <{}> operand = <{}> [negate = <{disabled|enabled}>] [order = <number{-100-100}>] [operator = <{Ignore|AND|OR}>] where: filter The name of an filter. REQUIRED operand The name of the operand to connect with.

  • Page 340: Eth Filter Template Ruledel

    eth Commands eth filter template ruledel Remove an operand rule from a filter. SYNTAX: eth filter template ruledel filter = <{}> ruleid = <{}> where: filter The name of an filter. REQUIRED ruleid The name of the operand to remove. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 341: Eth Filter Template Rulemodify

    eth Commands eth filter template rulemodify Modify an operand rule from a filter. SYNTAX: eth filter template rulemodify filter = <{}> ruleid = <{}> [operand = <{}>] [negate = <{disabled|enabled}>] [order = <number{-100-100}>] [operator = <{Ignore|AND|OR}>] where: filter The name of an filter. REQUIRED ruleid The name of the operand to remove.

  • Page 342: Eth Filter Template Setpriority

    eth Commands eth filter template setpriority Action: enable/disable priority derivation SYNTAX: eth filter template filter = <{}> setpriority [state = <{disabled|enabled}>] priority = <number{0-15}> where: filter The name of an filter. REQUIRED state Enable/disabled priority derivation for this filters OPTIONAL priority The priority to set in the derivation.

  • Page 343: Eth Filter Template Setvid

    eth Commands eth filter template setvid Action: enable/disable VID derivation SYNTAX: eth filter template setvid filter = <{}> [state = <{disabled|enabled}>] vid = <number{1-4095}> where: filter The name of an filter. REQUIRED state Enable/disabled VID derivation for this filters OPTIONAL The VID to set in the derivation.

  • Page 344: Eth Flush

    eth Commands eth flush Flush all ETH interfaces. E-DOC-CTC-20071119-0014 v2.0...

  • Page 345: Eth Ifadd

    eth Commands eth ifadd Create a new ETH interface. SYNTAX: eth ifadd intf = <string> where: intf The name for the new ETH interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 346: Eth Ifattach

    eth Commands eth ifattach Attach an ETH interface. SYNTAX: eth ifattach intf = <{}> where: intf The name of the ETH interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 347: Eth Ifconfig

    eth Commands eth ifconfig Modify an ETH interface. SYNTAX: eth ifconfig intf = <{ethoa_8_35}> [dest = <{bridge|ethoa_8_35}>] [retry = <number{0-65535}>] [wan = <{disabled|enabled}>] [priotag = <{disabled|enabled}>] [vlan = <{default}>] where: intf The name of the ETH interface to configure. REQUIRED dest The destination interface for this ETH interface.

  • Page 348: Eth Ifdelete

    eth Commands eth ifdelete Delete an ETH interface. SYNTAX: eth ifdelete intf = <{}> where: intf The name of the ETH interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 349: Eth Ifdetach

    eth Commands eth ifdetach Detach an ETH interface. SYNTAX: eth ifdetach intf = <{}> where: intf The name of the ETH interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 350: Eth Iflist

    eth Commands eth iflist Display the ETH interfaces. SYNTAX: eth iflist [intf = <{ethoa_8_35}>] where: intf The name of an ETH interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 351: Eth Switch Group Flush

    eth Commands eth switch group flush To set all ports to the default settings (all ports in group 0). E-DOC-CTC-20071119-0014 v2.0...

  • Page 352: Eth Switch Group List

    eth Commands eth switch group list List all configured groups. E-DOC-CTC-20071119-0014 v2.0...

  • Page 353: Eth Switch Group Move

    eth Commands eth switch group move Move a specified port to a specified group. SYNTAX: eth switch group move group = <number{0-3}> port = <number{1-4}> where: group The group id. REQUIRED port The port. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 354: Eth Switch Info

    eth Commands eth switch info Display switch capabilities E-DOC-CTC-20071119-0014 v2.0...

  • Page 355: Eth Switch Mirror Capture

    eth Commands eth switch mirror capture Define the specified port to be the Mirror Capture Port. SYNTAX: eth switch mirror capture port = <number{1-4}> where: port The port. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 356: Eth Switch Mirror Egress

    eth Commands eth switch mirror egress Enable or disable the specified port to be a Transmitted Port Mirroring. SYNTAX: eth switch mirror egress port = <number{1-4}> [state = <{enabled|disabled}>] where: port The port. REQUIRED state Enable/disable state. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 357: Eth Switch Mirror Ingress

    eth Commands eth switch mirror ingress Enable or disable the specified port to be a Received Port Mirroring. SYNTAX: eth switch mirror ingress port = <number{1-4}> [state = <{enabled|disabled}>] where: port The port. REQUIRED state Enable/disable state. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 358: Eth Switch Qos Config

    eth Commands eth switch qos config Configure common qos parameters. SYNTAX: eth switch qos config state = <{enabled|disabled}> [nbrOfQueues = <number{0-4}>] [realtime = <{enabled|disabled}>] where: state Enable/disable QoS. REQUIRED nbrOfQueues Number of queues. OPTIONAL realtime Enable/disable realtime. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 359: Eth Switch Qos Ifconfig

    eth Commands eth switch qos ifconfig Configure per port qos parameters. SYNTAX: eth switch qos ifconfig port = <number{1-4}> mode = <{none|802.1p|high|diffserv}> [flowcontrol = <{disabled|enabled}>] where: port The port. REQUIRED mode Classifier. REQUIRED flowcontrol Enable/disable flow-control. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 360: Eth Switch Qos List

    eth Commands eth switch qos list Display qos configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 361: Eth Switch Qos Weights

    eth Commands eth switch qos weights Configure the queue weights. SYNTAX: eth switch qos weights queue0 = <number{0-100}> queue1 = <number{0-100}> queue2 = <number{0-100}> queue3 = <number{0-100}> where: queue0 Weight of queue 0 in WFQ (in %). REQUIRED queue1 Weight of queue 1 in WFQ (in %). REQUIRED queue2 Weight of queue 2 in WFQ (in %).

  • Page 362: Eth Switch Shaper Config

    eth Commands eth switch shaper config Configure common ingress shaper parameters. SYNTAX: eth switch shaper config shaper = <number{0--1}> [unicast = <{enabled|disabled}>] [multicast = <{enabled|disabled}>] [broadcast = <{enabled|disabled}>] [control = <{enabled|disabled}>] [unknown = <{enabled|disabled}>] [discard = <{enabled|disabled}>] where: shaper The shaper instance. REQUIRED unicast Shape unicast traffic.

  • Page 363: Eth Switch Shaper Ifconfig

    eth Commands eth switch shaper ifconfig Configure per port shaper parameters. SYNTAX: eth switch shaper ifconfig port = <number{1-4}> ingress = <{enabled|disabled}> shaper = <number{0--1}> [state = <{enabled|disabled}>] [speed = <number{64000-100000000}>] [burstsize = <{}>] where: port The port. REQUIRED ingress Ingress port = enabled;...

  • Page 364: Eth Switch Shaper Iflist

    eth Commands eth switch shaper iflist Display shaper configuration per port. E-DOC-CTC-20071119-0014 v2.0...

  • Page 365: Eth Switch Share Add

    eth Commands eth switch share add Add a port to be shared. SYNTAX: eth switch share add port = <number{1-4}> shared = <number{1-4}> where: port The port. REQUIRED shared The shared port. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 366: Eth Switch Share Delete

    eth Commands eth switch share delete Delete a shared port. SYNTAX: eth switch share delete port = <number{1-4}> shared = <number{1-4}> where: port The port. REQUIRED shared The shared port. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 367: Eth Switch Share List

    eth Commands eth switch share list Display shared ports. E-DOC-CTC-20071119-0014 v2.0...

  • Page 368: Eth Switch Storm Ifconfig

    eth Commands eth switch storm ifconfig Configure per port storm control parameters. SYNTAX: eth switch storm ifconfig port = <number{1-4}> [state = <{enabled|disabled}>] [rate = <{100|200|300|400}>] [burstsize = <number{2-8}>] [broadcast = <{enabled|disabled}>] [multicast = <{enabled|disabled}>] [unknown = <{enabled|disabled}>] where: port The port.

  • Page 369: Eth Switch Storm Iflist

    eth Commands eth switch storm iflist Display storm control configuration per port. E-DOC-CTC-20071119-0014 v2.0...

  • Page 370: Eth Vlan Add

    eth Commands eth vlan add Add a new virtual LAN. SYNTAX: eth vlan add name = <string> vid = <number{2-4094}> [addrule = <{disabled|enabled}>] where: name The new VLAN name. REQUIRED The new VLAN id. REQUIRED addrule Add the default bridge constraint. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 371: Eth Vlan Delete

    eth Commands eth vlan delete Delete a virtual LAN. SYNTAX: eth vlan delete name = <{default}> where: name The VLAN name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 372: Eth Vlan Flush

    eth Commands eth vlan flush Flush all virtual LAN's. E-DOC-CTC-20071119-0014 v2.0...

  • Page 373: Eth Vlan List

    eth Commands eth vlan list Display all virtual LAN's. E-DOC-CTC-20071119-0014 v2.0...
  • Page 374 exit Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 375: Exit Command

    exit Command exit Command Exits this shell. E-DOC-CTC-20071119-0014 v2.0...

  • Page 376: Expr Commands

    expr Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 377: Expr Commands

    expr Commands expr Commands expr add Add an expression. see page 378 expr delete Delete an expression. see page 381 expr flush Flush all expressions. see page 382 expr list List expressions. see page 383 expr modify Modify an expression. see page 384 E-DOC-CTC-20071119-0014 v2.0...

  • Page 378: Expr Add

    expr Commands expr add Add an expression. SYNTAX: expr add name = <{wan|local|lan|tunnel|dmz|guest| private|ssdp_ip|mdap_ip|icmp|igmp|imaps|pop2| pop3|pop3s|smtp|ssh|dns|nntp|ipsec|esp|ah| ike|DiffServ|sip|h323|dhcp|rtsp|ssdp_serv| mdap_serv|syslog}> [type = <{intf|ip|serv|mac}>] mac [!] = <hardware-address> addr [!] = <ip-range> [mask [ = <ip-mask(dotted or cidr)>] [intf [!] = <{loop|Internet|LocalNetwork}>] [intfgroup [!] = <{wan|local|lan|tunnel|dmz| guest} or number>] [tos [!] = <number{0-255}>] [precedence [!] = <{routine|priority|...
  • Page 379 expr Commands ftp-data|gopher|h323|httpproxy|ike|ils|imap2| imap3|ingres-net|ipcserver|ipx|irc-o|irc-u| kerberos|ldap|login|netbios-dgm|netbios-ns| netbios-ssn|netwall|netware-ip|new-rwho|nfds| nicname|nntp|ntalk|ntp|pcmail-srv|pop2|pop3| printer|qotd|realaudio|rip|rtelnet|rtsp|sip| smtp|snmp|snmptrap|snpp|sntp|sql*net|sql- net|sqlserv|sunrpc|syslog|systat|talk|...}or number>] [dstportend = <{at-echo|at-nbp|at-rtmp|at- zis|auth|bgp|biff|bootpc|bootps|finger|ftp| ftp-data|gopher|h323|httpproxy|ike|ils|imap2| imap3|ingres-net|ipcserver|ipx|irc-o|irc-u| kerberos|ldap|login|netbios-dgm|netbios-ns| netbios-ssn|netwall|netware-ip|new-rwho|nfds| nicname|nntp|ntalk|ntp|pcmail-srv|pop2|pop3| printer|qotd|realaudio|rip|rtelnet|rtsp|sip| smtp|snmp|snmptrap|snpp|sntp|sql*net|sql- net|sqlserv|sunrpc|syslog|systat|talk|...}or number>] [icmptype [!] = <{echo-reply|destination- unreachable|source-quench|redirect|exceeded| parameter-problems|timestamp-request| timestamp-reply|information-request| information-reply|address-mask-request| address-mask-reply} or number>] [icmpcode [!] = <number{0-15}>] [icmpcodeend = <number{0-15}>] where: name The name of an expression to add.
  • Page 380 expr Commands precedence [!] The precedence in the IP packet (part of tos). OPTIONAL If a value is preceded by a “!”, it means NOT. dscp [!] The diffserv code point in the IP packet (part of OPTIONAL tos). If a value is preceded by a “!”, it means NOT. proto [!] The IP protocol (name or number) in the IP OPTIONAL...

  • Page 381: Expr Delete

    expr Commands expr delete Delete an expression. SYNTAX: expr delete name = <{wan|local|lan|tunnel|dmz|guest| private|ssdp_ip|mdap_ip|icmp|igmp|imaps|pop2| pop3|pop3s|smtp|ssh|dns|nntp|ipsec|esp|ah| ike|DiffServ|sip|h323|dhcp|rtsp|ssdp_serv| mdap_serv|syslog}> [index = <number>] where: name The name of an expression to delete. REQUIRED index The index of a subexpression. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 382: Expr Flush

    expr Commands expr flush Flush all expressions. E-DOC-CTC-20071119-0014 v2.0...

  • Page 383: Expr List

    expr Commands expr list List expressions. SYNTAX: expr list [name = <{_intf_0|_intf_1|_intf_2|DHCP- R_if_0|wan|local|lan|tunnel|dmz|TELNET_if_0| DNS-S_if_0|PING_RESPONDER_if_0|MDAP_if_0| PPTPD_if_0|PPTPGRE_if_0|_addr_127_0_0_1| _addr_10_0_0_138|_addr_192_168_1_254|private| ssdp_ip|mdap_ip|DHCP-R_sv_0|icmp|igmp|ftp| telnet|http|httpproxy|https|RPC|NBT|SMB|imap| imap3|imap4-ssl|imaps|pop2|pop3|pop3s|smtp| ssh|dns|nntp|ipsec|esp|ah|ike|DiffServ|sip| h323|dhcp|rtsp|ssdp_serv|mdap_serv|syslog| HTTPI_sv_0|SSDP_sv_0}>] [type = <{intf|ip|serv|mac}>] [format = <{pretty|cli}>] where: name The name of an expression to list. OPTIONAL type The type of an expression. OPTIONAL format The format of the expression list.

  • Page 384: Expr Modify

    expr Commands expr modify Modify an expression. SYNTAX: expr modify name = <{wan|local|lan|tunnel|dmz|guest| private|ssdp_ip|mdap_ip|icmp|igmp|imaps|pop2| pop3|pop3s|smtp|ssh|dns|nntp|ipsec|esp|ah| ike|DiffServ|sip|h323|dhcp|rtsp|ssdp_serv| mdap_serv|syslog}> [type = <{intf|ip|serv|mac}>] index = <number> mac [!] = <hardware-address> addr [!] = <ip-range> [mask [ = <ip-mask(dotted or cidr)>] [intf [!] = <{loop|Internet|LocalNetwork}>] [intfgroup [!] = <{wan|local|lan|tunnel|dmz| guest} or number>] [tos [!] = <number{0-255}>]...
  • Page 385 expr Commands [dstport [!] = <{at-echo|at-nbp|at-rtmp|at- zis|auth|bgp|biff|bootpc|bootps|finger|ftp| ftp-data|gopher|h323|httpproxy|ike|ils|imap2| imap3|ingres-net|ipcserver|ipx|irc-o|irc-u| kerberos|ldap|login|netbios-dgm|netbios-ns| netbios-ssn|netwall|netware-ip|new-rwho|nfds| nicname|nntp|ntalk|ntp|pcmail-srv|pop2|pop3| printer|qotd|realaudio|rip|rtelnet|rtsp|sip| smtp|snmp|snmptrap|snpp|sntp|sql*net|sql- net|sqlserv|sunrpc|syslog|systat|talk|...}or number>] [dstportend = <{at-echo|at-nbp|at-rtmp|at- zis|auth|bgp|biff|bootpc|bootps|finger|ftp| ftp-data|gopher|h323|httpproxy|ike|ils|imap2| imap3|ingres-net|ipcserver|ipx|irc-o|irc-u| kerberos|ldap|login|netbios-dgm|netbios-ns| netbios-ssn|netwall|netware-ip|new-rwho|nfds| nicname|nntp|ntalk|ntp|pcmail-srv|pop2|pop3| printer|qotd|realaudio|rip|rtelnet|rtsp|sip| smtp|snmp|snmptrap|snpp|sntp|sql*net|sql- net|sqlserv|sunrpc|syslog|systat|talk|...}or number>] [icmptype [!] = <{echo-reply|destination- unreachable|source-quench|redirect|exceeded| parameter-problems|timestamp-request| timestamp-reply|information-request| information-reply|address-mask-request| address-mask-reply} or number>] [icmpcode [!] = <number{0-15}>] [icmpcodeend = <number{0-15}>] where:...
  • Page 386 expr Commands tos [!] The Type Of Service specification in the IP OPTIONAL packet. If a value is preceded by a “!”, it means NOT. precedence [!] The precedence in the IP packet (part of tos). OPTIONAL If a value is preceded by a “!”, it means NOT. dscp [!] The diffserv code point in the IP packet (part of OPTIONAL...

  • Page 387: Firewall Commands

    firewall Commands firewall Commands firewall chain add Add a chain. see page 388 firewall chain delete Delete a chain. see page 389 firewall chain flush Flush all chains. see page 390 firewall chain list Display a list of chains. see page 391 firewall clear Clear firewall configuration.

  • Page 388: Firewall Chain Add

    firewall Commands firewall chain add Add a chain. SYNTAX: firewall chain add chain = <string> where: chain The name of the chain to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 389: Firewall Chain Delete

    firewall Commands firewall chain delete Delete a chain. SYNTAX: firewall chain delete chain = <chain name> where: chain The name of the chain to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 390: Firewall Chain Flush

    firewall Commands firewall chain flush Flush all chains. E-DOC-CTC-20071119-0014 v2.0...

  • Page 391: Firewall Chain List

    firewall Commands firewall chain list Display a list of chains. SYNTAX: firewall chain list [format = <{pretty|cli}>] where: format The format of the chain list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 392: Firewall Clear

    firewall Commands firewall clear Clear firewall configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 393: Firewall Config

    firewall Commands firewall config Display/Modify firewall configuration. SYNTAX: firewall config [state = <{disabled|enabled}>] [keep = <{disabled|enabled}>] [tcpchecks = <{none|fast|exact}>] [udpchecks = <{disabled|enabled}>] [icmpchecks = <{disabled|enabled}>] [logdefault = <{disabled|enabled}>] [logthreshold = <{disabled|enabled}>] [tcpwindow = <number{0-1073725440}>] where: state Disable/Enable the firewall. OPTIONAL keep Disable/Enable keeping existing connections OPTIONAL...

  • Page 394: Firewall Debug Clear

    firewall Commands firewall debug clear Clear firewall statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 395: Firewall Debug Stats

    firewall Commands firewall debug stats Display firewall statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 396: Firewall Level Add

    firewall Commands firewall level add Add a new security level. SYNTAX: firewall level add name = <string> [index = <number>] [readonly = <{disabled|enabled}>] [udptrackmode = <{strict|loose}>] [service = <{disabled|enabled}>] [proxy = <{disabled|enabled}>] [text = <quoted string>] [policy = <{default|drop|accept}>] where: name The name of the security level to add.

  • Page 397: Firewall Level Delete

    firewall Commands firewall level delete Delete a security level. SYNTAX: firewall level delete name = <security level name> where: name The name of the security level to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 398: Firewall Level Flush

    firewall Commands firewall level flush Flush security level configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 399: Firewall Level List

    firewall Commands firewall level list List all security levels. SYNTAX: firewall level list [format = <{pretty|cli}>] where: format The format of the security level list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 400: Firewall Level Modify

    firewall Commands firewall level modify Modify a security level. SYNTAX: firewall level modify name = <security level name> [index = <number>] [readonly = <{disabled|enabled}>] [udptrackmode = <{strict|loose}>] [service = <{disabled|enabled}>] [proxy = <{disabled|enabled}>] [text = <quoted string>] [policy = <{default|drop|accept}>] where: name The name of the security level to modify.

  • Page 401: Firewall Level Set

    firewall Commands firewall level set Set/Display active security level. SYNTAX: firewall level set [name = <security level name>] where: name The name of the security level to set active. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 402: Firewall List

    firewall Commands firewall list Display firewall configuration. SYNTAX: firewall list [format = <{pretty|cli}>] where: format The format of the firewall list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 403: Firewall Rule Add

    firewall Commands firewall rule add Add a rule. SYNTAX: firewall rule add chain = <chain name> [index = <number>] [name = <string>] [clink = <chain name>] [srcintf [!] = <{wan|local|lan|tunnel|dmz| guest}>] [srcip [!] = <{private|ssdp_ip|mdap_ip}>] [dstintf [!] = <{wan|local|lan|tunnel|dmz| guest}>] [dstip [!] = <{private|ssdp_ip|mdap_ip}>] [serv [!] = <{icmp|igmp|ftp|telnet|http| httpproxy|https|RPC|NBT|SMB|imap|esp|ah|...
  • Page 404 firewall Commands Disable/Enable logging when this rule applies. OPTIONAL state Disable/Enable this rule. OPTIONAL action The action to be taken when this rule applies REQUIRED ('link' when clink is used). E-DOC-CTC-20071119-0014 v2.0...

  • Page 405: Firewall Rule Delete

    firewall Commands firewall rule delete Delete a rule. SYNTAX: firewall rule delete chain = <chain name> index = <number> where: chain The name of the chain in which to delete the REQUIRED rule. index The number of the rule in the chain. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 406: Firewall Rule Flush

    firewall Commands firewall rule flush Flush all rules. SYNTAX: firewall rule flush [chain = <chain name>] where: chain The name of the chain to flush. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 407: Firewall Rule List

    firewall Commands firewall rule list Display a list of rules. SYNTAX: firewall rule list [chain = <chain name>] [format = <{pretty|cli}>] where: chain The name of the chain to list the rules of. OPTIONAL format The format of the rule list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 408: Firewall Rule Modify

    firewall Commands firewall rule modify Modify a rule. SYNTAX: firewall rule modify chain = <chain name> [index = <number>] [newindex = <number>] [name = <string>] [clink = <chain name>] [[!]srcintf] = <chain name>] [[!]srcip] = <chain name>] [[!]dstintf] = <chain name>] [[!]dstip] = <chain name>] [[!]serv] = <chain name>] [log = <{disabled|enabled}>]...
  • Page 409 firewall Commands state Disable/Enable this rule. OPTIONAL action The action to be taken when this rule applies OPTIONAL ('link' when clink is used). E-DOC-CTC-20071119-0014 v2.0...
  • Page 410 help Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 411: Help Command

    help Command help Command Displays this help information E-DOC-CTC-20071119-0014 v2.0...
  • Page 412 hostmgr Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 413: Hostmgr Commands

    hostmgr Commands hostmgr Commands hostmgr add Add host device see page 414 hostmgr clear Remove all host devices see page 415 hostmgr config Configure Device Discovery deamon see page 416 hostmgr delete Delete host device see page 417 hostmgr flush Flush Device Discovery configuration see page 418 (i.e.

  • Page 414: Hostmgr Add

    hostmgr Commands hostmgr add Add host device SYNTAX: hostmgr add mac_addr = <hardware-address> [host_type = <{Generic|Desktop|Laptop|STB|PDA| GS|Phone|GSM|Printer|MassStorage|None}>] [host_name = <string>] [user_friendly_name = <quoted string>] [dns_name = <string>] [type = <{Unknown|L2-FXS|L2-USB|L2-BT|L3-IP| L7-UPNP|L2-PPPOERELAY|L2-WLAN}>] [interface = <string>] [ip_intf = <string>] where: mac_addr Host MAC address REQUIRED host_type Host type...

  • Page 415: Hostmgr Clear

    hostmgr Commands hostmgr clear Remove all host devices E-DOC-CTC-20071119-0014 v2.0...

  • Page 416: Hostmgr Config

    hostmgr Commands hostmgr config Configure Device Discovery deamon SYNTAX: hostmgr config [state = <{disabled|enabled}>] [scantime = <number{10-600}>] [autosave = <{disabled|enabled}>] where: state Enable/disable Device Discovery deamon OPTIONAL scantime Time between two discovery scans (sec) OPTIONAL autosave Enable/disable automatic saves to flash OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 417: Hostmgr Delete

    hostmgr Commands hostmgr delete Delete host device SYNTAX: hostmgr delete mac_addr = <hardware-address> [type = <{Unknown|L2-FXS|L2-USB|L2-BT|L3-IP| L7-UPNP|L2-PPPOERELAY|L2-WLAN}>] [index = <number>] where: mac_addr Host MAC address REQUIRED type Host connection type OPTIONAL index Host index OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 418: Hostmgr Flush

    hostmgr Commands hostmgr flush Flush Device Discovery configuration (i.e. clear & to defaults) E-DOC-CTC-20071119-0014 v2.0...

  • Page 419: Hostmgr List

    hostmgr Commands hostmgr list List all host devices SYNTAX: hostmgr list [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...
  • Page 420 ids Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 421: Ids Commands

    ids Commands ids Commands ids clear Clear IDS statistics. see page 422 ids config Display/Modify IDS configuration. see page 423 ids parser list Display ids parser configuration. see page 424 ids parser modify Modify ids parser configuration. see page 425 ids pattern clear Reset pattern tracker.

  • Page 422: Ids Clear

    ids Commands ids clear Clear IDS statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 423: Ids Config

    ids Commands ids config Display/Modify IDS configuration. SYNTAX: ids config [state = <{disabled|enabled}>] where: state Enable/Disable ids checks. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 424: Ids Parser List

    ids Commands ids parser list Display ids parser configuration. SYNTAX: ids parser list [parser = <parser>] where: parser The name of the parser. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 425: Ids Parser Modify

    ids Commands ids parser modify Modify ids parser configuration. SYNTAX: ids parser modify [parser = <parser>] state = <{disabled|enabled}> where: parser The name of the parser. OPTIONAL state The state of the parser. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 426: Ids Pattern Clear

    ids Commands ids pattern clear Reset pattern tracker. E-DOC-CTC-20071119-0014 v2.0...

  • Page 427: Ids Pattern List

    ids Commands ids pattern list Display patterns in pattern tracker. SYNTAX: ids pattern list [size = <{10|100|full} or number>] where: size Modify the size of pattern tracker list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 428: Ids Pattern Stats

    ids Commands ids pattern stats Display pattern tracker statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 429: Ids Signature List

    ids Commands ids signature list Display ids signature configuration. SYNTAX: ids signature list [signature = <fragment_sweep|zero- length_fragment_size|small_fragment_size| ip_protocol_scan|tcp_port_scan| tcp_syn_scan|stealth_tcp_null_scan| stealth_tcp_fin_scan|stealth_tcp_xmas_scan| stealth_tcp_full_xmas_scan| stealth_tcp_vecna_scan|stealth_tcp_syn- fin_scan|udp_port_scan|ping_sweep_scan| tcp_syn_flood|udp_flood|ping_flood| icmp_unreachable_storm|smurf_broadcast_attack| smurf_storm_attack|fraggle_broadcast_attack| fraggle_storm_attack|land_attack}>] where: signature The name of the signature. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 430: Ids Signature Modify

    ids Commands ids signature modify Modify ids signature configuration. SYNTAX: ids signature modify [signature = <fragment_sweep|zero- length_fragment_size|small_fragment_size| ip_protocol_scan|tcp_port_scan| tcp_syn_scan|stealth_tcp_null_scan| stealth_tcp_fin_scan|stealth_tcp_xmas_scan| stealth_tcp_full_xmas_scan| stealth_tcp_vecna_scan|stealth_tcp_syn- fin_scan|udp_port_scan|ping_sweep_scan| tcp_syn_flood|udp_flood|ping_flood| icmp_unreachable_storm|smurf_broadcast_attack| smurf_storm_attack|fraggle_broadcast_attack| fraggle_storm_attack|land_attack}>] state = <{disabled|enabled}> where: signature The name of the signature. OPTIONAL state The state of the sign. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 431: Ids Threshold Clear

    ids Commands ids threshold clear Reset IDS thresholds. E-DOC-CTC-20071119-0014 v2.0...

  • Page 432: Ids Threshold List

    ids Commands ids threshold list Display IDS thresholds. E-DOC-CTC-20071119-0014 v2.0...

  • Page 433: Ids Threshold Modify

    ids Commands ids threshold modify Modify IDS threshold. SYNTAX: ids threshold modify index = <number> [window = <number>] [limit = <number>] [scaling = <{disabled|enabled}>] where: index The index of the threshold. REQUIRED window The time window of the threshold. OPTIONAL limit The limit of the threshold.
  • Page 434 igmp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 435: Igmp Commands

    igmp Commands igmp Commands igmp host config Display/Modify global IGMP see page 436 configuration. igmp host debug clear Clear IGMP statistics. see page 437 igmp host debug stats Print IGMP statistics. see page 438 igmp host flush Flush the IGMP settings. see page 439 igmp host ifconfig Configure an IGMP interface.

  • Page 436: Igmp Host Config

    igmp Commands igmp host config Display/Modify global IGMP configuration. SYNTAX: igmp host config [requirera = <{disabled|enabled}>] where: requirera Enable/Disable the router alert IP option check. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 437: Igmp Host Debug Clear

    igmp Commands igmp host debug clear Clear IGMP statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 438: Igmp Host Debug Stats

    igmp Commands igmp host debug stats Print IGMP statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 439: Igmp Host Flush

    igmp Commands igmp host flush Flush the IGMP settings. E-DOC-CTC-20071119-0014 v2.0...

  • Page 440: Igmp Host Ifconfig

    igmp Commands igmp host ifconfig Configure an IGMP interface. SYNTAX: igmp host ifconfig intf = <{loop|Internet|LocalNetwork}> version = <{none|IGMPv1|IGMPv2|IGMPv3}> where: intf The IP interface name. REQUIRED version The IGMP version of the IP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 441: Igmp Host Iflist

    igmp Commands igmp host iflist Show the configuration of the IGMP interfaces. SYNTAX: igmp host iflist [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 442: Igmp Host List

    igmp Commands igmp host list Show the IGMP groups. SYNTAX: igmp host list [intf = <{loop|Internet|LocalNetwork}>] [expand = <{disabled|enabled}>] where: intf The IP interface name. OPTIONAL expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 443: Igmp Proxy Config

    igmp Commands igmp proxy config Configure the IGMP proxy. SYNTAX: igmp proxy config [state = <{disabled|enabled}>] [qi = <number{1-86400}>] [qri = <number{1-3175}>] [lmqi = <number{1-3175}>] [rv = <number{2-10}>] [advinter = <number{4-180}>] [initadvinter = <number{1-4}>] [initadvcount = <number{1-10}>] [requirera = <{disabled|enabled}>] [localgroup = <{disabled|enabled}>] where: state...

  • Page 444: Igmp Proxy Debug Clear

    igmp Commands igmp proxy debug clear Clear IGMP proxy statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 445: Igmp Proxy Debug Stats

    igmp Commands igmp proxy debug stats Print IGMP proxy statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 446: Igmp Proxy Debug Traceconfig

    igmp Commands igmp proxy debug traceconfig Modify IGMP proxy trace configuration SYNTAX: igmp proxy debug traceconfig [state = <{disabled|enabled}>] where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 447: Igmp Proxy Flush

    igmp Commands igmp proxy flush Flush all IGMP proxy settings and learned groups E-DOC-CTC-20071119-0014 v2.0...

  • Page 448: Igmp Proxy Grouplist

    igmp Commands igmp proxy grouplist Show the learned groups on an IGMP proxy interface. SYNTAX: igmp proxy grouplist [intf = <{LocalNetwork}>] [expand = <{disabled|enabled}>] where: intf The name of the IGMP proxy interface to be OPTIONAL listed. expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 449: Igmp Proxy Ifconfig

    igmp Commands igmp proxy ifconfig Configure an IGMP proxy interface. SYNTAX: igmp proxy ifconfig intf = <{LocalNetwork|Internet}> [state = <{inactive|downstream|upstream}>] [version = <{IGMPv1|IGMPv2|IGMPv3}>] [fastleave = <{disabled|enabled}>] [exptrack = <{disabled|enabled}>] [mrd = <{disabled|enabled}>] where: intf The name of the IGMP proxy interface to be REQUIRED configured.

  • Page 450: Igmp Proxy Iflist

    igmp Commands igmp proxy iflist Show the configuration of an IGMP proxy interface. SYNTAX: igmp proxy iflist [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 451: Igmp Proxy Mbslist

    igmp Commands igmp proxy mbslist Show the IGMP proxy membership database (merge of all learned groups). E-DOC-CTC-20071119-0014 v2.0...

  • Page 452: Interface Command

    interface Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 453: Interface Command

    interface Command interface Command Display interfaces. SYNTAX: interface list [expand = <{disabled|enabled}>] [reverse = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL reverse Reverse listing (lower layer iso. upper layer). OPTIONAL E-DOC-CTC-20071119-0014 v2.0...
  • Page 454 ip Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 455: Ip Commands

    ip Commands ip Commands ip arpadd Add an entry to the ARP cache of a see page 457 broadcast IP interface. ip arpdelete Delete an ARP entry. see page 458 ip arplist Display the ARP cache. see page 459 ip auto flush Flushes autoIP interfaces.
  • Page 456 ip Commands ip ipadd Assign an IP address to an IP see page 480 interface. ip ipconfig Modify an IP address configuration. see page 481 ip ipdelete Remove an IP address from an IP see page 482 interface. ip iplist Display all configured IP addresses.

  • Page 457: Ip Arpadd

    ip Commands ip arpadd Add an entry to the ARP cache of a broadcast IP interface. SYNTAX: ip arpadd intf = <{LocalNetwork}> ip = <ip-range> [hwaddr = <hardware-address>] where: intf The IP interface name. REQUIRED The IP address [range] of the entry to add. REQUIRED hwaddr The hardware address (e.g.

  • Page 458: Ip Arpdelete

    ip Commands ip arpdelete Delete an ARP entry. SYNTAX: ip arpdelete intf = <{LocalNetwork}> ip = <ip-range> [hwaddr = <hardware-address>] where: intf The IP interface name. REQUIRED The IP address [range] of the entry to delete. REQUIRED hwaddr The hardware address (e.g. Ethernet MAC OPTIONAL address) of the entry to delete.

  • Page 459: Ip Arplist

    ip Commands ip arplist Display the ARP cache. E-DOC-CTC-20071119-0014 v2.0...

  • Page 460: Ip Auto Flush

    ip Commands ip auto flush Flushes autoIP interfaces. E-DOC-CTC-20071119-0014 v2.0...

  • Page 461: Ip Auto Ifadd

    ip Commands ip auto ifadd Creates a new autoIP interface. SYNTAX: ip auto ifadd intf = <{loop|Internet|LocalNetwork}> [addr = <ip-address>] where: intf The name of the IP interface for which a link- REQUIRED local address has to be allocated. addr The preferred link-local IP address.

  • Page 462: Ip Auto Ifattach

    ip Commands ip auto ifattach Select and assign a link-local address to an autoIP interface. SYNTAX: ip auto ifattach intf = <> where: intf The name of the autoIP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 463: Ip Auto Ifconfig

    ip Commands ip auto ifconfig Configures an autoIP interface. SYNTAX: ip auto ifconfig intf = <> [addr = <ip-address>] [poolstart = <ip-address>] [poolend = <ip-address>] [netmask = <ip-mask(dotted or cidr)>] [claim = <number{0-65535}>] [defence = <number{0-65535}>] [probe = <number{0-65535}>] [interval = <number{1-65535}>] where: intf The name of the autoIP interface to configure.

  • Page 464: Ip Auto Ifdelete

    ip Commands ip auto ifdelete Deletes an existing autoIP interface. SYNTAX: ip auto ifdelete intf = <> where: intf The name of the autoIP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 465: Ip Auto Ifdetach

    ip Commands ip auto ifdetach Release the link-local address for the given autoIP interface. SYNTAX: ip auto ifdetach intf = <> where: intf The name of the autoIP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 466: Ip Auto Iflist

    ip Commands ip auto iflist Shows the autoIP interfaces. SYNTAX: ip auto iflist [intf = <>] where: intf The name of a autoIP interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 467: Ip Config

    ip Commands ip config Display/Modify global IP stack configuration. SYNTAX: ip config [forwarding = <{disabled|enabled}>] [redirects = <{disabled|enabled}>] [checkoptions = <{disabled|enabled| transparent}>] [netbroadcasts = <{disabled|enabled}>] [ttl = <number{0-255}>] [fraglimit = <number{1-1024}>] [defragmode = <{disabled|enabled}>] [addrcheck = <{off|own|static|dynamic}>] [mssclamping = <{disabled|enabled}>] [natloopback = <{disabled|enabled}>] [arpclass = <{0|1|2|3|4|5|6|7|8|9|10|11|12|13| 14|15}>]...

  • Page 468: Ip Debug Httpprobe

    ip Commands ip debug httpprobe Send HTTP probe to measure the round trip time taken to connect and access SYNTAX: ip debug httpprobe url = <string> [version = <{1.0|1.1}>] where: The Uniform Resource location identifying the REQUIRED HTTP server. version The version of the HTTP Server.

  • Page 469: Ip Debug Sendto

    ip Commands ip debug sendto Send UDP packets. SYNTAX: ip debug sendto addr = <ip-address> [count = <number{1-1000000}>] [size = <number{0-20000}>] [interval = <number{1-1000000}>] [listen = <{disabled|enabled}>] [dffield = <{disabled|enabled}>] [srcaddr = <ip-address>] [srcport = <number{1-65535}>] dstport = <number{1-65535}> [dstintf = <{loop|Internet|LocalNetwork}>] where: addr The destination IP address.

  • Page 470: Ip Debug Stats

    ip Commands ip debug stats Display statistics. SYNTAX: ip debug stats proto = <{ip|udp|tcp|icmp}> where: proto The protocol for which to display the statistics. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 471: Ip Debug Traceconfig

    ip Commands ip debug traceconfig Display/Modify IP stack trace configuration. SYNTAX: ip debug traceconfig [input = <{none|label|-telnet|-host|- broadcast|all}>] [forward = <{none|label|-telnet|-host|- broadcast|all}>] [output = <{none|label|-telnet|-host|- broadcast|all}>] [drop = <{none|label|-telnet|-host|-broadcast| all}>] [path = <{none|label|-telnet|-host|-broadcast| all}>] [mode = <{line|dump}>] [arp = <{none|all}>] where: input Define the packets that will be traced.

  • Page 472: Ip Flush

    ip Commands ip flush Flush all static IP parameters. Dynamic info (e.g. from PPP links) remains. E-DOC-CTC-20071119-0014 v2.0...

  • Page 473: Ip Ifadd

    ip Commands ip ifadd Create an IP interface. SYNTAX: ip ifadd intf = <string> dest = <{ethoa_8_35}> where: intf An IP interface name. REQUIRED dest An network interface name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 474: Ip Ifattach

    ip Commands ip ifattach Attach an IP interface. SYNTAX: ip ifattach intf = <{}> where: intf An IP interface name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 475: Ip Ifconfig

    ip Commands ip ifconfig Modify an IP interface configuration. SYNTAX: ip ifconfig intf = <{loop|Internet|LocalNetwork}> [mtu = <number{68-65535}>] [status = <{down|up}>] [hwaddr = <hardware-address>] [group = <{wan|local|lan|tunnel|dmz|guest} or number>] [linksensing = <{disabled|enabled}>] [primary = <{disabled|enabled}>] [mcastpromisc = <{disabled|enabled}>] [symmetric = <{disabled|enabled}>] where: intf An IP interface name.

  • Page 476: Ip Ifdelete

    ip Commands ip ifdelete Delete an IP interface. SYNTAX: ip ifdelete intf = <{LocalNetwork}> where: intf An IP interface name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 477: Ip Ifdetach

    ip Commands ip ifdetach Detach an IP interface. SYNTAX: ip ifdetach intf = <{loop|LocalNetwork}> where: intf An IP interface name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 478: Ip Iflist

    ip Commands ip iflist Display all IP interfaces. SYNTAX: ip iflist [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 479: Ip Ifwait

    ip Commands ip ifwait Wait for a status change of an IP interface. SYNTAX: ip ifwait intf = <{loop|Internet|LocalNetwork}> [timeout = <number{1-600000}>] [adminstatus = <{down|up}>] [operstatus = <{down|up}>] [linkstatus = <{down|up}>] where: intf An IP interface name. REQUIRED timeout The timeout in seconds. OPTIONAL adminstatus The administrative state of the interface.

  • Page 480: Ip Ipadd

    ip Commands ip ipadd Assign an IP address to an IP interface. SYNTAX: ip ipadd intf = <{loop|Internet|LocalNetwork}> addr = <ip-address> [netmask = <ip-mask(dotted or cidr)>] [pointopoint = <ip-address>] [addroute = <{disabled|enabled}>] where: intf The IP interface name. REQUIRED addr The new IP address to add.

  • Page 481: Ip Ipconfig

    ip Commands ip ipconfig Modify an IP address configuration. SYNTAX: ip ipconfig addr = <ip-address> [preferred = <{disabled|enabled}>] [primary = <{disabled|enabled}>] where: addr The IP address to configure. REQUIRED preferred Make IP address the preferred address for that OPTIONAL subnet. primary Make IP address the primary address for the OPTIONAL...

  • Page 482: Ip Ipdelete

    ip Commands ip ipdelete Remove an IP address from an IP interface. SYNTAX: ip ipdelete addr = <ip-address> where: addr The IP address to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 483: Ip Iplist

    ip Commands ip iplist Display all configured IP addresses. E-DOC-CTC-20071119-0014 v2.0...

  • Page 484: Ip Mcast Flush

    ip Commands ip mcast flush Flush the multicast routing table. E-DOC-CTC-20071119-0014 v2.0...

  • Page 485: Ip Mcast Rtadd

    ip Commands ip mcast rtadd Add a multicast route to the multicast routing table. SYNTAX: ip mcast rtadd srcintf = <{loop|Internet|LocalNetwork}> [src = <ip-address>] grp = <ip-address> dstintf = <{loop|Internet|LocalNetwork}> [ttl = <number{1-255}>] [ttlincr = <{disabled|enabled}>] where: srcintf The source IP interface. REQUIRED The source IP address.

  • Page 486: Ip Mcast Rtdelete

    ip Commands ip mcast rtdelete Delete a multicast route from the multicast routing table. SYNTAX: ip mcast rtdelete srcintf = <{loop|Internet|LocalNetwork}> [src = <ip-address>] grp = <ip-address> dstintf = <{loop|Internet|LocalNetwork}> where: srcintf The source IP interface. REQUIRED The source IP address. OPTIONAL The multicast group IP address.

  • Page 487: Ip Mcast Rtlist

    ip Commands ip mcast rtlist Display the multicast routing table. SYNTAX: ip mcast rtlist [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 488: Ip Rtadd

    ip Commands ip rtadd Add a route to the routing table. SYNTAX: ip rtadd dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [label = <{None|DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [gateway = <ip-address>] [intf = <{loop|Internet|LocalNetwork}>] [srcintf = <{loop|Internet|LocalNetwork}>] [static = <{enabled|disabled}>] [status = <{up|down}>] [metric = <number{0-255}>] where: The destination IP address(es) using this route.

  • Page 489: Ip Rtconfig

    ip Commands ip rtconfig Modify a route of the routing table. SYNTAX: ip rtconfig dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [label = <{None|DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [gateway = <ip-address>] [intf = <{loop|Internet|LocalNetwork}>] [srcintf = <{loop|Internet|LocalNetwork| None}>] [static = <{disabled|enabled}>] [status = <{down|up}>] [metric = <number{0-255}>] where: The destination IP address(es) using this route.

  • Page 490: Ip Rtdelete

    ip Commands ip rtdelete Delete a route from the routing table. SYNTAX: ip rtdelete dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [label = <{None|DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [gateway = <ip-address>] [intf = <{loop|Internet|LocalNetwork}>] where: The destination IP address specification of the REQUIRED route to delete.

  • Page 491: Ip Rtlist

    ip Commands ip rtlist Display the routing table. SYNTAX: ip rtlist [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...
  • Page 492 ipqos Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 493: Ipqos Commands

    ipqos Commands ipqos Commands ipqos config Modify the IP QoS configuration for a see page 494 given destination of an interface. ipqos ef config Modify an IP QoS EF timer see page 495 configuration for an interface. ipqos ef list Display the IP QoS EF timers.

  • Page 494: Ipqos Config

    ipqos Commands ipqos config Modify the IP QoS configuration for a given destination of an interface. SYNTAX: ipqos config dest = <{atm_pvc_8_35}> [state = <{disabled|enabled}>] [discard = <{tail|early}>] [priority = <{wfq|strict|wrr}>] [realtimerate = <number{1-100}>] [burstsize = <number{1-64}>] [weight1 = <number{1-97}>] [weight2 = <number{1-97}>] [weight3 = <number{1-97}>] [weight4 = <number{1-97}>]...

  • Page 495: Ipqos Ef Config

    ipqos Commands ipqos ef config Modify an IP QoS EF timer configuration for an interface. SYNTAX: ipqos ef config intf = <{loop|Internet|LocalNetwork}> [state = <{disabled|enabled}>] [timeout = <number{100-10000}>] [mtu = <number{68-65535}>] where: intf The IP interface name. REQUIRED state Enable, disable IP QoS EF timer for the interface. OPTIONAL timeout The timeout in mili seconds.

  • Page 496: Ipqos Ef List

    ipqos Commands ipqos ef list Display the IP QoS EF timers. E-DOC-CTC-20071119-0014 v2.0...

  • Page 497: Ipqos Ef Stats

    ipqos Commands ipqos ef stats Display the IP QoS EF timer statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 498: Ipqos List

    ipqos Commands ipqos list Display the IP QoS configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 499: Ipqos Queue Clear

    ipqos Commands ipqos queue clear Clear the IP QoS statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 500: Ipqos Queue Config

    ipqos Commands ipqos queue config Modify the IP QoS subqueue configuration. SYNTAX: ipqos queue config dest = <{atm_pvc_8_35}> queue = <number{0-5}> [propagate = <{disabled|enabled}>] [ecnmarking = <{disabled|enabled}>] [ackfiltering = <{disabled|enabled}>] [maxpackets = <number{0-250}>] [maxbytes = <number{0-128}>] [respackets = <number{0-250}>] [resbytes = <number{0-128}>] [hold = <number>] [markprob = <number{1-1000}>] where:...

  • Page 501: Ipqos Queue List

    ipqos Commands ipqos queue list Display the IP QoS subqueue configuration. SYNTAX: ipqos queue list [dest = <{atm_pvc_8_35}>] where: dest The destination of the interface. Typically, a OPTIONAL phonebook entry. E-DOC-CTC-20071119-0014 v2.0...

  • Page 502: Ipqos Queue Stats

    ipqos Commands ipqos queue stats Display the IP QoS subqueue statistics. SYNTAX: ipqos queue stats [dest = <{atm_pvc_8_35}>] where: dest The destination of the interface. Typically, a OPTIONAL phonebook entry. E-DOC-CTC-20071119-0014 v2.0...

  • Page 503: Label Commands

    label Commands label Commands label add Add a label. see page 504 label chain add Add a chain. see page 505 label chain delete Delete a chain. see page 506 label chain flush Flush all chains. see page 507 label chain list Display a list of chains.

  • Page 504: Label Add

    label Commands label add Add a label. SYNTAX: label add name = <string> where: name The name of a label to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 505: Label Chain Add

    label Commands label chain add Add a chain. SYNTAX: label chain add chain = <string> where: chain The name of the chain to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 506: Label Chain Delete

    label Commands label chain delete Delete a chain. SYNTAX: label chain delete chain = <chain name> where: chain The name of the chain to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 507: Label Chain Flush

    label Commands label chain flush Flush all chains. E-DOC-CTC-20071119-0014 v2.0...

  • Page 508: Label Chain List

    label Commands label chain list Display a list of chains. SYNTAX: label chain list [format = <{pretty|cli}>] where: format The format of the chain list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 509: Label Delete

    label Commands label delete Delete a label. SYNTAX: label delete name = <{DSCP|Interactive|Management|Video| VoIP-RTP|VoIP-Signal|default}> where: name The name of a label. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 510: Label Flush

    label Commands label flush Flush all label. E-DOC-CTC-20071119-0014 v2.0...

  • Page 511: Label List

    label Commands label list Display the labels. SYNTAX: label list [name = <{DSCP|Interactive|Management|Video| VoIP-RTP|VoIP-Signal|default}>] where: name The name of a label. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 512: Label Modify

    label Commands label modify Modify a label configuration. SYNTAX: label modify name = <{DSCP|Interactive|Management|Video| VoIP-RTP|VoIP-Signal|default}> [classification = <{ignore|overwrite| increase}>] [defclass = <{0|1|2|3|4|5|6|7|8|9|10|11|12|13| 14|15|dscp|default}>] [ackclass = <{0|1|2|3|4|5|6|7|8|9|10|11|12|13| 14|15|prioritize|defclass}>] [bidirectional = <{disabled|enabled}>] [inheritance = <{disabled|enabled}>] [tosmarking = <{disabled|enabled}>] [tos = <number{0-255}>] [dscp = <{ef|af11|af12|af13|af21|af22|af23| af31|af32|af33|af41|af42|af43|cs0|cs1|cs2|cs3| cs4|cs5|cs6|cs7} or number>] [precedence = <{routine|priority|immediate|...

  • Page 513: Label Rule Add

    label Commands label rule add Add a rule. SYNTAX: label rule add chain = <chain name> [index = <number>] [name = <string>] [clink = <chain name>] [srcintf [!] = <{wan|local|lan|tunnel|dmz| guest}>] [srcip [!] = <{private|ssdp_ip|mdap_ip}>] [dstip [!] = <{private|ssdp_ip|mdap_ip}>] [serv [!] = <{icmp|igmp|ftp|telnet|http| httpproxy|https|RPC|NBT|SMB|imap|esp|ah| ike|DiffServ|sip|h323|dhcp|rtsp|ssdp_serv| mdap_serv|syslog}>]...

  • Page 514: Label Rule Delete

    label Commands label rule delete Delete a rule. SYNTAX: label rule delete chain = <chain name> index = <number> where: chain The name of the chain in which to delete the REQUIRED rule. index The number of the rule in the chain. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 515: Label Rule Flush

    label Commands label rule flush Flush all rules. SYNTAX: label rule flush [chain = <chain name>] where: chain The name of the chain to flush. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 516: Label Rule List

    label Commands label rule list Display a list of rules. SYNTAX: label rule list [chain = <chain name>] [format = <{pretty|cli}>] where: chain The name of the chain to list the rules of. OPTIONAL format The format of the rule list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 517: Label Rule Modify

    label Commands label rule modify Modify a rule. SYNTAX: label rule modify chain = <chain name> [index = <number>] [newindex = <number>] [name = <string>] [clink = <chain name>] [[!]srcintf] = <chain name>] [[!]srcip] = <chain name>] [[!]dstip] = <chain name>] [[!]serv] = <chain name>] [log = <{disabled|enabled}>] [state = <{disabled|enabled}>]...

  • Page 518: Language Commands

    language Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 519: Language Commands

    language Commands language Commands language config Select a language. see page 520 language delete Delete one or all language archives. see page 521 language list List available languages archives. see page 522 E-DOC-CTC-20071119-0014 v2.0...

  • Page 520: Language Config

    language Commands language config Select a language. SYNTAX: language config [language = <string>] [complete = <{yes|no}>] where: language Language code : OSI language code (2 chars) for OPTIONAL language (en=English) complete Enable translation for expert pages. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 521: Language Delete

    language Commands language delete Delete one or all language archives. SYNTAX: language delete [file = <string>] [all = <{yes|no}>] where: file Filename : name of language archive to delete OPTIONAL Deletes all languages archives. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 522: Language List

    language Commands language list List available languages archives. E-DOC-CTC-20071119-0014 v2.0...

  • Page 523: Mbus Commands

    mbus Commands mbus Commands mbus client authenticate Authenticate a session see page 524 mbus client config Modify client parameters see page 525 mbus client exec Execute mbus command see page 526 mbus client register Register cli client to mbus see page 528 mbus client termsession Terminate a session see page 529...

  • Page 524: Mbus Client Authenticate

    mbus Commands mbus client authenticate Authenticate a session SYNTAX: mbus client authenticate type = <{cleartext|md5|crypt|digest| defaultuser}> [username = <quoted string>] [password = <password>] [addr = <ip-address>] where: type Authentication type REQUIRED username User name OPTIONAL password password OPTIONAL addr IP address of peer who inititated the OPTIONAL authentication request.

  • Page 525: Mbus Client Config

    mbus Commands mbus client config Modify client parameters SYNTAX: mbus client config [writelock = <{enabled|disabled}>] [wlgetimeout = <number>] [wlidletimeout = <number>] [path = <quoted string>] [type = <{indexpath|keystrpath}>] [id = <number>] where: writelock Get/release mbus writelock OPTIONAL wlgetimeout Writelock get timeout in seconds (forever=-1, OPTIONAL *default=nowait=0) wlidletimeout...

  • Page 526: Mbus Client Exec

    mbus Commands mbus client exec Execute mbus command SYNTAX: mbus client exec cmd = <{getpath|getcount|getnames|getvalues| setvalue|addobject|deleteobject|subscribe| unsubscribe|getaccessrights|setaccessrights}> [param = <quoted string>] [value = <quoted string>] [gettype = <{parameter|path|object}>] [depth = <number>] [processcmd = <{enabled|disabled}>] [onerrorrollback = <{enabled|disabled}>] [usecallback = <{enabled|disabled}>] [filter = <quoted string>] [path = <quoted string>] [flags = <[+/-]flag[+/-flag...]{indexpath...
  • Page 527 mbus Commands usecallback Use result callback function (default=enabled) OPTIONAL filter The filter should be formatted as '(operator OPTIONAL operand operand)'. Possible operators are ==, ! =, <, <=, >, >=, and, or, not. The left operand is a parameter name. The right operand is a parameter value.

  • Page 528: Mbus Client Register

    mbus Commands mbus client register Register cli client to mbus SYNTAX: mbus client register [dmtree = <{igd|atomic|system}>] [type = <{indexpath|keystrpath}>] [dlink = <{local_ipc|remote_inet}>] [mbusd_addr = <quoted string>] [refresolv = <{disabled|enabled}>] [state_events = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL type Path type (default = indexpath) OPTIONAL...

  • Page 529: Mbus Client Termsession

    mbus Commands mbus client termsession Terminate a session SYNTAX: mbus client termsession id = <number> where: id of session to terminate REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 530: Mbus Client Unregister

    mbus Commands mbus client unregister Unregister cli client from mbus E-DOC-CTC-20071119-0014 v2.0...

  • Page 531: Mbus Debug Clearstats

    mbus Commands mbus debug clearstats Reset mbus statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 532: Mbus Debug Loadobjects

    mbus Commands mbus debug loadobjects Load/sync object instances from plugins SYNTAX: mbus debug loadobjects [dmtree = <{igd|atomic|system}>] [path = <quoted string>] [type = <{indexpath|keystrpath}>] [flush = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL path Fully qualified mbus path OPTIONAL type Path type (default = indexpath OPTIONAL...

  • Page 533: Mbus Debug Stats

    mbus Commands mbus debug stats Display mbus statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 534: Mbus Debug Traceconfig

    mbus Commands mbus debug traceconfig Modify mbus trace settings. SYNTAX: mbus debug traceconfig [level = <number{0-4}>] where: level Select mbus trace level (0-4). OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 535: Mbus Debug Unloadobjects

    mbus Commands mbus debug unloadobjects Unload object instances SYNTAX: mbus debug unloadobjects [dmtree = <{igd|atomic|system}>] [path = <quoted string>] [type = <{indexpath|keystrpath}>] [flush = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL path Fully qualified mbus path OPTIONAL type Path type OPTIONAL flush Flush objects before load (default=disabled)

  • Page 536: Mbus Listcontexts

    mbus Commands mbus listcontexts Display the context instances SYNTAX: mbus listcontexts [dmtree = <{igd|atomic|system}>] [expand = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL expand Details enabled/disabled OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 537: Mbus Listenums

    mbus Commands mbus listenums Display the registered enumtypes SYNTAX: mbus listenums [dmtree = <{igd|atomic|system}>] [name = <quoted string>] [expand = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL name Filter enumtypes by (part of) the name OPTIONAL expand Details enabled/disabled OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 538: Mbus Listobjects

    mbus Commands mbus listobjects Display the object instances SYNTAX: mbus listobjects [dmtree = <{igd|atomic|system}>] [path = <quoted string>] [type = <{indexpath|keystrpath}>] [output = <{tree|list}>] [showflags = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL path Fully qualified mbus path to list. OPTIONAL type Path type (default = indexpath)

  • Page 539: Mbus Listsubscriptions

    mbus Commands mbus listsubscriptions Display the subscription instances SYNTAX: mbus listsubscriptions [dmtree = <{igd|atomic|system}>] where: dmtree Select mbusd datamodel tree. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 540: Mbus Listtypes

    mbus Commands mbus listtypes Display the registered objecttypes SYNTAX: mbus listtypes [dmtree = <{igd|atomic|system}>] [path = <quoted string>] [expand = <{disabled|enabled}>] where: dmtree Select mbusd datamodel tree. OPTIONAL path Fully qualified mbus path to list. OPTIONAL expand Details enabled/disabled OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 541: Mbus Pluginevent

    mbus Commands mbus pluginevent Simulate event from plugin SYNTAX: mbus pluginevent ctxid = <number{0--2}> type = <{addobj|delobj|updobj}> path = <quoted string> [name = <quoted string>] [value = <quoted string>] [orivalue = <quoted string>] where: ctxid Plugin context id REQUIRED type Event type REQUIRED path...

  • Page 542: Mbus Unregister

    mbus Commands mbus unregister Unregister a client/plugin context SYNTAX: mbus unregister id = <number> where: Select message-based client/plugin context id. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 543: Memm Commands

    memm Commands memm Commands memm debug clearstats Clear time statistics. see page 544 memm debug lock stats Display lock statistics. see page 545 memm debug lock traceconfig Modify lock trace settings. see page 546 memm debug stats Display memm time statistics. see page 547 memm debug tag (Un)tag memory manager objects.

  • Page 544: Memm Debug Clearstats

    memm Commands memm debug clearstats Clear time statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 545: Memm Debug Lock Stats

    memm Commands memm debug lock stats Display lock statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 546: Memm Debug Lock Traceconfig

    memm Commands memm debug lock traceconfig Modify lock trace settings. SYNTAX: memm debug lock traceconfig [level = <number{0-4}>] [name = <string>] where: level Select memm trace level (0-4). OPTIONAL name application name filter for lock traces (empty OPTIONAL displays all lock traces) E-DOC-CTC-20071119-0014 v2.0...

  • Page 547: Memm Debug Stats

    memm Commands memm debug stats Display memm time statistics. SYNTAX: memm debug stats [name = <quoted string>] where: name Select typename(s) to list (supports partial OPTIONAL typename) E-DOC-CTC-20071119-0014 v2.0...

  • Page 548: Memm Debug Tag

    memm Commands memm debug tag (Un)tag memory manager objects. SYNTAX: memm debug tag [name = <quoted string>] [tag = <{enabled|disabled}>] where: name Select typename(s) to list (supports partial OPTIONAL typename) Set (or unset) the tag OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 549: Memm Debug Traceconfig

    memm Commands memm debug traceconfig Modify memm trace settings. SYNTAX: memm debug traceconfig [level = <number{0-4}>] where: level Select memm trace level (0-4). OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 550: Memm Listobjects

    memm Commands memm listobjects Display objects. SYNTAX: memm listobjects [name = <quoted string>] [tagged = <{no|yes}>] [hidedeldynstr = <{no|yes}>] where: name Select typename(s) to list (supports partial OPTIONAL typename) tagged Show only tagged (yes) or untagged (no) objects OPTIONAL hidedeldynstr Hide (yes) / show (no) deleted dynstrings OPTIONAL (default = show)

  • Page 551: Memm Stats

    memm Commands memm stats Display memm statistics. SYNTAX: memm stats [name = <quoted string>] where: name Select typename(s) to list (supports partial OPTIONAL typename) E-DOC-CTC-20071119-0014 v2.0...
  • Page 552 menu Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 553: Menu Command

    menu Command menu Command Displays menu E-DOC-CTC-20071119-0014 v2.0...
  • Page 554 mlp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 555: Mlp Commands

    mlp Commands mlp Commands mlp debug export Export all scores. see page 556 mlp debug stats Display mlp statisctics. see page 557 mlp debug traceconfig Modify mlp trace settings. see page 558 mlp flush Flush all mlp structures. see page 559 mlp import Import all scores.

  • Page 556: Mlp Debug Export

    mlp Commands mlp debug export Export all scores. E-DOC-CTC-20071119-0014 v2.0...

  • Page 557: Mlp Debug Stats

    mlp Commands mlp debug stats Display mlp statisctics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 558: Mlp Debug Traceconfig

    mlp Commands mlp debug traceconfig Modify mlp trace settings. SYNTAX: mlp debug traceconfig [trace = <{disabled|enabled|full}>] where: trace Select mlp trace level. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 559: Mlp Flush

    mlp Commands mlp flush Flush all mlp structures. E-DOC-CTC-20071119-0014 v2.0...

  • Page 560: Mlp Import

    mlp Commands mlp import Import all scores. SYNTAX: mlp import [trace = <{disabled|enabled|full}>] where: trace Select import trace level. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 561: Mlp Privilege Add

    mlp Commands mlp privilege add Add a privilege. SYNTAX: mlp privilege add name = <string> type = <{access|service}> [descr = <quoted string>] where: name Privilege name. REQUIRED type Privilege type. REQUIRED descr Privilege description. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 562: Mlp Privilege Addzone

    mlp Commands mlp privilege addzone Add a zone to a privilege. SYNTAX: mlp privilege addzone name = <> zone = <{Read/LAN/WAN/Local|Write/LAN/WAN/ Local|r_lan|r_wan|r_fs_view|r_certificates| r_remote_mgnt|r_local|r_qos|w_lan|w_wan| w_fs_passive|w_rtg|w_fwdg|w_nat|w_frwl_norm| w_frwl_adv|w_frwl_ss|w_ipsec|w_certificates| w_remote_mgnt|w_local|w_qos|SND_lan|SND_wan| SND_local|AND_lan|AND_wan|AND_frwl|AND_local| User_Admin|MLP_Admin|secure_ipsec_term| secure_BR|CLI|CGI|FTP|MDAP|secure_reset| GUI_advanced|mbus|unsecure_connection| Sensitve_file|...}> where: name Privilege name. REQUIRED zone Zone name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 563: Mlp Privilege Config

    mlp Commands mlp privilege config Modify the privilege. SYNTAX: mlp privilege config name = <> [descr = <quoted string>] [score = <{hex-word}[:{hex-word}] ex: 'a12:c30f'>] where: name Select the privilege by name. REQUIRED descr Set the description. OPTIONAL score Set the score. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 564: Mlp Privilege Delete

    mlp Commands mlp privilege delete Delete a privilege. SYNTAX: mlp privilege delete name = <> where: name Privilege name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 565: Mlp Privilege List

    mlp Commands mlp privilege list Display the privileges. SYNTAX: mlp privilege list [name = <>] [type = <{access|service}>] [verbose = <{minimal|medium|all}>] where: name Privilege name. OPTIONAL type Privilege type. OPTIONAL verbose Limit the output list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 566: Mlp Privilege Removezone

    mlp Commands mlp privilege removezone Remove a zone from a privilege. SYNTAX: mlp privilege removezone name = <> zone = <{Read/LAN/WAN/Local|Write/LAN/WAN/ Local|r_lan|r_wan|r_fs_view|r_certificates| r_remote_mgnt|r_local|r_qos|w_lan|w_wan| w_fs_passive|w_rtg|w_fwdg|w_nat|w_frwl_norm| w_frwl_adv|w_frwl_ss|w_ipsec|w_certificates| w_remote_mgnt|w_local|w_qos|SND_lan|SND_wan| SND_local|AND_lan|AND_wan|AND_frwl|AND_local| User_Admin|MLP_Admin|secure_ipsec_term| secure_BR|CLI|CGI|FTP|MDAP|secure_reset| GUI_advanced|mbus|unsecure_connection| Sensitve_file|...}> where: name Privilege name. REQUIRED zone Zone name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 567: Mlp Role Add

    mlp Commands mlp role add Add a role. SYNTAX: mlp role add name = <string> parent = <> [descr = <quoted string>] where: name Role name. REQUIRED parent Parent role name. REQUIRED descr Role description. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 568: Mlp Role Addpriv

    mlp Commands mlp role addpriv Add a privilege. SYNTAX: mlp role addpriv name = <{Administrator|LAN_Admin|PowerUser| root|SuperUser|TechnicalSupport|User| WAN_Admin}> access = <{anyaccess|AP1|AP2|AP3|AP4|AP5|AP6| AP7|AP8|AP9}> service = <{anyservice|SP1|SP10|SP11|SP12| SP13|SP14|SP15|SP16|SP17|SP18|SP19|SP2|SP3| SP4|SP5|SP6|SP7|SP8|SP9}> where: name Role name. REQUIRED access Access privilege to add. REQUIRED service Privilege name to add. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 569: Mlp Role Config

    mlp Commands mlp role config Modify the role. SYNTAX: mlp role config name = <> [parent = <>] [descr = <quoted string>] where: name Role name. REQUIRED parent Parent role name. OPTIONAL descr Role description. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 570: Mlp Role Delete

    mlp Commands mlp role delete Delete a role. SYNTAX: mlp role delete name = <> where: name Role name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 571: Mlp Role List

    mlp Commands mlp role list Display the roles. SYNTAX: mlp role list [name = <>] [verbose = <{minimal|medium|all}>] where: name Role name. OPTIONAL verbose Limit the output list. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 572: Mlp Role Removepriv

    mlp Commands mlp role removepriv Remove a privilege. SYNTAX: mlp role removepriv name = <> access = <> [service = <>] where: name Role name. REQUIRED access Access privilege to delete. REQUIRED service Privilege name to delete. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 573: Nat Commands

    nat Commands nat Commands nat config Modify global NAT configuration. see page 574 nat flush Flush current NAT configuration. see page 575 nat ifconfig Modify address translation on an IP see page 576 interface. nat iflist Display all interfaces. see page 577 nat mapadd Add an address mapping to a nat see page 578...

  • Page 574: Nat Config

    nat Commands nat config Modify global NAT configuration. SYNTAX: nat config [trace = <{disabled|enabled}>] where: trace Enable/disable traces. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 575: Nat Flush

    nat Commands nat flush Flush current NAT configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 576: Nat Ifconfig

    nat Commands nat ifconfig Modify address translation on an IP interface. SYNTAX: nat ifconfig intf = <{loop|Internet|LocalNetwork}> translation = <{disabled|enabled|transparent}> where: intf The IP interface name. REQUIRED translation Disabled, enabled or tranparent address REQUIRED translation. E-DOC-CTC-20071119-0014 v2.0...

  • Page 577: Nat Iflist

    nat Commands nat iflist Display all interfaces. E-DOC-CTC-20071119-0014 v2.0...

  • Page 578: Nat Mapadd

    nat Commands nat mapadd Add an address mapping to a nat enabled interface. SYNTAX: nat mapadd intf = <{loop|Internet|LocalNetwork}> [type = <{napt|nat}>] [outside_addr = <ip-range>] [inside_addr = <ip-range>] [access_list = <ip-range>] [foreign_addr = <ip-range>] [protocol = <{ah|egp|esp|ggp|gre|hmp|icmp| igmp|pup|rdp|rsvp|tcp|udp|vines|xns-idp|6to4| ipip} or number>] [outside_port = <port-range>] [inside_port = <port-range>] [mode = <{auto|inbound|outbound}>]...

  • Page 579: Nat Mapdelete

    nat Commands nat mapdelete Delete an address mapping from a nat enabled interface. SYNTAX: nat mapdelete intf = <{loop|Internet|LocalNetwork}> index = <number> where: intf The IP interface name. REQUIRED index The map index as listed by ':nat maplist'. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 580: Nat Maplist

    nat Commands nat maplist Display address mappings. SYNTAX: nat maplist [intf = <{loop|Internet|LocalNetwork}>] [expand = <{disabled|enabled}>] where: intf The IP interface name. OPTIONAL expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 581: Nat Tmpladd

    nat Commands nat tmpladd Add an address mapping template. SYNTAX: nat tmpladd [intf = <{loop|Internet|LocalNetwork}>] [group = <{wan|local|lan|tunnel|dmz|guest} or number>] [timeout = <number{0-65535}>] [type = <{napt|nat}>] outside_addr = <ip-range> [inside_addr = <ip-range>] [access_list = <ip-range>] [foreign_addr = <ip-range>] [protocol = <{ah|egp|esp|ggp|gre|hmp|icmp| igmp|pup|rdp|rsvp|tcp|udp|vines|xns-idp|6to4| ipip} or number>] [outside_port = <port-range>]...
  • Page 582 nat Commands weight The weight to be used for the template OPTIONAL instance(s). E-DOC-CTC-20071119-0014 v2.0...

  • Page 583: Nat Tmpldelete

    nat Commands nat tmpldelete Delete an address mapping template. SYNTAX: nat tmpldelete index = <number> where: index The template index as listed by ':nat tmpllist'. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 584: Nat Tmplinst

    nat Commands nat tmplinst Instantiate address mapping templates for a given dynamic address. SYNTAX: nat tmplinst intf = <{loop|Internet|LocalNetwork}> addr_index = <ip-address> dynamic_addr = <ip-address> where: intf The IP interface name. REQUIRED addr_index The outside IP address index/key to instantiate REQUIRED for.

  • Page 585: Nat Tmpllist

    nat Commands nat tmpllist Display address mapping templates. SYNTAX: nat tmpllist [expand = <{disabled|enabled}>] where: expand Expanded listing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 586: Ping Command

    ping Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 587: Ping Command

    ping Command ping Command Send ICMP ECHO_REQUEST packets. SYNTAX: ping proto = <{ip|atm}> addr = <ip-address> dest = <{atm_pvc_8_35}> [count = <number{0-1000000}>] [size = <number{28-20028}>] [interval(ms) = <number{100-1000000}>] [DF-bit = <{disabled|enabled}>] [srcaddr = <ip-address>] where: proto The interface type to be used. REQUIRED addr The destination IP address.
  • Page 588 ppp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 589: Ppp Commands

    ppp Commands ppp Commands ppp flush Flush all PPP interfaces. see page 590 ppp ifadd Create a new PPP interface. see page 591 ppp ifattach Attach a PPP interface. see page 592 ppp ifconfig Modify a PPP interface. see page 593 ppp ifdelete Delete a PPP interface.

  • Page 590: Ppp Flush

    ppp Commands ppp flush Flush all PPP interfaces. E-DOC-CTC-20071119-0014 v2.0...

  • Page 591: Ppp Ifadd

    ppp Commands ppp ifadd Create a new PPP interface. SYNTAX: ppp ifadd intf = <string> where: intf The name for the new PPP interface. If not REQUIRED specified, the destination will double as interface name. E-DOC-CTC-20071119-0014 v2.0...

  • Page 592: Ppp Ifattach

    ppp Commands ppp ifattach Attach a PPP interface. SYNTAX: ppp ifattach intf = <{Internet}> where: intf The name of the PPP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 593: Ppp Ifconfig

    ppp Commands ppp ifconfig Modify a PPP interface. SYNTAX: ppp ifconfig intf = <{Internet}> [dest = <{RELAY}>] [emptyauth = <{disabled|enabled}>] [user = <string>] [password = <password>] [acname = <quoted string>] [servicename = <quoted string>] [class = <{0|1|2|3|4|5|6|7|8|9|10|11|12|13|14| 15}>] [pool = <{none}>] [pcomp = <{disabled|enabled}>] [accomp = <{enabled|disabled|negotiate}>] [trace = <{disabled|enabled}>]...
  • Page 594 ppp Commands password The password for remote PAP/CHAP OPTIONAL authentication. acname The access concentrator name for a PPP session. OPTIONAL servicename The service name for a PPP session. OPTIONAL class The prio class of the PPP packets. OPTIONAL pool Acquire IP subnet and assign it to a free DHCP OPTIONAL pool.
  • Page 595 ppp Commands doddelay During this initial interval (seconds) packets do OPTIONAL not trigger PPP interface. primdns Negotiate this IP address as primary DNS server. OPTIONAL secdns Negotiate this IP address as secondary DNS OPTIONAL server. dnsmetric DNS route metric to be used for the negotiated OPTIONAL DNS servers.

  • Page 596: Ppp Ifdelete

    ppp Commands ppp ifdelete Delete a PPP interface. SYNTAX: ppp ifdelete intf = <{Internet}> where: intf The name of the PPP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 597: Ppp Ifdetach

    ppp Commands ppp ifdetach Detach a PPP interface. SYNTAX: ppp ifdetach intf = <{}> where: intf The name of the PPP interface. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 598: Ppp Iflist

    ppp Commands ppp iflist Display the PPP interfaces. SYNTAX: ppp iflist [intf = <{Internet}>] where: intf The name of a PPP interface. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 599: Ppp Ifscan

    ppp Commands ppp ifscan Scan a PPP interface for available interfaces. SYNTAX: ppp ifscan intf = <{Internet}> [time = <number{0-36000}>] where: intf The name of the PPP interface to scan. REQUIRED time The time to scan for services (in seconds). OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 600: Ppp Relay Flush

    ppp Commands ppp relay flush Remove all ethernet interfaces from the PPP relay agent list and terminate all E-DOC-CTC-20071119-0014 v2.0...

  • Page 601: Ppp Relay Ifadd

    ppp Commands ppp relay ifadd Add an ethernet interface to the PPP relay list. SYNTAX: ppp relay ifadd intf = <{}> where: intf The ethernet intf to be added to the PPP relay REQUIRED agent list. E-DOC-CTC-20071119-0014 v2.0...

  • Page 602: Ppp Relay Ifconfig

    ppp Commands ppp relay ifconfig Modify an ethernet interface from the PPP relay agent list. SYNTAX: ppp relay ifconfig intf = <{bridge|ethoa_8_35}> hwaddr = <hardware-address> where: intf The ethernet intf to be added to the PPP relay REQUIRED agent list. hwaddr The hardware address (e.g.

  • Page 603: Ppp Relay Ifdelete

    ppp Commands ppp relay ifdelete Delete an ethernet interface from the PPP relay agent list. SYNTAX: ppp relay ifdelete intf = <{bridge|ethoa_8_35}> where: intf The ethernet intf to be added to the PPP relay REQUIRED agent list. E-DOC-CTC-20071119-0014 v2.0...

  • Page 604: Ppp Relay Iflist

    ppp Commands ppp relay iflist Display all ethernet interfaces added to the PPP relay agent list. E-DOC-CTC-20071119-0014 v2.0...

  • Page 605: Ppp Relay Sesslist

    ppp Commands ppp relay sesslist Display all active PPP relay sessions. E-DOC-CTC-20071119-0014 v2.0...

  • Page 606: Ppp Rtadd

    ppp Commands ppp rtadd Add a route to the routing table when PPP link comes up. SYNTAX: ppp rtadd intf = <{Internet}> dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [label = <{None|DSCP|Interactive|Management| Video|VoIP-RTP|VoIP-Signal|default}>] [src = <ip-address>] [srcmsk = <ip-mask(dotted or cidr)>] [metric = <number{0-100}>] where: intf...

  • Page 607: Ppp Rtdelete

    ppp Commands ppp rtdelete Delete the route for a PPP link. SYNTAX: ppp rtdelete intf = <{Internet}> where: intf The PPP interface name for which to delete the REQUIRED route settings. E-DOC-CTC-20071119-0014 v2.0...
  • Page 608 pptp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 609: Pptp Commands

    pptp Commands pptp Commands pptp flush Flushes the PPTP configuration. see page 610 pptp ifadd Adds a PPTP profile (backwards see page 611 compatible with previous release, use profiles pptp list Shows PPTP configuration. see page 612 pptp profadd Defines a new PPTP profile. see page 613 pptp profdelete Deletes a PPTP profile.

  • Page 610: Pptp Flush

    pptp Commands pptp flush Flushes the PPTP configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 611: Pptp Ifadd

    pptp Commands pptp ifadd Adds a PPTP profile (backwards compatible with previous release, use profiles SYNTAX: pptp ifadd dest = <string> [rate = <number{10-10000}>] [encaps = <{vcmux|nlpid}>] [ac = <{never|always|keep}>] where: dest The WAN destination for this PPTP tunnel. REQUIRED Typically a phonebook name.

  • Page 612: Pptp List

    pptp Commands pptp list Shows PPTP configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 613: Pptp Profadd

    pptp Commands pptp profadd Defines a new PPTP profile. SYNTAX: pptp profadd name = <string> [qos = <{default}>] [encaps = <{vcmux|nlpid}>] [ac = <{never|always|keep}>] where: name The name for the new PPTP profile. REQUIRED The name of the qosbook entry, containing the OPTIONAL settings for this profile.

  • Page 614: Pptp Profdelete

    pptp Commands pptp profdelete Deletes a PPTP profile. SYNTAX: pptp profdelete name = <> where: name The name of the profile to delete. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 615: Pptp Proflist

    pptp Commands pptp proflist Lists PPTP profiles. E-DOC-CTC-20071119-0014 v2.0...

  • Page 616: Saveall Command

    saveall Command E-DOC-CTC-20071119-0014 v2.0...

  • Page 617: Saveall Command

    saveall Command saveall Command Saves current configuration. E-DOC-CTC-20071119-0014 v2.0...
  • Page 618 script Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 619: Script Commands

    script Commands script Commands script add Add line to script. see page 620 script delete Delete complete script or line from see page 621 script. script flush Flush scripts. see page 622 script list List script. see page 623 script run Run script.

  • Page 620: Script Add

    script Commands script add Add line to script. SYNTAX: script add name = <string> [index = <number>] command = <quoted string> where: name Name of script. REQUIRED index Line number (0 = add). OPTIONAL command Command. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 621: Script Delete

    script Commands script delete Delete complete script or line from script. SYNTAX: script delete name = <{autopvc_add_qos|autopvc_delete_qos| autopvc_add_bridge|autopvc_delete_pppoerelay| autopvc_add_ipoa|autopvc_delete_ipoa| autopvc_add_ethoa|autopvc_delete_ethoa| autopvc_add_pppoa|autopvc_delete_pppoa| autopvc_add_pppoe|autopvc_delete_pppoe| autopvc_change_qos|wlbrintfadd|wlbrintfdel}> [index = <number>] where: name Name of script. REQUIRED index Line number. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 622: Script Flush

    script Commands script flush Flush scripts. E-DOC-CTC-20071119-0014 v2.0...

  • Page 623: Script List

    script Commands script list List script. SYNTAX: script list [name = <{autopvc_add_qos|autopvc_delete_qos| autopvc_add_bridge|autopvc_delete_pppoerelay| autopvc_add_ipoa|autopvc_delete_ipoa| autopvc_add_ethoa|autopvc_delete_ethoa| autopvc_add_pppoa|autopvc_delete_pppoa| autopvc_add_pppoe|autopvc_delete_pppoe| autopvc_change_qos|wlbrintfadd|wlbrintfdel}>] where: name Name of script. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 624: Script Run

    script Commands script run Run script. SYNTAX: script run name = <{autopvc_add_qos|autopvc_delete_qos| autopvc_add_bridge|autopvc_delete_pppoerelay| autopvc_add_ipoa|autopvc_delete_ipoa| autopvc_add_ethoa|autopvc_delete_ethoa| autopvc_add_pppoa|autopvc_delete_pppoa| autopvc_add_pppoe|autopvc_delete_pppoe| autopvc_change_qos|wlbrintfadd|wlbrintfdel}> pars = <quoted string> where: name Name of script. REQUIRED pars Parameters separated with comma e.q. a,b,c . REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 625: Service Commands

    service Commands service Commands service host add Add a service. see page 626 service host assign Assign a service to a host. see page 627 service host category add Create/define service category. see page 628 service host category delete Delete a service category. see page 629 service host category list List the available service categories.

  • Page 626: Service Host Add

    service Commands service host add Add a service. SYNTAX: service host add name = <quoted string> [mode = <{server|client|custom}>] [category = <>] where: name The name of the service. REQUIRED mode server, client or custom service ? OPTIONAL category The category to which the service belongs. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 627: Service Host Assign

    service Commands service host assign Assign a service to a host. SYNTAX: service host assign name = <{AIM Talk|BearShare|BitTorrent| Checkpoint FW1 VPN|Counter Strike|Server (World Wide Web)|HTTPS Server|iMesh|KaZaA|Mail Server (SMTP)|Microsoft Remote Desktop|MSN Game Zone|MSN Game Zone (DX)|NNTPServer|PPTP Server|Secure Shell Server (SSH)|Steam Games| TelnetServer|VNC|Xbox Live}>...

  • Page 628: Service Host Category Add

    service Commands service host category add Create/define service category. SYNTAX: service host category add name = <string> where: name The name of the category. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 629: Service Host Category Delete

    service Commands service host category delete Delete a service category. SYNTAX: service host category delete name = <> where: name The name of the category. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 630: Service Host Category List

    service Commands service host category list List the available service categories. E-DOC-CTC-20071119-0014 v2.0...

  • Page 631: Service Host Category Rename

    service Commands service host category rename Rename a service category. SYNTAX: service host category rename name = <> new_name = <string> where: name The name of the existing category. REQUIRED new_name The new name of the category. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 632: Service Host Delete

    service Commands service host delete Delete a service. SYNTAX: service host delete name = <{AIM Talk|BearShare|BitTorrent| Checkpoint FW1 VPN|Counter Strike|Server (World Wide Web)|HTTPS Server|iMesh|KaZaA|Mail Server (SMTP)|Microsoft Remote Desktop|MSN Game Zone|MSN Game Zone (DX)|NNTPServer|PPTP Server|Secure Shell Server (SSH)|Steam Games| TelnetServer|VNC|Xbox Live}> where: name The name of the service.

  • Page 633: Service Host Disable

    service Commands service host disable Disable a service. SYNTAX: service host disable [name = <{AIM Talk|BearShare|BitTorrent| Checkpoint FW1 VPN|Counter Strike|Server (World Wide Web)|HTTPS Server|iMesh|KaZaA|Mail Server (SMTP)|Microsoft Remote Desktop|MSN Game Zone|MSN Game Zone (DX)|NNTPServer|PPTP Server|Secure Shell Server (SSH)|Steam Games| TelnetServer|VNC|Xbox Live}>] where: name The name of the service.

  • Page 634: Service Host Flush

    service Commands service host flush Flush all services. E-DOC-CTC-20071119-0014 v2.0...

  • Page 635: Service Host List

    service Commands service host list Display list of services. SYNTAX: service host list [name = <{AIM Talk|BearShare|BitTorrent| Checkpoint FW1 VPN|Counter Strike|Server (World Wide Web)|HTTPS Server|iMesh|KaZaA|Mail Server (SMTP)|Microsoft Remote Desktop|MSN Game Zone|MSN Game Zone (DX)|NNTPServer|PPTP Server|Secure Shell Server (SSH)|Steam Games| TelnetServer|VNC|Xbox Live}>] where: name The name of the service.

  • Page 636: Service Host Rule Add

    service Commands service host rule add Create/define service portmap. SYNTAX: service host rule add name = <{AIM Talk|BearShare|BitTorrent| Checkpoint FW1 VPN|Counter Strike|Server (World Wide Web)|HTTPS Server|iMesh|KaZaA|Mail Server (SMTP)|Microsoft Remote Desktop|MSN Game Zone|MSN Game Zone (DX)|NNTPServer|PPTP Server|Secure Shell Server (SSH)|Steam Games| TelnetServer|VNC|Xbox Live}>...

  • Page 637: Service Host Rule Delete

    service Commands service host rule delete Delete a service portmap. SYNTAX: service host rule delete name = <{AIM Talk|BearShare|BitTorrent| Checkpoint FW1 VPN|Counter Strike|Server (World Wide Web)|HTTPS Server|iMesh|KaZaA|Mail Server (SMTP)|Microsoft Remote Desktop|MSN Game Zone|MSN Game Zone (DX)|NNTPServer|PPTP Server|Secure Shell Server (SSH)|Steam Games| TelnetServer|VNC|Xbox Live}>...

  • Page 638: Service Host Stats

    service Commands service host stats Service statistics. E-DOC-CTC-20071119-0014 v2.0...

  • Page 639: Service Host Triggerlist

    service Commands service host triggerlist List all triggers. E-DOC-CTC-20071119-0014 v2.0...

  • Page 640: Service System Ifadd

    service Commands service system ifadd Add an interface to the access list. SYNTAX: service system ifadd name = <{PPTP|HTTP|HTTPs|FTP|TELNET|DNS-S| SSDP|MDAP|PING_RESPONDER}> group = <{wan|local|lan|tunnel|dmz|guest} or number> where: name The name of the service for this access list. REQUIRED group The interface group for this access list. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 641: Service System Ifdelete

    service Commands service system ifdelete Delete an interface from the access list. SYNTAX: service system ifdelete name = <{PPTP|HTTP|HTTPs|FTP|TELNET|DNS-S| SSDP|MDAP|PING_RESPONDER}> group = <{wan|local|lan|tunnel|dmz|guest} or number> where: name The name of the service for this access list. REQUIRED group The interface group for this access list. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 642: Service System Ipadd

    service Commands service system ipadd Add an ip address (range) to the access list. SYNTAX: service system ipadd name = <{PPTP|HTTP|HTTPs|FTP|TELNET|DNS-S| SSDP|MDAP|PING_RESPONDER}> ip = <ip-range> where: name The name of the service for this access list. REQUIRED The ip address (range) for this access list. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 643: Service System Ipdelete

    service Commands service system ipdelete Delete an ip address (range) from the access list. SYNTAX: service system ipdelete name = <{PPTP|HTTP|HTTPs|FTP|TELNET|DNS-S| SSDP|MDAP|PING_RESPONDER}> ip = <ip-range> where: name The name of the service for this access list. REQUIRED The ip address (range) for this access list. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 644: Service System List

    service Commands service system list Display services. SYNTAX: service system list [name = <{PPTP|PPTPD|PPTPGRE|SNTP| SLA_ICMP_PING|SLA_UDP_PING|HTTP|HTTPs| statdns|custom|No-IP|DtDNS|gnudip|DHCP-S| DHCP-R|SSDP|MDAP|CWMP-C|CWMP-S|RAS|SRAS| IP_COMMANDS|ICMP_PING|SENDTO|PING_RESPONDER| ICMP_TRACEROUTE|UDP_TRACEROUTE|HTTPPROBE}>] [expand = <{disabled|enabled}>] [dynamics = <{disabled|enabled}>] [members = <{disabled|enabled}>] where: name The name of the service. OPTIONAL expand Expanded listing. OPTIONAL dynamics Display dynamic sevices.

  • Page 645: Service System Mapadd

    service Commands service system mapadd Add a port map for a service. SYNTAX: service system mapadd name = <{PPTP|HTTP|HTTPs|HTTPI|FTP|TELNET|DNS- S|SSDP|MDAP}> intf = <{loop|Internet|LocalNetwork}> port = <{at-echo|at-nbp|at-rtmp|at-zis|auth| bgp|biff|bootpc|bootps|chargen|data|gopher| h323|httpproxy|ike|ils|imap2|imap3|ingres- net|ipcserver|ipx|irc-o|irc-u|kerberos|ldap| login|netbios-dgm|netbios-ns|netbios-ssn| netwall|netware-ip|new-rwho|nfds|nicname|nntp| ntalk|ntp|pcmail-srv|pop2|pop3|printer|qotd| realaudio|rip|rtelnet|rtsp|sip|smtp|snmp| snmptrap|snpp|sntp|sql*net|sql-net|sqlserv| sunrpc|syslog|systat|talk|telnet|...} or number> where: name The name of the service for this map. REQUIRED intf The interface for this map.

  • Page 646: Service System Mapdelete

    service Commands service system mapdelete Delete a port map for a service. SYNTAX: service system mapdelete name = <{PPTP|HTTP|HTTPs|HTTPI|FTP|TELNET|DNS- S|SSDP|MDAP}> intf = <{loop|Internet|LocalNetwork}> port = <{at-echo|at-nbp|at-rtmp|at-zis|auth| bgp|biff|bootpc|bootps|chargen|data|gopher| h323|httpproxy|ike|ils|imap2|imap3|ingres- net|ipcserver|ipx|irc-o|irc-u|kerberos|ldap| login|netbios-dgm|netbios-ns|netbios-ssn| netwall|netware-ip|new-rwho|nfds|nicname|nntp| ntalk|ntp|pcmail-srv|pop2|pop3|printer|qotd| realaudio|rip|rtelnet|rtsp|sip|smtp|snmp| snmptrap|snpp|sntp|sql*net|sql-net|sqlserv| sunrpc|syslog|systat|talk|telnet|...} or number> where: name The name of the service for this map. REQUIRED intf The interface for this map.

  • Page 647: Service System Modify

    service Commands service system modify Modify a service. SYNTAX: service system modify name = <{PPTP|PPTPD|PPTPGRE|SNTP| SLA_ICMP_PING|SLA_UDP_PING|HTTP|HTTPs| MDAP|CWMP-C|CWMP-S|RAS|SRAS|IP_COMMANDS| PING_RESPONDER}> [state = <{disabled|enabled}>] [port = <{at-echo|at-nbp|at-rtmp|at-zis|auth| bgp|biff|bootpc|bootps|chargen|data|gopher| h323|httpproxy|ike|ils|imap2|imap3|ingres- net|ipcserver|ipx|irc-o|irc-u|kerberos|ldap| login|netbios-dgm|netbios-ns|netbios-ssn| netwall|netware-ip|new-rwho|nfds|nicname|nntp| ntalk|ntp|pcmail-srv|pop2|pop3|printer|qotd| realaudio|rip|rtelnet|rtsp|sip|smtp|snmp| snmptrap|snpp|sntp|sql*net|sql-net|sqlserv| sunrpc|syslog|systat|talk|telnet|...} or number>] [qoslabel = <{None|DSCP|Interactive| Management|Video|VoIP-RTP|VoIP-Signal| default}>] [routelabel = <{None|DSCP|Interactive| Management|Video|VoIP-RTP|VoIP-Signal| default}>]...
  • Page 648 sntp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 649: Sntp Commands

    sntp Commands sntp Commands sntp add Add NTP server see page 650 sntp config Modify/Display configuration see page 651 sntp debug traceconfig Modify SNTP client trace see page 652 configuration sntp delete Delete NTP server from list see page 653 sntp flush Flush NTP server list and SNTP client see page 654...

  • Page 650: Sntp Add

    sntp Commands sntp add Add NTP server SYNTAX: sntp add [addr = <ip-address>] [name = <string>] [version = <number{1-4}>] where: addr IP address of NTP server to be added to list OPTIONAL name DNS name of NTP server to be added to list. OPTIONAL If both the IP address and the DNS name are provided, the IP address is ignored.

  • Page 651: Sntp Config

    sntp Commands sntp config Modify/Display configuration SYNTAX: sntp config [state = <{enabled|disabled}>] [poll = <number{1-10080}>] [pollpresync = <number{1-60}>] where: state Enable/Disable SNTP client OPTIONAL poll polling interval (1 min, ... ,10080min(=7days)) OPTIONAL pollpresync polling interval before first sync (1 OPTIONAL min, ...

  • Page 652: Sntp Debug Traceconfig

    sntp Commands sntp debug traceconfig Modify SNTP client trace configuration SYNTAX: sntp debug traceconfig [state = <{disabled|enabled}>] where: state Enable/Disable tracing. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 653: Sntp Delete

    sntp Commands sntp delete Delete NTP server from list SYNTAX: sntp delete [addr = <ip-address>] [name = <string>] where: addr IP address of NTP server to be removed from list OPTIONAL name DNS name of NTP server to be removed from OPTIONAL list E-DOC-CTC-20071119-0014 v2.0...

  • Page 654: Sntp Flush

    sntp Commands sntp flush Flush NTP server list and SNTP client configuration E-DOC-CTC-20071119-0014 v2.0...

  • Page 655: Sntp List

    sntp Commands sntp list List the NTP servers E-DOC-CTC-20071119-0014 v2.0...

  • Page 656: Software Commands

    software Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 657: Software Commands

    software Commands software Commands software download Download parameters. see page 658 software upgrade Reboots the modem to initiate the SW see page 659 upgrade. New software available on software version Displays the software version. see page 660 E-DOC-CTC-20071119-0014 v2.0...

  • Page 658: Software Download

    software Commands software download Download parameters. SYNTAX: software download filetype = <{firmware|configuration}> url = <string> [username = <string>] [password = <string>] filesize = <string> [targetfilename = <string>] where: filetype The type of the file to be downloaded. REQUIRED Set the HTTP URL where the file is to be found REQUIRED including remote filename.

  • Page 659: Software Upgrade

    software Commands software upgrade Reboots the modem to initiate the SW upgrade. New software available on a E-DOC-CTC-20071119-0014 v2.0...

  • Page 660: Software Version

    software Commands software version Displays the software version. E-DOC-CTC-20071119-0014 v2.0...

  • Page 661: Statecheck Commands

    statecheck Commands statecheck Commands statecheck checkadd Add a check object. see page 662 statecheck checkdelete Delete a check object. see page 663 statecheck config Configure checkd parameters. see page 664 statecheck groupadd Add a group object. see page 665 statecheck groupdelete Delete a group object.

  • Page 662: Statecheck Checkadd

    statecheck Commands statecheck checkadd Add a check object. SYNTAX: statecheck checkadd group = <string> name = <string> object = <string> paramname = <string> paramtype = <{string|uint|bool}> matchtype = <{equal|differ|statdelta}> match = <string> where: group The name of the group. REQUIRED name The name of the check.

  • Page 663: Statecheck Checkdelete

    statecheck Commands statecheck checkdelete Delete a check object. SYNTAX: statecheck checkdelete group = <string> name = <string> where: group The name of the group. REQUIRED name The name of the check. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 664: Statecheck Config

    statecheck Commands statecheck config Configure checkd parameters. SYNTAX: statecheck config interval = <number> timeout = <number> [groupop = <{and|or}>] [dmtree = <{igd|atomic}>] where: interval The interval between checks. REQUIRED timeout Timeout after wich checking stops. REQUIRED groupop Group operator type. OPTIONAL dmtree Client type.

  • Page 665: Statecheck Groupadd

    statecheck Commands statecheck groupadd Add a group object. SYNTAX: statecheck groupadd name = <string> [checkop = <{and|or}>] where: name The name of the group. REQUIRED checkop Check operator type. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 666: Statecheck Groupdelete

    statecheck Commands statecheck groupdelete Delete a group object. SYNTAX: statecheck groupdelete name = <string> where: name The name of the group. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 667: System Commands

    system Commands system Commands system config Set or change system config see page 668 parameters. system debug autosave Autosave debugging commands see page 669 system debug stats Cpu and memory statistics see page 670 system dst Set daylight saving values see page 671 system flush Flush system configuration.

  • Page 668: System Config

    system Commands system config Set or change system config parameters. SYNTAX: system config [upnp = <{disabled|enabled}>] [tr64 = <{disabled|enabled}>] [mdap = <{disabled|enabled}>] [led = <{green|red|orange|flash|off}>] [resetbutton = <{disabled|enabled}>] [digestauth = <{disabled|enabled}>] [defaultconnection = <{loop|Internet| LocalNetwork}>] [autosave = <{enabled|disabled}>] [autosavedelay = <number{0-600}>] where: upnp Enable/Disable upnp discovery...

  • Page 669: System Debug Autosave

    system Commands system debug autosave Autosave debugging commands SYNTAX: system debug autosave [trace = <{disabled|enabled}>] where: trace Enable/Disable autosave traces OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 670: System Debug Stats

    system Commands system debug stats Cpu and memory statistics SYNTAX: system debug stats [reset = <{disabled|enabled}>] where: reset Reset cpu statistics. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 671: System Dst

    system Commands system dst Set daylight saving values SYNTAX: system dst [status = <{Disable|Enable}>] [mode = <{Absolute|Relative}>] [startdate = <dd/mm/yyyy>] [starttime = <hh:mm:ss>] [enddate = <dd/mm/yyyy>] [endtime = <hh:mm:ss>] [startweekday = <{Sunday|Monday|Tuesday| Wednesday|Thursday|Friday|Saturday}>] [starthour = <number{0-23}>] [startweek = <number{1-5}>] [startmonth = <number{1-12}>] [endweekday = <{Sunday|Monday|Tuesday| Wednesday|Thursday|Friday|Saturday}>] [endhour = <number{0-23}>]...
  • Page 672 system Commands endweekday Set the end weekday of the daylight saving in OPTIONAL the relative mode endhour Set the end hour of the daylight saving in the OPTIONAL relative mode endweek Set the end week of the daylight saving in the OPTIONAL relative mode endmonth...

  • Page 673: System Flush

    system Commands system flush Flush system configuration. E-DOC-CTC-20071119-0014 v2.0...

  • Page 674: System Locale

    system Commands system locale Set/Get regional settings. SYNTAX: system locale [dec_symbol = <{,|.}>] [group_symbol = <{.|,}>] [date_separator = <{/|-|.}>] [date_format = <{iso|ddmmyyyy|ddmmyy|mmddyyyy| mmddyy}>] [time_format = <{iso|hmmss}>] [datetime_format = <{iso|date+time|time +date}>] [duration_format = <{dhmmss|hmmss}>] where: dec_symbol Set decimal symbol OPTIONAL group_symbol Set digit grouping symbol OPTIONAL date_separator...

  • Page 675: System Ra Config

    system Commands system ra config Configure Remote assistance params. SYNTAX: system ra config [secure = <{disabled|enabled}>] [port = <number>] [timeout = <number>] where: secure Enable/Disable https. OPTIONAL port Set destination port. OPTIONAL timeout Set connection timeout in minutes. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 676: System Reboot

    system Commands system reboot Reboot the modem. E-DOC-CTC-20071119-0014 v2.0...

  • Page 677: System Reset

    system Commands system reset Reset to (factory or ISP) defaults: user specific settings will be cleared ! SYNTAX: system reset factory = <{yes|no}> proceed = <{no|yes}> where: factory Option to reset to factory REQUIRED proceed Confirmation for resetting the modem. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 678: System Settime

    system Commands system settime Set/Get date, time, timezone, daylight savings time, uptime. SYNTAX: system settime [date = <dd/mm/yyyy>] [time = <hh:mm:ss>] [timezone = <(+ or -)hh:mm>] [daylightsaving = <{disabled|enabled}>] [geotimezonename = <quoted string>] [rtc = <{disabled|enabled}>] where: date Set the system date OPTIONAL time Set the system time...

  • Page 679: System Timedreboot

    system Commands system timedreboot Set or change editing mode timed reboot SYNTAX: system timedreboot [state = <{disabled|enabled}>] [time = <number{0-983040}>] [date = <string>] where: state Enable/Disable timed reboot OPTIONAL time Change default countdown time (Min). OPTIONAL date Set date/time to reboot (DD/MM/YYYY/HH:MM). OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 680: Systemlog Commands

    systemlog Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 681: Systemlog Commands

    systemlog Commands systemlog Commands systemlog flush Flush all messages in syslog message see page 682 buffer. systemlog send Send messages to remote syslog see page 683 server. systemlog show Show messages in the syslog see page 684 message buffer. E-DOC-CTC-20071119-0014 v2.0...

  • Page 682: Systemlog Flush

    systemlog Commands systemlog flush Flush all messages in syslog message buffer. E-DOC-CTC-20071119-0014 v2.0...

  • Page 683: Systemlog Send

    systemlog Commands systemlog send Send messages to remote syslog server. SYNTAX: systemlog send [fac = <{kern|user|mail|daemon|auth|syslog| lpr|news|uucp|cron|security|ftp|local6| local7}>] [sev = <{emerg|alert|crit|err|warning|notice| info|debug}>] [hist = <{disabled|enabled}>] dest = <ip-address> where: Syslog facility level. OPTIONAL Syslog severity level. OPTIONAL hist Syslog display message history (over several OPTIONAL bootups) dest...

  • Page 684: Systemlog Show

    systemlog Commands systemlog show Show messages in the syslog message buffer. SYNTAX: systemlog show [fac = <{kern|user|mail|daemon|auth|syslog| lpr|news|uucp|cron|security|ftp|local6| local7}>] [sev = <{emerg|alert|crit|err|warning|notice| info|debug}>] [hist = <{disabled|enabled}>] where: Syslog facility level. OPTIONAL Syslog severity level. OPTIONAL hist Syslog display message history (over several OPTIONAL bootups) E-DOC-CTC-20071119-0014 v2.0...

  • Page 685: Tls Commands

    tls Commands tls Commands tls acs-client cert add Add a new certificate see page 686 tls acs-client cert delete Delete a certificate see page 687 tls acs-client cert list List certificates see page 688 tls acs-client config Display/modify tls settings see page 689 tls https-server cert add Add a new certificate...

  • Page 686: Tls Acs-Client Cert Add

    tls Commands tls acs-client cert add Add a new certificate SYNTAX: tls acs-client cert add filename = <string> where: filename name of the certificate file REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 687: Tls Acs-Client Cert Delete

    tls Commands tls acs-client cert delete Delete a certificate SYNTAX: tls acs-client cert delete index = <number> where: index Certificate index REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 688: Tls Acs-Client Cert List

    tls Commands tls acs-client cert list List certificates SYNTAX: tls acs-client cert list [index = <number>] [expand = <{disabled|enabled}>] where: index Certificate index OPTIONAL expand Display more information OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 689: Tls Acs-Client Config

    tls Commands tls acs-client config Display/modify tls settings SYNTAX: tls acs-client config [state = <{disabled|enabled}>] [auth-serv = <{disabled|enabled}>] [valid-date = <{disabled|enabled}>] [valid-domain = <{disabled|enabled}>] where: state SSL/TLS client for ACS state OPTIONAL auth-serv Request server authentication OPTIONAL valid-date Check certificate validity date OPTIONAL valid-domain Check certificate domain...

  • Page 690: Tls Https-Server Cert Add

    tls Commands tls https-server cert add Add a new certificate SYNTAX: tls https-server cert add filename = <string> where: filename name of the certificate file REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 691: Tls Https-Server Cert Delete

    tls Commands tls https-server cert delete Delete a certificate SYNTAX: tls https-server cert delete index = <number> where: index Certificate index REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 692: Tls Https-Server Cert List

    tls Commands tls https-server cert list List certificates SYNTAX: tls https-server cert list [index = <number>] [expand = <{disabled|enabled}>] where: index Certificate index OPTIONAL expand Display more information OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 693: Tls Https-Server Config

    tls Commands tls https-server config Display/modify tls settings SYNTAX: tls https-server config [state = <{disabled|enabled}>] [auth-client = <{disabled|enabled}>] [valid-date = <{disabled|enabled}>] where: state SSL/TLS server for HTTPS state OPTIONAL auth-client Request client authentication OPTIONAL valid-date Check certificate validity date OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 694: Tls Self Cert List

    tls Commands tls self cert list List certificates SYNTAX: tls self cert list [index = <number>] [expand = <{disabled|enabled}>] where: index Certificate index OPTIONAL expand Display more information OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 695: Tod Commands

    tod Commands tod Commands tod action add Add an action object. see page 696 tod action delete Delete an action object. see page 697 tod action list List actions. see page 698 tod action paramadd Add a setvalue parameter. see page 699 tod action paramdelete Delete a setvalue parameter.

  • Page 696: Tod Action Add

    tod Commands tod action add Add an action object. SYNTAX: tod action add [id = <number>] where: The id of the actiom. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 697: Tod Action Delete

    tod Commands tod action delete Delete an action object. SYNTAX: tod action delete actionid = <number> where: actionid The id of the action. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 698: Tod Action List

    tod Commands tod action list List actions. E-DOC-CTC-20071119-0014 v2.0...

  • Page 699: Tod Action Paramadd

    tod Commands tod action paramadd Add a setvalue parameter. SYNTAX: tod action paramadd actionid = <number> setvalueid = <number> [id = <number>] [object = <string>] [param = <string>] [value = <string>] where: actionid The id of the action. REQUIRED setvalueid The id of the setvalue action.

  • Page 700: Tod Action Paramdelete

    tod Commands tod action paramdelete Delete a setvalue parameter. SYNTAX: tod action paramdelete actionid = <number> setvalueid = <number> paramid = <number> where: actionid The id of the action. REQUIRED setvalueid The id of the setvalue action. REQUIRED paramid The id of the setvalue param. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 701: Tod Action Setvaladd

    tod Commands tod action setvaladd Add a setvalue object. SYNTAX: tod action setvaladd actionid = <number> [id = <number>] [on = <{active|inactive}>] where: actionid The id of the action. REQUIRED The id of the setvalue actiom. OPTIONAL Active/inactive. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 702: Tod Action Setvaldelete

    tod Commands tod action setvaldelete Delete a setvalue object. SYNTAX: tod action setvaldelete actionid = <number> setvalueid = <number> where: actionid The id of the action. REQUIRED setvalueid The id of the setvalue action. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 703: Tod Config

    tod Commands tod config Configure tod parameters. SYNTAX: tod config [acchain = <string>] [state = <{enabled|disabled}>] where: acchain firewall chain name OPTIONAL state enable/disable ToD OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 704: Tod List

    tod Commands tod list List config. E-DOC-CTC-20071119-0014 v2.0...

  • Page 705: Tod Schedule Add

    tod Commands tod schedule add Add a schedule object. SYNTAX: tod schedule add [id = <number>] type = <{none|accesscontrol|action}> where: The id of the schedule. OPTIONAL type The schedule type. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 706: Tod Schedule Dayadd

    tod Commands tod schedule dayadd Add a day object. SYNTAX: tod schedule dayadd scheduleid = <number> [id = <number>] weekday = <{mo|tu|we|th|fr|sa|su}> where: scheduleid The id of the schedule. REQUIRED The id of the day. OPTIONAL weekday The day of the week.. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 707: Tod Schedule Daydelete

    tod Commands tod schedule daydelete Delete a day object. SYNTAX: tod schedule daydelete scheduleid = <number> dayid = <number> where: scheduleid The id of the schedule. REQUIRED dayid The id of the day. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 708: Tod Schedule Delete

    tod Commands tod schedule delete Delete a schedule object. SYNTAX: tod schedule delete scheduleid = <number> where: scheduleid The id of the schedule. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 709: Tod Schedule List

    tod Commands tod schedule list List schedules. E-DOC-CTC-20071119-0014 v2.0...

  • Page 710: Tod Schedule Modify

    tod Commands tod schedule modify Modify schedule parameters. SYNTAX: tod schedule modify [expiretime = <string>] [nrofminutes = <number>] [count = <number>] scheduleid = <number> [mode = <{timerange|timeout}>] [reference = <string>] [name = <string>] [action = <string>] [state = <{enabled|disabled}>] where: expiretime The absolute expire time.

  • Page 711: Tod Schedule Timeadd

    tod Commands tod schedule timeadd Add a timerange object. SYNTAX: tod schedule timeadd scheduleid = <number> dayid = <number> [id = <number>] starthour = <number> startminute = <number> endhour = <number> endminute = <number> [action = <string>] where: scheduleid The id of the schedule. REQUIRED dayid The id of the day.

  • Page 712: Tod Schedule Timedelete

    tod Commands tod schedule timedelete Delete a timerange object. SYNTAX: tod schedule timedelete scheduleid = <number> dayid = <number> timeid = <number> where: scheduleid The id of the schedule. REQUIRED dayid The id of the day. REQUIRED timeid The id of the timerange. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 713: Traceroute Command

    traceroute Command traceroute Command Send ICMP/UDP packets to trace the ip path. SYNTAX: traceroute addr = <ip-address> [count = <number{1-10}>] [size = <number{1-20000}>] [interval = <number{1000-60000}>] [maxhops = <number{1-255}>] [dstport = <number{1-65535}>] [maxfail = <number{0-255}>] [type = <{icmp|udp}>] [utime = <{disabled|enabled}>] where: addr The destination IP address.
  • Page 714 upgrade Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 715: Upgrade Commands

    upgrade Commands upgrade Commands upgrade config Change the upgrade daemon see page 716 configuration upgrade debug sesslist Display the list of sessions see page 717 upgrade debug traceconfig Enable/disable upgrade daemon see page 718 tracing upgrade profile add Add a new file profile description see page 719 upgrade profile delete Delete a file profile description...

  • Page 716: Upgrade Config

    upgrade Commands upgrade config Change the upgrade daemon configuration SYNTAX: upgrade config [state = <{disabled|enabled}>] [protocol = <{tftp|ftp|http|https}>] where: state The upgrade daemon state OPTIONAL protocol The transfer protocol to be used for file OPTIONAL download E-DOC-CTC-20071119-0014 v2.0...

  • Page 717: Upgrade Debug Sesslist

    upgrade Commands upgrade debug sesslist Display the list of sessions E-DOC-CTC-20071119-0014 v2.0...

  • Page 718: Upgrade Debug Traceconfig

    upgrade Commands upgrade debug traceconfig Enable/disable upgrade daemon tracing SYNTAX: upgrade debug traceconfig state = <{disabled|enabled}> where: state The upgrade daemon trace state REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 719: Upgrade Profile Add

    upgrade Commands upgrade profile add Add a new file profile description SYNTAX: upgrade profile add extension = <{sts|ini|bin}> [maxsize(KBytes) = <number>] action = <{none|config_load|script_load| reboot|upgrade}> where: extension The extension of the new file profile REQUIRED maxsize(KBytes) The maximum filesize (in KBytes) allowed for OPTIONAL files with the extension of this profile action...

  • Page 720: Upgrade Profile Delete

    upgrade Commands upgrade profile delete Delete a file profile description SYNTAX: upgrade profile delete extension = <{sts|ini|bin}> where: extension The extension of the file profile to be deleted REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 721: Upgrade Profile List

    upgrade Commands upgrade profile list Display a list of the file profile descriptions E-DOC-CTC-20071119-0014 v2.0...

  • Page 722: Upgrade Profile Modify

    upgrade Commands upgrade profile modify Modify a file profile description SYNTAX: upgrade profile modify extension = <{sts|ini|bin}> [maxsize(KBytes) = <number>] action = <{none|config_load|script_load| reboot|upgrade}> where: extension The extension of the new file profile REQUIRED maxsize(KBytes) The maximum filesize (in KBytes) allowed for OPTIONAL files with the extension of this profile action...

  • Page 723: Upgrade Start

    upgrade Commands upgrade start Start a new upgrade SYNTAX: upgrade start protocol = <{tftp|ftp|http|https}> [server = <string>] [filename = <string>] where: protocol The protocol to be used for the download REQUIRED server The server name or IP address OPTIONAL filename The file to be downloaded OPTIONAL E-DOC-CTC-20071119-0014 v2.0...
  • Page 724 upnp Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 725: Upnp Commands

    upnp Commands upnp Commands upnp config Config upnp parameter(s) see page 726 upnp flush Flushes upnp config (i.e. to defaults) see page 727 upnp list List all registered devices see page 728 E-DOC-CTC-20071119-0014 v2.0...

  • Page 726: Upnp Config

    upnp Commands upnp config Config upnp parameter(s) SYNTAX: upnp config [maxage = <number{60-999999}>] [writemode = <{full|natonly|readonly}>] [safenat = <{disabled|enabled}>] [preferredaddresses = <string>] where: maxage ssdp advertisements MAX-AGE (default = 1800) OPTIONAL writemode Configuration access level for UPnP OPTIONAL safenat Enable / disable check on safe nat entries OPTIONAL (limited to own host) preferredaddresses...

  • Page 727: Upnp Flush

    upnp Commands upnp flush Flushes upnp config (i.e. to defaults) E-DOC-CTC-20071119-0014 v2.0...

  • Page 728: Upnp List

    upnp Commands upnp list List all registered devices SYNTAX: upnp list [verbose = <number{0-2}>] where: verbose Verbose level (default = 1) OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 729: User Commands

    user Commands user Commands user add Add a user. see page 730 user config Modify the user. see page 731 user delete Delete a user. see page 732 user flush Flush the users. see page 733 user list Display the users. see page 734 user rights Display session rights.

  • Page 730: User Add

    user Commands user add Add a user. SYNTAX: user add name = <string> password = <password> role = <> [hash2 = <string>] [descr = <quoted string>] [defuser = <{disabled|enabled}>] [defremadmin = <{disabled|enabled}>] [deflocadmin = <{disabled|enabled}>] where: name User name. REQUIRED password User password.

  • Page 731: User Config

    user Commands user config Modify the user. SYNTAX: user config name = <{Administrator|tech}> [password = <password>] [role = <>] [descr = <quoted string>] [defuser = <{disabled|enabled}>] [defremadmin = <{disabled|enabled}>] [deflocadmin = <{disabled|enabled}>] where: name User name. REQUIRED password User password. OPTIONAL role Role name.

  • Page 732: User Delete

    user Commands user delete Delete a user. SYNTAX: user delete name = <{Administrator|tech}> where: name User name. REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 733: User Flush

    user Commands user flush Flush the users. E-DOC-CTC-20071119-0014 v2.0...

  • Page 734: User List

    user Commands user list Display the users. SYNTAX: user list [name = <{Administrator|tech}>] [channel = <{ftp|telnet|http|mdap|serial}>] [origin = <{lan|wan|local}>] [secure = <{disabled|enabled}>] where: name User name. OPTIONAL channel The selected channel. OPTIONAL origin The selected origin. OPTIONAL secure The selected security level. OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 735: User Rights

    user Commands user rights Display session rights. E-DOC-CTC-20071119-0014 v2.0...
  • Page 736 wireless Commands E-DOC-CTC-20071119-0014 v2.0...

  • Page 737: Wireless Commands

    wireless Commands wireless Commands wireless debug stats Transfer statistics see page 739 wireless debug txpower TX power override see page 740 wireless ifconfig Configures wireless settings. see page 741 wireless macacl add Add an ACL MAC entry see page 742 wireless macacl config Access Control List configuration see page 743...
  • Page 738 wireless Commands wireless wds config WDS configuration parameters see page 763 wireless wds delete delete WDS station see page 764 wireless wds flush Flush all wds stations see page 765 wireless wds list list WDS stations see page 766 wireless wds scanresults scan all networks see page 767 wireless wps config...

  • Page 739: Wireless Debug Stats

    wireless Commands wireless debug stats Transfer statistics E-DOC-CTC-20071119-0014 v2.0...

  • Page 740: Wireless Debug Txpower

    wireless Commands wireless debug txpower TX power override SYNTAX: wireless debug txpower [txpwr = <number>] where: txpwr TX power in milliwatt OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 741: Wireless Ifconfig

    wireless Commands wireless ifconfig Configures wireless settings. SYNTAX: wireless ifconfig [state = <{enabled|disabled}>] [channel = <{auto|1|2|3|4|5|6|7|8|9|10|11|12| 13}>] [ssid = <quoted string>] [any = <{enabled|disabled}>] [interop = <{802.11b|802.11b(legacy)/g| 802.11b/g|802.11g}>] [frameburst = <{disabled|enabled}>] where: state Interface operational status of wireless access OPTIONAL point channel Communication channel number...

  • Page 742: Wireless Macacl Add

    wireless Commands wireless macacl add Add an ACL MAC entry SYNTAX: wireless macacl add [ssid_id = <number{0-1}>] hwaddr = <hardware-address> permission = <{allow|deny}> [name = <quoted string>] where: ssid_id ssid id OPTIONAL hwaddr The Ethernet MAC address of the ACL entry REQUIRED permission The action to be performed on ACL entry...

  • Page 743: Wireless Macacl Config

    wireless Commands wireless macacl config Access Control List configuration SYNTAX: wireless macacl config [ssid_id = <number{0-1}>] [control = <{lock|unlock|register}>] [regtime = <number{15-3600}>] where: ssid_id ssid id OPTIONAL control Access Control List mode OPTIONAL regtime Registration time OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 744: Wireless Macacl Delete

    wireless Commands wireless macacl delete Delete an ACL MAC entry SYNTAX: wireless macacl delete ssid_id = <number{0-1}> hwaddr = <hardware-address> where: ssid_id ssid id REQUIRED hwaddr hardware address of the ACL entry REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 745: Wireless Macacl Flush

    wireless Commands wireless macacl flush Flushes ACL entries SYNTAX: wireless macacl flush [ssid_id = <number{0-1}>] proceed = <{disabled|enabled}> where: ssid_id ssid id OPTIONAL proceed Confirmation required REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 746: Wireless Macacl List

    wireless Commands wireless macacl list Shows a list of all configured ACL entries SYNTAX: wireless macacl list [ssid_id = <number{0-1}>] where: ssid_id ssid id OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 747: Wireless Macacl Modify

    wireless Commands wireless macacl modify Modify an ACL entry SYNTAX: wireless macacl modify ssid_id = <number{0-1}> hwaddr = <hardware-address> [permission = <{allow|deny}>] [name = <quoted string>] where: ssid_id ssid id REQUIRED hwaddr The Ethernet MAC address of the ACL entry REQUIRED permission The action to be performed on ACL entry...

  • Page 748: Wireless Macacl Register

    wireless Commands wireless macacl register Start a registration process (only for register mode) SYNTAX: wireless macacl register proceed = <{disabled|enabled}> where: proceed Confirmation required REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 749: Wireless Multiuni Add

    wireless Commands wireless multiuni add add a multicast to unicat mapping SYNTAX: wireless multiuni add multicast = <hardware-address> unicast = <hardware-address> where: multicast Multicast MAC REQUIRED unicast Unicast MAC REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 750: Wireless Multiuni Delete

    wireless Commands wireless multiuni delete delete all multicast mappings SYNTAX: wireless multiuni delete multicast = <hardware-address> where: multicast Multicast MAC REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 751: Wireless Multiuni Flush

    wireless Commands wireless multiuni flush flush all multicast to unicast mappings E-DOC-CTC-20071119-0014 v2.0...

  • Page 752: Wireless Multiuni List

    wireless Commands wireless multiuni list show configured multicast to unicast mappings E-DOC-CTC-20071119-0014 v2.0...

  • Page 753: Wireless Multiuni Scanresults

    wireless Commands wireless multiuni scanresults display detected multicast mac addresses SYNTAX: wireless multiuni scanresults [rescan = <{no|yes}>] where: rescan rescan for new multicast addresses OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 754: Wireless Qos Apacconfig

    wireless Commands wireless qos apacconfig configure AP EDCA parameters SYNTAX: wireless qos apacconfig [class = <{AC_BE|AC_BK|AC_VI|AC_VO}>] [cwmax = <{1|3|7|15|31|63|127|255|511|1023| 2047|4095|8191|16383|32767}>] [cwmin = <{0|1|3|7|15|31|63|127|255}>] [aifsn = <number{1-15}>] [txop = <number>] where: class AC class OPTIONAL cwmax CWmax configuration OPTIONAL cwmin CWmin configuration OPTIONAL aifsn Aifsn configuration...

  • Page 755: Wireless Qos Config

    wireless Commands wireless qos config configure QoS settings SYNTAX: wireless qos config [mode = <{disabled|wmm}>] where: mode WMM active OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 756: Wireless Qos Staacconfig

    wireless Commands wireless qos staacconfig configure STA EDCA parameters SYNTAX: wireless qos staacconfig [class = <{AC_BE|AC_BK|AC_VI|AC_VO}>] [cwmax = <{1|3|7|15|31|63|127|255|511|1023| 2047|4095|8191|16383|32767}>] [cwmin = <{0|1|3|7|15|31|63|127|255}>] [aifsn = <number{1-15}>] [txop = <number>] where: class AC class OPTIONAL cwmax CWmax configuration OPTIONAL cwmin CWmin configuration OPTIONAL aifsn Aifsn configuration...

  • Page 757: Wireless Reset

    wireless Commands wireless reset Reset Wireless interface settings to defaults SYNTAX: wireless reset proceed = <{disabled|enabled}> where: proceed Confirmation required REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 758: Wireless Secmode Config

    wireless Commands wireless secmode config Configure/Show the security mode. SYNTAX: wireless secmode config [mode = <{disable|wep|wpa-psk}>] where: mode security mode OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 759: Wireless Secmode Wep

    wireless Commands wireless secmode wep Configure WEP settings. SYNTAX: wireless secmode wep [encryptionkey = <quoted string>] where: encryptionkey WEP key: expected format 5 or 13 ASCII OPTIONAL characters, or 10 or 26 HEX digits. E-DOC-CTC-20071119-0014 v2.0...

  • Page 760: Wireless Secmode Wpa-Psk

    wireless Commands wireless secmode wpa-psk Configure WPA-PSK settings. SYNTAX: wireless secmode wpa-psk [presharedkey = <quoted string>] [version = <{WPA|WPA2|WPA+WPA2}>] where: presharedkey WPA-PSK key: expected format 8 to 63 ASCII OPTIONAL characters or 64 HEX digits. version wpa version OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 761: Wireless Stations List

    wireless Commands wireless stations list List of the currently associated stations SYNTAX: wireless stations list [hwaddr = <hardware-address>] [ssid_id = <number{0-1}>] where: hwaddr The MAC address of station OPTIONAL ssid_id Selected BSS OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 762: Wireless Wds Add

    wireless Commands wireless wds add add WDS station SYNTAX: wireless wds add bssid = <hardware-address> [name = <quoted string>] where: bssid The WDS bssid REQUIRED name A user specified reference name OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 763: Wireless Wds Config

    wireless Commands wireless wds config WDS configuration parameters SYNTAX: wireless wds config [state = <{disabled|enabled}>] where: state WDS functionality OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 764: Wireless Wds Delete

    wireless Commands wireless wds delete delete WDS station SYNTAX: wireless wds delete bssid = <hardware-address> where: bssid The WDS bssid REQUIRED E-DOC-CTC-20071119-0014 v2.0...

  • Page 765: Wireless Wds Flush

    wireless Commands wireless wds flush Flush all wds stations E-DOC-CTC-20071119-0014 v2.0...

  • Page 766: Wireless Wds List

    wireless Commands wireless wds list list WDS stations E-DOC-CTC-20071119-0014 v2.0...

  • Page 767: Wireless Wds Scanresults

    wireless Commands wireless wds scanresults scan all networks SYNTAX: wireless wds scanresults [rescan = <{disabled|enabled}>] where: rescan perform a new scan OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 768: Wireless Wps Config

    wireless Commands wireless wps config Configure/Show the WPS settings SYNTAX: wireless wps config [ssid_id = <number{0-1}>] [state = <{disabled|enabled}>] [apip = <ip-address>] [regip = <ip-address>] where: ssid_id ssid id OPTIONAL state WPS state OPTIONAL apip AP ip OPTIONAL regip Registrar ip OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 769: Wireless Wps Dump

    wireless Commands wireless wps dump Dump WPS settings E-DOC-CTC-20071119-0014 v2.0...

  • Page 770: Wireless Wps Pin

    wireless Commands wireless wps pin Set/Show the WPS pin value SYNTAX: wireless wps pin [ssid_id = <number{0-1}>] [value = <number>] where: ssid_id ssid id OPTIONAL value pin number OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 771: Xdsl Commands

    xdsl Commands xdsl Commands xdsl config Modify/Display dsl configuration see page 772 xdsl debug bitloadinginfo Displays # bits per tone see page 773 xdsl debug deltconfig Dual Ended Line Testing interface see page 774 xdsl debug deltinfo Dual Ended Line Test result display see page 775 xdsl debug modemoptioninfo The modem options bitmap display...

  • Page 772: Xdsl Config

    xdsl Commands xdsl config Modify/Display dsl configuration SYNTAX: xdsl config [adslmultimode = <{adsl|adsl2|adsl2plus}>] [detect-lop = <{disabled|enabled}>] [syslog = <{disabled|enabled}>] where: adslmultimode Set/Show selected multimode type of the OPTIONAL modem detect-lop Detect Loss Of Power OPTIONAL syslog Log in syslog during showtime OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 773: Xdsl Debug Bitloadinginfo

    xdsl Commands xdsl debug bitloadinginfo Displays # bits per tone E-DOC-CTC-20071119-0014 v2.0...

  • Page 774: Xdsl Debug Deltconfig

    xdsl Commands xdsl debug deltconfig Dual Ended Line Testing interface SYNTAX: xdsl debug deltconfig [state = <{disabled|enabled}>] where: state Enable/Disable dual ended line testing OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 775: Xdsl Debug Deltinfo

    xdsl Commands xdsl debug deltinfo Dual Ended Line Test result display E-DOC-CTC-20071119-0014 v2.0...

  • Page 776: Xdsl Debug Modemoptioninfo

    xdsl Commands xdsl debug modemoptioninfo The modem options bitmap display E-DOC-CTC-20071119-0014 v2.0...

  • Page 777: Xdsl Debug Multimode

    xdsl Commands xdsl debug multimode Config custom multimode SYNTAX: xdsl debug multimode [config = <[+/-]flag[+/-flag...]{default t1.413issue2 g992.1_annex_a g992.2 g992.5_annex_m}>] where: config The custom multimode bitmap OPTIONAL E-DOC-CTC-20071119-0014 v2.0...

  • Page 778: Xdsl Debug Traceconfig

    xdsl Commands xdsl debug traceconfig Config the adsl tracelevel SYNTAX: xdsl debug traceconfig level = <{0|1|2|3|4}> where: level Trace Level (0=disable tracing; 1=enable dsl REQUIRED manager tracing; 2=enable dsl driver tracing) E-DOC-CTC-20071119-0014 v2.0...

  • Page 779: Xdsl Info

    xdsl Commands xdsl info Displays status information about modem SYNTAX: xdsl info [expand = <{disabled|enabled}>] [g.997.1 = <{disabled|enabled}>] [counter_period_filter = <{current|15_minutes| 24_hours}>] [counters_reset = <{no|yes}>] where: expand Condensed / Expanded listing link information OPTIONAL g.997.1 Condensed / Expanded listing link information OPTIONAL counter_period_filter Specify the statistics period...

  • Page 780: Xdsl Maxspeed

    xdsl Commands xdsl maxspeed Set ATM Default Maximum Speed. SYNTAX: xdsl maxspeed [tx = <number>] [rx = <number>] where: A predefined Maximum ADSL Speed in OPTIONAL Upstream direction A predefined Maximum ADSL Speed in OPTIONAL Downstream direction E-DOC-CTC-20071119-0014 v2.0...

  • Page 781: Xdsl Version

    xdsl Commands xdsl version Display xdsl version information. E-DOC-CTC-20071119-0014 v2.0...
  • Page 782 THOMSON Telecom Belgium Prins Boudewijnlaan 47 www.thomson-broadband.com © 2008 Thomson. All rights reserved. E-DOC-CTC-20071119-0014 v2.0...
