JVC AV-32WL1EU Service Manual page 18

AV-32WL1EU
AV-32WL1EI
AV-32WL1EK
BASIC OPERATION OF SERVICE MENU
1. The adjustment using SERVICE MENU
The following adjustment items use the SERVICE MENU in the series of the adjustment. The adjustments are made on the basis of the
initial setting values. The adjustment values which adjust the screen to the optimum condition can be different from the initial setting values.
With the SERVICE NEMU, various settings can be made, and they are broadly classified in the following items of settings.
IF ･････････････････････････ Adjustment of the IF circuits.
V/C ･･･････････････････････ Adjustment of the VIDEO/CHROMA circuit.
AUDIO ････････････････････ Adjustment of the sound circuit [Do not adjust] .
DEF ･･･････････････････････ Adjustment of the DEFLECTION circuit for each aspect mode given below.
VSM PRESET ･･････････････ Adjustment of the initial setting values of VSM condition as COOL, NORMAL and WARM.
STATUS ･･･････････････････ Shows the monitor of the VPS [Do not adjust] .
PIP ････････････････････････ Adjustment of the PIP circuit. But this model does not build in PIP system, because do not adjust .
TEXT ･･････････････････････ Adjustment of the TEXT mode.
SHIPPING ･････････････････ Setting the user setting values to initial condition [Do not adjust] .
2. Key operation of the SERVICE MENU
[Enter to SERVICE MENU]
Press the INFORMATION key and the MUTING key of the REMOTE CONTROL UNIT
simultaneously. Then enter the SERVICE MENU mode as shown in Fig.1.
[Exit from SERVICE MENU]
When complete the adjustment work, press the INFORMATION key to return to the
SERVICE MENU.
And then press the INFORMATION key again, return to the normal screen.
[Select from main menu]
In main SERVICE MENU, press the number (1 ～ 9) key of the remote control unit, to
select any of the adjustment items.
The colours which selected item characters are changed.
18
FULL (100/120Hz)
PANORAMIC (100/120Hz)
(VSM : Video Status Memory)
(VPS : Video Program System)

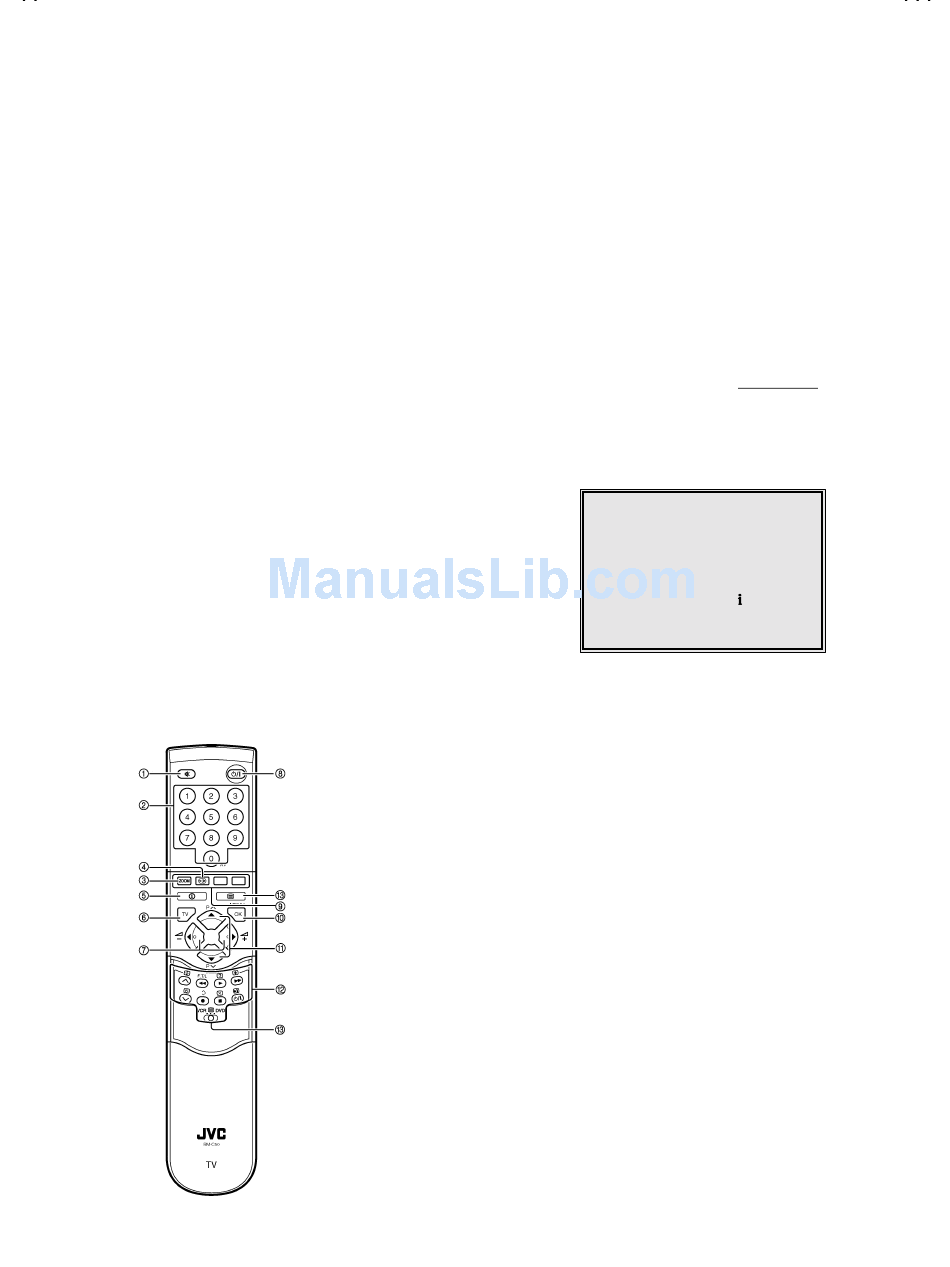

①MUTING key
②NUMBER key
③ZOOM key
④HYPER SOUND key
⑤INFORMATION key
⑥TV key
⑦VOLUME -/+ key (FUNCTION LEFT/RIGHT key)
⑧STANDBY key
⑨COLOUR buttons key
⑩OK / MENU key
⑪PR∧ / ∨key ( FUNCTION UP/DOWN key)
⑫VCR/TELETEXT/DVD control key
⑬VCR/TELETEXT/DVD key
No. 51733
16:9 ZOOM SUBTITLE (100/120Hz)
SERVICE MENU
SERVICE MENU
1.IF
3.AUDIO
5.VSM PRESET
7.PIP
9.SHIPPING(OFF)
1-9 : SELECT
2.V/C
4.DEF
6.STATUS
8.TEXT
:EXIT
