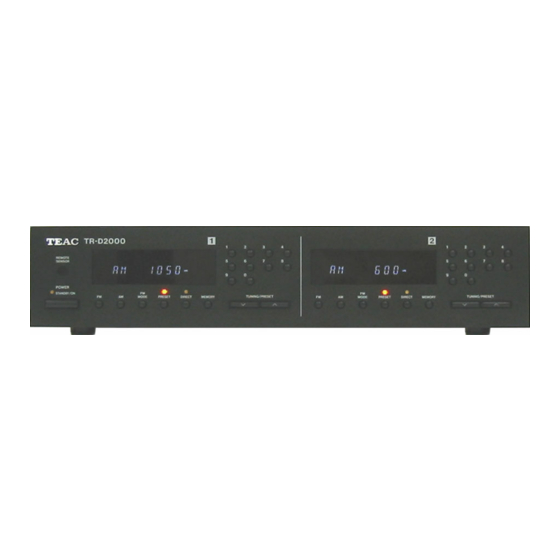

- Page 1 SERVICE MANUAL T T R R - - D D 2 2 0 0 0 0 0 0 AM/FM Stereo Double Tuner Effective : July, 2003 S-0097A...
-
Page 2: Specifications
1 SPECIFICATIONS FM Tuner Section (Without notes 98.1 MHz, 65 dBf) NOTES Tuning Range ....87.5 MHz – 107.9 MHz (200 kHz steps) Usable Sensitivity (IHF) ..........Mono: 15 dBf PC boards shown are viewed from parts side. 50 dB Quieting Sensitivity....Mono: 21 dBf, Stereo: 41 dBf The parts with no reference number or no parts number in the Total Harmonic Distortion (1 kHz) .. -
Page 3: General Information
2 RS-232 COMMANDS General Information: Data Rate: 19,200 baud Parity: None Word length: 8 data bits, 1 stop bit Handshake: No RTS/CTS handshaking Connections: simple 3 wire (Rx, Tx, Gnd) interface Data Entry Protocol: The serial buss should follow a standard serial communications protocol using Line oriented ASCII data stream. -
Page 4: Exploded Views And Parts List
3 EXPLODED VIEWS AND PARTS LIST & & & &... -
Page 5: Exploded View List
EXPLODED VIEW LIST £ £ £ INCLUDED ACCESSORIES... -
Page 6: Pc Boards And Parts List
4 PC BOARDS AND PARTS LIST FRONT PCB POWER PCB MAIN PCB... -
Page 7: Main Pcb Assy
MAIN PCB ASSY FRONT PCB ASSY Part of GATHER A PCB ASSY (3E9560000A) Part of GATHER A PCB ASSY (3E9560000A) £ £ £ £ £ £ £ £ £ £ £ POWER PCB ASSY Part of GATHER A PCB ASSY (3E9560000A) £... -
Page 8: Schematic Diagram
TR-D2000 SCHEMATIC DIAGRAM MAIN PCB, POWER PCB to FRONT PCB to FRONT PCB to FRONT PCB HARNESS ASSY-TUNER1 9P HARNESS ASSY-TUNER2 8P HARNESS ASSY-FRONT PWR 7P R103 R106 C102 0.01U C104 0.01U R101 R104 3.9K Q102 2SC4043S C101 R108 15FE-BT-VK-N... -
Page 9: Front Pcb
TR-D2000 SCHEMATIC DIAGRAM FRONT PCB FL51 FL_TUNER FL_TUNER -30V REMOCON P991 P992 P993 P994 603A-10PGAS0A3 603A-24PGAS0A3 603A-10PGAS0A3 603A-24PGAS0A3 P13_1 KS0_1 P13_2 KS0_2 47U/25V 1SS133T 1SS133T P12_1 KS1_1 P12_2 KS1_2 1SS133T 1SS133T KS2_1 KS2_2 P11_1 P11_2 P12_1 2G_1 1SS133T 2G_2 P12_2...
