9A09878900
CQX1A860Z
Z
T-H300DAB
DAB/AM/FM Stereo Tuner
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-H300DAB and is the answer not in the manual?

Questions and answers

Related Manuals for Teac T-H300DAB

Summary of Contents for Teac T-H300DAB

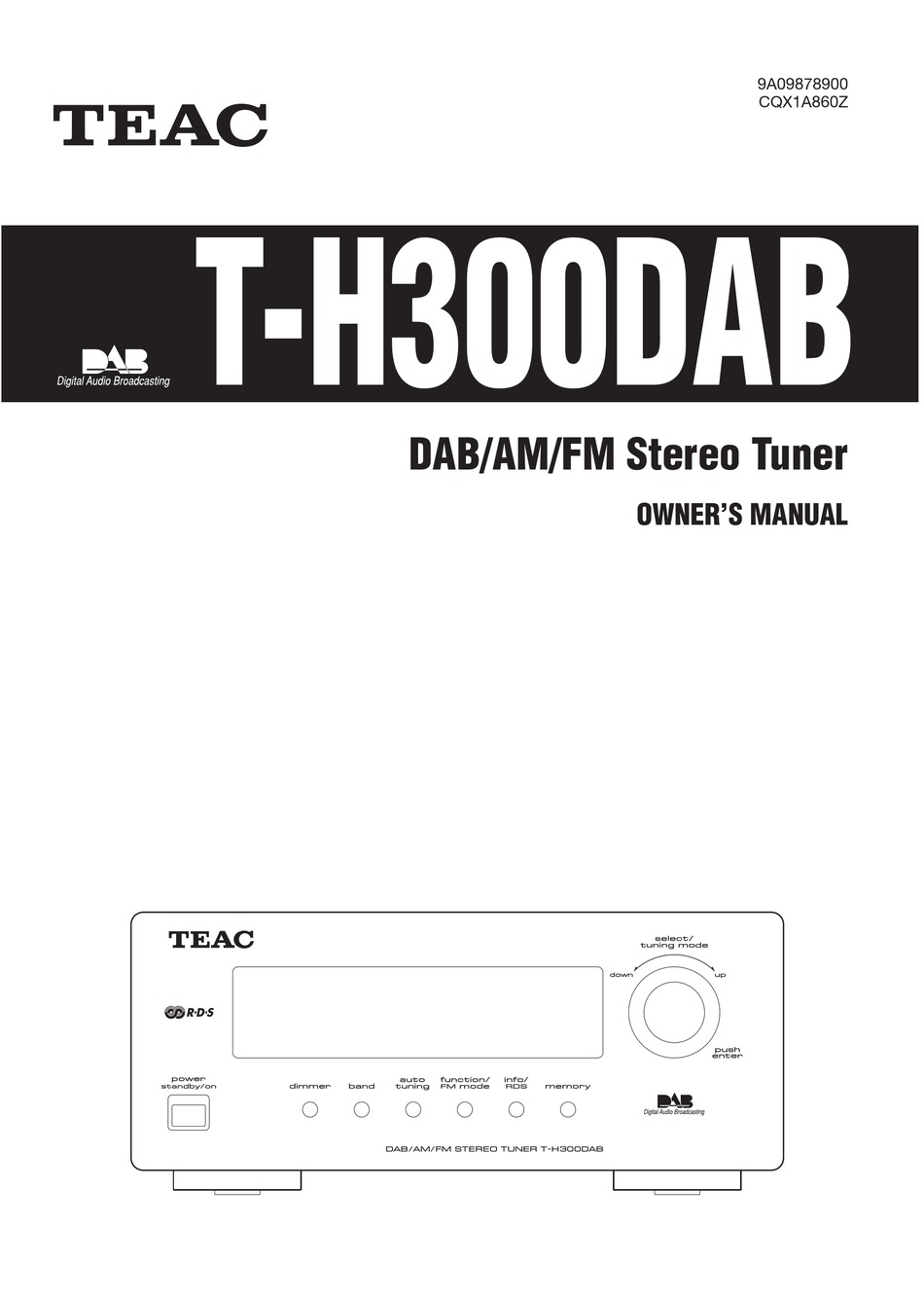

  • Page 1 9A09878900 CQX1A860Z T-H300DAB DAB/AM/FM Stereo Tuner OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Thank you for choosing TEAC. Read this manual point, then obtain an appropriate safety approved carefully to get the best performance from this unit.

  • Page 3: Before Use

    Before Use Remote Control Unit The provided Remote Control Unit allows the unit to be Read this before operation operated from a distance. < The voltage supplied to the unit should match the When operating the remote control unit, point it towards voltage as printed on the rear panel.

  • Page 4: Connection

    Connection Digital recorder/decoder DIGITAL IN OPTICAL T-H300DAB A-H300 or other amplifier...
  • Page 5 CAUTION REMOTE CONTROL jack Turn off the power of all the equipment before If you have TEAC Reference 300 series, Convenient making connections. sysytem control operations are possible. Read instructions of each component you intend to use with this unit.

  • Page 6: Connecting Antennas

    Connecting Antennas AM Indoor Loop Antenna AM Outdoor Antenna A high-performance AM loop antenna provided If the AM loop antenna provided does not deliver with this unit is sufficient for good reception in sufficient reception (because you are too far from most areas.
  • Page 7 DAB Indoor Antenna DAB Outdoor Antenna Connect the T-type DAB antenna to the DAB In an area where DAB signals are weak, it will be socket, extend the lead vertically and attach it to a necessary to use an outdoor DAB antenna. There window frame or wall with thumbtacks, or the like, are two main types available.

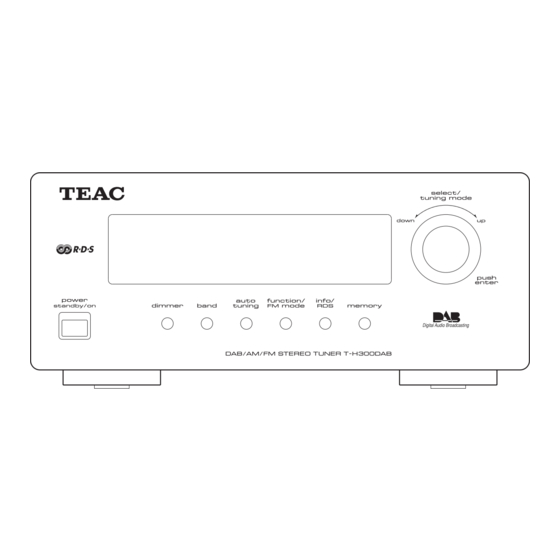

  • Page 8: Names Of Each Control

    Names of Each Control...
  • Page 9 POWER switch FUNCTION/FM MODE button Press this switch to turn the unit on or off (standby). In DAB mode, activates features such as station order, manual tune, DRC value, SW version The equipment draws nominal non-operating indication, signal error rate. It is also possible to ‘tidy’ power from the AC outlet with its POWER switch in the station list to remove stations which are in the the OFF position.

  • Page 10: About Digital Audio Broadcasts

    About DAB Setting up your DAB Tuner With this unit you can receive and listen to Digital Audio Broadcast (DAB) programmes. DAB uses digital, not analogue signals, resulting in near CD-quality audio with virtually interference-free reception. Along with superior quality audio, DAB can also deliver additional audio channels and text.

  • Page 11: Using The Channel List

    Using the Channel List BAND SELECT/TUNING MODE Follow the steps below to tune in and listen to the < To display the signal strength of a channel, press the channels found by the unit. SELECT/TUNING MODE knob again. The signal strength is display.

  • Page 12: Using Function Control 1

    Using Function Control 1 FUNCTION/FM MODE SELECT/TUNING MODE In DAB mode, use function control to set system Turn the SELECT/TUNING MODE knob until the options. There are 6 options in the function control. desired option is displayed in the second line of the Station order display.

  • Page 13: Sig Error Rate

    FUNCTION/FM MODE SELECT/TUNING MODE Sig error rate (Signal error rate) Preset tune This option shows the digital bit error rate (0–99) of the Use this option to select the DAB preset station. currently tuned channel. This is for information only and no adjustment is available.

  • Page 14: Sw Version

    Using Function Control 2 FUNCTION/FM MODE SELECT/TUNING MODE Sw version (Software version) DRC value This option shows the version number of the installed This option sets the Dynamic Range Control (DRC) software. This is for information only and no adjustment value to be applied to received broadcasts.

  • Page 15: Manual Tune

    Auto Tuning FUNCTION/FM MODE SELECT/TUNING MODE Manual tune If you move the unit to a new area or you want to check This option allows you to manually tune in a channel to see if there are new channels available in your area, and view a continuously updated display of the strength you can scan to find new channels automatically.

  • Page 16: Changing Display Settings

    Changing Display Settings Programme type This is a description of the type of broadcast supplied by the radio station such as Pop, Rock or Classical music. Multiplex name This displays the name of the Mulitplex that is broadcasting the programme. You can choose the type of information displayed in the second line of the display while listening to a DAB channel.

  • Page 17: Listening To Fm/Am

    Listening to FM/AM BAND SELECT/TUNING MODE Select AM or FM by pressing the BAND button. Preset tuning mode Press a preset number on the remote control unit. To select a station with a one-digit preset number press 0 then the number. For example, if you want to tune in preset number 2, press 0 then 2.

  • Page 18: Presetting

    Presetting Select a preset channel to store the station by turning the SELECT/TUNING MODE knob. BAND MEMORY SELECT/ TUNING MODE Preset Manuallly (FM/AM/DAB) You can store FM and AM stations from Channel 1 to 30 respectively. > Preset channels can also be selected by the numeric Select DAB, AM or FM by pressing the BAND button.

  • Page 19: Rds

    BAND INFO/ SELECT/ TUNING MODE RDS is a broadcasting service which allows stations to PROGRAM SERVICE send additional information along with the regular radio When you select PROGRAM SERVICE, “PROGRAM programme signal. SERVICE” will blink for about 3 seconds and then the RDS works on the FM waveband only.

  • Page 20: Pty Search

    PTY Search BAND INFO/ SELECT/ TUNING MODE You can search for stations by programme type. Press the SELECT/TUNING MODE knob. Select FM by pressing the BAND button. The programme type stops blinking. Press the INFO/RDS button for more than 3 second. Turn the SELECT/TUNING MODE knob.

  • Page 21: Pty Programmes

    PTY Programmes Factory Reset News : brief announcements, events, public opinion, reports, actual situations. Current Affairs : a kind of suggestion including practical announcements other than news, documents, discussion, analysis and so Information : daily information or reference such as weather forecast, consumer guide, medical assistance and so on.

  • Page 22: Sleep Timer

    Sleep Timer Specifications FM Tuner Tuning range ..87.50 – 108.00 MHz (50 kHz steps) Signal-to-Noise ratio ....65 dB (Mono) 60 dB (Stereo) AM Tuner Tuning range .

  • Page 23: Troubleshooting

    This may occur if a broadcaster changes the label reception position. of a service or removes a label whilst you are listening to it. The T-H300DAB will try to retune to e An external antenna may be required. this station, or alternatively follow the procedure for auto tune on page 15.
  • Page 24 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810 México DF Phone: (525) 581-5500 TEAC UK LIMITED 5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K.
