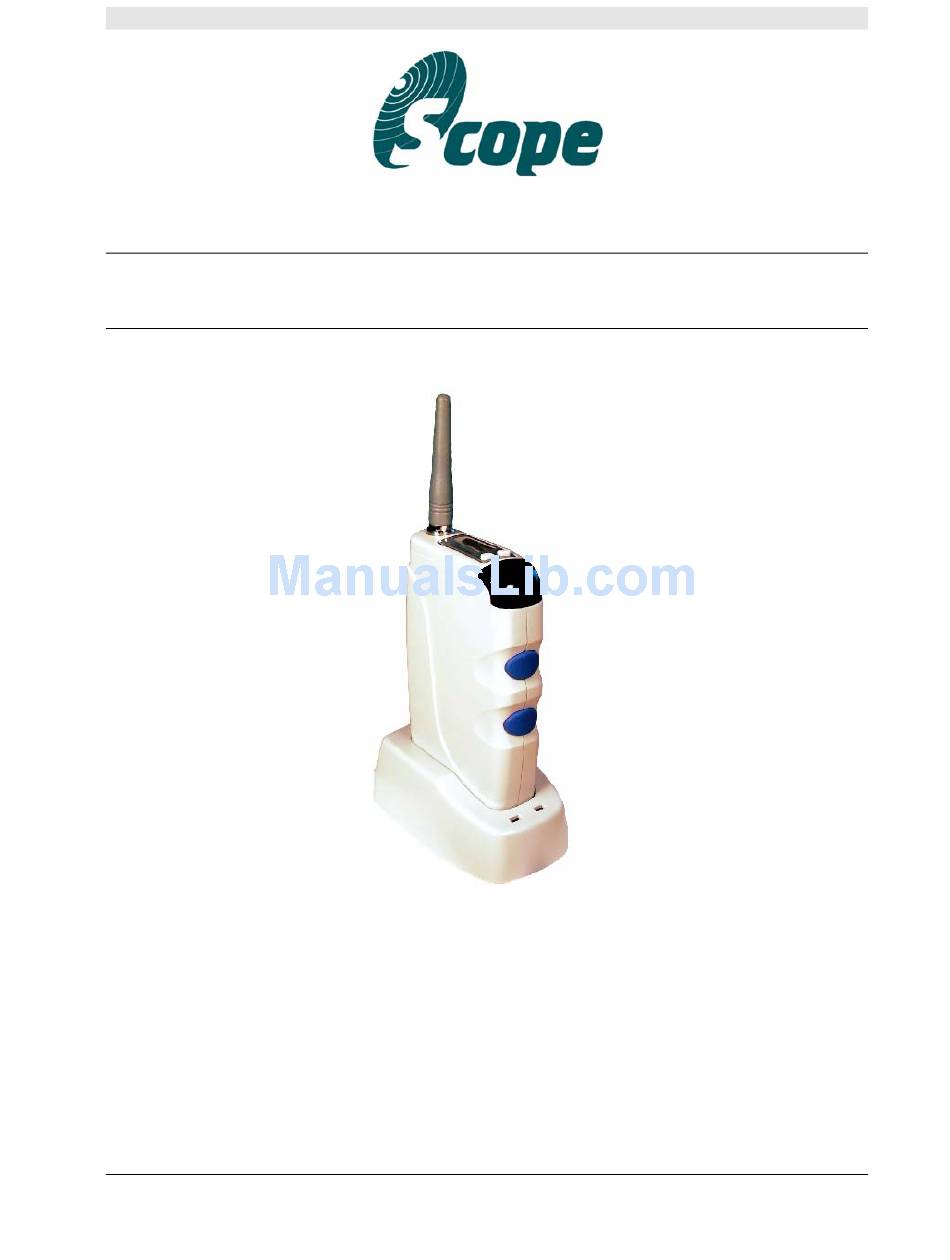

- Page 1 IMPACT MK2 Hand Held UHF Paging Transmitter IMPACT MK2 Integrated Mobile Personal Attack & Communications Transmitter User Manual Scope Communications UK Ltd Quantum House, Totnes, Devon TQ9 5AL England. Tel: 01803 860700 Email: sales@scope-uk.com HHTXMK2 Issue 1...
- Page 2 NOT accessible or replaceable by the user. Where it is suspected that the batteries are faulty or if they refuse to maintain a charge, the equipment must be returned to Scope for servicing and battery replacement. The transmitter unit must only be re-charged using the charger receptacle and AC adaptor provided by Scope.
-
Page 3: System Overview
This product is warranted as free from defects of workmanship and materials for a period of one year from the original purchase date. During this time, if there is a defect or malfunction of this product, Scope will, with proof of purchase, repair or replace at it’s discretion any defective parts, free of charge. This... -
Page 4: Getting Started
IMPACT MK2 Hand Held UHF Paging Transmitter The Scope IMPACT MK2 is a portable UHF transmitter used to signal various types of emergency alert to both fixed base station equipment and portable receivers. Applications include straightforward security/panic alarm by simple button press; “lone worker”... -
Page 5: Operation
IMPACT MK2 Hand Held UHF Paging Transmitter When full charge is achieved, the red light on the charger base will glow steady and the transmitter display will now show “CHRG” with the battery icon filled. Upon removal from the charger, the unit will transmit a “sign on” message indicating that it is now available for operation. - Page 6 IMPACT MK2 Hand Held UHF Paging Transmitter Mode 1 Buttons A & B (motion sensor & lanyard Off) Mode 2 Buttons A & B + lanyard (motion sensor Off) Mode 3 Buttons A & B + motion sensor (lanyard Off) Mode 4 Buttons A &...
- Page 7 IMPACT MK2 Hand Held UHF Paging Transmitter Mode 5 All Alarms Active with Short Countdown The motion sensor “no movement” period is preset to a short time (refer to your distributor for the actual time period set). All other alarms are active.
- Page 8 IMPACT MK2 Hand Held UHF Paging Transmitter IMPACT Top Control Panel Battery Status Mode Indicators Increment Scroll Button Transmit Indicator FAST CHRG Decrement Scroll Button Motion Sensor Rapid Charge Indicator Sounder On indicator IMPACT & Charger Details HHTXMK2 Issue 1...
-
Page 9: Battery Capacity
ETS 300 220 Type Designation: MOBILINK Notified Body Ref. No: 0891 EMC Standards applied: EN 301 489-1 V1.4.1 LVD Standards Applied EN 60950: 2000 Scope’s policy is one of continuous development and specifications are subject to change without notice HHTXMK2 Issue 1... - Page 10 IMPACT MK2 Hand Held UHF Paging Transmitter Appendix A System Configuration (Default Screen shown) HHTXMK2 Issue 1...
