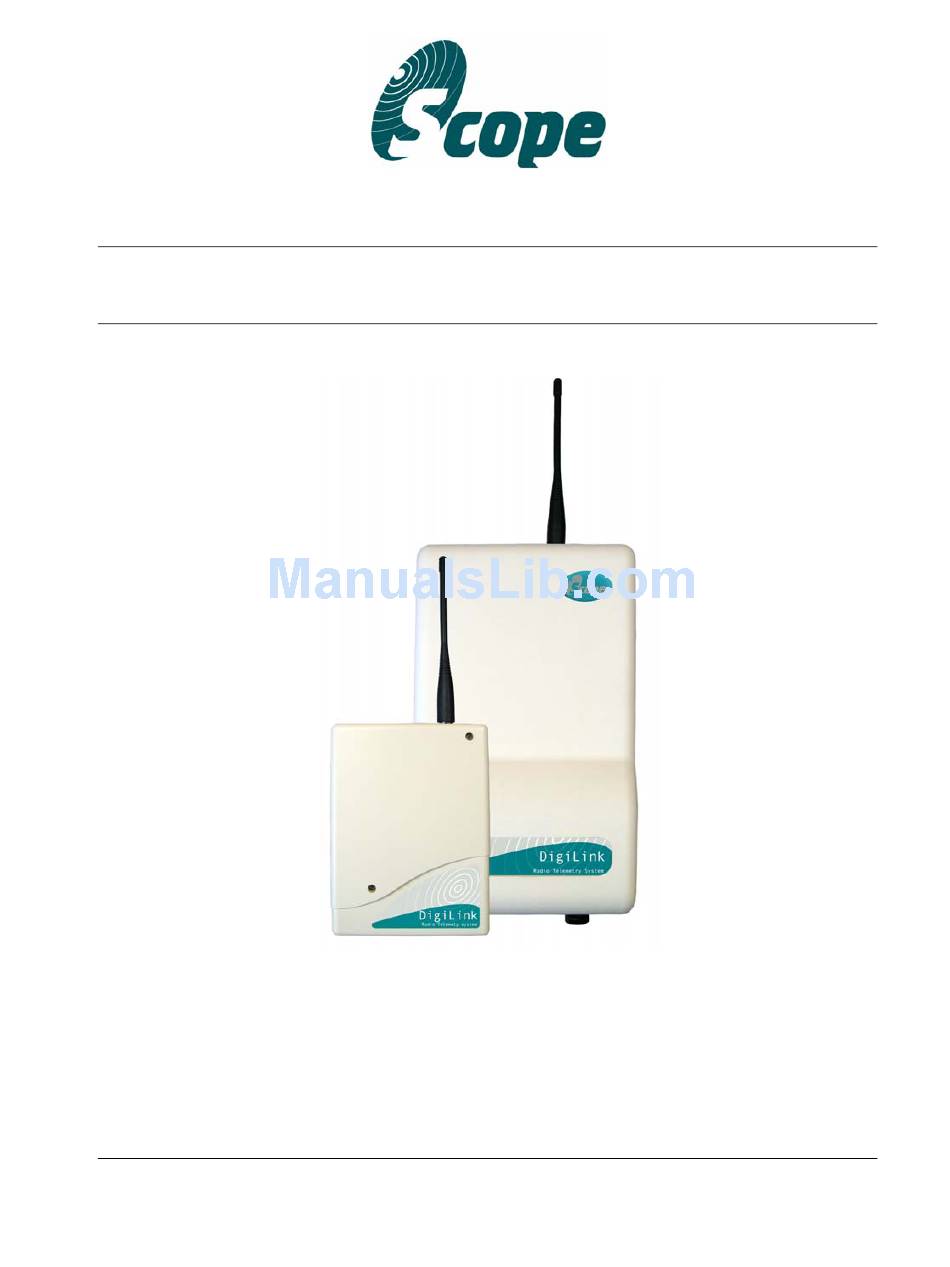

- Page 1 SCOPE COMMUNICATIONS UK LTD Four Zone Supervised Telemetry Transmitter User Manual Scope Communications UK Ltd Quantum House, Totnes, Devon TQ9 5AL England. Tel: 01803 860700 Email: sales@scope-uk.com Issue 2...
- Page 2 Scope has no control of the use and application of the frequencies issued by OFCOM. Some equipment that is licensed may have greater protection than other equipment which is operated on a WT Act License Exempt basis.
- Page 3 This product complies with the essential requirements of the R&TTE Directive 1999/5/EC. Copies of the Declaration of Conformity covering this product can be obtained from Scope at: Quantum House, Steamer Quay, Totnes TQ9 5AL United Kingdom.
-
Page 4: System Overview
Both the P4ZSL and P4ZPE are designed to be used with the Scope PRX series of 8 Zone Receiver systems. Contact the Scope technical sales team on 01803 860710 for further details. -
Page 5: Test Transmissions
P4Z Four Zone Supervised Telemetry TX This input represents a 24 hour N/C circuit. When broken it will send the same random sequence of transmissions as Zone 1, 2, or 3. As soon as it returns to its N/C state it will re-arm. - Page 6 5 metres, always use low loss 50 ohm cable such as RG213 or UR67. Coaxial cable intended for TV, Satellite or CCTV installations is normally 75 OHM and therefore totally unsuitable for any transmitter installation manufactured by Scope. Also remember that the performance of the system will be affected by the type of material the unit is mounted on and its surroundings.
- Page 7 Damage caused by incorrect connection is the responsibility of the installer! The following procedure must be adhered to when installing the P4Z system. Ensure you have taken into consideration all of the above information before selecting the location for your transmitter. If in doubt, please feel free to telephone the technical helpline on 01803 860710.
- Page 8 P4Z Four Zone Supervised Telemetry TX Installation WARNING! P4ZPE: isolate mains supply before removing cover. The Transcoder PCB contains static sensitive components. Care should be taken to avoid contact wherever possible and anti-static precautions should be observed during installation. DIAGRAM 1 P4ZPE CHASSIS...
- Page 9 P4Z Four Zone Supervised Telemetry TX Issue 2...
- Page 10 P4Z Four Zone Supervised Telemetry TX Issue 2...
-
Page 11: Section 2: System Operation
P4Z Four Zone Supervised Telemetry TX Section 2: System Operation Confirmation of power connection is by way of the red LED on the base of the unit (P4ZPE), or on the front panel (P4ZSL). Confirmation of transmit is by way of the momentary green LED on the base of the unit (P4ZPE), or on the front panel (P4ZSL). -
Page 12: Other Antennas
P4Z Four Zone Supervised Telemetry TX Other Antennas The range and performance of this equipment can be improved by the addition of more efficient antennas*. These can be installed either inside or outside the building and are connected to the transmitter with 50 OHM coaxial cable. -
Page 13: System Specification
P4ZPE: 328 (L) x 190 (W) x 75 (D) max P4ZSL: 184 (L) x 138 (W) x 45 (D) max excluding aerial Scope’s policy is one of continuous development and specifications are subject to change without prior notice Issue 2...
