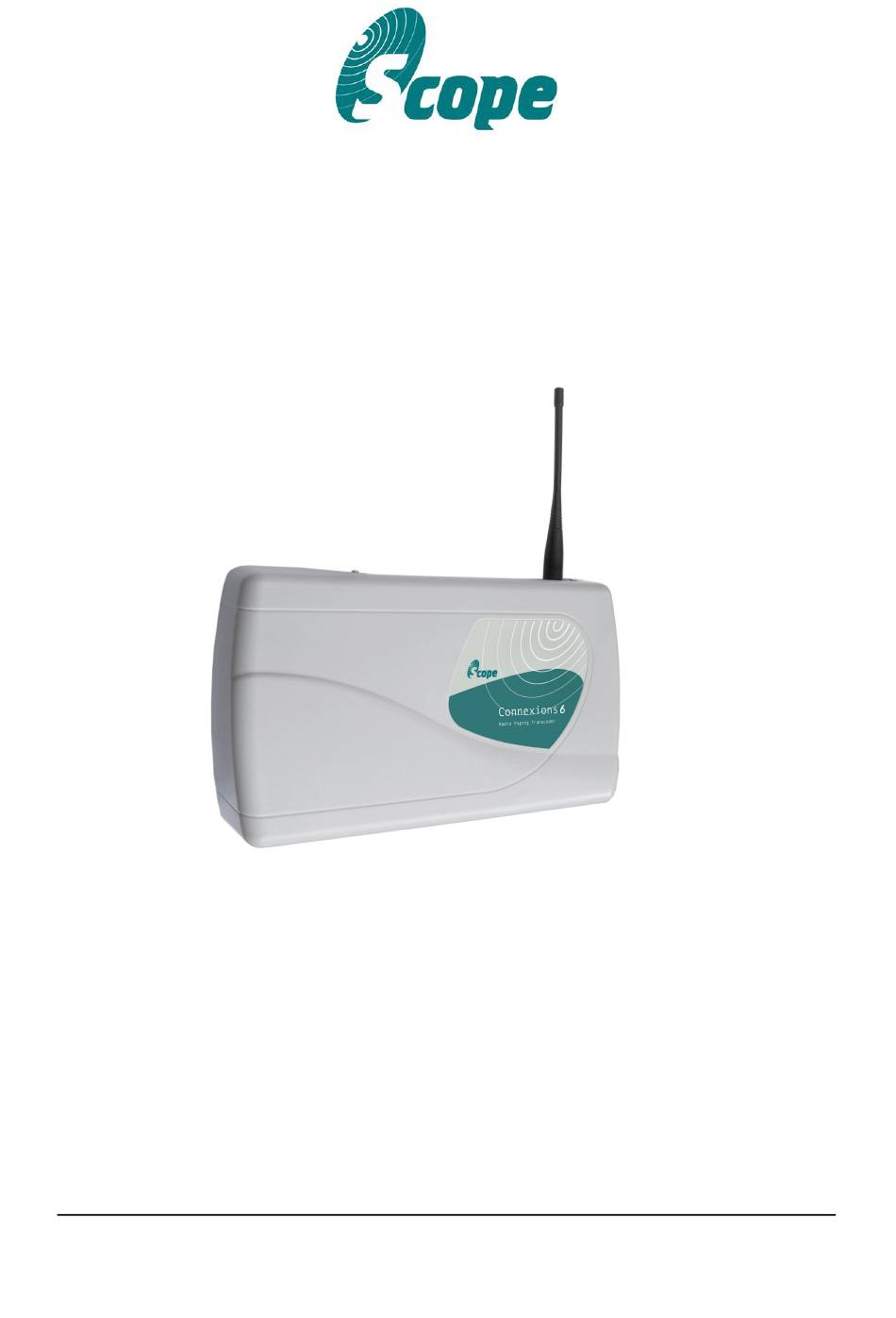

- Page 1 Connexions CX6 Radio Paging Transcoder Mains, Multi Port Version USA Installation & User Manual CX6USA Issue 1 Scope Communications UK Ltd, Quantum House, Totnes, Devon TQ9 5AL United Kingdom Tel:+44 (0)1803 860700 Fax: +44 (0)1803 863716 www.scope-uk.com...
- Page 2 Important Installation Information It is the purchasers’ responsibility to determine the suitability of this equipment and its derivatives for any given application, Scope cannot give specific advice in this manual, as each use will require independent evaluation. Scope has, wherever possible, employed extra safeguards or designed optional equipment to further monitor the system’s performance.
- Page 3 All applications should be thoroughly assessed by the installer in conjunction with the customer so as to minimize risk. Scope has no control of the use and application of the frequencies issued by the FCC. Some equipment that is individually licensed may have a greater degree of protection than other equipment that is operated on a FCC License Assignment basis.
- Page 4 There are no other expressed or implied warranties except as stated herein, and those excluded include those of merchantability and fitness for a particular purpose. In no event will Scope or any of its agents be liable for direct, indirect, special incidental or consequential damages resulting from any defect in the product, even if advised of the possibility of such damages.
-
Page 5: System Overview
ConneXions CX6 Mains, Multi Port Version USA System Overview The Scope Connexions 6 is a POCSAG data display radio paging system which can be used to transmit both text and numeric messages direct to pocket pagers carried by individuals or entire groups. - Page 6 Coaxial cable intended for TV, Satellite or CCTV installations is normally 75 OHM and therefore totally unsuitable for any transmitter installation manufactured by Scope. Also remember that the performance of the system will be effected by the type of material the unit is mounted on and its surroundings.
- Page 7 (CTS) IN +5V 100mA max (for Scope peripherals) As information passes only from the host equipment to the ConneXions transcoder, you will only need to read the DTR line which if high shows that power is applied to the Connexions unit. The RTS line will be high when the transcoder is ready to receive data.
- Page 8 ConneXions CX6 Mains, Multi Port Version USA DIAGRAM 1 CX6USA Issue 1 Page 7 of 15...
-
Page 9: Section 2: System Operation
ConneXions CX6 Mains, Multi Port Version USA Section 2: System Operation Confirmation of power connection is by way of the red LED on the base of the transcoder console. Confirmation of transmit is provided by way of the momentary green LED on the base of the transcoder console. - Page 10 ConneXions CX6 Mains, Multi Port Version USA Optional Dry Contacts This option must be specified at time of ordering, along with the pre-programmed messages required. The purchaser should also order the dry contact interface box (Part Code: DC8) for ease of connection to the contact terminals (see Diagram 2).
- Page 11 ConneXions CX6 Mains, Multi Port Version USA As a default, contacts are programmed as Normally Open (N/O), with a repeat transmission every two minutes if still active. For customers who wish to connect directly to PL1, the pinout arrangement on the 9 way D plug is shown below: PL1, 9 way D Plug Dry Contact No.
-
Page 12: Other Antennas
Pre-terminated coaxial feeder cables are available for 5, 10 or 15 metre requirements. Consult your dealer for further details. Note ! Only permitted for use with the above Scope approved antennas, all of which are zero Db gain. High frequencies can equate to high power losses. Always use quality cable. RG58 is only acceptable on cable runs of up to 5 metres. -
Page 13: System Specification
600 to 9600 software adjustable* Footprint (mm): 330 (L) x 190 (W) x 70 (D) max *dependent on system configuration excluding aerial Scope’s policy is one of continuous development and specifications are subject to change without notice CX6USA Issue 1 Page 12 of 15... -
Page 14: Section 3: Technical Information
ConneXions CX6 Mains, Multi Port Version USA Section 3: Technical Information This section provides a more in depth understanding of how messages are formatted for serial communication from a host. It need only be studied by those intending to write their own serial comm.’s software. - Page 15 ConneXions CX6 Mains, Multi Port Version USA Section 3: Technical Information Next follows the 7 digit pager identity number. All seven digits must be used. The letter following the identity is the beep type of which there are four valid characters, A, B, C or D. Next follows the message to be transmitted, which can include: 0-9, space, -(hyphen), ‘U’...
