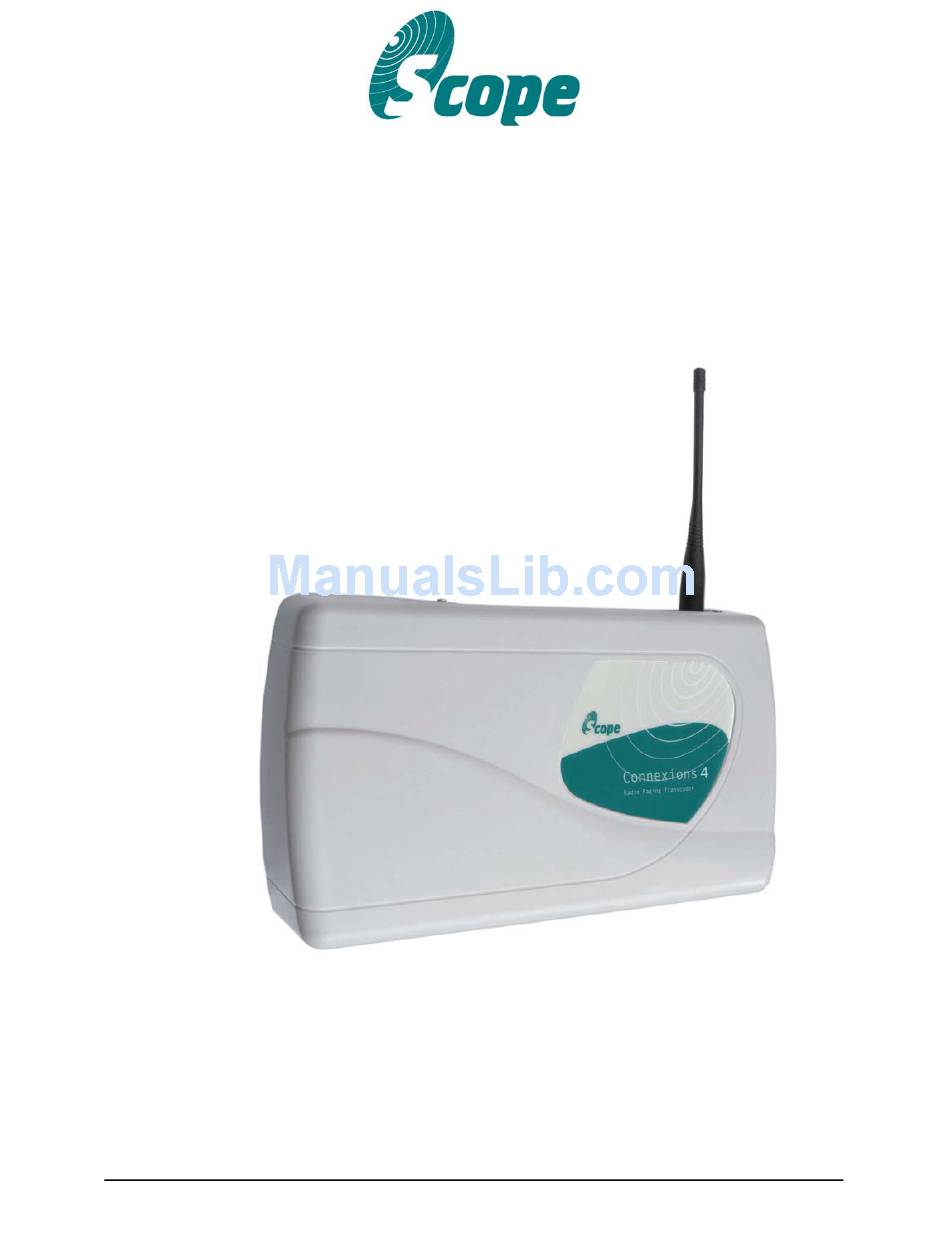

- Page 1 Connexions CX4 Radio Paging Transcoder Mains, Multi Port Version Installation & User Manual CX4E Issue 1 Scope Communications UK Ltd, Quantum House, Totnes, Devon TQ9 5AL United Kingdom Tel:+44 (0)1803 860700 Fax: +44 (0)1803 863716 www.scope-uk.com...
-
Page 2: Important Installation Information
For UK equipment, Scope has no control of the use and application of the frequencies issued by OFCOM. Some equipment that is licensed may have greater protection than other equipment which is operated on a WT Act License Exempt basis. -
Page 3: Warranty
Liability Scope does not accept liability for any damage or injury, howsoever caused as the result of misuse of this equipment. It is the responsibility of the user to ensure that the equipment is operated in the manner for which it was intended and that it is the correct item of equipment for the required task. -
Page 4: System Overview
ConneXions CX4 Mains, Multi Port Version System Overview The Scope Connexions 4 is a POCSAG data display radio paging system which can be used to transmit both text and numeric messages direct to pocket pagers carried by individuals or entire groups. - Page 5 ConneXions CX4 Mains, Multi Port Version Some major points to consider when installing equipment: Never install antennas near or adjacent to telephone, public address or data communication lines or overhead power cables. Avoid, where ever possible, running antenna coax alongside other cables.
- Page 6 ConneXions CX4 Mains, Multi Port Version The transmitter should be fixed to an even wall surface using suitable screws fitted through the holes provided in the chassis plate. Hold the chassis up to the chosen location and with the aid of a pencil mark the position of the mounting holes.
- Page 7 ConneXions CX4 Mains, Multi Port Version DIAGRAM 1 CX4E Issue 1 Page 6 of 14...
-
Page 8: Section 2: System Operation
ConneXions CX4 Mains, Multi Port Version Section 2: System Operation Confirmation of power connection is by way of the red LED on the base of the transcoder console. Confirmation of transmit is provided by way of the momentary green LED on the base of the transcoder console. - Page 9 ConneXions CX4 Mains, Multi Port Version Optional Dry Contacts This option must be specified at time of ordering, along with the pre-programmed messages required. The purchaser should also order the dry contact interface box (Part Code: DC8) for ease of connection to the contact terminals (see Diagram 2).
- Page 10 ConneXions CX4 Mains, Multi Port Version As a default, contacts are programmed as Normally Open (N/O), with a repeat transmission every two minutes if still active. For customers who wish to connect directly to PL1, the pinout arrangement on the 9 way D plug is...
-
Page 11: Other Antennas
In the event that a pager requires service, return it directly to Scope (in the pre-addressed service bag supplied with your system) by registered post. Ensure that you carefully fill out the service form provided. -
Page 12: System Specification
600 to 9600 software adjustable* Footprint (mm): 330 (L) x 190 (W) x 70 (D) max *dependent on system configuration excluding aerial Scope’s policy is one of continuous development and specifications are subject to change without notice CX4E Issue 1 Page 11 of 14... -
Page 13: Section 3: Technical Information
ConneXions CX4 Mains, Multi Port Version Section 3: Technical Information This section provides a more in depth understanding of how messages are formatted for serial communication from a host. It need only be studied by those intending to write their own serial comm.’s software. - Page 14 To change the transmission baud rate in a message string, placing a letter “N” after the “A” will alter it to 512 baud. Placing a letter “F” after the “A” will alter it to 1200 baud. The default setting for the Connexions CX4 is 512 baud. ************************************************************************...
