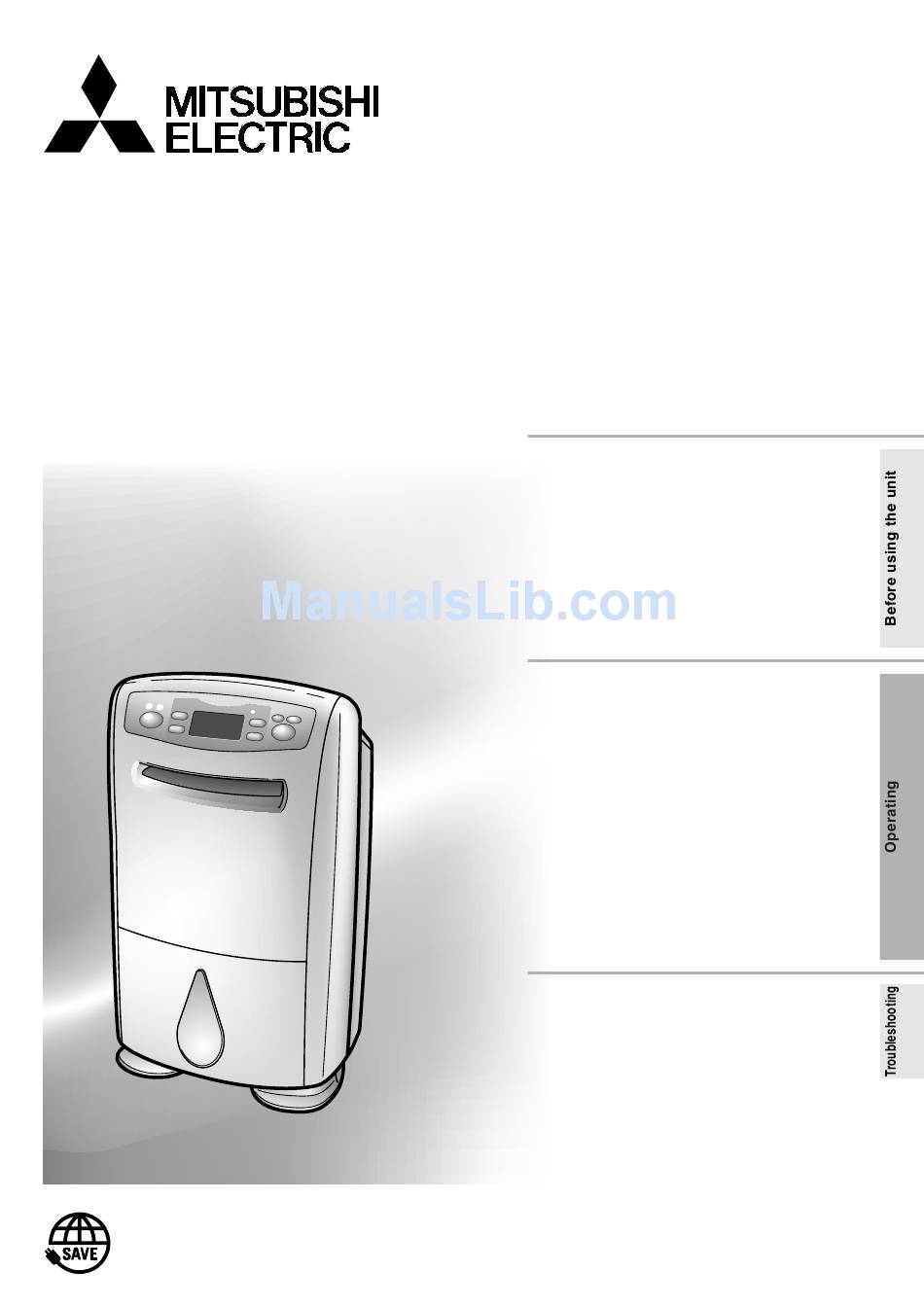

DEHUMIDIFIER
MODEL
MJ-E26VX-A1
INSTRUCTION MANUAL
Features
●Internal drying Mode
●Air Filter and Washable Photocatalytic
Filter
●Easy Dehumidifying · Laundry
Protect our environment and enrich our lives by
saving energy
Table of Contents
¡Recommended ways of using the unit
depending on purpose .........................2
¡Frequently Asked Questions ...............3
¡Precautions............................................4
¡Warning ..................................................6
¡Tips on dehumidifying..........................6
¡Names and Functions of Parts ............7
Unit-Control Panel-LCD Panel
(Low Temperature/Defrost/High humidity)
¡Things to be aware of.........................10
¡Before using your dehumidifier.........10
¡Turning the Unit ON and OFF ............12
To turn ON/To turn OFF
Reading the humidity display/Tank full lamp
¡Easy Operation....................................13
¡Setting modes .....................................14
TEMP/AUTO/AIR PURIFIER
¡Swing louvre function ........................16
¡To dry the inside .................................17
¡Using the Timer ...................................18
OFF timer operation/ON timer operation
¡Using the Child Lock ..........................20
¡Carrying the Unit.................................20
¡Removing Water from the Tank..........21
¡Continuous Drainage..........................22
¡Maintenance ........................................23
¡Replacement Parts..............................25
¡Storage and Disposal .........................25
¡Troubleshooting ..................................26
¡Specifications .......................back cover
¡In order to ensure correct usage, please read
this instruction manual carefully and retain it for
future reference.
¡Before accepting the Warranty at the time of
purchase, please make sure that the date of
purchase, place of purchase and other items
are correctly filled in the form.
page
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric MJ-E26VX-A1
Summary of Contents for Mitsubishi Electric MJ-E26VX-A1
-
Page 1: Table Of Contents
DEHUMIDIFIER MODEL MJ-E26VX-A1 INSTRUCTION MANUAL Features Table of Contents page ●Internal drying Mode ¡Recommended ways of using the unit ●Air Filter and Washable Photocatalytic depending on purpose ......2 ¡Frequently Asked Questions ....3 Filter ¡Precautions..........4 ●Easy Dehumidifying · Laundry ¡Warning ..........6 ¡Tips on dehumidifying......6... - Page 2 Recommended ways of using the unit de Combine operating mode and swing louvre function to get optimum results. Drying Lowering room humidity Preventing mold/ laundry When you don’t When you don’t When you want to When To prevent want to hang the know what set the humidity condensation...
-
Page 3: Depending On Purpose
pending on purpose Frequently Asked Questions Why does the dehumidifier seem to collect less water in To clean winter? condensation the air A.Are the temperature and humidity low? When the temperature and humidity For drying To keep the There is no need for are low, the amount of water the bed or inside of closets... -
Page 4: Precautions
Continuing to operate the unit may result in fire, electric shock, or malfunctions. This may result in fire and/or electric shock. Contact your dealer or Mitsubishi Electric Refer servicing to your dealer or Mitsubishi Service Centre for consultation. Electric Service Centre. - Page 5 CAUTION Do not cover the side air intakes Do not use the unit in places or the air outlet that may be subject to oil or with cloth, curtain, etc. flammable gas leakage. This results in poor ventilation and Such a leak around the unit may cause may cause heat generation/fire.
-
Page 6: Warning
Precautions (cont.) Tips on dehumidifying CAUTION Drain the water tank before use After emptying the tank, transport the unit by grasping the handle firmly. Refrain from opening Losing your footing while carrying the doors/windows during operation unit may cause personal injury or damage to the floor. -
Page 7: Names And Functions Of Parts
Names and Functions of Parts Front Louvre Main Air Outlet Control panel Downward louvre Tank lid • Tank Guard • Float Water tank • Level window Sensor Do not cover The water tank may contain water residue at time of purchase. This is from final product testing at the factory and is not due to a defect. -
Page 8: Control Panel
Names and Functions of Parts (cont.) Control Panel ¡Mode button ¡Swing louvre ¡Lamps For switching from one Current mode lights button operating mode to ¡Selection button Sets swing louvre another direction or locks it into Switches modes ¡Humidity position Selection This is used to set the target humidity 14~15... -
Page 9: Power Button
¡Tank full light This lights up to warn that the water tank is full You can select from 8 operating modes ¡ Mildew guard elite lamp ¡Air purifier lamp ¡EASY Flashes during internal drying Lights during air purifier only DEHUMIDIFYING operation operation ¡LAUNDRY... -
Page 10: Things To Be Aware Of
Things to be aware of Before using your Fitting the Room temperature may rise photocatalytic filter 2-4°C during operation The dehumidifier does not have a cooler function. Due to heat produced during operation, the room The photocatalytic filter is supplied with temperature may rise 2-4°C. - Page 11 dehumidifier Inserting the water Plug the power cord tank correctly into the power socket Tank lid Tank Guard Use a 230-240V AC power socket only. ¡The current humidity level is Check that the lid and guard are indicated. secure. Slide the tank in with both If the louvre is open, it closes hands.
-
Page 12: Turning The Unit On And Off
Turning the Unit ON and OFF To turn ON Press ¡Power lamp lights. ¡The mode is displayed. ¡The louvre opens automatically. Reading the humidity display To start dehumidifying, select the desired mode. 13~15 CURRENT indicates the Example current humidity. The dehumidifier does not activate for 3 minutes Current humidity range is when the unit is turned ON immediately after between 30-80%. -
Page 13: Easy Operation
Easy Operation The unit automatically monitors room temperature/humidity alleviating the necessity to make minor adjustments. Use EASY DEHUMIDIFYING for dehumidifying a room and LAUNDRY for drying clothes. Changes with every press ¡Selected mode lamp lights Press ¡ EASY DEHUMIDIFYING ¡ LAUNDRY The unit operates intermittently The unit operates for 12 hours and controlling the airflow to remove the... -
Page 14: Setting Modes
Setting modes HIGH, LOW, MILDEW GUARD and LOW TEMP To leave the unit operating continuously, use HIGH and LOW modes. To suppress mildew, use MILDEW GUARD mode. For preventing condensation or when the room temperature is low, use LOW TEMP mode. Changes with every press Press ¡Frame appears around selected mode. -
Page 15: Air Purifier
AUTO AIR PURIFIER When you want to set the humidity level. To operate only the air purifier. Press Press ¡Air purifier lamp lights ¡Frame appears around AUTO The MODE button can also be used to select To return to the previous mode, press the air AUTO. -
Page 16: Swing Louvre Function
Swing louvre function (how to read the swing monitor) The louvre can be made to swing. Select from the 5 possible settings to suit the purpose. Stop swing operation WIDE With each press Press of the button ¡ Starts swing operation. UPWARD ¡... -
Page 17: To Dry The Inside
To dry the inside The inside of the unit can be dried to suppress mildew growth on the cooler. On days the dehumidifier is used, internal drying (drying the inside) is recommended. Automatic operation Manual operation To activate internal drying after every use. To activate internal drying by pressing a button. -
Page 18: Using The Timer
Using the Timer OFF timer operation The OFF timer can be set for 1 to 9 hours. Set the timer when the power is switched on. To set To cancel Switch the power on. <When you want to turn the unit off>... - Page 19 ON timer operation The ON timer can be set for 1 to 9 hours. Set the timer when the power is switched off. To set The following is an example of a display indicating AUTO dehumidifying (set to 60%), Switch the power off. swing set to WIDE and the ON timer set for 5 hours.
-
Page 20: Using The Child Lock
Using the Carrying the Child Lock Unit Raise handle to transport To Lock Press for 3 or more seconds. ¡ The child lock indicator The child lock is switched off when the power is tuned off at the wall. The unit can be transported using the wheels on When the child lock is activated, the other the bottom. -
Page 21: Removing Water From The Tank
Removing Water from the Tank The unit automatically shuts down and lights the Tank full lamp when the tank (approximately 5L) is full. Empty the tank. Remove the water tank. Reattach the tank lid and replace the water tank. Grasp handle and Check the lid and guard are secure. -
Page 22: Continuous Drainage
Continuous Drainage If a drain is available, the unit can continuously drain excess water by attaching a commercially available hose (internal diameter 15mm). The unit can be operated for extensive periods without the need to empty the water tank. ¡Commercially available hose (I.D. 15mm) CAUTION Long enough to reach the drain. -
Page 23: Maintenance
Maintenance Do not use detergents, cleaning agents for heat exchange equipment, abrasive powders, chemically treated dusters, gasoline, benzene, thinners or other solvents, as they can damage the unit or the water tank, which may result in leakage. Cleaning Once every two weeks Water tank ·... - Page 24 Maintenance (Continued) Once every three months Photocatalytic filter Soaking the filter in water, and leaving it to dry in the sun renews the performance and prolongs service life. Perform this every three months. Dry the photocatalytic filter. Remove the pre-filter. Dry well in the sun (The Pull forward to performance of the filter...
-
Page 25: Replacement Parts
Replacement Storage and Parts Disposal Storage The photocatalytic filter becomes depleted over time. After switching the unit off, leave for one day until Replace them when necessary. any water inside has had time to settle. Then carry Replacing the photocatalytic filter out the following steps. -
Page 26: Troubleshooting
Troubleshooting ¡ For the symptoms listed below, refer to the remedies listed right. Symptom Cause/Remedy ¡ Dehumidified air passes through heating coils causing it to The unit blows warm air warm (this unit is not a cooler). This is not a malfunction. Water does not collect in ¡... - Page 27 Symptom Cause/Remedy ¡ Check to see if the unit is on a slope or uneven surface. ➝ Move to a sturdy even surface. The operating ¡ Check to see if the pre-filter is clogged. → Clean according to the maintenance procedures. noise is loud/reverberates ¡...
-
Page 28: Specifications
Specifications Model MJ-E26VX-A1 Power supply Single phase 230-240V 50Hz Dehumidifying capacity 26.0 L/day Power consumption 415W Water tank capacity stops automatically at approx. 5.0L Weight 15.5kg Dimensions (h × w × d) 594mm × 372mm × 281mm ∞ The dehumidifying capacity is a value obtained when the dehumidifier is continuously run at a room temperature of 30°C and relative humidity of 80%.
