Summary of Contents for ionmax Ion632
-
Page 2: Table Of Contents
INDEX IMPORTANT SAFETY INSTRUCTIONS .................. FEATURES ..........................SPECIFICATIONS........................2 PRODUCT DESCRIPTION ...................... THE CONTROL PANEL ......................UNIT SETUP..........................TO OPERATE SAFELY ......................OPERATING INSTRUCTIONS ..................... TO EMPTY THE BUCKET ...................... CONTINUOUS DRAIN OPTION....................MAINTENANCE ........................TROUBLESHOOTING ......................11-12 WARRANTY DETAILS ...................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. WARNING - This appliance is intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to person or property. When using electrical appliances, basic safety precautions should always be followed: 1. -
Page 4: Features
• Safety function Adaptive control, Fall-down, water-full and abnormal temperature detection SPECIFICATIONS Model: Ionmax Ion632 Voltage: 220-240V ~ 50Hz Power consumption: 400-720W Net weight: 8.4kg Dimensions (W x D x H): 416mm x 186mm x 520mm... -
Page 5: Product Description

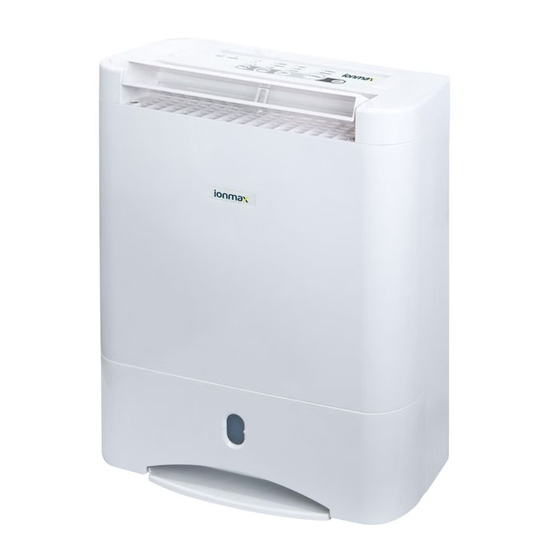

PRODUCT DESCRIPTION Bucket... -
Page 6: The Control Panel
THE CONTROL PANEL Water Full indicator Indicator lights up when the bucket is full of water or incorrectly installed. Timer indicators Function indicators Timer button Louvre Swing Control button Auto Dry Mode button Continuous / Laundry Mode button Power button... -
Page 7: Unit Setup
UNIT SETUP Place the unit in an upright position on a Top above 60cm stable, level surface. (Please ensure unit is not sitting on its own cable) Air outlet Please ensure the unit is a safe distance away Air inlet from a wall or furniture (see the right graphic). -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS ON and OFF Connect the power plug to the appropriate electrical socket outlet. Press the ON/OFF button to turn the appliance ON. Press the ON/OFF button again to turn the appliance OFF. Note: In the event of a power failure Once the power is restored after a power failure, the appliance will continue to operate at the selected settings prior to the power failure. - Page 9 OPERATING INSTRUCTIONS AUTO DRY For automatic dehumidification to preset Relative Humidity (RH) levels once level reached. Unit runs in fan only mode to circulate air and detect RH changes. Auto MODE DESCRIPTION To keep the room at a comfortable Relative Humidity (RH) level Auto The unit automatically keeps room humidity at 55~60% RH.
- Page 10 OPERATING INSTRUCTIONS AUTO SWING LOUVRE Press the "SWING" button to select air louvre angle. Wide Front Hold (LED OFF) DESCRIPTION MODE The automatic louvre swings in an upward range of approx 100° The automatic louvre swings in a front FRONT Front range of approx 50°...
-
Page 11: To Empty The Bucket
TO EMPTY THE BUCKET 1. When the bucket is full, the “FULL” LED illuminates and the unit stops. 2. Do not move the unit or remove the bucket if the machine is still operating as water may leak, damage the unit or cause an electric shock. 3. -
Page 12: Maintenance
MAINTENANCE Cleaning the unit 1. Turn off the unit, wait for the fan to stop and unplug from the power socket. 2. Clean the casing using a soft damp cloth with warm water and mild detergent. Do not use solvents or abrasive materials. 3. -
Page 13: Troubleshooting
TROUBLESHOOTING Smell coming from the dehumidifier When you first use the dehumidifier and periodically afterwards you might notice a smell coming from the dehumidifier. This is caused by the Zeolite desiccant material and is not a sign that the dehumidifier is faulty, nor is it harmful to humans or pets. The smell occurs because the Zeolite absorbs odours from items like cigarettes, cosmetics, hair sprays, building materials and new furniture and then when the desiccant is heated, the smell is discharged into the room. -
Page 14: Troubleshooting
TROUBLESHOOTING The following conditions are normal: 1. The fan is still running about 2 minutes after turning off the the unit. 2. The unit works within room temperature about 1~40ºC. It may stop operation out of this range or when the air inlet or outlet is covered. (The "CHECK" LED light will illuminate) 3. - Page 16 Updated: 28-05-2014. Version 1.1...
