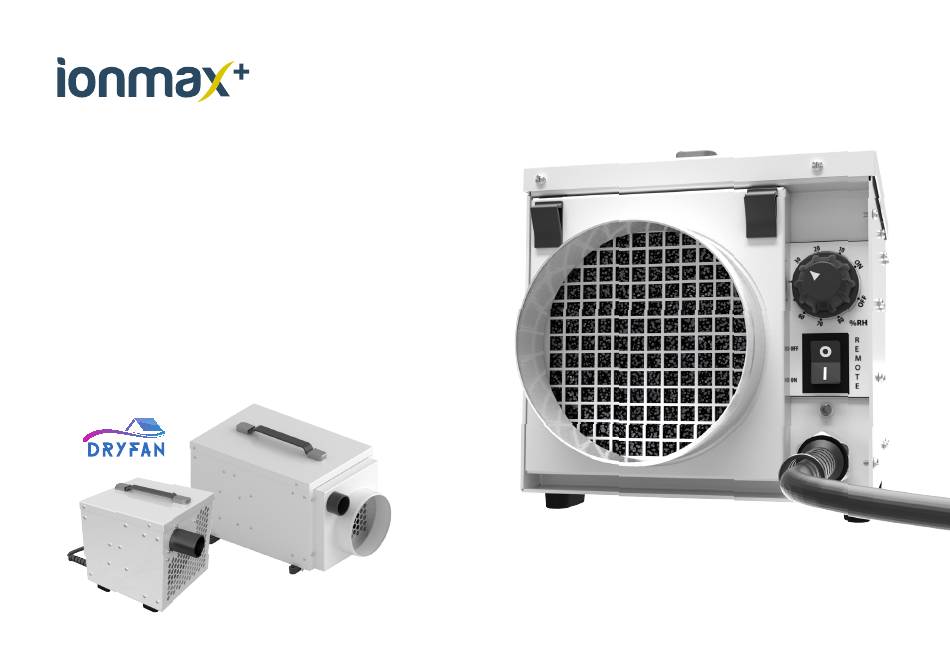

Page 1 DRYFAN ® DEHUMIDIFIER DF8 & DF12 Powered by USER MANUAL...
Page 2: Table Of Contents
DEAR CUSTOMER Thank you for purchasing the DryFan Dehumidifier. The DryFan Dehumidifier helps to monitor the humidity and remove ® ® excess moisture from the air, keeping your living spaces, lofts, basements, boats, holiday homes, garages and storage areas dry all day and every day. 40% RH - 60% RH This dehumidifier can even be used for industrial processes and applications.
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. When using electrical appliances, basic safety precautions should always be followed: • The unit is designated for indoor operation. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Page 4: How It Works
HOW IT WORKS wet air exhaust patented regen heater dry filtered air out damp air in patented dessicant rotor Your dehumidifier uses DryFan technology and uses a Heater) where the air’s temperature is raised. This heated air is ® continuously rotating moisture absorbing patented wheel then channelled back through a section of the rotor.
Page 5 HOW IT WORKS PATENTED DESICCANT ROTOR The Desiccant Rotor is the heart of the DryFan® system. It is an array of especially absorbent membranes – patent protected – arranged as a series of corrugations (as shown in the cut- away image) to give a vast surface area that was developed over many years, making it an extremely efficient moisture collector.
Page 6 HOW IT WORKS DryFan Dehumidifier ® FAN SYSTEM Maximum wet air out duct length (m) All models use specialised fan technology to give quiet performance but type of fan will differ by model capacity. Maximum process air in duct length (m) Note: External ductwork will reduce restrict airflow and Maximum process air out duct length (m) No duct flange /...
Page 7 HOW IT WORKS CONTINUOUS FAN OR FAN ON WHEN DRYING ONLY 2 srews on front MODES and back The DryFan Dehumidifier can be used in two modes: ® Mode O – The fan is always blowing and circulating air continuously dehumidifying at the set humidity point by the humidistat.
Page 8: Unit Setup
UNIT SETUP POSITIONING THE DF8 DRYFAN DEHUMIDIFIER ® The DF8 DryFan Dehumidifier have been designed for indoor use however, it can be placed inside or outside the room to be ® dried. Internal Positioning: When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of obstruction. If required, ducts can be connected to the outlet and/or inlet (where fitted) to direct the drying to specific areas.
Page 9 UNIT SETUP POSITIONING THE DF12 DRYFAN DEHUMIDIFIER ® External Positioning (Models where Outlet Duct Fitted Only): When positioning the unit outside the room, connect ducting to the outlet to direct the dry airstream into the room to be dried. Optionally, the inlet may also be ducted to the room to give a re-circulation effect. In this case however, because the unit uses a portion for the inlet air for regeneration.
Page 10 UNIT SETUP NOTE: 1. As the wet-air-out discharge is warm and very humid, ensure it is directed where it will have no adverse effect on the immediate environment. 2. Wet-air-out should be declined from the dehumidifier where possible if there is a risk of any condensation build up in the exhaust duct running back into the dehumidifier.
Page 11: Operating Instructions

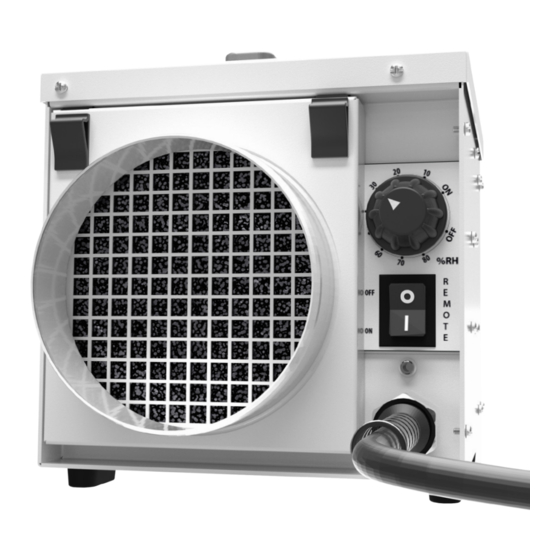

OPERATING INSTRUCTIONS CONTROLS The controls are positioned on the front of the unit next to the air outlet duct, they are: 1. Humidistat 2. Remote Humidistat Switch 3. Remote Humidistat Jack Plug Socket Auto reset. If there is a power out the dehumidifier will automatically restart when the mains power is reconnected.
Page 12 OPERATING INSTRUCTIONS REMOTE OPERATION For remote operation it is necessary to connect an 24V external humidistat (not provided) via the jack plug connector. The external humidistat may be obtained from your appliance supplier. Ensure the “Remote Humidistat” switch is set to ‘ON’ (O). The dehumidifier will now be controlled by the remote humidistat that is using low power and only 24V.
Page 13: Specifications
SPECIFICATIONS Model DF8 DryFan Dehumidifier DF12 DryFan Dehumidifier ® ® Typical extraction @ 35 C 90% rh 8 l /day 12 l /day Typical extraction @ 27 C 60% rh 6 l /day 10 l /day Air flow (Process) 130 m 130 m Air flow (Regen) 20 m...
Page 14: Warranty Details
WARRANTY DETAILS Congratulations on your purchase! It is our aim to provide you with quality packaging and that the product is properly packaged so that no damage occurs products that you can trust. Our products come with guarantees that cannot be to the product during transit.
Page 15: Warranty Registration
WARRANTY REGISTRATION Register your Ionmax+ DryFan Dehumidifier online at my.andatech.com.au ® Alternatively, fill out this form and forward to the address below with a copy of your proof of purchase. Andatech Pty Ltd PO Box 3038, Nunawading VIC 3131, Australia.
Page 16 andatechglobal.com 1300 800 200 Version 2.0. Updated 4 April 2018.
