Inside you will find many helpful hints on how to use and maintain your dehumidifier properly. Just a
little preventative care on your part can save you a great deal of time and money over the life of your
dehumidifier. You'll find many answers to common problems in the chart of troubleshooting tips.
Review the chart of Troubleshooting Tips before calling your engineers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ionmax Ion632
Summary of Contents for ionmax Ion632

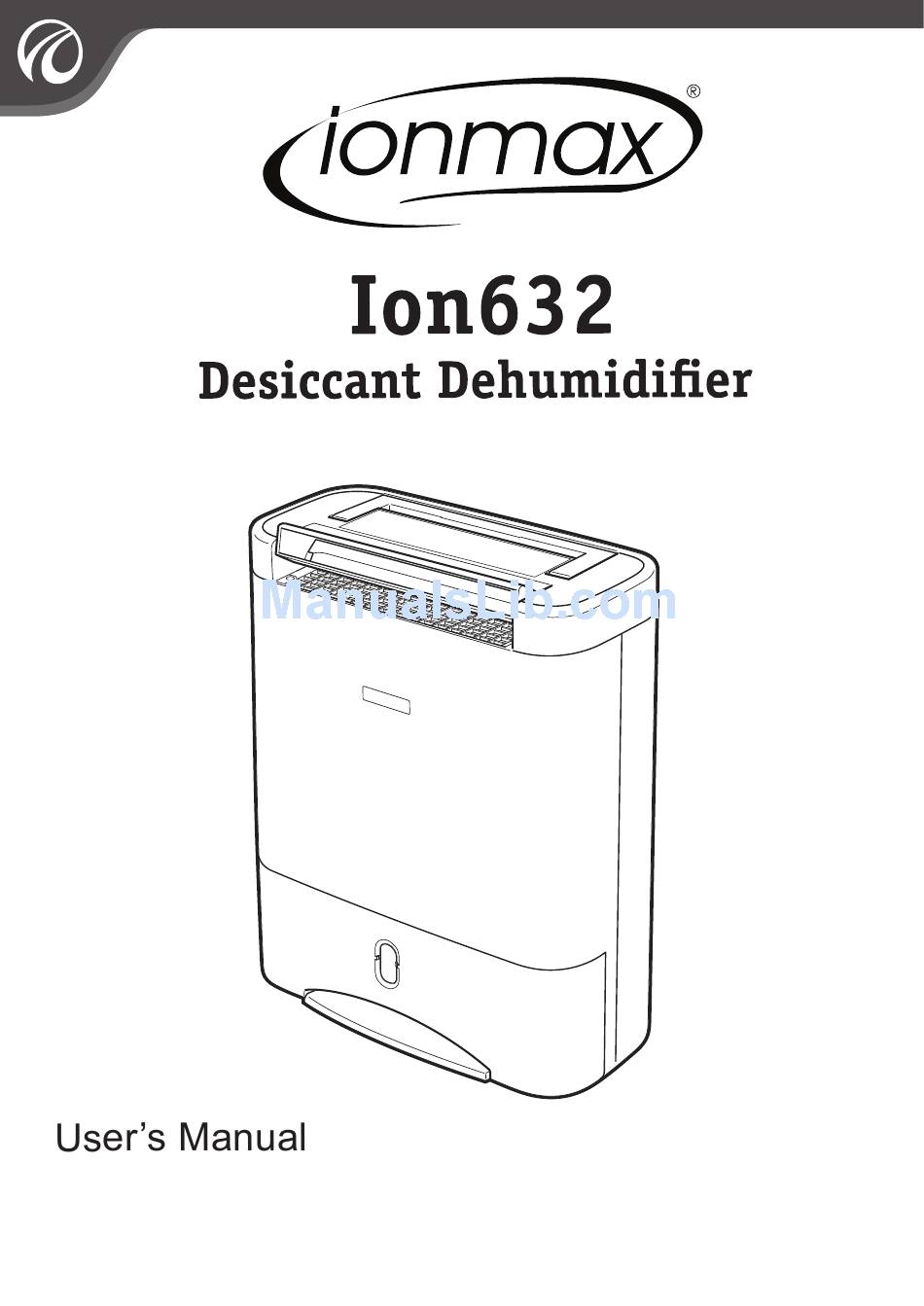

- Page 1 Inside you will find many helpful hints on how to use and maintain your dehumidifier properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your dehumidifier. You’ll find many answers to common problems in the chart of troubleshooting tips. Review the chart of Troubleshooting Tips before calling your engineers...
-
Page 2: Table Of Contents
INDEX IMPORTANT SAFETY INSTRUCTIONS .................. FEATURES & SPECIFICATIONS..................... PRODUCT DESCRIPTION ...................... THE CONTROL PANEL ......................UNIT SETUP..........................TO OPERATE SAFELY ......................OPERATING INSTRUCTIONS ..................... TO EMPTY THE BUCKET ...................... TO DRAIN WATER (Continuous Drainage) ................MAINTENANCE ........................TROUBLESHOOTING ......................WARRANTY DETAILS ...................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. WARNING - This appliance is intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to person or property. When using electrical appliances, basic safety precautions should always be followed: 1. -
Page 4: Features & Specifications
• Safety function Adaptive control, Fall-down, water-full and abnormal temperature detection SPECIFICATIONS Model: Ionmax Ion632 Voltage: 220-240V ~ 50Hz Power consumption: 400-720W Net weight: 8.4kg Dimensions (W x D x H): 416mm x 186mm x 520mm... -
Page 5: Product Description
PRODUCT DESCRIPTION Bucket... -
Page 6: The Control Panel
THE CONTROL PANEL Water Full indicator Indicator lights up when the bucket is full of water or incorrectly installed. Timer indicators Function indicators Timer key Louvre Swing Control key Auto Dry Mode key Laundry Mode key Power Key... -
Page 7: Unit Setup
OPERATING INSTRUCTIONS ON and OFF Connect the power plug to the appropriate electrical socket outlet. Press the ON/OFF button to turn the appliance ON. Press the ON/OFF button again to turn the appliance OFF. Note: In the event of a power failure Once the power is restored after a power failure, the appliance will continue to operate at the selected settings prior to the power failure. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS DRY MODE Press the "DRY” Key for automatic dehumidification. MODE DESCRIPTION The unit automatically keeps room at a comfortable Relative Humidity (RH) level of 55%RH. Auto The fan speed & heater power are adjusted automatically. Note: Use this mode for maximum energy saving and for quiet operation. Dries the air to approximately 55%RH and runs on economy fan mode to sample the air for its humidity level. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS AUTO SWING LOUVRE Press the "SWING" Key to select air louvre angle. Wide Front Hold (LED OFF) DESCRIPTION MODE The automatic louvre swings in an upward range of approx 100° The automatic louvre swings in a front FRONT Front range of approx 50°... - Page 10 PLEASE NOTE Smell coming from the dehumidifier When you first use the dehumidifier and periodically afterwards you might notice a smell coming from the dehumidifier. This is caused by the Zeolite desiccant material and is not a sign that the dehumidifier is faulty, nor is it harmful to humans or pets. The smell occurs because the Zeolite absorbs odours from items like cigarettes, cosmetics, hair sprays, building materials and new furniture and then when the desiccant is heated the smell is discharged into the room.
- Page 11 TO EMPTY THE BUCKET 1. When the bucket is full, the FULL LED lights up and the unit stops. 2. Do not move the unit or remove the bucket, if the machine is still operating, as water may leak, damage the unit or cause an electric shock. 3.
-
Page 12: To Operate Safely
UNIT SETUP Place the unit in an upright position on a Top above 60cm stable, level surface. (Please ensure unit is not sitting on its own cable) Air outlet Please ensure the unit is a safe distance away Air inlet from a wall or furniture (see the right graphic). -
Page 13: Maintenance
MAINTENANCE Cleaning the unit 1. Turn the appliance OFF, wait for the fan to stop and ensure the plug is removed from the socket outlet. 2. Clean the casing using a soft damp cloth with warm water and mild detergent. Do not use solvents or abrasive materials. -
Page 14: Troubleshooting
TROUBLESHOOTING The following conditions are normal: 1. The fan is still running about 2 minutes after turning off the the unit. 2. The unit works within room temperature about 1~40ºC. It may stop operation out of this range or when the air inlet or outlet is covered. (The "CHECK" LED light will illuminate) 3. -
Page 15: Warranty Details
The product if it is located outside of Australia. • Any damage caused by improper power input or improper cable connection. Andatech Corporation Pty. Ltd. Factory 7 , 2-4 Apollo Court, Blackburn Victoria 3130 Phone: 1300 800 200 Fax: 1300 883 802 Email: info@andatech.com.au...
