Summary of Contents for ionmax ION622
-
Page 2: Table Of Contents
INDEX IMPORTANT SAFETY INSTRUCTIONS .................. FEATURES ..........................SPECIFICATIONS........................2 PRODUCT DESCRIPTION ...................... THE CONTROL PANEL ......................UNIT SETUP..........................TO OPERATE SAFELY ......................OPERATING INSTRUCTIONS ....................EMPTYING THE WATER TANK ..................... CONTINUOUS DRAINAGE OPTION..................MAINTENANCE ........................TROUBLESHOOTING ......................... WARRANTY DETAILS ......................WARRANTY REGISTRATION....................13... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. WARNING - This appliance is intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to person or property. When using electrical appliances, basic safety precautions should always be followed: 1. -
Page 4: Features
Removes large particles such as dust and hair from dehumidified air. • Continuous drainage option SPECIFICATIONS Model: Ionmax Ion622 Voltage: 220-240V ~ 50Hz Power consumption: 230W (30°C, 80%RH) Net weight: 9.9kg Dimensions (W x D x H): 278mm x 180mm x 465mm... -

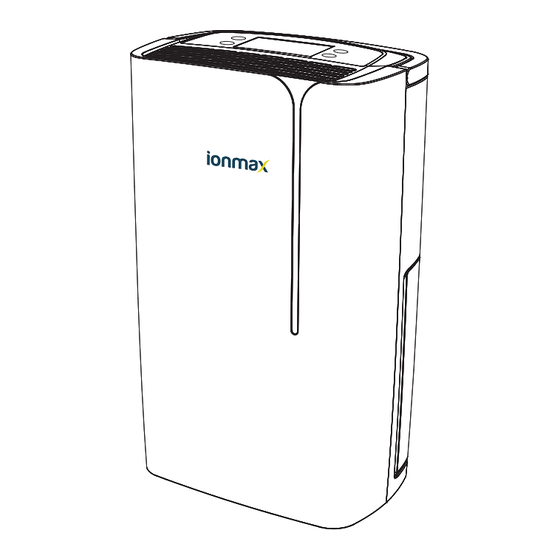

Page 5: Product Description
PRODUCT DESCRIPTION Control panel THE CONTROL PANEL Water tank full indicator Backlight dimming Dimming Power button Defrost indicator button indicator Dehumidifying Room humidity / Relative Humidity Setting button Timer button Timer indicator Humidity setting indicator indicator Displays only when Dehumidifying mode timer is set Blinks when defrosting Displays when LCD... -
Page 6: Unit Setup
UNIT SETUP Top above 60cm Place the unit in an upright position on a stable, level surface. (Please ensure unit is not sitting on its own cable) Air outlet Please ensure the unit is a safe distance away Air inlet from walls and furniture (see image on the left). -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS ON and OFF Connect the power plug to the appropriate electrical outlet. Press the ON / OFF button to turn the appliance ON. The LCD panel will light up. If the unit has been switched off and on again, it will resume operation with the settings for mode, humidity and backlight from its last use. - Page 8 OPERATING INSTRUCTIONS RELATIVE HUMIDITY Press to set your desired humidity level from 40% to 70% RH (at 5% increments) or CO (continuous mode). For example, if 50% RH is selected, the unit will operate and dehumidification will occur when the room humidity level is detected at above 50% RH. After setting the desired humidity level, the indicator and digits on the LCD panel will blink for 5 seconds and then return to display the room humidity level.
- Page 9 OPERATING INSTRUCTIONS LCD BACKLIGHT DIMMING Press to change backlight from H (no dimming), L5 (slightly dim) to L1 (dimmest) or L0 (no backlight). indicator lights up only when the unit has been set between L0 and L5. (no dimming) (slightly dim) (dimmest) (no backlight) AUTO PAUSE AND RESTART FUNCTION...
-
Page 10: Emptying The Water Tank
EMPTYING THE WATER TANK 1. When the water tank is full, the indicator light blinks and the unit will stop operating. 2. Do not move the unit or remove the water tank if the machine is still operating as water may leak, damage the unit or cause an electric shock. 3. -
Page 11: Continuous Drainage Option
CONTINUOUS DRAINAGE OPTION Knockout A hose with an inner diameter of 12mm can be connected for continuous drainage: Hose 1. Use a screwdriver to remove the knockout at the back (on the tank). Attach the hose to the connector through the hole. 2. -
Page 12: Maintenance
MAINTENANCE Cleaning the unit 1. Turn off the unit, wait for the fan to stop and unplug from the electrical outlet. 2. Clean the casing using a soft damp cloth with warm water and mild detergent. Do not use solvents or abrasive materials. 3. -
Page 13: Troubleshooting
TROUBLESHOOTING The following conditions are normal: The compressor will stop or rest for 3 minutes every time the unit shuts down or is plugged in to the electrical outlet. This helps ensure a smooth start for the dehumidifier. 2. The unit works within room temperature of about 5 ~ 35ºC. It may stop operation when the room temperature is out of this range or when the air inlet or outlet is covered. -
Page 15: Warranty Registration
WARRANTY REGISTRATION Register your Ionmax Ion622 online at my.andatech.com.au Alternatively, fill out this form and forward to the address below with a copy of your proof of purchase. Andatech Pty Ltd PO Box 3038, Nunawading VIC 3131, Australia. Product : Ionmax Ion622... - Page 16 Version 1.0. Updated 04.01.2018.
