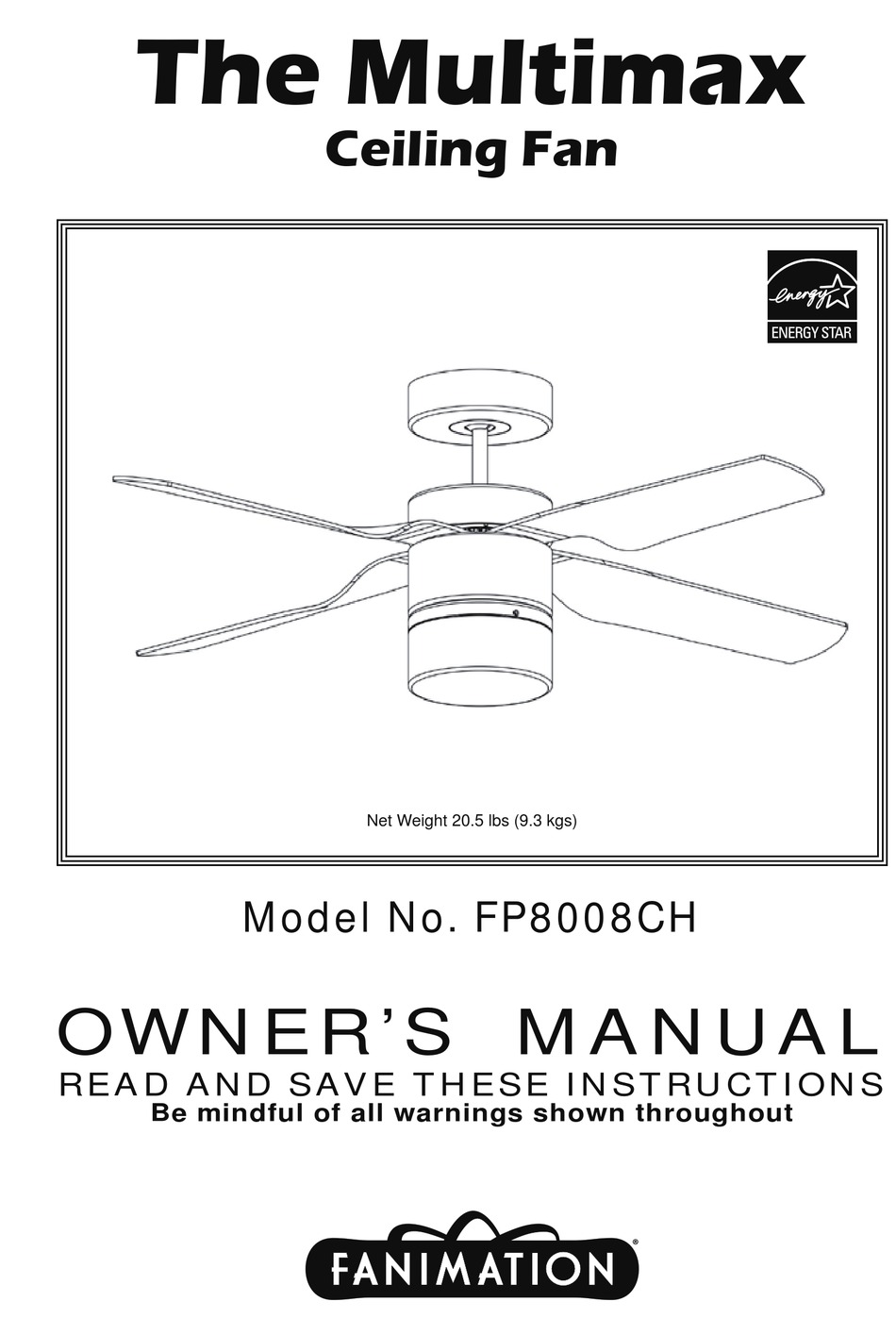

The Multimax

Ceiling Fan

Net Weight 20.5 lbs (9.3 kgs)
Model No. FP8008CH
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
Be mindful of all warnings shown throughout

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multimax FP8008CH and is the answer not in the manual?

Questions and answers

Related Manuals for Fanimation Multimax FP8008CH

Summary of Contents for Fanimation Multimax FP8008CH

  • Page 1: Ceiling Fan

    The Multimax Ceiling Fan Net Weight 20.5 lbs (9.3 kgs) Model No. FP8008CH OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS Be mindful of all warnings shown throughout...

  • Page 3: Blade Installation

    1.Unpack and inspect fan carefully to be certain all contents are included. Hardware bag Blades Blade Screw w/Washer 9pcs Mounting Bracket Nylon Washer 9pcs Mounting Screw 2pcs Fan assembly Spring Washer 2pcs Downrod Deco Ring Lock Washer 2pcs Deco Cap Wood Screw 2pcs Canopy...

  • Page 4: Hanging The Fan

    7. Upper Housing & Downrod Assembly Wires & safety cable Yoke Cotter Pin Canopy Deco Ring Downrod Upper Housing Cotter Pin Cross Pin Yoke Downrod Set Screw Feed motor lead wires and safety cable Insert the cross pin through Yoke & Downrod and through Upper Housing,Deco Ring, Canopy secure with Cotter Pin.

  • Page 5: Install The Canopy

    9. Make wire connection-( for 100~127VAC/60Hz ) -for Remote Receiver 9-1. Connect black wire from house to black wire from Receiver and secure with wire nut. 9-2. Connect white wire from house to white wire from Receiver and secure with wire nut. 9-3.
  • Page 6 12. Fan Installation without light kit: Wires Wires Screws 12-2: 12-1: Detach terminal connectors Detach light kit from fan housing by loosening from light kit and fan. 3 screws. 12-3 Just attach Deco Cap to bottom of fan by “Snap - in”. Wires Deco Cap 13.

  • Page 7: Parts List

    Parts List Model No. FP8008CH Description Reference # Part # Hanger Bracket Assembly w/Screws APGFF110BL Ball-Downrod Assembly ADRFF-6CH Canopy - Ceiling P800801CH Canopy Screw Cover P800802CH Housing Upper Asm AP800803CH Blade Set (4) AP800806** Fan Motor Assembly AMA8008CH Decorative Lower Housing Cover...
  • Page 9 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2010 Fanimation / 0 10...
