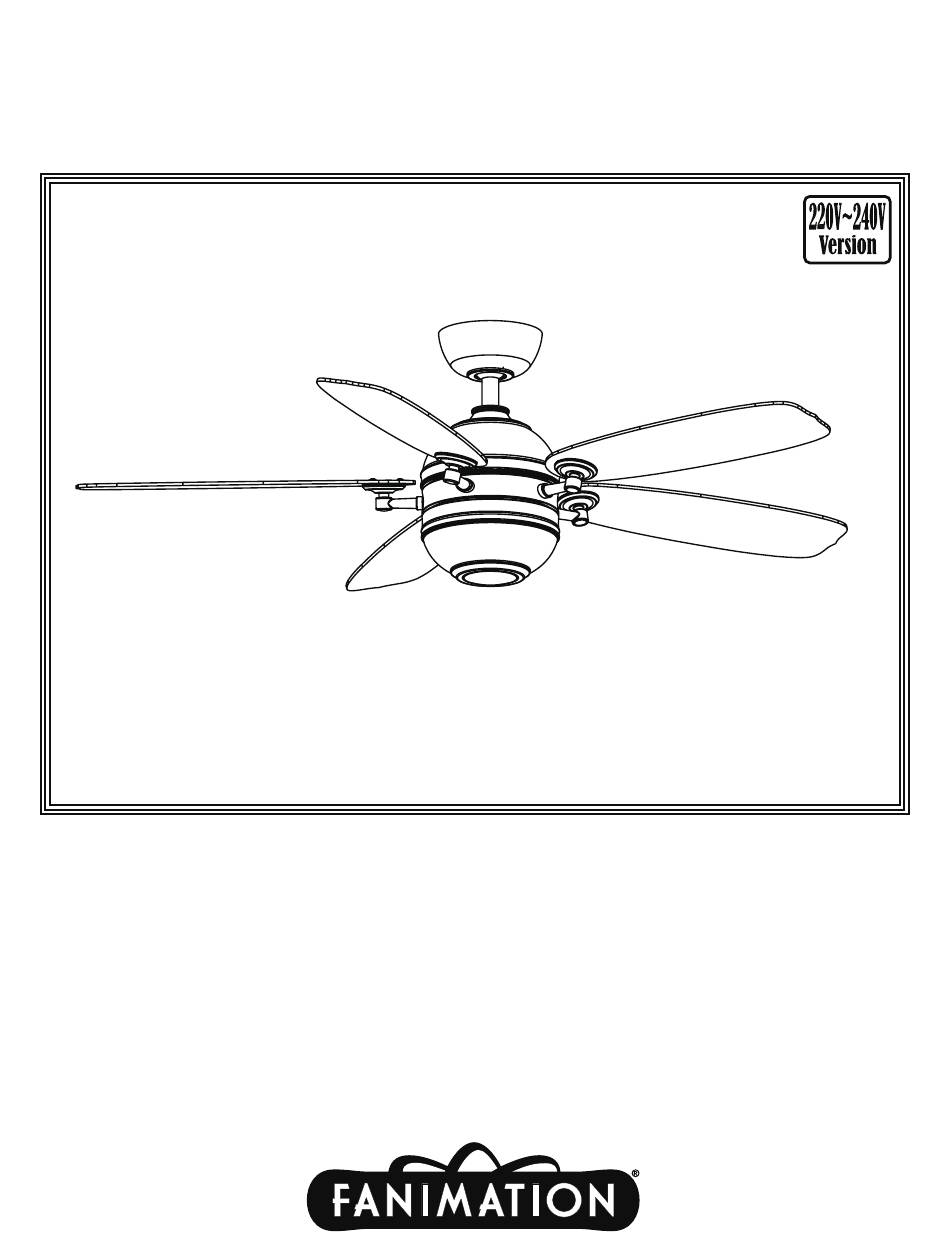

The Akira
Ceiling Fan
Finishes: OB and PW
Net Weight 10.1 kg. (22.2 lbs.)
Model No. FP8000-220
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP8000-220 The Akira and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fanimation FP8000-220 The Akira

  • Page 1 The Akira ™ Ceiling Fan Finishes: OB and PW Net Weight 10.1 kg. (22.2 lbs.) Model No. FP8000-220 OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS...
  • Page 2: Table Of Contents

    Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation.
  • Page 3: Unpacking Instructions

    (blade arm to motor) • Blade Arm Set accessories not designated for use with this product Pan Head Screw by Fanimation could result in personal injury or • Blade Set property damage. – Phillips Screwdriver, 4” • Housing Light Kit Assembly •...
  • Page 4: Energy Efficient Use Of Ceiling Fans

    8 - 9 feet above the floor for optimal This produces a gentle updraft, which forces warm air airflow. Consult your Fanimation Retailer for optional near the ceiling down into the occupied space. mounting accessories.
  • Page 5: How To Assemble Your Ceiling Fan

    How to Assemble Your Ceiling Fan 1. Remove the hanger ball portion from the downrod/hangerball assembly by loosening the set screw in the hanger ball until the ball falls freely down the downrod. Remove the pin from the DOWNROD downrod, then remove the hanger ball. Retain the pin and hanger ball for reinstallation in Step 5 (Figure 1).
  • Page 6: How To Hang Your Ceiling Fan

    How to Assemble Your Ceiling Fan (continued) 6. Cut off excess lead wire approximately 6 to 9 inches above top of the top of the downrod. Strip insulation off 1/2-inch from the end of each lead wire (Figure 6). 6 TO 9 INCHES DOWNROD NOTE: All set screws must be checked, and retightened...
  • Page 7: How To Wire Your Ceiling Fan

    How to Wire Your Ceiling Fan If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging MAIN FUSE BOX (Figure 10).
  • Page 8: How To Install Your Canopy Housing

    How to Install Your Canopy Housing 1. Remove one of the two shoulder screws in the hanger bracket. Loosen the second shoulder screw without fully removing it. Assemble canopy by rotating key slot in canopy over shoulder screw in hanger bracket. Tighten shoulder screw. Fully CANOPY SHOULDER assemble and tighten second shoulder screw that...
  • Page 9: How To Assembly The Blades & Light Kit

    How to Assemble the Blades and Light Kit 1. Position the blade over the blade holder with threaded posts showing. Make sure the bottom edge of the blade is fully seated against the blade arm. With a Phillips screwdriver, tighten 3/16-24 x 7.5 mm washer head screws and fiber washers to 3/16-24 x 7.5mm WASHER secure the blade to the blade arm (Figure 17).
  • Page 10 How to Assemble the Blades and Light Kit (continued) 4. Connect the 2-pin connector from the light socket plate to 2-pin connector from motor assembly (Figure 20). MOTOR ASSEMBLY 2-PIN CONNECTOR LIGHT SOCKET 2-PIN CONNECTOR LIGHT SOCKET PLATE Figure 20 5.
  • Page 11: How To Operate Your Ceiling Fan

    How to Operate Your Ceiling Fan 1. Restore electrical power to the outlet box by turning the electricity on at the main fuse box (Figure 24). WARNING MAIN FUSE BOX Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire.
  • Page 12: Trouble Shooting

    Trouble Shooting WARNING For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble Probable Cause Suggested Remedy 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers. 2.
  • Page 13: Parts List

    Parts List Model No. FP8000**-220 Reference # Description Part # Hanger Bracket Assembly w/Screws AP255BL-220 Ball - Downrod Assembly (4.5) R1-45** Canopy PG155** Canopy Screw Cover Assembly AP260** Motor Coupling Cover Assembly AP800002** Fan Motor Assembly *-220 Hous ing Light Kit Assembly (AP800008**) AP800019** Glass (P800009OP) Socket Assembly...
  • Page 14: Exploded-View Illustration

    FP8000**-220 Exploded-View NOTE: The illustration shown is not to scale or its actual configurations may vary.
  • Page 16 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Fanimation Website www.fanimation.com Copyright 2010 2010/07...
