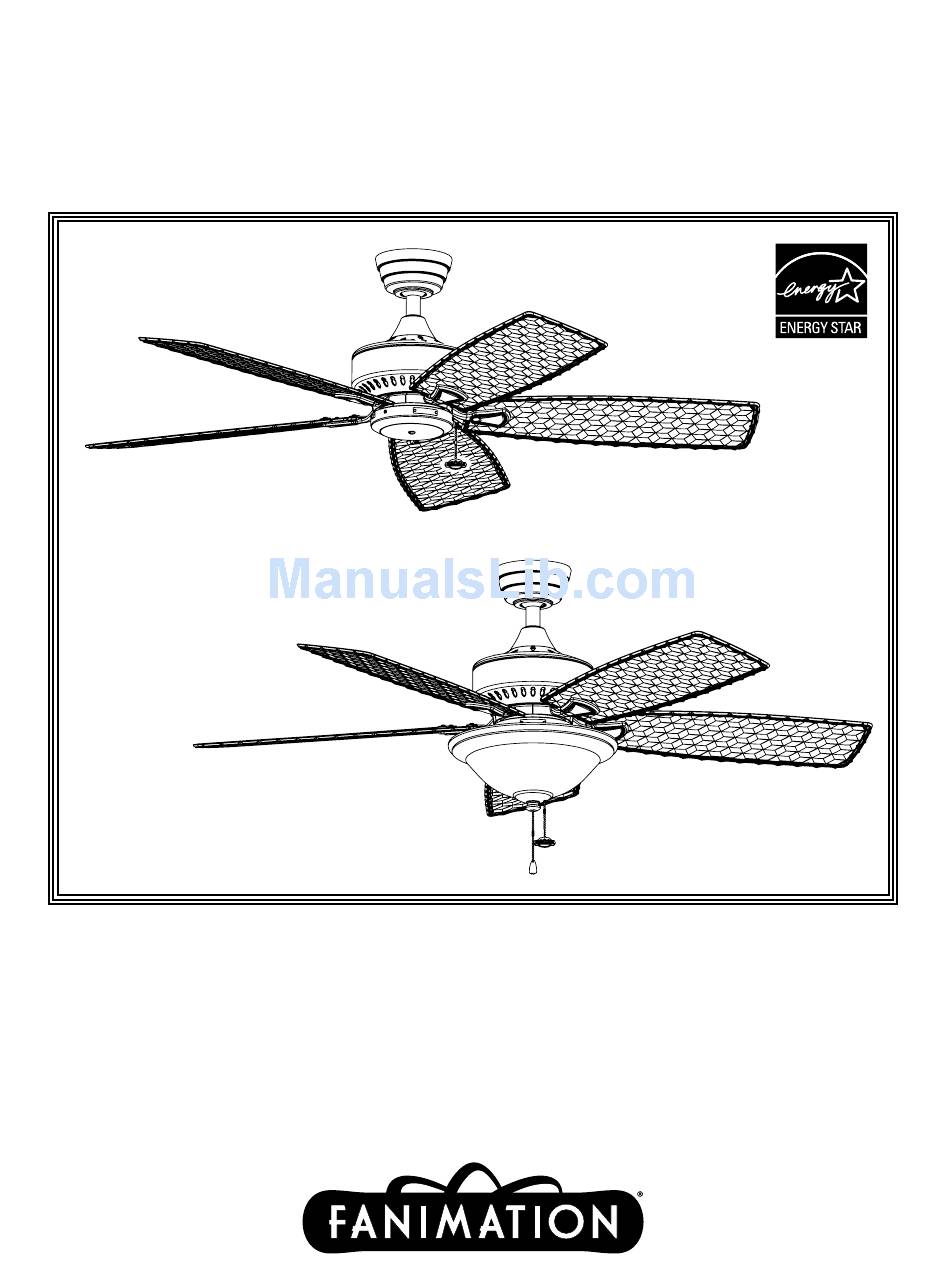

- Page 1 ™ The Cancun Ceiling Fans FP8009OB ONLY FP8009OB Net Weight 11.50 kgs FP8011OB Net Weight 13.50 kgs Model Nos. FP8009OB | FP8011OB OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must accompany authorized returns and must be sent freight prepaid to Fanimation. The fan to be returned must be properly packed to avoid damage in transit;... -
Page 3: Tools Needed For Assembly
– Four wire connectors Fanimation. Substitution of parts or accessories not • Downrod/Hanger Ball – Chain fob/coupler designated for use with this product by Fanimation could Assembly – Balance Kit • Ceiling Canopy result in personal injury or property damage. Contact –... -
Page 4: Energy Efficient Use Of Ceiling Fans
8 - 9 feet above the floor for optimal airflow. Consult your down into the occupied space. Remember to adjust your Fanimation Retailer for optional mounting accessories. thermostat when using your ceiling fan - additional energy and dollar savings could be realized with this simple step! Turn Off When Not in the Room Ceiling fans cool people, not rooms. -
Page 5: How To Assemble Your Ceiling Fan
How to Assemble Your Ceiling Fan 1. Remove the hanger ball portion from the downrod/ hanger ball assembly by loosening the set screw in the hanger ball until the ball falls freely down the downrod. Remove the pin from the downrod, then remove the DOWNROD hanger ball. -
Page 6: How To Hang Your Ceiling Fan
How to Assemble Your Ceiling Fan (continued) 6. Cut off excess lead wire approximately 6 to 9 inches above top of the top of the downrod. Strip insulation off 1/2 inch from the end of each lead wire. (Figure 6) NOTE: All set screws must be checked, and retightened where necessary, before installation. -
Page 7: How To Wire Your Ceiling Fan
How to Wire Your Ceiling Fan WARNING To avoid possible fire or shock, be sure electricity is turned off at the main fuse box before hanging. MAIN FUSE BOX (Figure 11) Figure 11 1. Connect the green grounding lead from the hanger BLACK FAN ball and the green grounding lead from the hanger WIRE... -
Page 8: How To Assemble The Blades
Installing the Canopy Housing (continued) 2. Securely attach and tighten the canopy screw cover over the shoulder screws in the hanger bracket utilizing the key slot twist-lock feature. (Figure 15) CANOPY SCREW COVER Figure 15 How to Assemble the Blades 1. -
Page 9: Housing/Switch Cup Adapter Assembly
Housing/Switch Cup Adapter Assembly 1. Disassemble the housing switch cup/adapter assembly FP8009OB FP80011OB by removing three screws. (Figure 19) HOUSING/SWITCH HOUSING/SWITCH CUP ADAPTER CUP ADAPTER WITH LIGHT FITTER Figure 19 2. Remove one of the three screws in the support bracket. -
Page 10: Light Kit Assembly-Fp8011Ob Only
Light Kit Assembly—FP8011OB ONLY 1. Install included candelabra bulbs into each of the three sockets. (Figure 23) CAUTION To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing light kit. Use only with light kits marked suitable for use in Damp Locations. -
Page 11: Pull Chain Operating Instructions
(Figure 26) MAIN FUSE BOX Figure 26 2. Check the operation of the fan by gently pulling on FP8009OB FP80011OB the fan speed pull chain. (Fig. 27) Pull Chain Operating Sequence Pull... -
Page 12: Parts List
Parts List Models FP8009OB & FP8011OB Ref. # Description FP8009OB FP8011OB Hanger Bracket Assembly AP255BL AP255BL Downrod/Hanger Ball Assembly: ADR1-45OB ADR1-45OB Ceiling Canopy PG165OB PG165OB Canopy Screw Cover AP260OB AP260OB Motor Coupling Cover AP1115OB AP1115OB Fan Motor Assembly AMA8009OB AMA8011OB... -
Page 13: Exploded-View Drawing
FP8009OB & FP8011OB Exploded-View FP8009OB ONLY FP8011OB ONLY NOTE: The illustration shown is not to scale or its actual configuration may vary... -
Page 14: Trouble Shooting
Trouble Shooting WARNING For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble Probable Cause Suggested Remedy 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers. - Page 16 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2009 Fanimation 2009/11...
