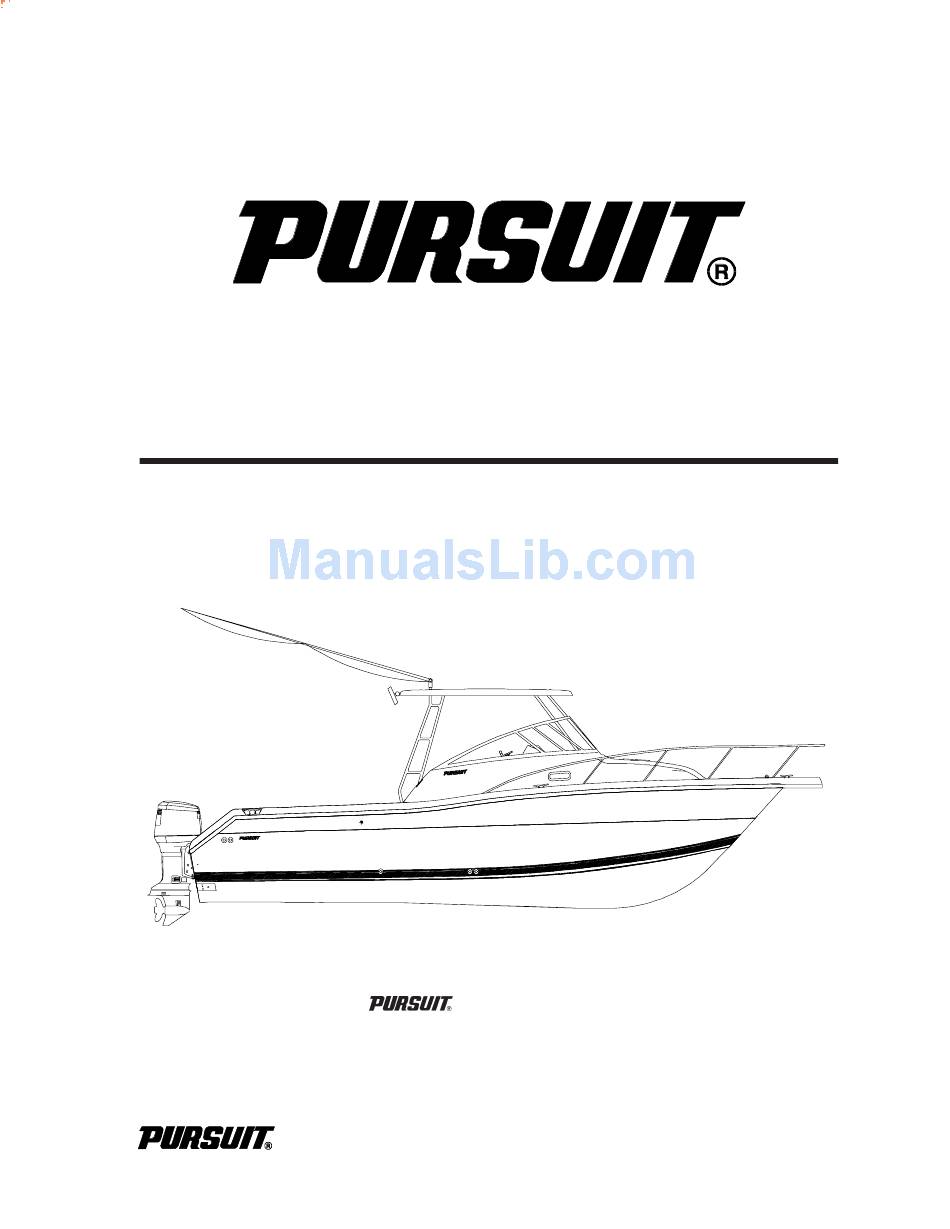

Page 1 3070 OFFSHORE OWNER’S MANUAL FISHING BOATS 3901 St. Lucie Blvd. Ft. Pierce, Florida 34946 3070 OFFSHORE 921199 February 2004, Revision A...
Page 2 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 3: Safety Information
IMPORTANT NOTE: Your boat uses internal combustion engines and flammable fuel. Every precaution has been taken by Pursuit Fishing Boats to reduce the risks associated with possible injury and damage from fire or explosion, but your own precaution and good maintenance procedures are neces- sary in order to enjoy safe operation of your boat.
Page 4 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 5: Boat Information
MAKE: MODEL: SERIAL #: DEALER PURSUIT NAME: PHONE: DEALER/PHONE: REPRESENTATIVE: SALESMAN: ADDRESS: SERVICE MANAGER: ADDRESS: Pursuit Fishing Boats reserves the right to make changes and improvements in equipment, design and vendored equipment items, at any time without notification. 3070 OFFSHORE...
Page 6 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 7: Identification Numbers
Intended Design Category: Ocean Inshore Offshore Sheltered Waters Weight and Maximum Capacities: Unladen Weight - Kilograms (Pounds) Maximum Load - Weight- Kilograms (Pounds) Number of People Maximum Rated Engine Horsepower - Kilowatts (Horsepower) Certifications: Certifications & Components Covered 3070 OFFSHORE...
Page 8 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 9: Important Information
IMPORTANT INFORMATION Warranty and Warranty Registration Cards The Pursuit Limited Warranty Statement is included with your boat. It has been written to be clearly stated and easily understood. If you have any questions after reading the warranty, please contact Pursuit Customer Relations.
Page 10 Limited Warranty, you should contact your Pursuit dealer to arrange for the necessary repair. If you are not near your dealer or another authorized Pursuit dealer or the dealer fails to remedy the cause of the problem, then contact the Pursuit Customer Relations Department within 15 days.
Page 11 U.S. Power Squadrons, United States Coast Guard Auxiliary, State Boating Authorities and the American Red Cross offer excellent boating educational programs. These courses are worthwhile even for experienced boaters to sharpen your skills or bring you up to date on current rules and 3070 OFFSHORE...
Page 12 Coast Guard jurisdiction. These agencies may also require additional equipment that is not required by the Coast Guard. Your dealer or local boating authority can provide you with additional information for the equipment requirements for your boating area. 3070 OFFSHORE...
Page 13: Table Of Contents
Control Systems Maintenance ..........29 Chapter 3: Fuel System General ................31 Outboard Fuel System ............33 Generator Fuel System ............34 Fueling Instructions ............. 35 Oil Tanks ................36 Fuel System Maintenance ........... 37 Chapter 4: Electrical System General ................39 3070 OFFSHORE...
Page 14 7.3 Hard Top Drains ..............63 7.4 Bilge Drainage ..............64 7.5 Fishbox, Cooler and Storage Compartment Drains ....65 7.6 Water System Drains ............65 7.7 Cabin Drains ................ 66 Rope Locker Drains ............66 Drainage System Maintenance ..........66 3070 OFFSHORE...
Page 15 10.7 Carbon Monoxide Detector ..........87 Chapter 11: Safety Equipment 11.1 General ................89 11.2 Engine Alarms ..............89 11.3 Neutral Safety Switch ............90 11.4 Engine Stop Switch ............. 90 11.5 Required Safety Equipment ..........90 11.6 Carbon Monoxide ............... 93 3070 OFFSHORE...
Page 16 12.14 Transporting Your Boat ............111 Chapter 13: Routine Maintenance 13.1 Exterior Hull and Deck ............113 13.2 Upholstery, Canvas and Enclosures ........116 13.3 Cabin Interior ..............118 13.4 Bilge ................... 119 13.5 Generator ................119 13.6 Drainage System ..............119 3070 OFFSHORE...
Page 17 TABLE OF CONTENTS Appendix A: Glossary of Terms ............147 Appendix B: Maintenance Schedule and Log ........155 Appendix C: Boating Accident Report ..........161 Appendix D: Float Plan ............... 163 Appendix E: Trouble Shooting Guide ..........165 3070 OFFSHORE...
Page 18 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 19: Propulsion System
PROPULSION SYSTEM 1.1 General The Pursuit 3070 Offshore is designed to be powered with twin 2-cycle or 4-cycle outboard motors. Each manufacturer of the various outboard motors provides an owner’s information manual with its product. It is important that you read the manual(s) very carefully and become familiar with the proper care and operation of the engine and drive system.
Page 20: Engine Lubrication
DO NOT PAINT THE OUTBOARD MOTORS WITH ANTIFOULING PAINTS DESIGNED FOR BOAT HULLS. MANY OF THESE PAINTS CAN CAUSE SE- VERE DAMAGE TO THE ENGINES. CONTACT YOUR PURSUIT DEALER OR ENGINE MANUFACTURER FOR INFORMATION ON THE PROPER PAINTING PROCEDURES.
Page 21: Engine Cooling System
The propellers convert the engine’s power into thrust. They come in a variety of styles, diameters and pitches. The one that will best suit the needs of your Pursuit will depend somewhat on your application and expected average load. Propeller sizes are identified by two numbers stamped on the prop in sequence.
Page 22: Engine Instrumentation
The instrumentation is unique to the type of outboard motors installed on your Pursuit. Some or all of the following gauges may be present. Tachometer The tachometer displays the speed of the engine in revolutions per minute (RPM).
Page 23 The ignition switches should be sprayed periodically with a contact cleaner/lubricant. The ignition switches and all instruments, controls, etc. should be protected from the weather when not in use. Excessive exposure can lead to gauge and ignition switch difficulties. 3070 OFFSHORE...
Page 24 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 25: Helm Control Systems
Controls The helm on your Pursuit is designed for a binnacle style control with a single lever for each engine that operates as a gear shift and a throttle. General operation will include a position for neutral (straight up and down), a forward position (the 1st detent forward of neutral), and a reverse position (the 1st detent aft of neutral).
Page 26: Neutral Safety Switch
Control or cable adjustments may be required to correct this condition should it persist. See your Pursuit dealer for necessary control and cable adjustments.
Page 27: Engine Stop Switch
YOUR APPLICATION. 2.5 Engine Stop Switch Your Pursuit is equipped with an engine stop switch and lanyard. When the lanyard is pulled it will engage the switch and shut off the engines. We strongly recommend that the lanyard be attached to the driver whenever the engines are running.
Page 28: Steering System
When running at a speed that will result in the boat falling off plane, lowering the tabs slightly, bow down, will improve the running angle and operating efficiency. Too much bow down tabs can reduce operating efficiency and cause substantial steering and handling difficulties. 3070 OFFSHORE...
Page 29: Control Systems Maintenance
1/2" below the bottom of the filler cap threads. When new, or after repairs, hydraulic steering systems may need to have all air purged from the system. Review the information provided by the steering manufacturer for proper specifications and details on system service and maintenance. 3070 OFFSHORE...
Page 30 75% of their original size. Refer to the Routine Maintenance chapter of this manual for information on maintaining zinc anodes and the trim tab owner’s manual for additional maintenance information, fluid specifications and operating instructions. 3070 OFFSHORE...
Page 31: Fuel System
FUEL SYSTEM 3.1 General The fuel system used in Pursuit boats is designed to meet or exceed the requirements of the U.S. Coast Guard, the Boating Industry Association, and The American Boat and Yacht Council in effect at the time of manufacture.
Page 32 TER OR WASTE TANK, DO NOT ATTEMPT TO PUMP IT OUT YOURSELF. WATER AND WASTE PUMPS ARE NOT DESIGNED TO PUMP FUEL AND A FIRE OR EXPLOSION COULD RESULT. CONTACT YOUR DEALER OR THE PURSUIT CUSTOMER RELATIONS DEPARTMENT FOR ASSISTANCE IN HAVING THE FUEL PROFESSIONALLY REMOVED. Fuel Vents There are two fuel vent fittings for the gasoline fuel tanks, one on each side of the hull.
Page 33: Outboard Fuel System
3.2 Outboard Fuel System The outboard fuel system on the Pursuit 3070 Offshore has two fuel tanks and four manual “ON/ OFF” fuel valves that are labeled to indicate the engine the valve will supply. The fuel valves are located on the top of the fuel tanks below the inspection plates in the rear of the cockpit. The valves are off when the handle is perpendicular to the fuel flow.
Page 34: Generator Fuel System
A water separator type fuel filter is installed near the generator. The fuel filter has a sediment bowl that should be checked for water frequently to assure an adequate supply of clean, dry fuel to the engine. The filter should be inspected periodically and the element changed as needed. 3070 OFFSHORE...
Page 35: Fueling Instructions
THAT CONTAINS HARSH ADDITIVES OR IS AN ALCOHOL BLEND. ANY DAMAGE DONE TO THE FUEL SYSTEM THAT IS THE RESULT OF USE OF AN ALCOHOL BLEND, IS NOT COVERED BY THE PURSUIT WAR- RANTY. REFER TO THE ENGINE MANUFACTURER OWNER’S MANUAL REGARDING FUEL REQUIREMENTS FOR YOUR ENGINES.
Page 36: Oil Tanks
The remote oil tanks are equipped with deck fills located just inside of the transom door. Pursuit provides, adjacent to the oil fill, an oil tank indicator system to assist in preventing an overfill of the oil tank. A light on the oil tank will turn on when the selected tank is full.
Page 37: Fuel System Maintenance
DO NOT DRAIN ANY FUEL INTO THE BILGE. THIS COULD LEAD TO A FIRE OR EXPLOSION. AFTER THE FILTER ELEMENT HAS BEEN CHANGED, PRIME THE FUEL SYSTEM AND CHECK ALL FITTINGS FOR LEAKS BEFORE AND AFTER STARTING THE ENGINES. 3070 OFFSHORE...
Page 38 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 39: Electrical System
ELECTRICAL SYSTEM 4.1 General Your Pursuit is equipped with an AC and 12-volt DC electrical systems. The AC system can draw current from one of two sources, either shore power outlets at dock side or the optional generator. The DC system draws current from on board batteries.
Page 40 “OFF” position when leaving the boat unattended. Note: Current is supplied to the automatic float switches for the bilge pumps when the batteries are connected and the battery switches are off. 3070 OFFSHORE...
Page 41 Cockpit Lights Activates the lights that illuminate the cockpit area. Spreader Lights Activates the flood lights located on the optional radar arch or hardtop. These lights provide additional lighting for the rear of the cockpit. 3070 OFFSHORE...
Page 42 Accessory Switch The switch is supplied to protect additional equipment that may or may not have been installed by Pursuit or your Pursuit dealer. If no accessories are activated by this switch, it remains wired in the panel in reserve.
Page 43 A DC voltage meter is located in the panel to monitor the voltage level in the batteries. It will monitor the voltage of the house battery plus any electrical charges supplied to it when the engines or the battery charger are operating. 3070 OFFSHORE...
Page 44 Supplies 12-volt electrical current directly to the refrigerator when AC current is not being used. Stereo Supplies 12-volt electrical current to the stereo. Supplies 12-volt electrical current to the television. Helm Main Supples 12-volt electrical current to the breakers and switches in the helm switch panel. Electronics Main Reserved for electronics installations. 3070 OFFSHORE...
Page 45 The forward bilge pump breaker is located on the TABS and provides protection for the automatic float switch on the forward bilge pump. This "push to reset" breaker is always supplied current when the batteries are connected. Another breaker in the helm provides circuit protection for the manual switch. 3070 OFFSHORE...
Page 46: Ac System
All AC outlets in the cabin are protected by ground fault interrupters to protect against electrical shock. A cord set is provided to supply power from the shore power outlet to the boat’s AC system. 3070 OFFSHORE...
Page 47 “ON” position. DO NOT OPERATE THE AC ELECTRICAL SYSTEM FROM SHORE POWER WITH REVERSE POLARITY. REVERSE POLARITY WILL DAMAGE THE SYSTEM AND EXPOSE PASSENGERS TO ELECTROCUTION HAZARDS. THIS CONDITION COULD ALSO CAUSE A FIRE IN THE ELECTRICAL SYS- TEM. 3070 OFFSHORE...
Page 48 Protects the general distribution network. This breaker is very sensitive. The resulting power surge that occurs when connecting the dock side cord may cause the main breaker to trip. To avoid this surge, always turn the main breaker to the “OFF” position before plugging or unplugging the shore 3070 OFFSHORE...
Page 49 Always turn the ignition switches off immediately after the monitoring is complete. See the battery charger manual for more information. The wires that supply DC charging current to the batteries are protected by an internal fuse in the 3070 OFFSHORE...
Page 50 SHOCK. EVEN THOUGH GROUND FAULT INTERRUPTERS PROVIDE PRO- TECTION BY REDUCING EXPOSURE TIME FROM LINE TO GROUND SHOCK HAZARDS, IT IS STILL POSSIBLE TO RECEIVE AN ELECTRIC SHOCK FROM DEFECTIVE APPLIANCES OR POWER TOOLS AND MIS- USED ELECTRICAL EQUIPMENT. 3070 OFFSHORE...
Page 51: Electrical System Maintenance
WHEN REPLACING LIGHT BULBS IN MARINE LIGHT FIXTURES, ALWAYS USE A BULB WITH THE SAME RATING AS THE ORIGINAL. USING A DIF- FERENT BULB COULD CAUSE THE FIXTURE TO OVERHEAT AND MELT OR SHORT CIRCUIT. 3070 OFFSHORE...
Page 52 The engine maintenance required on the generator is similar in many ways to primary inboard engines. The most important factors to the generator's longevity are proper ventilation, mainte- nance of the fuel system, ignition system, cooling system, lubrication system and the AC alternator. 3070 OFFSHORE...
Page 53 QUIRED. DO NOT ALLOW CORROSION TO BUILD ON CONNECTIONS. THE AC AND DC ELECTRICAL SYSTEMS ALWAYS SHOULD BE DISCON- NECTED FROM THE POWER SOURCE BEFORE INSPECTING OR SERVIC- ING THE SYSTEM. NEVER SERVICE ANY COMPONENT OF AN ELECTRI- CAL SYSTEM WHILE IT IS ENERGIZED. 3070 OFFSHORE...
Page 54 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 55: Chapter 5: Fresh Water System
TER OR WASTE TANK, DO NOT ATTEMPT TO PUMP IT OUT YOURSELF. WATER AND WASTE PUMPS ARE NOT DESIGNED TO PUMP FUEL AND A FIRE OR EXPLOSION COULD RESULT. CONTACT YOUR DEALER OR PURSUIT CUSTOMER RELATIONS FOR ASSISTANCE IN HAVING THE FUEL PROFESSIONALLY REMOVED. 5.2 Fresh Water System Operation Fill the water supply tank slowly through the labeled deck plate.
Page 56: Water Heater
To use shore water, connect a hose from the shore water faucet to the shore water fitting on the boat. Next, turn on the shore water. The pressure pump will not run and the water in the boat’s water tank will not be used. Note: The water tank will not be filled by connecting to shore water. 3070 OFFSHORE...
Page 57: Shower Operation
DO NOT MODIFY OR CHANGE THE SHORE WATER INLET CONNECTOR WITH ANOTHER TYPE WITHOUT CONSULTING PURSUIT CUSTOMER RE- LATIONS OR YOUR DEALER. THE USE OF THE WRONG TYPE OF IN- LET CONNECTOR CAN DAMAGE THE FRESH WATER SYSTEM. 5.5 Shower Operation The head sink faucet is also the shower spray head.
Page 58 THE FRESH WATER SYSTEM MUST BE PROPERLY WINTERIZED PRIOR TO WINTER LAY-UP. SEE THE SECTION ON WINTERIZING. THE FRESH WATER BREAKER SHOULD BE PLACED IN THE “OFF” PO- SITION WHENEVER LEAVING THE BOAT UNATTENDED OR WHEN THE FRESH WATER SYSTEM IS NOT IN USE. 3070 OFFSHORE...
Page 59: Chapter 6: Raw Water System
The raw water washdown system is equipped with a sea strainer on the intake side of the pump located in the bilge below the stern access hatches in the transom splashwell. This should be checked frequently and cleaned as necessary. 3070 OFFSHORE...
Page 60 Washdown Hose Connector ALWAYS TURN THE RAW WATER PUMP SWITCH TO THE “OFF” POSI- TION WHEN LEAVING THE BOAT UNATTENDED. DO NOT RUN THE HIGH PRESSURE PUMP DRY FOR EXTENDED PERI- ODS AS DAMAGE TO THE PUMP WILL RESULT. 3070 OFFSHORE...
Page 61: Livewell
DO NOT RUN THE LIVEWELL PUMP DRY FOR EXTENDED PERIODS AS DAMAGE TO THE PUMP WILL RESULT. ALWAYS TURN THE LIVEWELL PUMP SWITCH TO THE “OFF” POSITION WHEN LEAVING THE BOAT UNATTENDED. 3070 OFFSHORE...
Page 62: Air Conditioning Pump
THE BATTERIES MUST BE PROPERLY CHARGED. OPERATING ANY PUMPS FROM A BATTERY WITH A LOW CHARGE MAY LEAD TO A PUMP FAILURE. THE RAW WATER SYSTEM MUST BE PROPERLY WINTERIZED PRIOR TO WINTER LAY-UP. SEE THE SECTION ON WINTERIZING. 3070 OFFSHORE...
Page 63: Chapter 7: Drainage Systems
CORRECTED. 7.2 Cockpit Drains Your Pursuit has two scupper drains located in the rear of the cockpit. Water is channeled away from all hatches by a gutter or drain rail system. The water then drains overboard through the scupper drain system.
Page 64: Bilge Drainage
The plug should be removed whenever the boat is hauled out of the water and installed just prior to launching. It is important to check the drain plug regularly to make sure it is tight. 3070 OFFSHORE...
Page 65: Fishbox, Cooler And Storage Compartment Drains
7.6 Water System Drains All exterior sinks and livewells, provided with fresh or raw water, drain by gravity to overboard thru-hulls located in the hull sides just above the waterline. The overflows in the livewell drain into the overboard drains. 3070 OFFSHORE...
Page 66: Cabin Drains
You can also use a garden hose to flood the bilge until the water level is high enough to activate the pump. 3070 OFFSHORE...
Page 67 Operate the thru-hull valves once a month and service as required. Note: All drains and pumps must be properly winterized before winter lay-up. NEVER USE HARSH CHEMICAL DRAIN CLEANERS IN MARINE DRAIN SYSTEMS. PERMANENT DAMAGE TO THE HOSES AND FITTINGS MAY RESULT. 3070 OFFSHORE...
Page 68 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 69: Chapter 8: Ventilation System
The windshield is equipped with an opening vent panel on each side of the windshield. To open the vent, release the locking T-handle and rotate it outboard until it locks in place. To prevent damage to the vent glass, do not leave the T-handle in the unlocked position. 3070 OFFSHORE...
Page 70: Carbon Monoxide And Proper Ventilation
Owner's Manual. 8.4 Bilge Compartment Ventilation All 3070 Offshore models are equipped with ventilation for the bilge compartment. A flow of air into the bilge compartment is provided by four vents located on either side of the cockpit, under the gunnel boards.
Page 71: Chapter 9: Exterior Equipment
All fittings must be periodically inspected for loose fit or wear and damage. Any problems should be corrected immediately. PURSUIT BOATS ARE NOT EQUIPPED WITH HARDWARE DESIGNED FOR TOWING PURPOSES. THE MOORING CLEATS ARE NOT TO BE USED FOR TOWING ANOTHER VESSEL OR HAVING THIS BOAT TOWED.
Page 72 CHOR LOCKER WILL BOUNCE AND CAN DAMAGE THE BOAT. DAM- AGE RESULTING FROM THE ANCHOR BOUNCING IN THE ANCHOR LOCKER IS NOT COVERED BY THE PURSUIT WARRANTY. Windlass (Optional) The optional windlass is mounted to the deck near the rear of the pulpit above the rope locker. The anchor is stored on the pulpit and is raised and lowered by the windlass.
Page 73: Hull
Windshield The Pursuit 3070 Offshore is equipped with a vented heavy duty aluminum windshield with tinted glass and built in hand rails. The windshield is equipped with an opening vent panel on each side of the windshield. To open the vent, release the locking T-handle and rotate it outboard until it locks in place.
Page 74: Cockpit
The prep/entertainment center is equipped with a sink, storage locker or optional ice maker, aft facing seat and storage/cooler area. The sink is plumbed to the fresh water system and is drained by gravity to a thru-hull fitting in the hull side above the waterline. 3070 OFFSHORE...
Page 75 A momentary switch is used because the pump will be damaged if it is allowed to run dry for more than 30 seconds. The fishbox should be pumped out and cleaned after each use. Refer to the Drainage Systems chapter for more information on the fishbox drainage. 3070 OFFSHORE...
Page 76 L-lounge, Tackle Locker and Cooler The L-shaped lounge passenger seat is mounted on a storage box. A cooler is located behind the lounge seat. The insulated cooler drains overboard. A door below the L-lounge provides access to the tackle locker. 3070 OFFSHORE...
Page 77 IN LOSS OF CONTROL, DAMAGE TO THE BOAT, AND INJURY TO PAS- SENGERS. Note: The power helm seat must be adjusted to the full aft position and the rod locker bridge deck hatch must be completely closed before opening the helm. 3070 OFFSHORE...
Page 78 Do not mount any antennas or equipment to the brow area forward of the front legs. The hard top frame is not designed to support the weight of accessories in this area and could be damaged. The starboard rear leg is the wire chase for lights and antennas mounted to the top. 3070 OFFSHORE...
Page 79 If you intend to add equipment or make modifications to the hard top, you should contact Pursuit Customer Relations to make sure the equipment you would like to add or the intended modification will not void the warranty on the top.
Page 80 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 81: Chapter 10: Interior Equipment
(one pint to one quart) and Holding Tank vacuum, which is generated by the 12-volt vacuum pump, to flush. The toilet is connected to the pressurized fresh water system. Using fresh water results in less odor in the head compartment. 3070 OFFSHORE...
Page 82 IN MANY AREAS IT IS ILLEGAL TO FLUSH HEAD WASTE DIRECTLY OVERBOARD. VIOLATION OF THESE POLLUTION LAWS CAN RESULT IN FINES OR IMPRISONMENT. ALWAYS KNOW THE LAW FOR THE AR- EAS IN WHICH YOU BOAT. NEVER DUMP HEAD OR HOLDING TANK WASTE OVERBOARD ILLEGALLY. 3070 OFFSHORE...
Page 83: Galley And Sink
To operate the galley drawers, push the buttons on the drawer to extend the knobs. Pull on the extended knobs to open the drawers. Push the button in to lock drawers before getting underway. To remove the drawers, turn the twist latches at the rear of the drawers to the vertical position. 3070 OFFSHORE...
Page 84 A microwave oven is provided as standard equipment on the 3370 Offshore. The microwave operates on AC power and is protected by the microwave breaker in the AC breaker panel. Please refer to the microwave owner's manual for detailed information on the microwave oven installed in your boat. 3070 OFFSHORE...
Page 85: Air Conditioner
There is storage below a hatch under each V-berth cushion. The table is mounted on an adjustable pedestal that allows the dinette to be converted to a double berth. The hanging locker and air conditioner intake vent are located aft of the bertFilh. 3070 OFFSHORE...
Page 86: Video And Sound System
Refer to the stereo owner's manual. An optional satellite radio system made up of a receiver and an antenna on the hard top is available. Refer to the satellite radio system owner's manual. 3070 OFFSHORE...
Page 87: Carbon Monoxide Detector
10.7 Carbon Monoxide Detector The Safety Chapter in this manual contains important information on carbon monoxide and the carbon monoxide detector. Read the section entitled "Carbon Monoxide" in the Safety Chapter of this Owner's Manual. 3070 OFFSHORE...
Page 88 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 89: Chapter 11: Safety Equipment
Your Pursuit could be equipped with engine alarms and cabin monitoring equipment. These systems are designed to increase your boating safety by alerting you to potentially serious problems in the primary power systems, the engine compartment, and the cabin.
Page 90: Neutral Safety Switch
11.5 Required Safety Equipment Besides the equipment installed on your boat by Pursuit, certain other equipment is required by the U.S. Coast Guard to help ensure passenger safety. Items like a sea anchor, working anchor, extra dock lines, flare pistol, life vests, a line permanently secured to your ring buoy, etc., could at some...
Page 91 PFDs should be worn at all times when the vessel is underway. Throwable devices must be immediately available for use. All Pursuit boats must be equipped with at least one Type I, II or III PFD for each person on board, plus one throwable device (Type IV).
Page 92 (fog, rain, haze, etc.) Navigation lights are intended to keep other vessels informed of your presence and course. Your Pursuit is equipped with the navigation lights required by the U.S. Coast Guard at the time of manufacture. It is up to you to make sure they are operational and turned on when required.
Page 93: Carbon Monoxide
PRESENCE OF CARBON MONOXIDE (CO) WHICH CAN BE FATAL. EVACUATE THE CABIN IMMEDIATELY. DO A HEAD COUNT TO CHECK THAT ALL PERSONS ARE ACCOUNTED FOR. DO NOT REENTER THE CABIN UNTIL IT HAS BEEN AIRED OUT AND THE PROBLEM FOUND AND CORRECTED. 3070 OFFSHORE...
Page 94 Also, young children, elderly persons and pets may be the first affected. Drug or alcohol use increases the effect of CO exposure. Individuals with cardiac or respiratory conditions are very susceptible to the dangers of carbon monoxide. CO poisoning is especially dangerous during sleep 3070 OFFSHORE...
Page 95 Never disable the CO detector because you think the alarm may be false. Always contact the detector manufacturer, the Pursuit Customer Relations Department or your local fire department for assistance in finding and correcting the situation.
Page 96: First Aid
If you did not receive these manuals, please contact the Pursuit Customer Relations Department.
Page 97: Additional Safety Equipment
Flashlight & Batteries Mirror Searchlight Sunburn Lotion Tool Kit Ring Buoy Whistle or Horn Anchor Chart and Compass Boat Hook Spare Propellers Mooring Lines Food & Water Binoculars Sunglasses Marine Hardware Extra Clothing Spare Parts Spare Keys Portable Radio 3070 OFFSHORE...
Page 98: Caution And Warning Labels
11.9 Caution and Warning Labels 3070 OFFSHORE...
Page 99: Chapter 12: Operation
OPERATION 12.1 General Before you start the engines on your Pursuit, you should have become familiar with the various component systems and their operation, and have performed a “Pre-Cruise System Check." A thorough understanding of the component systems and their operation is essential to the proper operation of the boat.
Page 100 You should be familiar with these and any other markers used in your boating area. STORMS AND WAVE ACTION CAN CAUSE BUOYS TO MOVE. SHOULD NOT RELY ON BUOYS ALONE TO DETERMINE YOUR POSITION. 3070 OFFSHORE...
Page 101: Pre-Cruise Check
THERE MUST BE AT LEAST ONE PERSONAL FLOTATION DEVICE ON BOARD FOR EVERY PERSON ON BOARD AND ONE THROW-OUT FLOTA- TION DEVICE. CHECK THE U.S. COAST GUARD STANDARDS FOR THE CORRECT TYPE OF DEVICE FOR YOUR BOAT. 3070 OFFSHORE...
Page 102: Operating Your Boat
GEROUS AND HARMFUL TO YOUR HEALTH. • Visibly check the engines to be sure there are no apparent water, fuel or oil leaks. • Check the operation of the engine cooling systems. • Check the engine gauges. Make sure they are reading normally. 3070 OFFSHORE...
Page 103 As different types of engines are used to power the boat, have the dealer describe the operating procedures for your boat. For more instructions on “How To Operate The Boat,” make sure you read the instructions given to you in the owner’s manual for the engines you have selected. 3070 OFFSHORE...
Page 104 If you are going to leave the boat for a long period of time, put the battery main switches in the “Off” position and close all seacocks. • Make sure the boat is securely moored. TO PREVENT DAMAGE TO THE BOAT, CLOSE ALL SEA COCKS BEFORE LEAVING THE BOAT. 3070 OFFSHORE...
Page 105: Tower Operation
Good common sense and judgment must be exercised at all times when operating a boat from the tower. • If the engine alarm sounds, immediately put the boat in NEUTRAL and shut “OFF” the engine until the problem is found. 3070 OFFSHORE...
Page 106: Docking, Anchoring And Mooring
Have the dock lines ready and secure the boat as soon at it stops. Use fenders to protect the boat while it is docked. Keep the engines running until the lines are secured. 3070 OFFSHORE...
Page 107 Back the boat away from the mooring until you can see the buoy. Move the boat slowly away from the mooring. 3070 OFFSHORE...
Page 108: Control, Steering Or Propulsion System Failure
Check below decks for leaks and the control systems for proper operation. Plug all leaks or make the necessary repairs to the control systems before proceeding slowly and carefully to port. Request assistance if necessary. Haul the 3070 OFFSHORE...
Page 109: Grounding, Towing And Rendering Assistance
U.S. Coast Guard or a commercial towing company, to safely accomplish the towing task. THE MOORING CLEATS ON PURSUIT BOATS ARE NOT DESIGNED OR IN- TENDED TO BE USED FOR TOWING PURPOSES. THESE CLEATS ARE SPECIFICALLY DESIGNED AS MOORING CLEATS FOR SECURING THE BOAT TO A DOCK, PIER, ETC.
Page 110: Flooding Or Capsizing
If someone falls overboard, you must be prepared to react quickly, particularly when you are offshore. The following procedures will help you in recovering a person that has fallen overboard. • Immediately stop the boat and sound a man overboard alarm and have all passengers point to the person in the water. 3070 OFFSHORE...
Page 111: Trash Disposal
12.14 Transporting Your Boat The Pursuit 3070 Offshore is a large boat and should only be trailered by professionals that have the knowledge and equipment to move large boats without causing damage. Please contact your dealer or the Pursuit Customer Relations Department if you are planning to transport your boat and have any questions in regard to the proper equipment and support for the hull.
Page 112 SUPPORT THE HULL. ALWAYS MAKE SURE THE TRAILER BUNKS AND PADS ARE ADJUSTED SO THEY ARE NOT PUTTING EXCESSIVE PRESSURE ON THE LIFTING STRAKES AND ARE PROVIDING ENOUGH SUPPORT FOR THE HULL. HULL DAMAGE RESULTING FROM IMPROPER TRAILER SUPPORT IS NOT COVERED BY THE PURSUIT WARRANTY. 3070 OFFSHORE...
Page 113: Chapter 13: Routine Maintenance
Sacrificial anodes are installed on the outboard engines, the trim tabs and on the transom. The transom zinc is connected to the bonding system and protects the underwater hardware that is bonded. The anodes are less noble than copper based alloys and aluminum and will deteriorate first, 3070 OFFSHORE...
Page 114 When your boat is used in a corrosive environment such as saltwater, water with a high sulfur content, or polluted water, the stainless steel will periodically develop surface rust stains. This is perfectly normal under these conditions. The stainless can normally be cleaned and protected by 3070 OFFSHORE...
Page 115 The anodized aluminum used on your Pursuit was coated with a metal protector called Aluma Guard at the factory. Aluma Guard is a nonabrasive marine metal protector that protects anodized aluminum, stainless steel, brass, and chrome.
Page 116: Upholstery, Canvas And Enclosures
The vinyl upholstery used on the exterior seats and bolsters, and for the headliner in the cabin, should be cleaned periodically with soap and water. Any stain, spill or soiling should be cleaned up promptly to prevent the possibility of permanent staining. When cleaning, always rub gently. 3070 OFFSHORE...
Page 117 Vinyl curtains should be stored either rolled or flat, without folds or creases. Folding the curtains will make permanent creases that could cause the vinyl to crack. DO NOT USE ANY POLISH CONTAINING LEMON SCENTS OR LEMON. THE LEMON JUICE WILL ATTACK THE VINYL AND SHORTEN ITS LIFE. 3070 OFFSHORE...
Page 118: Cabin Interior
If you leave the boat for a long period of time, put all cushions on their sides, open all interior cabin and locker doors, and hang a commercially available mildew protector in the cabin. ALWAYS READ THE LABEL CAREFULLY ON MILDEW PROTECTORS. RE- MOVE THE PROTECTOR AND ALLOW THE CABIN TO VENTILATE COM- PLETELY BEFORE USING THE CABIN. 3070 OFFSHORE...
Page 119: Bilge
It is essential that the following items be done periodically to maintain proper drainage of your boat: • Clean the cockpit drains with a hose to remove debris that can block water drainage. • Clean the hardtop, tower or radar arch leg drain holes. This is especially important just before winter lay-up. 3070 OFFSHORE...
Page 120 Operate the thru-hull valves once a month and service as required. Note: All drains and pumps must be properly winterized before winter lay-up. NEVER USE HARSH CHEMICAL DRAIN CLEANERS IN MARINE DRAIN SYS- TEMS. PERMANENT DAMAGE TO THE HOSES AND FITTINGS MAY RE- SULT. 3070 OFFSHORE...
Page 121: Storage And Lay-Up
Your dealer or the engine manufacturer can provide additional information on fuel degradation and fuel stabilizers recommended for your engine. For more recommendations for your specific area, check with your local Pursuit dealer. • Drain water from the fresh water system.
Page 122 ON THE GUNWALES (SHEER) BY THE SLINGS. FLAT, WIDE SLINGS AND SPREADERS LONG ENOUGH TO KEEP PRESSURE FROM THE GUNWALES NOTICE IS ESSENTIAL. DO NOT ALLOW ANYONE TO HAUL YOUR BOAT WHEN THE SPREADERS ON THE LIFT ARE NOT WIDE ENOUGH TO TAKE THE PRESSURE OFF THE GUNWALES. 3070 OFFSHORE...
Page 123 Preparing The Boat For Storage: • Remove the bilge drain plug(s), if installed. • Thoroughly wash the fiberglass exterior, especially the antifouling portion of the bottom. Remove as much marine growth as possible. Lightly wax the exterior fiberglass components. 3070 OFFSHORE...
Page 124: Winterizing
A recommended alternative to the above-mentioned procedure is the use of commercially available nontoxic, fresh water system antifreeze. After draining the potable water tank, lines and water heater, pour the antifreeze mixture into the fresh water tank, prime and operate the pump until the 3070 OFFSHORE...
Page 125 Properly winterize the generator engine and fuel system by following the engine manufacturer’s winterizing procedures located in your engine owner’s manuals or contact a Pursuit dealer. Marine Toilet The marine toilet must be properly winterized by following the manufacturer’s winterizing...
Page 126 ALWAYS MAKE SURE THE LEG DRAIN HOLES ARE CLEAR WHEN THE BOAT IS LAID UP FOR THE WINTER. WATER TRAPPED INSIDE THE HARDTOP, TOWER OR RADAR ARCH LEGS COULD FREEZE AND CAUSE THE LEGS TO SPLIT. 3070 OFFSHORE...
Page 127 Note: If the boat is to be stored indoors or outdoors, open all drawers, clothes lockers, cabinets, and doors a little. If possible, remove the upholstery, mattresses, clothing, and rugs. Then hang a commercially available mildew protector in the cabin. 3070 OFFSHORE...
Page 128: Recommissioning
Make sure all antifreeze is flushed from the water heater and it is filled with fresh water before it is activated. • Check and lubricate the steering system. • Clean and wash the boat. • Install all upholstery, cushions and canvas. 3070 OFFSHORE...
Page 129 This ensures that the cooling pump is operating. • Carefully monitor the gauges and check for leakage and abnormal noises. • Operate the boat at slow speeds until the engine temperature stabilizes and all systems are operating normally. 3070 OFFSHORE...
Page 130 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 131: 12-Volt Dc Wiring Schematic
Chapter 15: SCHEMATICS 12-Volt DC Wiring Schematic 3070 OFFSHORE...
Page 132: Ac Wiring Schematic
3070 OFFSHORE...
Page 133: Storage/Rod Locker Hatch Lifter Switch
3070 OFFSHORE...
Page 134: Battery Cable Routing
3070 OFFSHORE...
Page 135: Hydraulic Steering System
3070 OFFSHORE...
Page 136: Fuel System-2 Stroke
3070 OFFSHORE...
Page 137: Fuel System-4 Stroke
3070 OFFSHORE...
Page 138: Fuel Selector Valves
Fuel Selector Valves 3070 OFFSHORE...
Page 139: Fresh Water System
3070 OFFSHORE...
Page 140: Raw Water System
3070 OFFSHORE...
Page 141: Hull And Deck Drainage System
3070 OFFSHORE...
Page 142: Deck Drain System
3070 OFFSHORE...
Page 143: Hull Drain System
3070 OFFSHORE...
Page 144: Head Holding Tank System
3070 OFFSHORE...
Page 145: Sling Positions
3070 OFFSHORE...
Page 146: Bunk Locations
3070 OFFSHORE...
Page 147: Glossary Of Terms
Bilge: The bottom of the boat below the flooring. Bilge Pump: A pump that removes water that collects in the bilge. Boarding: Entering or climbing into a boat. Boarding Ladder: Set of steps temporarily fitted over the side of a boat to assist persons coming aboard. 3070 OFFSHORE...
Page 148 Compartment: The interior of a boat divided off by bulkheads. Cradle: A framework designed to support a boat as she is hauled out or stored. Cutlass Bearing: A rubber bearing in the strut that supports the propeller shaft. 3070 OFFSHORE...
Page 149 Freeboard: The height from the waterline to the lowest part of the deck. alley: The kitchen of a boat. Grab Rail: Hand-hold fittings mounted on cabin tops or sides for personal safety when moving around the boat, both on deck and below. 3070 OFFSHORE...
Page 150 A nautical mile is equal to one minute of latitude: 6076 feet. Knots times 1.15 equals miles per hour. Miles per hour times .87 equals knots. ay-up: To decommission a boat for the winter (usually in northern climates). Leeward: The direction toward which the wind is blowing. 3070 OFFSHORE...
Page 151 Eye: A deck fitting consisting of a metal eye permanently secured to the boat. Pier: A structure which projects out from the shoreline. Pile or Piling: A long column driven into the bottom to which a boat can be tied. 3070 OFFSHORE...
Page 152 Rudder: A moveable flat surface that is attached vertically at or near the stern for steering. ea anchor: An anchor that does not touch the bottom. Provides drag to hold the bow in the most favorable position in heavy seas. 3070 OFFSHORE...
Page 153 Superstructure: Something built above the main deck level. Swamps: When a boat fills with water from over the side. Swimming Ladder: Much the same as the boarding ladder except that it extends down into the water. 3070 OFFSHORE...
Page 154 Windlass: A winch used to raise and lower the anchor. Windward: Toward the direction from which the wind is coming. acht Basin: A protected facility primarily for recreational small craft. Yaw: When a boat runs off her course to either side. 3070 OFFSHORE...
Page 155: Appendix B: Maintenance Schedule And Log
& & & & i f l e t l l l i f n i t g l i & , s t & o i t & i r t & u l f 3070 OFFSHORE...
Page 156: Maintenance Log
MAINTENANCE LOG Service/Repairs Date Hours Dealer 3070 OFFSHORE...
Page 157 MAINTENANCE LOG Service/Repairs Date Hours Dealer 3070 OFFSHORE...
Page 158 MAINTENANCE LOG Service/Repairs Date Hours Dealer 3070 OFFSHORE...
Page 159 MAINTENANCE LOG Service/Repairs Date Dealer Hours 3070 OFFSHORE...
Page 160 MAINTENANCE LOG Service/Repairs Date Dealer Hours 3070 OFFSHORE...
Page 161: Appendix C: Boating Accident Report
[ ] Yes [ ] No Adjusted [ ] Yes [ ] No NAME AND ADDRESS OF OWNER OF DAMAGED Sized [ ] Yes [ ] No PROPERTY Include any comments of PFD’s under ACCIDENT DESCRIPTION on other side of form 3070 OFFSHORE...
Page 162 Causes based on (check one) Name of Reviewing Office Date Received [ ] This report [ ] Investigation and this report [ ] Investigation [ ] Could not be determined Primary Cause of Accident Secondary Cause of Accident Reviewed By 3070 OFFSHORE...
Page 163: Appendix D: Float Plan
Appendix D: Float Plan Pursuit recommends filling out a float plan each time you use your boat for an offshore day trip or a long cruise. Leave this information with a responsible person ashore, like a close friend or relative that you know well.
Page 164 THIS PAGE WAS LEFT BLANK INTENTIONALLY 3070 OFFSHORE...
Page 165: Appendix E: Troubleshooting Guide
• Propeller may be damaged & need repair. • The propeller or propeller shaft is bent. Repair or replace damaged components. • The running gear is fouled by marine growth or rope. Clean running gear. • The engine is not trimmed Properly. Trim engine. 3070 OFFSHORE...
Page 166: Troubleshooting Guide
Inspect and replace the fuel filter. • The electronic engine control system on the engine is malfunctioning. Repair the engine control system. • The fuel injection system on the engine is malfunc- tioning. Repair the fuel injection system. 3070 OFFSHORE...
Page 167: Accessory Problems
The automatic float switch on the bilge pump raises but • The in-line fuse near the battery switch has blown. does not activate the pump. Replace the fuse. • The pump impeller is jammed by debris. Clean pump impeller housing. • The pump is defective. Replace pump. 3070 OFFSHORE...

This manual is also suitable for:

3070 express

PURSUIT 3070 OFFSHORE Owner's Manual

Propulsion System

Helm Control Systems

Fuel System

Chapter 4 Electrical System

Chapter 5: Electrical System (Continued)

Chapter 6: Raw Water System

Chapter 7: Drainage Systems

Chapter 8: Ventilation System

Chapter 9: Exterior Equipment

Chapter 10: Interior Equipment

Chapter 11: Safety Equipment

Chapter 12: Operation

Chapter 13: Routine Maintenance

Chapter 14 : Seasonal Maintenance

Chapter 15 : Schematics

Appendix A: Glossary of Terms

Appendix B: Maintenance Schedule and Log

Appendix C: Boating Accident Report

Appendix D: Float Plan

Appendix E: TROUBLESHOOTING GUIDE

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PURSUIT 3070 OFFSHORE

Summary of Contents for PURSUIT 3070 OFFSHORE

This manual is also suitable for:

Table of Contents
