- Page 1 C 260 OWNER’S MANUAL FISHING BOATS 3901 St. Lucie Blvd. Ft. Pierce, Florida 34946 © 2011 S2 Yachts, Inc. C 260 Part Number 9213031 December 2011...
-
Page 2: Safety Information
(CO) is colorless, odorless and ! DANGER extremely dangerous. Indicates a hazardous situation which, if Every precaution has been taken by Pursuit not avoided, will result in death or seri- Fishing Boats to reduce the risks associated ous injury. -
Page 3: Table Of Contents
2.4 Engine Power Tilt and Trim ....2-2 8.2 Audio System ........8-1 2.5 Engine Stop Switch ......2-2 2.6 Steering System ........2-3 2.7 Trim Tabs ..........2-3 2.8 Compass ..........2-4 2.9 Control Systems Maintenance ... 2-4 C 260... - Page 4 10.11 Grounding, Towing and Rendering Assistance ........10-9 10.12 Flooding or Capsizing ....10-9 10.13 Transporting your Boat ....10-10 10.14 Trailering your Boat ....10-10 10.15 Water Skiing ......... 10-11 10.16 Man Overboard ......10-12 10.17 Trash Disposal ......10-12 C 260...
-
Page 5: Specifications
Specifications Specifications Specifications 3/5/2012 Boat Manufacturer/Model: C 260 Costruttore/modello della barca: C 260 Boothersteller/Model: C 260 Modelo/Fabricante de la Embarcación: C 260 Constructeur/Modèle du bateau: C 260 Fabricante/Modelo do Barco: C 260 Design Category: C-Inshore Propulsion Type: Tipo di propulsione: Categorie de conception: à... - Page 6 Specifications Specifications 3/5/2012 Model: C 260 2.36 m / 7' 9"ft .50 m/ 1'8" ft .83 m / 2' 9" ft 7.87m / 25' 10" 2.66 m/ 8' 9" ft 8.63 m/ 28' 4" ft Kraftstofftankkapazität Fuel Tank Capacity (0.73kg/Liter):...
- Page 7 Specifications Specifications 3/5/2012 Model: C 260 Locate and Identify: Localizar e identificar: Localizzazione e identificazione dei A) Fuel Tank A) Depósito de Combustible componenti: B) Fuel Tank Filling Point B) Punto de Carga del Depósito de A) Serbatoio carburante C) Oil Tank (N/A)
- Page 8 Specifications Specifications 3/5/2012 Model: C 260 Repèrez et identifiez: Position and Beschreibung: Localizar e Identificar: A) Réservoir de carburant A) Kraftstofftank A) Depósito de Conbustível B) Point de remplissage réservoir B) Kraftstofftankfüllpunkt B) Ponto de Enchimento do Depósito de C) Öltank (n.z.) de carburant Combustível...
-
Page 9: Specifications

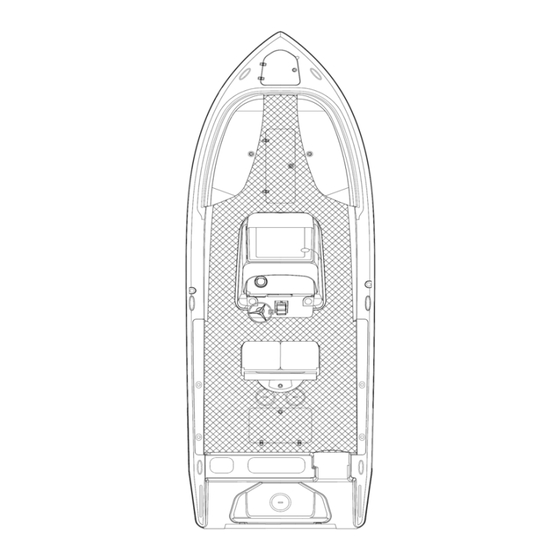

Specifications Working Deck Area 3/5/2012 Model: C 260 Working Deck Areas for occupation during normal operation of the boat C 260... - Page 10 Specifications C 260...
- Page 11 Specifications C 260...
- Page 12 Operator Notes C 260...
-
Page 13: Boat Information
General Information Boat Information Fill out the following information and leave it in your PURSUIT Owner’s Manual. This information will be important for you and PURSUIT service personnel to know, if and when you may need to call PURSUIT for technical assistance or service. -
Page 14: Certifications & Specifications (For Export Only)
Sheltered Waters Weight and Maximum Capacities: Unladen Weight - Kilograms (Pounds) ------------------------------------------------------------------ Maximum Load - Weight- Kilograms (Pounds) ------------------------------------------------------- Number of People -------------------------------------------------------------------------------------------- Maximum Rated Engine Horsepower - Kilowatts (Horsepower) --------------------------------- Certifications: Certifications & Components Covered ------------------------------------------------------------------ --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- C 260... -
Page 15: Warranty And Warranty Registration Cards
PURSUIT, engine manufacturers, and the warranty coverage to subsequent owners of suppliers of major components maintain PURSUIT models for the duration of the their own manufacturer's warranty and ser- original warranty period. Please refer to the vice facilities. It is important that you prop-... - Page 16 They can also help in pro- viding local navigational information when moving to a new boating area. Contact your dealer, State Boating Authority or the Boat- C 260...
-
Page 17: Propulsion System
1.1 General damage to the exposed components. The type of growth and how quickly it occurs is Your Pursuit is designed to be powered with relative to the water conditions in your boat- twin 2-cycle or 4-cycle outboard motors. ing area. Water temperature, pollution, cur- rent, etc. -
Page 18: Engine Cooling System
This allows the operator to visually unique to the type of outboard motors check the operation of the cooling system. installed on your Pursuit. Some or all of the When the engine is started, always check for following gauges may be present. -
Page 19: Propulsion Systems
The voltmeter displays the voltage for the battery and the charging system. The nor- mal voltage is 11 to 12 volts with the engine(s) off and 13 to 14.5 volts with the engine(s) running. C 260... - Page 20 The ignition switches and all instruments, controls, etc. should be protected from the weather when not in use. Excessive exposure can lead to gauge and ignition switch failures. C 260...
-
Page 21: Helm Systems
Do not hold the key in the start position long enough to start the engine. The helm on your Pursuit is designed for a The starter should not engage for either binnacle style control with a single lever for engine. -
Page 22: Engine Power Tilt And Trim
“in” or “down.” Moving the outboards further away from the boat transom is called trimming Your Pursuit is equipped with an engine stop “out” or “up.” In most cases, the boat will run switch and lanyard. When the lanyard is... -
Page 23: Steering System
(10) seconds. speeds. To conserve battery power, because of limited engine charging output during extended periods of slow speed operation, the power steering should be turned off. Refer to the Teleflex® Power Assist manual for more information. C 260... -
Page 24: Compass
Control system adjustments may become necessary. If adjustments become neces- Be extremely careful when operating in a fol- sary, see your Pursuit dealer. lowing sea. The effect of trim tabs is ampli- fied under such conditions. Steering and handling difficulties can result from improper... - Page 25 CAUTION for additional maintenance information, fluid specifications and operating instructions. Follow instructions in the owner's information packet for hydraulic steer- ing system operating, bleeding proce- dures and maintenance procedures. C 260...
- Page 26 Operator Notes C 260...
-
Page 27: Fuel System
3.1 General the fuel tanks to achieve optimum fuel usage, fuel line routing, etc. At certain The fuel system used in Pursuit boats is speeds and hull trim angles, the fuel supply designed to meet the requirements of the at the withdrawal tube location can increase U.S. - Page 28 3.2 Fuel System To reduce the possibility of a fire or explosion, make sure all electrical The fuel system on your Pursuit has one fuel switches are in the "off" position tank. The fuel tank is mounted in the center before servicing the fuel system.
-
Page 29: Fueling Instructions
WARNING alcohol-blended fuels is not covered by the pursuit limited warranty. Refer Spilled fuel can cause a fire or an to the engine manufacturer's owner's explosion. Make sure you do not spill manual for specific fuel requirements any fuel. -
Page 30: Fuel System Maintenance
Periodically adding a high quality diesel fuel additive containing an algaecide may be required to control algae in your boating area. Please contact your Pursuit dealer or engine manufacturer for additional information regarding fuels and additives. C 260... -
Page 31: Electrical System
4.1 General ies that are charged by the engine charging system. Boats that are factory rigged with Your Pursuit is equipped with a 12-volt DC Yamaha® engines utilize the Yamaha Bat- electrical system and draws current from on- tery Isolator to charge the engine cranking board batteries. - Page 32 Each boards. The proper and correct terminals, breaker is labeled with the name of the must be provided by the installer for the device it protects. equipment selected for installation. C 260...
-
Page 33: 12-Volt Dc Panels
Activates the navigation and anchor lights. Activates the bilge pump which is located in Panel the aft bilge. Depressing this switch will acti- vate the manual pump. Activates the instrument lighting. The com- pass light is also activated by this switch. C 260... -
Page 34: Electrical System Maintenance
Do not over fill! Please note that some batteries are sealed and cannot be filled. Keep the battery tops clean and dry. Dirt and water can conduct electricity from one post to the other causing the battery to discharge. C 260... - Page 35 Do not allow corrosion to build on connections. WARNING The AC and DC electrical systems always should be disconnected from the power source before inspecting or servicing the system. Never service any component of an electrical sys- tem while it is energized. C 260...
- Page 36 Operator Notes C 260...
-
Page 37: Plumbing Systems
Next, turn off the faucets one by one. located in the aft bilge. This should be C 260... -
Page 38: Livewell
Do not run the high pressure pump dry for extended periods as damage CAUTION to the pump will result. Do not run the livewell pump dry for extended periods as damage to the pump will result. C 260... -
Page 39: Drainage
Bilge pumps and bilge pumping systems are helm. not designed for damage control. Continu- ous operation of the bilge can mean a leak or a drain plug is installed incorrectly; make sure all drain plugs are installed. C 260... -
Page 40: Plumbing Systems Maintenance
Violators are subject to a pen- alty of $10,000. Exterior Drains Your Pursuit has two scupper drains located in the rear of the cockpit. The drain rails for the compartments drain overboard by grav- ity. - Page 41 • The fishboxes and livewells should be activated, or add water to the bilge until drained and cleaned after each use. the water level is high enough to activate the pump. C 260...
- Page 42 CAUTION All drains and pumps must be prop- erly winterized before winter lay-up. CAUTION Never use harsh chemical drain clean- ers in marine drain systems. Perma- nent damage to the hoses and fittings may result. C 260...
-
Page 43: Ventilation System
Owner's Manual. 6.3 Bilge Compartment Ventilation A flow of air into the bilge compartment is provided by four vents located on either side of the cockpit, under the gunwale boards. This provides adequate air movement in the bilge compartment. C 260... - Page 44 Operator Notes C 260...
-
Page 45: Exterior Equipment
Any problems should be cor- rected immediately. CAUTION Deck Cleats Pursuit boats are not equipped with hardware designed for towing pur- poses. The mooring cleats are not to be used for towing another vessel or having this boat towed. - Page 46 Damage resulting from the anchor Anchor Line Secured to Cleat bouncing in the anchor locker is not covered by the pursuit warranty. The anchor is hauled in by releasing the line from the bow cleat and activating the Windlass (Optional) “Retrieve”...
-
Page 47: Cockpit
Downriggers (Dealer Installed) CAUTION Downriggers must be installed on the deck In certain conditions, open exterior area aft of the gunwale board. Pursuit Boats doors and hatches that are not reinforces this area especially for the instal- secured properly can slam closed lation of downriggers. - Page 48 The T-top is made of welded powder coated intend to install an aftermarket T-top on your aluminum and is designed to accommodate boat, please contact your dealer or Pursuit radio antennas, radar antennas and naviga- Customer Relations. tion lights. It is equipped with an overhead storage compartment and overhead lights.
- Page 49 Exterior Equipment Section 7 Cold weather can make the clear vinyl mate- rial on the curtains stiff and difficult to stretch to the snaps. This can be particularly difficult with new canvas that has been stored off the boat. Lay the curtains in the sun for 30 min- utes during the heat of the day to make installation easier in cold weather.
- Page 50 Operator Notes C 250...
-
Page 51: Interior Equipment
An optional satellite radio system made up of a receiver and an antenna installed on the T-top is available. Refer to the stereo owner's manual. C 260... - Page 52 Operator Notes C 260...
-
Page 53: Safety Equipment
See your Pursuit Dealer for You should also read the book entitled necessary control and cable adjustments. -
Page 54: Automatic Fire Extinguishing System (With Optional Generator)
CO as exhaust. Direct and prolonged generator. The red light on the fire extin- exposure to CO will cause BRAIN DAMAGE guisher control panel will light and an alarm or DEATH. will sound if this should occur. When suffi- C 260... - Page 55 Therefore, low levels of CO can cause the alarm to sound before per- While a CO detector enhances your protec- sons notice any symptoms. tion from CO poisoning, it does not guaran- C 260...
- Page 56 CO from drive fumes away from the occupants. The accumulating in the boat whenever an canvas drop or aft curtain must be removed engine is running. and side curtains should be opened or removed to increase airflow and maintain C 260...
-
Page 57: First Aid
Certain electronic equipment have a limited life span, follow the CO detectors manufac- turers recommendations on when the detec- In addition to items installed by Pursuit, cer- tor must be replaced. tain other equipment is required by the U.S. Coast Guard to help ensure passenger 9.7 First Aid... - Page 58 Follow the manufacturer’s Visual Distress Signals directions in the use of these signal- ing devices. All Pursuit boats used on coastal waters, the Great Lakes, territorial seas, and those waters connected directly to them, must be Non-Pyrotechnic Devices equipped with Coast Guard approved visual distress signals.
- Page 59 Safety Equipment Section 9 your presence and course. Your Pursuit boat Bilge And Fuel Fires is equipped with the navigation lights required by the U.S. Coast Guard at the time Fuel compartment and bilge fires or explo- of manufacture. It is up to you to make sure...
-
Page 60: Additional Safety Equipment
❑ Binoculars vided with the beacon, so the beacon's ❑ Sunglasses unique distress code can be used to quickly ❑ Marine Hardware identify the boat and owner. ❑ Extra Clothing ❑ Spare Parts C 260... -
Page 61: Operation
DO NOT allow passengers to sit on the seat • Observe and avoid all security zones. backs, gunwales, bows, transoms or on fish- Avoid commercial port areas, especially ing seats whenever the boat is underway. those that involve military, cruise-line or C 260 10-1... -
Page 62: Rules Of The Road
When two motor boats are crossing, the boat on the right has the right of way and should maintain its course and speed. The other vessel should slow down and permit it to pass. Both boats should sound appropri- ate signals. 10-2 C 260... -
Page 63: Pre-Cruise Check
Refer to Safety Equipment for additional information. C 260 10-3... -
Page 64: Operating Your Boat
When operating a boat, you accept the ❑ Needle Nose Pliers responsibility for the boat, safety of passen- ❑ Wire Crimping Tool gers and others out enjoying the water. ❑ End Wrench Set ❑ Wire Connector Set 10-4 C 260... - Page 65 For more instructions on safety, equipment and boat handling, enroll in one of the sev- eral free boating courses offered. For infor- mation on the courses offered in your area, call the “Boating Safety Hot line,” 800-368- 5647. C 260 10-5...
-
Page 66: Fishing
Remember, weight in the tower affects center of gravity and motion of the boat is greatly exaggerated for people in the tower. 10-6 C 260... -
Page 67: Docking, Anchoring And Mooring
Have the stern cleats and to mid ship pilings or the dock lines ready and secure the boat as C 260 10-7... -
Page 68: Controls, Steering Or Propulsion System Failure
Investigate and correct over. It is prudent to use two anchors if you the problem if possible. Make sure the are anchoring overnight or in rough weather. engines are off before investigating the prob- 10-8 C 260... -
Page 69: Collision
The mooring cleats or bow/stern eyes on ate on one engine. Do not to apply too much Pursuit boats are not designed or intended power to the running engine. When running to be used for towing or lifting. These cleats... -
Page 70: Transporting Your Boat
If you trailer your boat, make sure your tow vehicle is capable of towing the weight of the trailer, boat and equipment and the weight of Your Pursuit boat is a large boat and should the passengers and equipment inside the only be trailered by professionals with the vehicle. -
Page 71: Water Skiing
10.15 Water Skiing withstand the extreme wind pressure encountered while trailering. Remove Your Pursuit can be equipped for water ski- and properly store enclosures before ing. If you have never pulled skiers, you trailering. -
Page 72: Man Overboard
• Turn off the engines when person is alongside and use a ring buoy or a boat cushion with a line attached, a paddle or boathook to assist person to the boat; 10-12 C 260... -
Page 73: Routine Maintenance
Boats stored in saltwater will require anodes extended periods, protect it from marine to be replaced at least every 6 months to growth by applying an antifouling paint. one year. Anodes requiring replacement Because of variations in water temperature, C 260 11-1... - Page 74 This condition will be more apparent with dark colors, which 11-2 C 260...
- Page 75 The anodized aluminum used on your hardware. Clean and wax chrome prior to Pursuit was coated with a metal protector extended storage. In saltwater or other called Aluma Guard at the factory. Aluma harsh environments, clean and wax more Guard is a nonabrasive marine metal protec- often.
- Page 76 DO NOT use the following on acrylic plastic: phase separation from the use of alcohol blended fuels. • Abrasive cleaners • Acetone Contact your Pursuit dealer or engine manu- • Solvents facturer for additional information regarding • Alcohol fuels and additives.
-
Page 77: Seats, Upholstery, Canvas And Enclosures
• Stubborn dirt - wash with a soft cloth, dampened with Ivory Flakes® and water. Rinse with clean water. C 260 11-5... -
Page 78: Cabin Interior
Maintenance schedules and procedures are outlined in the generator owner’s manual; Read the label carefully on mildew protec- follow them exactly. tors and remove the protector and allow the cabin to ventilate completely before using the cabin. 11-6 C 260... -
Page 79: Seasonal Maintenance
DO NOT attempt adjusted so they are not putting pressure to lift boat with a substantial amount of water on lifting strakes and are providing in the bilge. enough support for the hull. Hull damage C 260 12-1... -
Page 80: Winterizing
Section 12 Seasonal Maintenance 12.2 Winterizing resulting from improper cradle or trailer support is not covered by the Pursuit warranty. Fresh Water System Preparing The Boat For Storage: The entire fresh water system must be com- pletely drained. Disconnect all hoses, check •... - Page 81 Makes sure all drain holes in the legs are tank and macerator discharge pump must open and legs are completely free of water. be pumped dry and one gallon of potable Remove the canvas and thoroughly clean water antifreeze poured into the tank C 260 12-3...
-
Page 82: Recommissioning
• Clean and wash the boat. accumulation, etc. Fasten the canvas down • Install all upholstery, cushions and can- securely so wind cannot remove it or cause vas. chafing of the hull superstructure. DO NOT 12-4 C 260... - Page 83 • Carefully monitor the gauges and check for leakage and abnormal noises. • Operate boat at slow speeds until engine temperature stabilizes and all systems are operating normally. C 260 12-5...
- Page 84 Operator Notes 12-6 C 260...
-
Page 85: Glossary Of Terms
Boarding Ladder : Set of steps temporarily fitted over the side of a boat to assist per- Cockpit : An open space, usually in the aft sons coming aboard. deck, outside of the cabin. C 260... - Page 86 : A soft object of rubber or plastic or lid to allow for access down into a com- used to protect the topsides from scarring partment of a boat. and rubbing against a dock or another ves- Head sel. : A toilet on a boat. C 260...
- Page 87 Lists Pile or Piling : A boat that inclines to port or star- : A long column driven into board while afloat. the bottom to which a boat can be tied. C 260...
-
Page 88: Appendix A Glossary Of Terms
: The vertical portion of the hull at the bow. Rope Locker : A locker, usually located in Stern the bow of a boat, used for stowing the : The rear end of a boat. anchor line or chain. Stow : To pack away neatly. C 260... - Page 89 Trough : The area of water between the crests of waves and parallel to them. Twin-Screw Craft : A boat with two propel- lers on two separate shafts. nderway : When a boat moves through the water. C 260...
- Page 90 Operator Notes C 260...
-
Page 91: Maintenance Schedule
Inspect & protect electrical compo- nents, wire & battery connections Check battery electrolyte & service Test and inspect AC electrical system & shore power cord Inspect water systems for leaks Check neutral safety switch Check trim tab fluid level C 260... -
Page 92: Maintenance Log
Appendix B Maintenance Log Maintenance Log Date Hours Dealer Service/Repairs C 260... - Page 93 Maintenance Log Appendix B Date Hours Dealer Service/Repairs C 260...
-
Page 94: Appendix B Maintenance Log
Appendix B Maintenance Log Date Hours Dealer Service/Repairs C 260... -
Page 95: Boating Accident Report
Boating Accident Report Appendix C Boating Accident Report C 260... - Page 96 Appendix C Boating Accident Report C 260...
-
Page 97: Float Plan
Float Plan Appendix D Float Plan C 260... - Page 98 Operator Notes C 260...
-
Page 99: Troubleshooting Guide
Boat is overloaded. Reduce load. RPM. • Check for excessive water in the bilge. Pump out bilge & find & correct the prob- lem. • The throttle adjustments has changed and the engine is not getting full throttle. Adjust the throttle cable. C 260... - Page 100 The onboard computer has sensed a problem and has limited the The engine suddenly will not operate RPM to protect the engine. Find & cor- over 2000 RPM. rect the problem. • The tachometer is bad and needs to be replaced. C 260...
- Page 101 Replace the fuse. The automatic float switch on the bilge • The pump impeller is jammed by debris. pump raises but does not activate the Clean pump impeller housing. pump. • The pump is defective. Replace pump. C 260...
- Page 102 Operator Notes C 260...
-
Page 103: Schematics
Schematics Appendix F Schematics C 260... - Page 104 Appendix F Schematics C 260...
- Page 105 Schematics Appendix F C 260...
- Page 106 Appendix F Schematics C 260...
- Page 107 Schematics Appendix F C 260...
- Page 108 Appendix F Schematics C 260...
- Page 109 Schematics Appendix F C 260...
- Page 110 Appendix F Schematics C 260...
- Page 111 Schematics Appendix F C 260...
- Page 112 Appendix F Schematics F-10 C 260...
- Page 113 Schematics Appendix F C 260 F-11...
- Page 114 Appendix F Schematics F-12 C 260...
- Page 115 Schematics Appendix F C 260 F-13...
- Page 116 Appendix F Schematics F-14 C 260...
- Page 117 Schematics Appendix F C 260 F-15...
- Page 118 Operator Notes F-16 C 260...
