STEP 4 - ASSEMBLING THE FAN

Use the Step 4 instructions for the
type of mounting you have selected:
standard, angle, or flush.
STANDARD AND ANGLE
MOUNTING
For Standard 8-foot Ceilings and
Higher
1. Insert the pipe through the
canopy as shown in Figure 4a.
Pipe
Canopy
Pipe
Setscrew

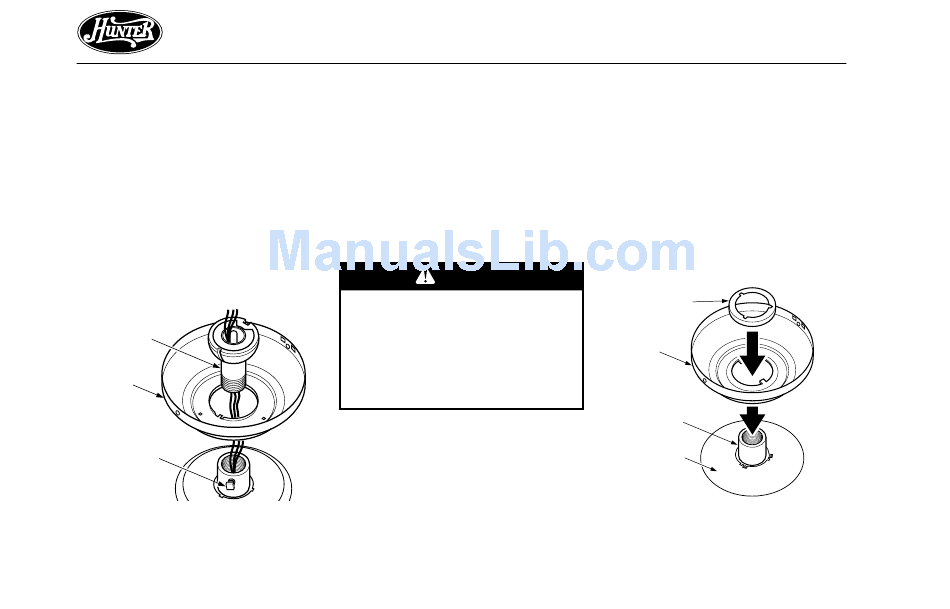

Figure 4a - Inserting Pipe through
Canopy
12
Feed wires from the fan through
the canopy then through the
pipe.
2. Screw pipe into fan assembly un-
til tight. IMPORTANT! Tighten
pipe setscrew as shown in Figure
4a.
CAUTION
The pipe has a special coating
on the threads. Do not remove
this coating; the coating pre-
vents the pipe from unscrew-
ing. Once assembled, do not
remove the pipe.
FLUSH MOUNTING
For Low Ceilings
1. Tighten or remove pipe setscrew.
Fit the canopy over the hanger
adapter as shown in Figure 4b.
Make sure the canopy fits snugly
against the fan assembly with no
space between the pieces.
2. You will find a large assembly
washer included with the fan.
Place the washer over the adapter
and canopy as shown in Figure
4b.
Assembly
Washer
Canopy
Adapter
Top of Fan
Figure 4b - Placing Canopy and
Washer Over Adapter
