STEP 3 - ASSEMBLING PIPE/BALL ASSEMBLY

As discussed in STEP 1 - GETTING
READY, your Hunter fan can be in-
stalled in a standard mounting posi-
tion.
Included with the fan are two pipes:
one 3" long pipe/ball assembly for
standard mounting on 8' ceilings and
one 12" long pipe for 9' ceilings and
higher. See Figure 3a.
If you are going to install the fan us-
ing the standard mounting, go to
STEP 4 - ASSEMBLING THE FAN.
If you are going to install the fan us-
ing the 12" long pipe for 9' ceilings
or higher, complete the steps below.
10

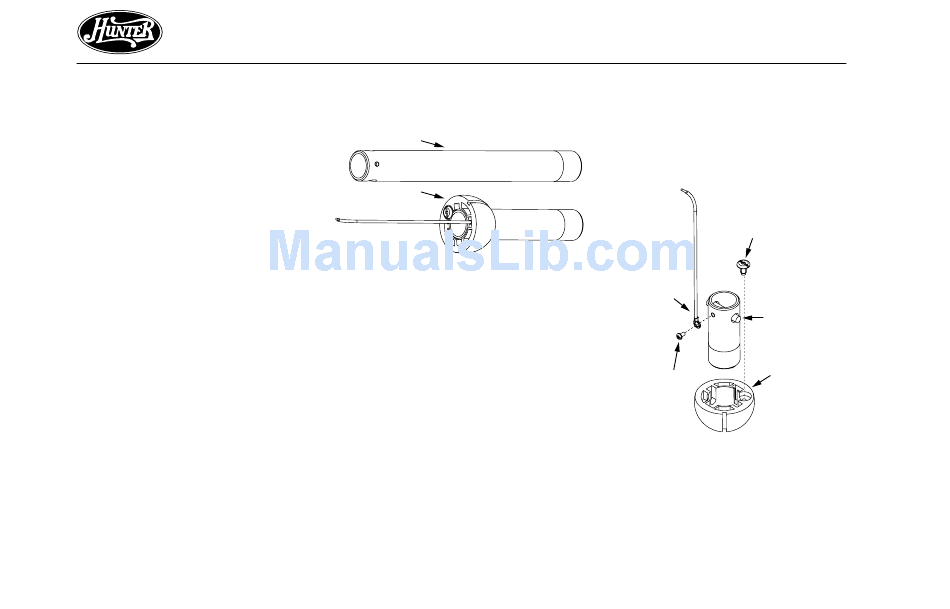

12" Pipe
3" Pipe/Ball
Assembly
Figure 3a - Pipes
REMOVING BALL ASSEMBLY
For the following steps refer to
Figures 3b and 3c.
1. Locate the 3" pipe/ball assembly.
2. Remove the positioning screw
from the top of the ball.
NOTE: The ball will become
loose and should slide down the
pipe.
3. Remove the ball from the pipe.
4. Remove the pin from the pipe.
Positioning Screw
Leadwire
Assembly
Pin
Ball
Ground
Screw
Figure 3b - Removing ball assem-
bly
41524-01 9-5-2001
