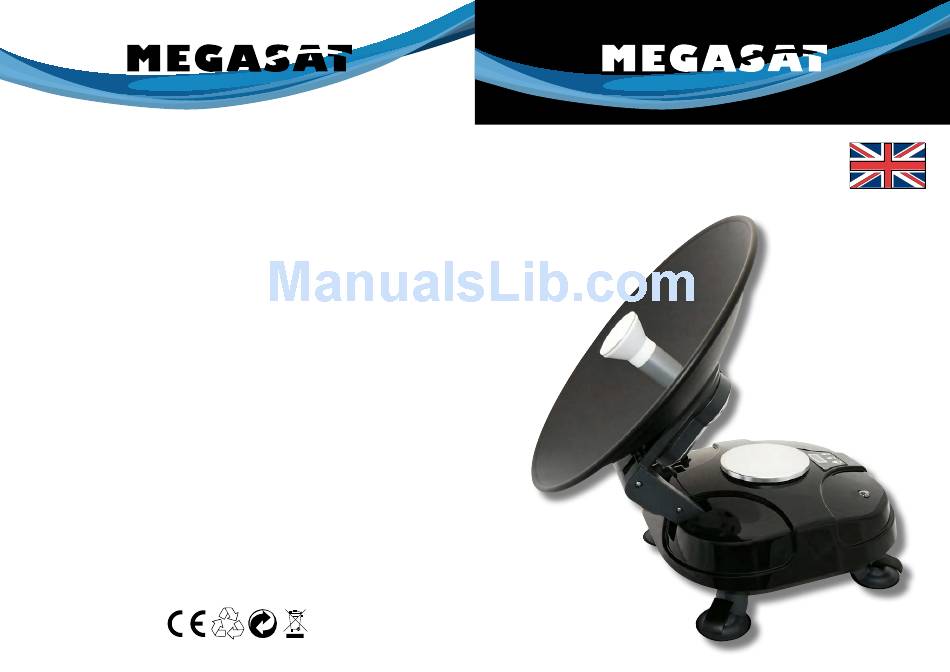

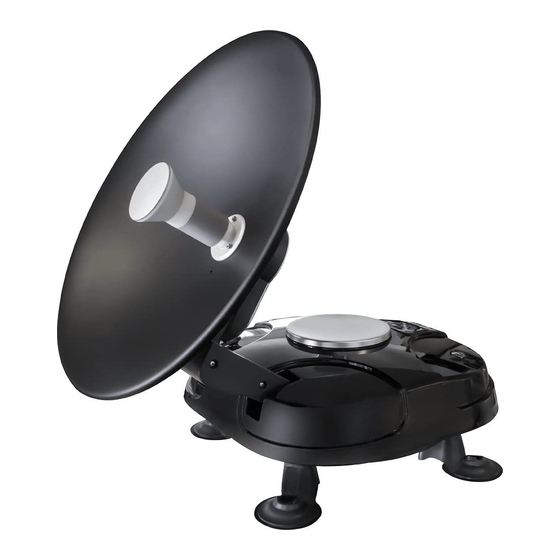

- Page 1 Brillantes Fernsehen Brillantes Fernsehen Satmaster Portable User manual English Stand: 24.11.2011 Classic Premium Professional...
-
Page 2: Table Of Contents
• This product contains one universal LNB, it is forbidden to add, change or modify Specifications the LNB. • For more precise details on the above points or for any information, please ask your retailer or customer service. Megasat | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | info@megasat.tv ENGLISH ENGLISH... -
Page 3: Delivery Includes
Delivery includes Package Satmaster Portable Classic 1. Remove tape from packaging (Do not use knife) Satmaster Portable Premium Satmaster Portable Professional 2. Packaging contains user manual. Please read carefully. 3. Remove antenna gently from packaging 4. Remove antenna parts from packaging foam... -
Page 4: Name Of Part Outdoor Unit (Odu)
SetTop Connec- Antenna Con- Program Update DC Power Jack tion Port nection Port Port Classic Premium Professional Powerinserter for Satmaster Portable Classic and Premium Antenna Connection Port SetTop Connection Port Azimuth- Elevations- „Set“ „Up“ No Function control control button to... -
Page 5: Installation
Installation Installation Connection diagram Classic und Premium Check First! Außenbereich Innenbereich By following the instructions step by step you can proceed easily to install “Satmaster Portable” by yourself or with the help of a professional antenna installer. Before installing Connecter into…... -
Page 6: Lcd Display
Wählen Sie die für Ihre Ausführung zutreffende Spalte und folgen Sie den Anweisungen. The LCD display shows the current status of the automated search system. (applies to Satmaster Portable Premium and Professional) Satmaster Portable Classic Satmaster Portable Premium Satmaster Portable Professional Turn on the TV and Settop box. -
Page 7: Program Update
Program update Program update update process Connection diagram for updating 1. Switch off the IDU and Connect a cable between any COM port of PC and IDU’s ‘Program upgrade PORT (A cable must support RS-232C and “USB to Serial converting function) 2. -
Page 8: Signal Attenuation
Signal attenuation Examples of finding the satellite (skew, elevation and azimuth) • The satellite signal may be lost temporarily due to unusually heavy rainfall. An opti- mally aligned antenna, along with the shortest possible cable run, minimizes the chan- Polarisation (Skew) : ces of “rain fade”. -
Page 9: Setting Values For European Capitals
Examples of finding the satellite Setting values for European capitals (skew, elevation and azimuth) In order to watch Canal + through ASTRA1 (19.2 East) from the city ‘Brest’ of France, you will see Skew angle at -19.7, Elevation angle at 30, and Azimuth angle at 149.6. Satelliten Position Azimuth All EU-related... -
Page 10: Troubleshooting
The Satmaster Portable Technical Manual Provides detailed instructions for Polarization V/H or RHCP/LHCP authorized service personnel who may be required to replace a fuse. Contact your local Megasat dealer or service center for assistance. Antenna Gain... - Page 11 Brillantes Fernsehen Status: 24.11.2011...
