Receiver and Servo Connection

As you connect the receiver, servo's and other components, do so in accordance with the "Assem-
bly Precautions" listed on the next page.

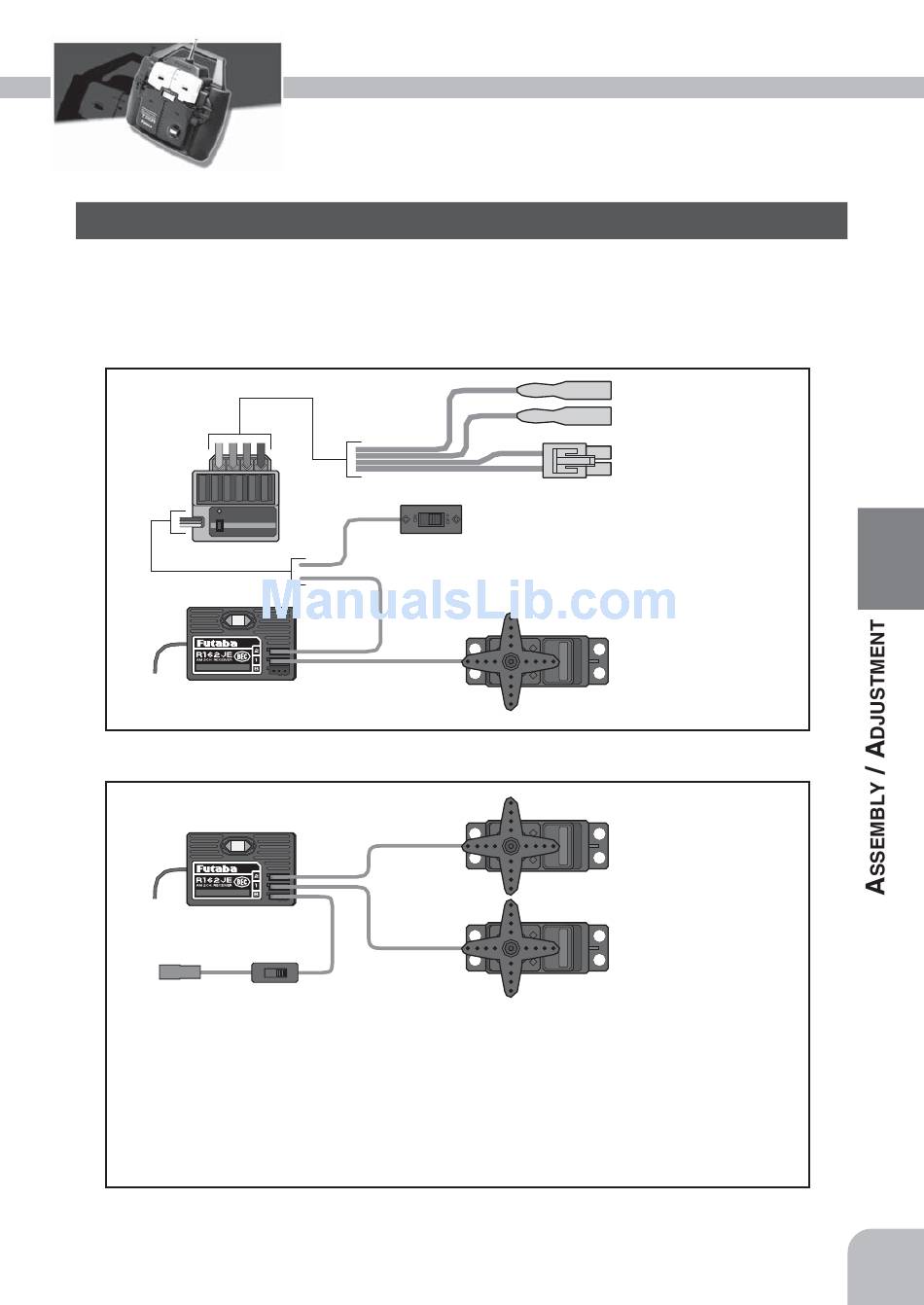

Receiver and Servo Connection for EP Car
E.S.C.
Receiver
Receiver and Servo Connection for GP Car
Receiver
Power
To receiver
battery
Switch
Connect the battery in accordance with instructions provided with model you are installing this
system in.
For R162JE: If your model has a mechanical type speed control (Servo Driven for electric
powered models) inspect this component for a power supply regulator or voltage dropping Diode.
These device's will cause a voltage drop to the receiver. Be sure to remove them prior to
installation in your model.
A
SSEMBLY
Power Switch
(CH2)
(CH1)
(CH2)
(B)
(CH1)
/ A
DJUSTMENT
Connects to motor
Connects to battery
Steering Servo
Throttle Servo
Steering Servo
