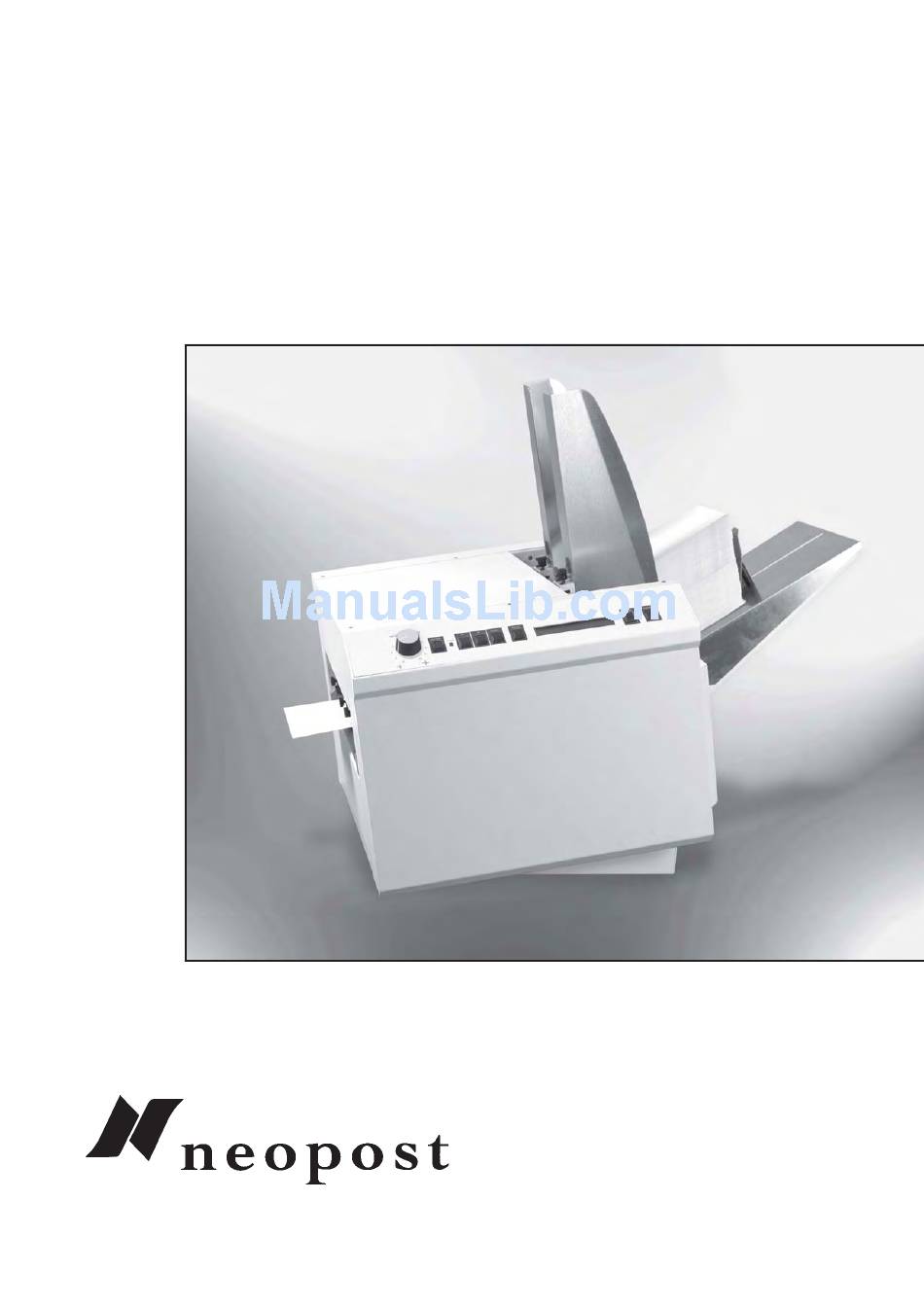

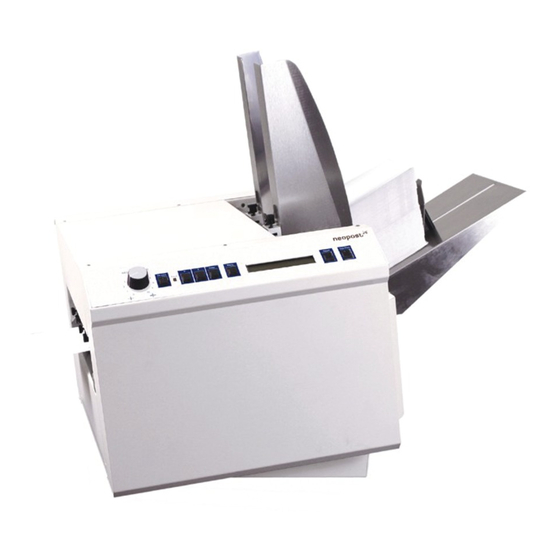

  • Page 1 USER'S GUIDE AS 226p - AS 268p PRINTER...

  • Page 3: Table Of Contents

    Connecting the AS 226p/AS 268p Connecting the Computer Installing the Inkjet Cartridges Setting up the Feed Installing the Printer Driver Section 3 – Operating the AS 226p/AS 268p Printer Control Panel Printer Driver Properties Printing from Microsoft Word Print Recovery after Jam Section 4 –...

  • Page 4: Safety Precautions

    The information in this guide was obtained from several different sources that are deemed reliable by all industry standards. To the best of our knowledge, that information is accurate in all respects. However, neither Neopost nor any of its agents or employees shall be responsible for any inaccuracies contained herein.

  • Page 5: Section 1 - Getting Acquainted

    Exit Guides – These guides help the media to exit the printer. Print Head Assembly – The AS 226p is equipped with six printheads arranged on two rails and can print an image up to 3” wide. The AS 268p is equipped with eight printheads arranged on two rails and can print and image up to 4”...

  • Page 6: Rear View

    SECTION 1 GETTING ACQUAINTED AS 226p Shown Rear View Main Power Switch and Power Receptacle – The power cord is plugged in here and the switch turns the printer ON and OFF. Main Power Fuse – This fuse protects all of the electronic circuits in the printer.

  • Page 7: Control Panel

    TEST PRINT key – Pressing this key will put the printer in the test mode and send a sample copy to check the printer’s output. NOTE: A complete description of the functions and operation of the printer keys can be found in Section 3 – Operating the AS 226p/AS 268p.
  • Page 8 SECTION 1 GETTING ACQUAINTED Notes...

  • Page 9: Section 2 - Installing The Printer

    Connecting the Printer Plugging in the Printer Make sure that the main power switch of the AS 226p/AS 268p Printer is in the OFF position. 1. Connect one end of the power cord to the rear of the AS 226p/AS 268p in the corresponding receptacle.

  • Page 10: Installing The Inkjet Cartridges

    INSTALLING THE PRINTER Install the Inkjet Cartridges The AS 226p/AS 268p can be configured with up to six inkjet cartridges. The cartridges are installed as follows: • Remove the inkjet cartridge from its packaging, taking care not to touch the copper contacts, the metal plate, or the gold printhead. Remove the protective tape from the printhead.

  • Page 11: Installing The Printer Driver

    8. Press the ONLINE key, and then press the ENTER key, to test feed media. NOTE: The AS 226p/AS 268p is supplied with a hard tip separator, which is installed on the unit when you receive it. It is used for media such as envelopes, books, and stuffed envelopes. A soft tip separator is available for use with single sheets of paper and thin card stock.
  • Page 12 5. Select the printer port LPT1. Then click Next>. The “Add Printer Wizard” will appear. Select your printer from the table below, then click Next> Printer Driver AS 226p Address Printer 6 AS 268p Address Printer 8 6. The next screen allows you to “Name Your Printer”.

  • Page 13: Section 3 - Operating The As 226P/As 268P

    Microsoft Word. Other types of applications and database management software will work in a similar manner using the AS 226p/AS 268p Driver. This Section further assumes that you have connected the AS 226p/AS 268p to your computer. Printer Control Panel When you first turn the printer ON, the light in the TEST PRINT key lights and the display becomes active.

  • Page 14: Printer Driver Properties

    BIOS in the printer. When this is done, the new BIOS version can be checked in this manner. Bulk Ink – This feature is not used on the AS 226p/AS 268p. No provisions are made to install the larger cartridges.

  • Page 15: Features Tab

    SECTION 3 OPERATING THE AS 226p/AS 268p use the special features built into the AS 226p/AS 268p drivers. Clicking on the Properties button will open the properties window in Windows 95, 98, NT, or ME. If you are using Windows 2000 or XP the window on the right will open.
  • Page 16 SECTION 3 OPERATING THE AS 226p/AS 268p Resolution Speeds available 150 DPI Low, Medium, Medium High, and High 200 DPI Low, Medium, and Medium High 300 DPI Low, and Medium 600 DPI The Feed Delay can be used to put more space between the pieces as they are being printed. This will give the first piece printed more time to dry before the next piece is printer.
  • Page 17 Inverse Printing The Paper tab contains one element that is used to reverse or invert the printing on the AS 226p/AS 268p. In normal operation the printing is read from the operator side of the printer. It is sometimes necessary to turn the printing direction 180 degrees from the normal direction.

  • Page 18: Printing From Microsoft Word

    Next, select the Page Size tab and Custom Page. The size of the layout should be 3-inches high for the AS 226p or 4-inches high for the AS 268p, by the length of the piece you are intending to print.
  • Page 19 NOTE: When setting up a layout for the AS 226p/AS 268p, be aware that the printheads are aligned in four banks and these banks can be aligned so that you can print up to 3” wide with the AS 226p or 4” wide with the AS 268p on your media, or spread the printing over the width of the media.

  • Page 20: Print Recovery After Jam

    SECTION 3 OPERATING THE AS 226p/AS 268p The next selection is “Records to be merged”. You can select All or From. The last selection is “When merging records”. The default is “Don’t print blank lines when data fields are empty.”...

  • Page 21: Section 4 - Maintenance

    SECTION 4 MAINTENANCE Section 4 - Maintenance This section covers how to care for the ink cartridges, clear paper jams, replace the sheet separators, and perform routing maintenance on the printer. The Inkjet Cartridge The inkjet cartridges must be replaced when out of ink, when print quality is poor, or when purging and cleaning have not helped the image quality.

  • Page 22: Cleaning The Printhead

    White streaks will then show up in the printed text or graphic. In order to obtain better print quality, these ink plugs need to be forced out or purged. A Purge routine is built into the AS 226p/AS 268p Printer.

  • Page 23: Jams In The Printer

    All pieces of the jammed media must be removed from the feed path. 2. Follow the instructions in Section 3 – Operating the AS 226p/AS 268p “Print Recovery After Jam”. Replacing the Sheet Separators The sheet separators insure separation of the pieces as they are being fed.

  • Page 24: Replacing The Feed Rollers

    SECTION 4 MAINTENANCE Replacing the Feed Rollers To replace the feed rollers on the printer follow the steps below: 1. Before removing the feed roller access plate, unplug the power to the printer. 2. Using a Phillips screwdriver, remove the three screws from the feed roller access plate.

  • Page 25: Cleaning

    SECTION 4 MAINTENANCE Cleaning The AS 226p/AS 268p WARNING THE PRINTER IS A PRECISION MACHINE THAT SHOULD BE CLEANED REGULARLY TO INSURE MANY YEARS OF SERVICE. BEFORE PERFORMING ANY MAINTENANCE, DISCONNECT THE MACHINE FROM ITS POWER SOURCE! The Printer must be cleaned regularly of accumulated paper dust and ink. Depending on the types of media that are run, paper dust may accumulate within the printer and on the transport.
  • Page 26 SECTION 4 MAINTENANCE Notes...

  • Page 27: Section 5 -Trouble Shooting

    The following trouble shooting guides are provided to assist you in solving any problems that might occur with the AS 226p/AS 268p Printer or its software. We have tried to make them as complete as possible. The best advice we can offer is to make sure that the system is setup properly, plugged in, that it has an adequate supply of ink before attempting to trouble shoot any problem.

  • Page 28: The Printer

    SECTION 5 TROUBLE SHOOTING The Printer CONDITION PROBLEM SOLUTION Extra lines; losing data Database problem Check data in database program Improper output (address Wrong interface settings Check software or data base on information out of order, miss- Static electricity feeding, etc.) Close layout control panel Dirty media sensor software, then turn Printer off and...

  • Page 29: Appendices

    APPENDIX A Appendix A – AS 226p/AS 268p Specifications AS 226p Inkjet, 6 HP Versatile black High Capacity Inkjet Cartridges PRINT TECHNOLOGY AS 268p Inkjet, 8 HP Versatile black High Capacity Inkjet Cartridges ADDRESS SPEED Up to 26,000/hr - #10 Envelopes...

  • Page 30: Appendix B - Supplies And Optional Hardware

    APPENDIX B Appendix B – Supplies and Optional Hardware The following supply items and optional hardware are available from your Astro Machine Dealer: Supplies Versatile Black C8842 4127666B Fast Dry Black C6195A 4128918F Spot Colour Blue C6170A 4103180V Spot Colour Green C6169A 4128919G Spot Colour Red C6168A 4128920H...

  • Page 31: Index

    - Key 3, 10 + Key 3, 10 Accessory Connector Adjusting Resolution Adjusting Speed Adjusting, Print Heads Batch Counter BIOS Version Bulk Ink Cartridge Disposal Cartridge, Replacement Cartridge, Storage Circuit Breaker Cleaning Cartridges Cleaning Media Sensor Cleaning Printer Cleaning Printhead Cleaning Rollers Communication Computer, Connecting...
  • Page 32 Main Power Switch Media Sensor Media Side Guides Media Thickness Knob 1, 7 Menu Key 3, 9 Motor Circuit Breaker MS Word On Line Key 3, 10 Operator Display Options Overlay Parallel Port 2, 5 Plugging In Ports, Printing 2, 5 Power Receptacle Power Switch Print Enhancement...
  • Page 33 Side Guides Specifications Speeds Storage, Cartridges Supplies Test Print Key 3, 9 Total Count Trouble Shooting USB Port 2, 5 Windows 2600 P Windows 95 Windows 98 Windows ME Windows NT Windows XP...
