Service Guide OL400
Chapter 3 Maintenance & Disassembly

3.2.03 Interface Board

This procedure may be used to remove both the parallel and serial interface boards.
1. Perform this procedure:
3.2.01{ }

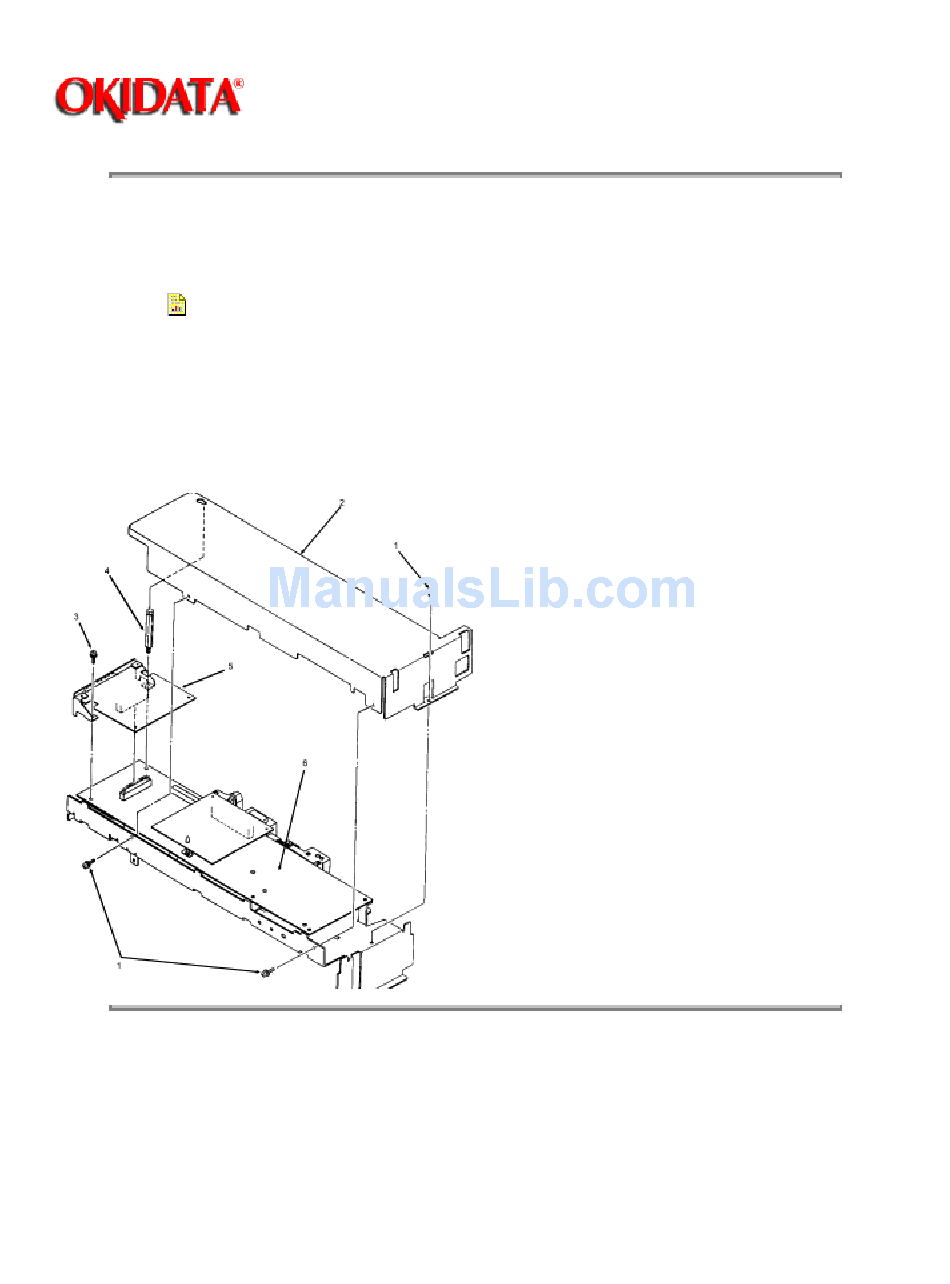

2. Remove the three shield cover mounting screws (1) and detach the shield cover (2) by sliding
it forward and lifting it.
3. Remove the interface board mounting screw (3) and the post (4).
4. Lift the interface board (5) to disconnect it from the control board (6) for removal.
