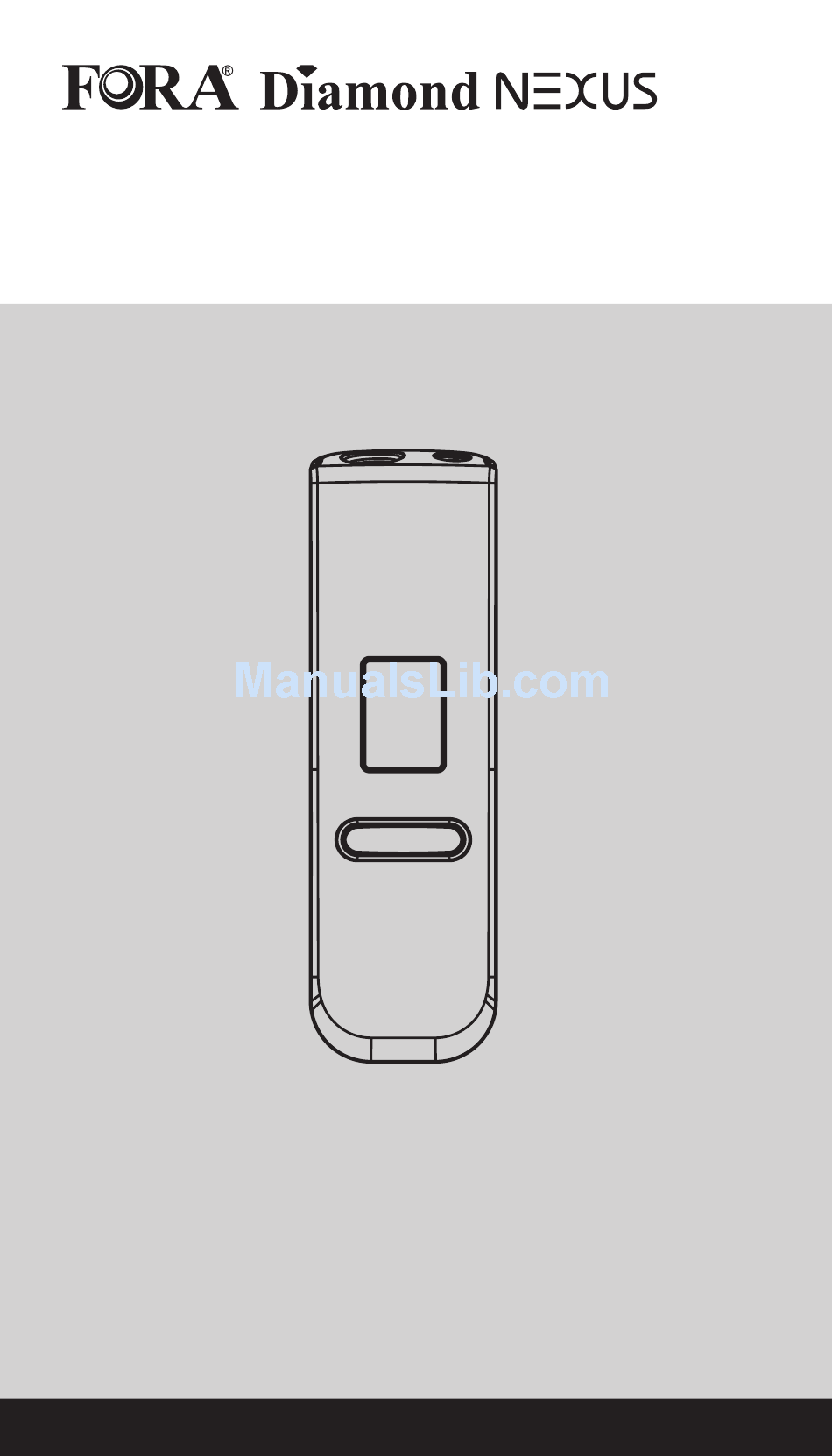

- Page 1 MINI Non-Contact Infrared Forehead Thermometer Infrarot-Stirnthermometer für Messungen ohne Kontakt Thermomètre frontal infrarouge sans contact Termometro frontale a infrarossi senza contatto Owner’s Manual Benutzerhandbuch Manuel de l'utilisateur Manuale dell’utente...
- Page 3 <2...
- Page 4 <2...
-
Page 6: Important Safety Instructions
English Dear FORA Diamond NEXUS MINI System Owner: Thank you for purchasing the FORA Diamond NEXUS MINI Thermometer. Please read this instruction manual first so you can use this thermometer safely and correctly. Please keep this instruction manual for future reference. -
Page 7: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN Cautions and Warnings Restrictions of Use Intended Use How does it work Highlighted Features Package Contents Meter Overview Display Screen Display Mode Select the Temperature Unit Replacing the Battery DETAILED INFORMATION About Normal Body Temperature & Fever PERFORM THE TEST Using the Device As a Body Measurement Thermometer... -
Page 8: Before You Begin
BEFORE YOU BEGIN Cautions and Warnings ● As with any thermometer, proper technique is crucial to obtaining accurate temperature readings. Please read this manual thoroughly and carefully before using. ● Always operate the thermometer in an operating temperature range 16 ° C to 40 ° C (60.8 ° F to 104 ° F), and relative humidity less than 95%. -
Page 9: Restrictions Of Use
Check that the detecting sensor is clean before taking a measurement. Intended Use FORA Diamond NEXUS MINI Thermometer is intended for the intermittent measurement and monitoring of human body temperature from forehead measurement at home. A control measurement using a conventional thermometer is recommended in the following cases: 1. -
Page 10: Highlighted Features
Highlighted Features ● Non-contact measurement that does not require detecting sensor cover, there by saving cost of replacement. ● Automatically power off if left idle for 25 seconds and the backlight switch off in first 5 seconds. ● Memory function allows you to store 20 most recent body mode temperature results. -
Page 11: Meter Overview

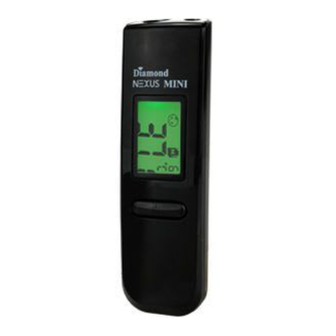

Meter Overview On/Scan Button Detecting Sensor Display Screen Battery Compartment Guiding Light Display Screen Object temperature Memory mode indicator Memory set Body temperature Temperature unit indicator Temperature reading Low battery indicator... -
Page 12: Display Mode
Display Mode Two modes can be selected. 1. Body Mode Press On/Scan button for less than 2 seconds to turn on the thermometer first and enter into body mode. When °C or °F blinks, the device is standby for measurement. This mode is used to measure the forehead temperature. -
Page 13: Select The Temperature Unit
Select the Temperature Unit This meter provides two measurement units used for indicating the body/object temperature, C or F, for your preferred selection. When device is off, press On/ Scan button for 8 seconds (the memory recall interface will display before entering into unit selection operation) to set up the unit, as C or... -
Page 14: Replacing The Battery
Replacing the Battery The thermometer comes with one 3V CR2032 lithium battery. The meter will display " " to alert you when the meter power is getting low, please follow the steps below to replace new battery immediately. 1. Press the buckle on battery cover and lift up to remove the cover. -
Page 15: Detailed Information
In this case, the temperature measured by the FORA Diamond NEXUS MINI thermometer may be unusually low. If the measurement therefore does not match the patient s own perception or is unusually low, repeat the measurement every 15 minutes. - Page 16 Table Body Site Normal Temperature Range 0.6 ° C (1 ° F) or more above or below Oral 37 ° C (98.6 ° F) 0.3 ° C to 0.6 ° C (0.5 ° F to 1 ° F) higher Rectal/ear than oral temperature 0.3 °...
-
Page 17: Perform The Test
PERFORM THE TEST Using the Device As a Body Measurement Thermometer 1. Press On/Scan button for less than 2 seconds to turn on the thermometer first and enter into body mode. The full display will be showed on the meter for 2 seconds. 2. - Page 18 Babies skin reacts very quickly to the ambient temperature. Therefore, do not take their temperature with the FORA Diamond NEXUS MINI thermometer during or after breastfeeding because the skin temperature may then be lower than the internal body temperature.
-
Page 19: As An Object Measurement Thermometer
As an Object Measurement Thermometer 1. Press On/Scan button for 2~5 seconds to turn on the thermometer first and enter into object mode. The object mode icon will appear with a short beep during this operation. The full display will be showed on the meter for 2 seconds. - Page 20 NOTE: • If the reading is < 0 ° C (32 ° F), the display will show L together with red backlight and three short beeps. • If the reading is ≥ 0 ° C (32 ° F) and < 100 ° C (212 ° F), the display will show together with green backlight and three short beeps.
-
Page 21: Meter Memory
METER MEMORY Recalling the Memory Your thermometer stores 20 most recent body temperature readings 1. Be sure the thermometer is OFF before recalling this memory. 2. Press On/Scan button for 5~8 seconds to enter the memory mode. Each time you press the On/Scan Button, a result will be displayed in the order (latest result shown first), together with... -
Page 22: Maintenance
MAINTENANCE Care & Cleaning ● The detecting sensor is not waterproof. Please wipe with a clean and dry cotton swab to clean the detecting sensor on the inside. ● The body of the thermometer is not water-resistant. Never put the thermometer under a running tap or submerge it into water. -
Page 23: System Troubleshooting
SYSTEM TROUBLESHOOTING Measurement Result MESSAGE WHAT IT MEANS Measured temperature falls out- side the displayed temperature range of 32 ° C to 43 ° C (89.6 ° F to 109.4 ° F), is shown on the display with red backlight. ●... -
Page 24: Troubleshooting
Troubleshooting The table below shows problems you may encounter. All error messages below would be shown together with backlight. Please follow "what to do" to resolve problems. If the problem still exists, please call your local dealer for help. MESSAGE WHAT IT MEANS WHAT TO DO Put the ther-... - Page 25 MESSAGE WHAT IT MEANS WHAT TO DO Battery is low Please replace and " " ap- battery as soon pears on display. as possible. If the thermom- Please contact eter is broken or the customer affected by EMF. service line.
-
Page 26: Symbol Information
SYMBOL INFORMATION SYMBOL REFERENT Consult instructions for use Manufacturer Serial number Caution, consult accompanying docu- ments Authorized representative in the European Community Type BF Equipment Collection for electrical and electronic equipment... -
Page 27: Specifications
SPECIFICATIONS Model No.: 1267 Dimension & Weight: 100 x 30.5 x 18 mm, 38 g (include battery) Power Source: One 3V CR2032 lithium battery Displayed temperature range: Forehead: 32 ° C to 43 ° C (89.6 ° F to 109.4 ° F) Object: 0 °... -
Page 28: Disposal
DISPOSAL Adhere to the applicable regulations when disposing of the device. This product must not be disposed of together with domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. -
Page 29: Reference Standards
REFERENCE STANDARDS Device Standard: Device Corresponds to the requirements of the standard for infrared thermometers ASTM E1965-98 EN 12470-5 EN 60601-1-2:2007/AC:2010 EN 60601-1-4:1996 EN 60601-1-6:2010 Electromagnetic Compatibility: Device fulfills the stipulations of the standard EN 60601-1-2 0197 The stipulations of EU-Directive 93/42/EEC for Medical Devices Class Ila have been fulfilled. -
Page 30: Warranty
WARRANTY This product is under warranty for 2 years after date of purchase against manufacturing, materials or workmanship related defects. The warranty does not cover battery or packaging. The warranty is not valid in case of accidental damage, misuse or neglect and in case of alterations or repair carried out by unauthorized people.
