Fora IR42 Operating Instructions Manual

Forehead thermometer
Hide thumbs

Advertisement

Table of Contents

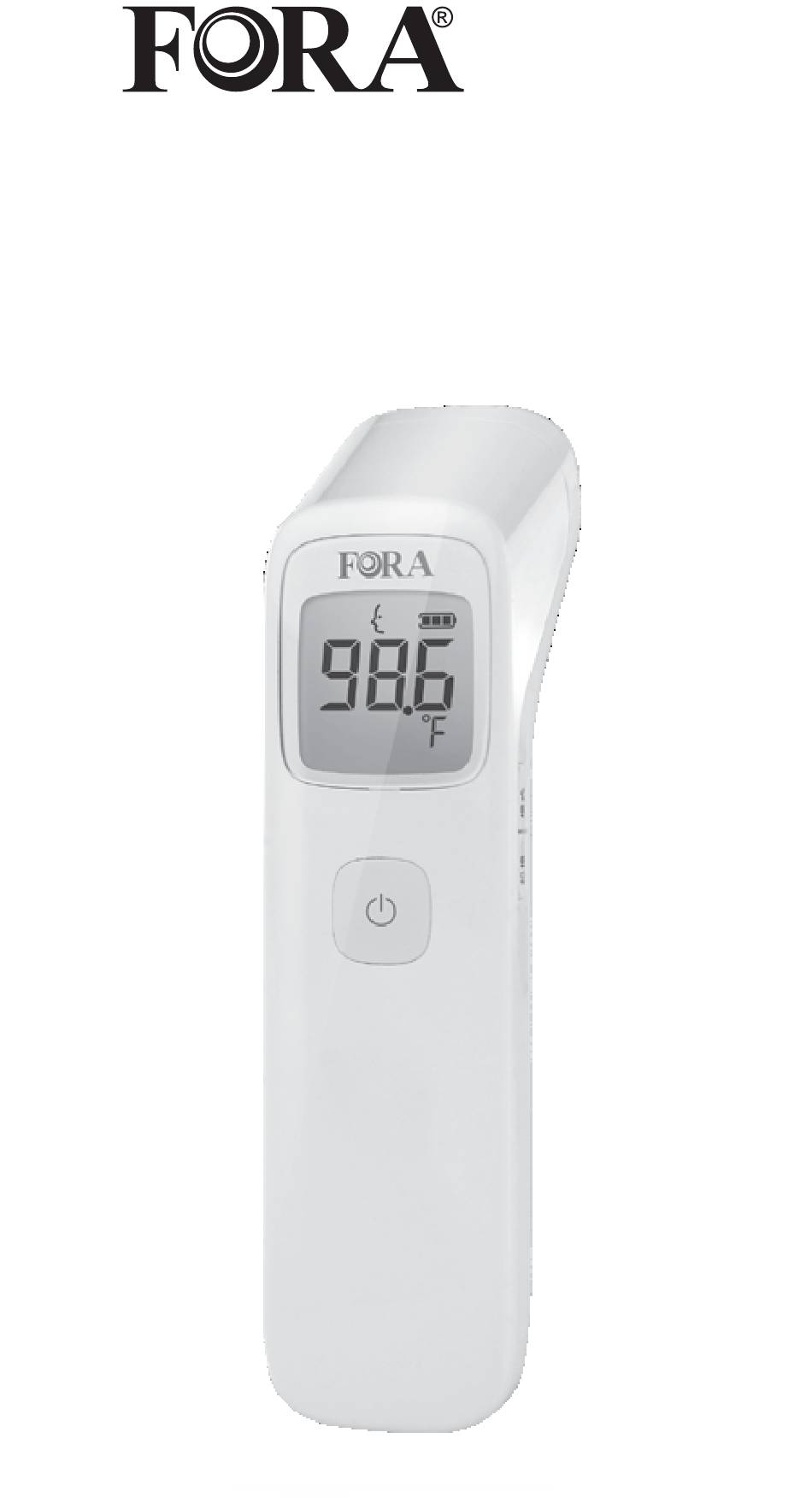

IR42
Forehead Thermometer
Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for Fora IR42

Summary of Contents for Fora IR42

  • Page 1 IR42 Forehead Thermometer Operating Instructions...

  • Page 2: Intended Use

    INTRODUCTION Thank you for choosing FORA IR42 Forehead Thermometer. Please read this instruction manual first so you can use this thermometer safely and correctly. Please keep this instruction manual for future reference. This innovative medical device uses advanced infrared (IR) technology to measure temperature instantly and accurately on the forehead/surface.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ THIS BEFORE USING AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE 1. Close supervision is necessary when the thermometer is used by, on, or near children, handicapped persons or invalids. 2. Use the thermometer only for the intended use described in this manual.

  • Page 4: Using The Device

    Always operate the thermometer in an operating temperature range 50°F to 104°F (10°C to 40°C), and relative humidity less than 85%. Always store the thermometer in a cool and dry place: temperatures between -4°F to 140°F (-20°C to 60°C); relative humidity less than 85%.
  • Page 5 Measuring Temperature for Adults 1. Remove protective cap. The forehead should be clear of hair and perspiration. 2. Aim at the center forehead area 1.18 to 2.75" away from skin surface (3 to 7cm). Be sure the thermometer is perpendicular to the skin surface.
  • Page 6 4. To take another measurement, follow step 2 and 3. 5. The thermometer turns off automatically after 30 seconds. Replace the sensory cap when finished. WARNING AND PRECAUTIONS If the reading is < 89.5°F (31.9°C), the display will show “Lo”. If the reading is ≧...
  • Page 7 Red backlight with a warning symbol indicates a reading greater than 99.8°F (37.6 °C). 5. The thermometer automatically switches off when left idle for 30 seconds. 6. Replace the sensor cap when finished. Note: ● If the reading is ≦ 89.5°F (31.9°C), the display will show “Lo”.
  • Page 8 ● If the reading is ≧ 212.2°F (100.1°C), the display will show “Hi”. RECALLING PAST READINGS FORA IR42 stores 30 most recent readings. 1. Press and release the SCAN button to turn on the thermometer. 2. Press and hold the MEMORY button for 1 second to enter the memory mode indicated by a flashing "...

  • Page 9: About Normal Body Temperature & Fever

    Please consult your physician if you are concerned about your body temperature readings. MAINTENANCE • FORA IR42 has no user serviceable internal parts except battery replacement. • Always replace Sensor Cap (or place in cradle) when not in use.
  • Page 10 Manufacturer’s declara�on-electromagne�c emissions The IR42 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the IR42 should assure that it is used in such an environment. Emission test Compliance Electromagne�c environment-guidance...
  • Page 11 Manufacturer’s declara�on-electromagne�c immunity The IR42 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the IR42 should assure that it is used in such and environment. Immunity test IEC 60601...
  • Page 12 Test specifica�ons for ENCLOSURE PORT IMMUNITY to RF wireless communica�ons equipment The IR42 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the IR42 should assure that it is used in such an environment. Test Band a)

  • Page 13: Troubleshooting

    TROUBLESHOOTING Message What it means What to do Appear when Only operate the ambient temperature thermometer in is outside of the ambient operating temperature temperature range. range of 50°F to 104°F (10°C to 40°C). Measured temperature Review instructions and below the measurement repeat measurement.

  • Page 14: Specifications

    SPECIFICATIONS Model No.: IR42 Dimension & Weight: 155.46 (L) x 40.14 (W) x 39.45 (H) mm, 61.8g (without battery) Power Source: 2 x 1.5V AAA alkaline batteries Battery Life: With new batteries, approx. 3,000 measurements. Displayed Temperature range: 89.6°F to 109.4°F (32°C to 43°C) Display Resolution: 0.1°F/0.1°C...
