IR20
EAR THERMOMETER
Operating Instructions
INTRODUCTION
Thank you for choosing FORA IR20 ear thermometer. This innovative medical device relies on advanced
infrared (IR) technology to measure temperature instantly.
INTENDED USE
FORA IR20 ear thermometer is intended for the intermittent measurement and monitoring of human
body temperature from ear canal. The device is intended for use by people of all ages for home and
professional use.
HOW DOES IT WORK
The thermometer measures the infrared heat generated by the eardrum and its surrounding tissue. The
thermometer then converts it into a temperature value shown on the LCD screen.

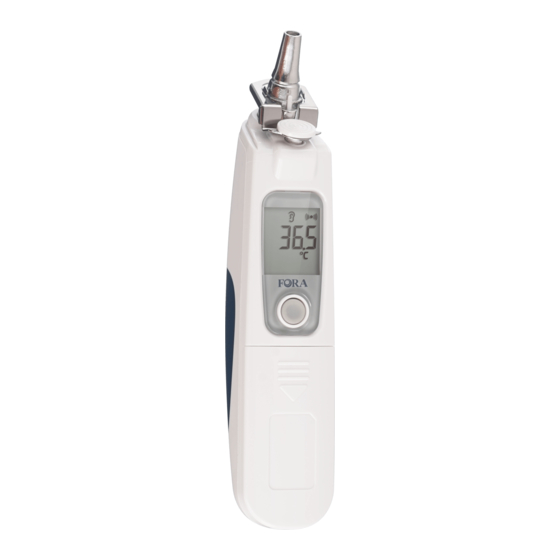

APPEARANCE AND KEY FUNCTIONS OF THE THERMOMETER
2
3
4
5
1
6
7
8
9
IMPORTANT SAFETY INSTRUCTIONS
READ THIS BEFORE USE. KEEP THESE INSTRUCTIONS IN A SAFE PLACE.
The following basic safety precautions should always be taken.
1. Close supervision is necessary when the thermometer is used by, on, or near children, handicapped
persons or invalids.
2. Use the thermometer only for the intended use described in this manual.
3. Do not use the thermometer if it is not working properly, or if it has suffered any damage.
4. Do not use accessories which are not supplied or recommended by the manufacturer.
5. Proper maintenance is essential to the longevity of your device. If you are concerned about your
accuracy of measurement, please contact the local customer service or place of purchase for help.
CAUTIONS AND WARNINGS
● As with any thermometer, proper technique is crucial to getting accurate temperature readings.
Please read this manual thoroughly and carefully before use.
● Always operate the thermometer in temperatures between 60.8°F to 104°F (16°C to 40°C) and
relative humidity less than 95%.
● Always store the thermometer in a cool and dry place: temperatures between -4°F to 140°F (-20°C
to 60°C); relative humidity less than 95%. Avoid direct sunlight.
● Avoid dropping the thermometer.
● Use only FORA IR20 probe covers for the infrared ear thermometer.
● For proper hygiene, do not share or reuse probe covers. Damaged probe covers may result in error
display.
● Do not disassemble the thermometer.
● Basic safety precautions should always be observed, especially when the thermometer is used on
or near children and disabled persons.
● This thermometer is not intended to be a substitution for a consultation with your physician.
● Keep probe covers out of reach of children.
● Temperature measurements may differ from left to right ear. Always measure by using the same ear.
RESTRICTIONS OF USE
This thermometer is clinically proven to produce accurate temperature measurements. However, please
be advised if you have the following situations:
● The accuracy cannot be ensured for a person who has a deformity in their ear, which prevents the
thermometer probe from properly being inserted into the ear canal.
● The accuracy cannot be ensured when blood or drainage is found in the ear canal.
● If ear drops or medications have been placed in one ear, take measurements from the other ear.
● For a person who wears an ear plug or hearing aid, remove the device and wait for 15 minutes
before taking temperature.
NOTE: Never try to clean inside your ears. You may accidentally damage the eardrum or its surrounding
tissues. Remove excess earwax only when you can reach it with a clean cloth. Consult a physician if you
suspect the presence of excess earwax.
Scan Button
1
10
Probe Lens
2
Probe
3
Probe Cover Detector
4
Probe Cover Ejection Button
5
On/Memory Button
6
Manufacturing Label
7
Battery Cover
8
Hook (for FORA IR20d)
9
11
10 Probe Cover
11 Bluetooth Indicator (for FORA IR20b)
LCD SCREEN
9 8 7
1
2
6
3 4 5
USING THE DEVICE
1 2
Replacing the Probe Cover
1. Check if the probe cover is clean and new. Press the infrared probe into the cartridge.
2. Secure the cover to the probe and remove it from cartridge.
NOTE:
● If a probe cover is not attached on the probe, LCD will show "
attached to the probe.
● The used probe cover should be removed after each measurement to ensure accuracy.
● To ensure proper hygiene, attach a new probe cover each time and do not touch its tip.
MEASURING TEMPERATURE
1 1 2
5
1. Press and release the On/Memory button to turn on the thermometer. When ready, the thermometer
displays the last measurement.
2. Gently fit the probe with a clean probe cover into the ear canal.
3. Press and release the Scan button. You will hear a beep to indicate the measurement is complete
and the thermometer can be removed.
4. Read the result. " " is shown together with a temperature value ("
5. Press the ejection button to discard the used probe cover into a trash can.
NOTE: Turn off the thermometer by pressing On/Memory button twice. It will automatically turn off if left
idle for 3 minutes.
RESULT INDICATORS
Temperature ≤ 89.5°F (31.9°C)
89.6°F (32°C) ≤ Temperature < 100.3°F (37.9°C)
100.4°F (38°C) ≤ Temperature < 109.4°F (43°C)
Temperature ≥ 109.5°F (43.1°C)
HINTS ON TAKING TEMPERATURES
1. As with other thermometers, you may observe slight variations in consecutive measurements. It is
recommended that you take 3 temperature readings and use the highest one for the following
situations:
● Infants younger than 3 months old.
● Children younger than 3 years old and who have a compromised immune system and the presence /
absence of fever is critical.
● When you are learning to use the thermometer.
2. Do not take a reading while the patient is moving and/or talking. Wait for 30 minutes after any of the
following situations before taking a measurement:
● When the ear has been covered.
● After exercising, swimming, or taking a bath.
● When the patient has been exposed to extreme temperature.
3. To take accurate readings, the ear must be free from excessive earwax build-up.
RECALLING THE MEMORY
1 1 1 2
Your thermometer stores last 10 readings in the memory.
1. Be sure the thermometer is OFF before recalling the memory.
2. Press the On/Memory button to turn on the thermometer.
Temperature Scanning In Progress
1
Temperature Reading
2
Memory Mode
3
Record Numbers
4
Low Battery Indicator
5
Temperature Unit
6
Communication Symbol (for FORA IR20b)
7
8 No Probe Cover Detected
9 Ear Temperature Indicator
" until a new probe cover is firmly
3 1 4
" for IR20b only).
"Lo" with red backlight
Result with green backlight
Result with red backlight
"Hi" with red backlight
1 3 3
