Fora IR19 Owner's Booklet

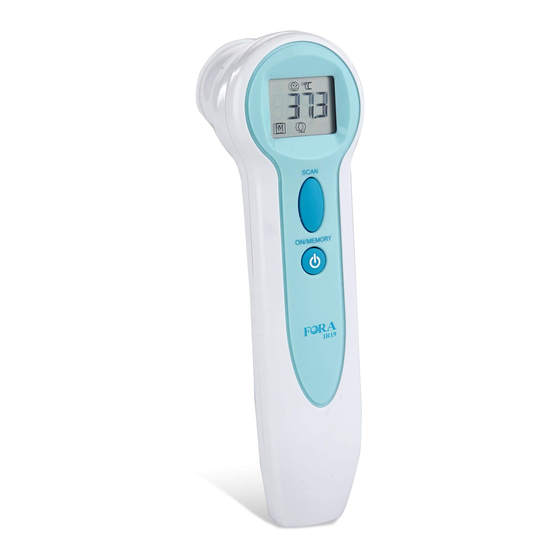

APPEARANCE AND KEY FUNCTIONS OF THE THERMOMETER
IMPORTANT SAFETY INSTRUCTIONS
READ THIS BEFORE USING AND KEEP THESE INSTRUCTIONS
The following basic safety precautions should always be taken.
1. Close supervision is necessary when the device is used by, on or near children,
Probe
handicapped persons or invalids.
2. Use the device only for the intended use described in this manual.
3. Do not use the device if it is not working properly, or if it has suffered any damage.
Display Screen
CAUTIONS & WARNINGS
1. As with any thermometer, proper technique is crucial to getting accurate temperature
SCAN Button readings. Please read this manual thoroughly and carefully before using.
2. Always store the thermometer in a cool and dry place: temperature between -20°C and
ON / MEMORY
60°C (-4°F and 140°F); relative humidity less than 95%.
Button 3. Avoid direct sunlight.
4. Avoid dropping the thermometer.
5. Do not touch the lens.
Battery 6. Do not disassemble the thermometer.
Compartment 7. Basic safety precautions should always be observed, especially when the thermometer is
used on or near children or disabled persons.
8. The use of this thermometer is not intended as a substitute for a consultation with your
physician.
RESTRICTIONS OF USE
This thermometer is clinically proven to produce accurate temperature measurements.
INTRODUCTION
However, please be advised if you have the following situations: The accuracy cannot be
Thank you for choosing the FORA IR19 forehead_foot_skin_surface thermometer. Please
ensured when the thermometer is not clean. Check that the probe is clean before taking a
read this instruction manual first so you can use this thermometer safely and correctly. measurement.
Please keep this instruction manual for future reference. This innovative medical device
USING THE DEVICE
uses advanced infrared (IR) technology to measure temperature instantly and accurately on
Do not remove the front cover to measure.
the skin.
Forehead measurement
HOW DOES IT WORK
Step 1
The FORA IR19 forehead_foot_skin_surface thermometer detects the heat generated by Press and release the ON/ MEMORY button. When ready, the
the skin over the temporal artery. FORA IR19 thermometer converts this heat into a thermometer beeps and displays the last measurement.
temperature value in one second. The device is also suitable for surface temperature
measurements such as for feet, skin and other surfaces.
Step 2
HIGHLIGHTED FEATURES
Perform a forehead measurement with a non-contact distance within 3 cm.
Fast and accurate: meets the accuracy requirement specified in ASTM E1965-98.
Press and hold the SCAN button, at the same time slowly slide the
Non-contact measurement that is no probe cover is required, thus saving the cost of thermometer probe across the skin/surface (from one temple to another).
replacement.
As long as you are holding the scan button the thermometer will continue
A probe that can be wiped using a clean cloth slightly dampened with alcohol or water.
to measure. Therefore, once you release the button the thermometer will
Automatically turn off if left unused over 30 seconds.
provide you with a result. To conduct a spot temperature measurement,
Big button improves handling and activation.
simply press and immediately release the SCAN button. Spot
Memory function allows you to recall previous results up to 10 measurements.
measurements are possible for measurements on the feet, skin or
measuring the temperature of other surfaces.
CARE & CLEANING
REPLACE THE BATTERY
The probe is waterproof. Please wipe it clean with a dry cloth or damped with 70%
The thermometer comes with one CR2032 lithium coin battery . Replace it when " " alcohol.
appears. Please follow the steps to replace a new battery.
The body of the thermometer is not water-resistant. Please never put the thermometer
under a running tap water or immerse it with any fluid. Use a soft and dry cloth to clean
Step 1
it. Do not use abrasive cleaners.
Push down the battery cover.(Figure 1)
Store the thermometer in a cool and dry location. Please keep it from dust and away
from direct sunlight.
Step 2
Place the new battery (with the " + " sign facing
upwards) into the battery compartment and press TROUBLESHOOTING
it in until the battery is firmly secured. (Figure 2) The table below shows problems you may encounter. Please follow "what to do" to
resolve problems. If the problem still exists, please call your local dealer for help.
Step 3
Recrew the battery cover.
Message
NOTE (Figure 1) (Figure 2)
Room temperature is below
1. Although the thermometer works when " " appears, we still recommend that you change the battery to
10°C.
obtain an accurate result.
2. Remove the battery if stored for a long period of time.
3. The battery should be kept away out of child's reach. If they are swallowed, promptly see a doctor for Room temperature is above
help.
40°C.
ABOUT NORMAL BODY TEMPERATURE & FEVER
Error occurs in the meter.
The body temperature can vary with the individual. It also varies at different parts of the
body and different time of the day. The following table1 shows the statistical normal ranges
from different sites. Please keep in mind that temperatures measured from different sites,
even at the same time, should not be directly compared.
Battery is low and
Fever means that the body temperature is higher than normal. This symptom may be
"
potentially caused by infection, overdressing or immunization. But some people may not
undergo fever even when they are ill. These include, but are not limited to, infants not
more than 3 months old, persons with compromised immune systems, persons taking
Battery is too low to measure
antibiotics, steroids or antipyretics (aspirin, ibuprofen, acetaminophen), or persons with
temperature correctly.
some chronic illnesses. Please consult your physician when you feel ill even if there is no fever. No measurements will be
taken.
1
Table 1* Body Site Normal Temperature Range
SYMBOL INFORMATION
Oral 0.6°C (1°F) or more above or below 37°C (98.6°F) Symbol Referent
Consult instructions for use
Rectal/ear 0.3°C to 0.6°C (0.5°F to 1°F) higher than oral temperature
Manufacturer
Axillary (armpit) 0.3°C to 0.6°C (0.5°F to 1°F) lower than oral temperature
Serial number
*1. Body Temperature at WebMD;
website: http://firstaid.webmd.com/body-temperature retrieved at 2010 Jan 7.
Caution, consult accompanying
documents
Step 3
RESULT INDICATORS
Read the result. " " is shown together with a
temperature value. The thermometer will automatically
switch off if left unused for over 30 seconds. Message
Foot measurement
1. Sit in a comfortable chair.
2. Take temperature measurement in the morning after you have been out of bed for at
least 5 minutes. Remove any socks or stocking prior to taking readings. If you have
been active (walking, etc.) let your feet rest for 5 minutes prior to taking
measurements.
3. Hold the thermometer in your hand and turn it on by pressing
the ON/MEMORY button, the thermometer beeps and displays
the last measurement.
Tips for Measuring Temperature
1. As with any type of thermometer, you may observe slight variations in consecutive
measurements. It is recommended that you take 3 temperature readings and use the
highest one for the following situations:
4. You will be taking a minimum of six temperature
(1) Infants not more than 3 months old.
measurements at different sites ON EACH FOOT as shown
(2) Children not more than 3 years old who have a compromised immune
below. Start at site 1, perform a foot measurement with a
system, where the presence / absence of fever is critical.
contact measurement. Press and release the Scan button. Do
(3) When you are learning to use the thermometer.
not remove until the thermometer beeps.
2. Please wait at least 30 minutes after the following situations before taking a reading.
(1) After exercising, swimming, or taking a bath. When exposed to extreme temperatures.
(2) During eating and talking.
5. Read the result and record it in the block for site 1 on your
log sheet. RECALLING THE MEMORY
Your thermometer stores the 10 most recent readings in the memory. Make sure the
thermometer is in " OFF " mode before recall.
6. Continue to take and record the measurements of the remaining five sites on your
right foot and then move to your left foot and take and record all six measurements.
7. The thermometer will automatically turn off if left without use over 30 seconds.
Step 2
8. When you have completed taking and recording all 12 measurements on the bottom
Press the ON / MEMORY button to review the result. Each time you press the ON /
of your feet, take a few minutes to review the data on your log sheet.
MEMORY button, LCD will display stored temperature (latest result shown first),
9. Compare the measurements taken from the same sites between your feet. If you
together with "
have a reading on one foot that is greater than the same site on the other foot by
result is deleted as the new one added.
more than 2.2ºC (4ºF), this indicates that you may have a "hot spot". This has the
potential to become a more serious problem such as a foot ulcer. Contact your Step 3
physician as soon as possible for advice. The meter will automatically turn off if left without pressing any button within 30
seconds.
DISPLAY SCREEN
Temperature reading
Forehead temperature indicator
Temperature falls within normal range
Celsius scale / Fahrenheit Scale
Memory mode
Low battery power indicator
High temperature indicator
What it means What to do
SPECIFICATIONS
Put the thermometer under operating
temperature range of 10°C to 40°C (50°F
to 104°F). Model no. FORA IR19
Dimensions 149 (L) x 44 (W) x 54.23 (H) mm
Put the thermometer under operating
temperature range of 10°C to 40°C (50°F
Weight 73.2g (with battery)
to 104°F).
Displayed temperature range 22°C to 44°C (71.6°F to 111.2°F)
Please put the thermometer under
operating temperature rangr of 10°C to
Display resolution 0.1°C / 0.1°F
40°C (50°F to 104°F). If the problem is
unsolved, please contact the customer
±0.3°C (±0.5°F) for the range of
service line. Accuracy
35.0°C (96.8°F) ~ 41.0°C (102.2°F)
May continue to use the thermometer, but
should change a new battery as soon as
" is shown on LCD.
Temperature unit °C or °F
possible.
Operating temperature range 10°C to 40°C (50°F to 104°F)
Change a new battery immediately.
Operating humidity
95% RH or less
Storage temperature range -20°C to 60°C (-4°F to 140°F)
Storage humidity 95% RH or less
Symbol Referent
Memory capacity 10 measurements
CE mark
0459
Type BF equipment
ForaCare Suisse AG
CH-9000 St. Gallen
Do not use if package is
damaged
www.foracare.ch
What it means
Temperature falls within measurement range:
22°C to 37.9°C (71.6°F to 100.2°F).
Temperature falls within measurement range: 38°C to 44°C
(100.4°F to 111.2°F).
Temperature measurement falls outside the displayed temperature
range: 22°C to 44°C (71.6°F to 111.2°F). Please follow this manual to
take a reading again.
Step 1
Press the ON / MEMORY button to enter the memory.
" and number (from 1 to 10). When the memory is full, the oldest
IR19
Forehead_Foot_Skin_Surface
Thermometer
Owner's Booklet
0459
Version 1.0 04,2013
311-1119100-015
