Summary of Contents for Clarke PLV100LB

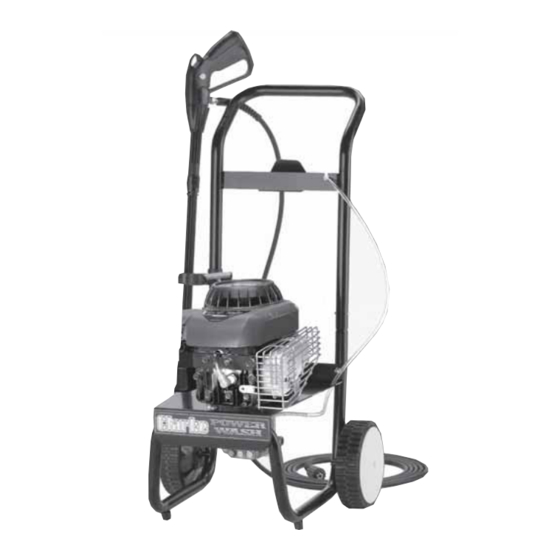

- Page 1 POWERWASHER POWERWASHER Model: PLV100LB Part No: 7330658 OPERATING & MAINTENANCE INSTRUCTIONS 0606...
-
Page 3: Specifications
Please read both of these carefully before using the machine. GUARANTEE This CLARKE product is guaranteed against faults in manufacture for twelve months from the date of purchase. In case it is necessary to make a claim under this scheme, please retain your receipt or invoice to show when and where your purchase was made. -
Page 4: General Safety Precautions
✔ ✔ ✔ ✔ ✔ When using the chemical injection facility, use only the chemical cleaning agents (detergents), that are approved for power washers. CLARKE Traffic Film Remover or CLARKE Wash and WAX (available from your dealer), is recommended. FEATURES These fully portable machines incorporate a variable pressure control, together with a fan or jet spray, and may be used with or without a detergent. -
Page 5: Assembly And Preparation For Use
1. Carefully open the carton, remove all items and lay out for inspection. 2. Check for missing and/or damaged parts, any defects should be reported to your Clarke dealer ASAP. 3. Carefully lay the engine Frame on its back to gain access to the bottom, fit feet using 4 self tapping screws (supplied). - Page 6 4. Carefully turn the chassis onto one side to access the axle to enable wheel to be fitted. Slide wheel onto axle as shown, ensuring the flat side is on the inside as in Fig. 2 to allow the cap to be fitted. Fig.
-
Page 7: Operation
13. Slide the upper tool holder up into position and secure with self tapping screw. Fig. 7 14. Assemble the lance to the gun with a simple bayonet connection Fig .8. Attach one end of the high pressure hose to the gun Fig. 8a and tighten the securing nut using a 17mm open ended spanner, DO NOT overtighten. - Page 8 Fig. 8b. N OTE: Use ONLY detergents designed for use with power washers. We recommend the use of CLARKE Traffic Film Remover, which is a powerful low foaming agent, for car cleaning, as well as other cleaning tasks. When detergent injection is required, adjust the nozzle to the low pressure setting, the detergent will automatically be drawn into the water supply when sprayed.
-
Page 9: Maintenance
Change the oil after the first 50 hours of service, and every 500 hours thereafter. DO NOT attempt to carry out any mechanical repairs yourself. Please contact your CLARKE dealer for Service and repairs. If the pump is ever dismantled for servicing and/or repair, remember to top up with 15w/40 non synthetic oil (100ml). - Page 10 PARTS LIST & DIAGRAM (PUMP) No. Description Qty Part No. No. Description Qty Part No. Gasket LW4.008.0288 ‘O’ Ring 4 x 2.5 LW3.200.0036 Flange with ‘O’ ring LW5.0090.408 Non Return Valve LW4.008.0648 Oil Seal D.17X35X7 LW3.2010.011 Spring LW4.007.0324 Bearing 6205-2Z LW3.0010.018 Gasket LW3.200.0017...
- Page 11 High Pressure Hose LW4.0080780 Motor Support LW4.007.0313 Lance LW6.002.0194 Engine Complete LW3.099.0093 Pump LW5.099.0087 Spring Clip LW4.007.0277 Wheel LW3.006.0033 Detergent Filter LW4.008.0006 Retaining Washer LW3.099.0051 Quick Coupling LW3.100.X005 (not shown) Screw M8 x 50 LW3.002.0121 ** Please refer to CLARKE dealer -11-...
