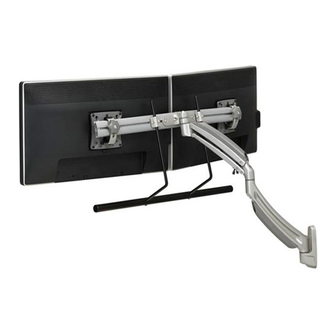

K1w series, k1s series wall mounts

Advertisement

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
K1W110
K1W120
K1W220
K1W22H
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
K1S120
K1S220
K1S22H
K1W/K1S Wall Mounts
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
K1W/K1S Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1W110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF K1W110

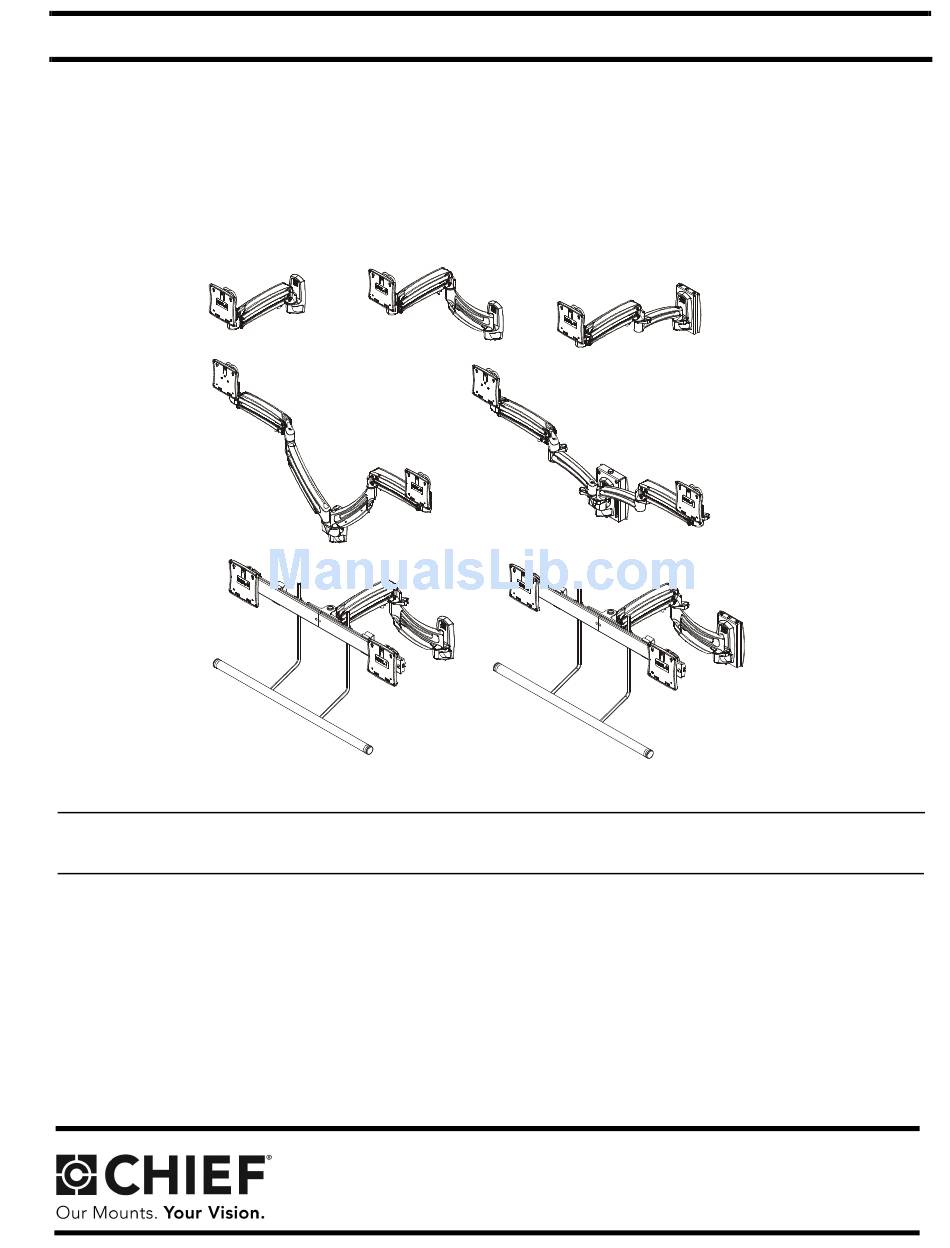

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation K1W110 K1W120 K1S120 K1S220 K1W220 K1W22H K1S22H...
  • Page 2: Important Safety Instructions

    Allowed for EACH Capacity of Display Mounting System K1W110 25 lbs 25 lbs Chief® is a registered trademark of Milestone AV Technologies. (11.34 kg) (11.34 kg) All rights reserved. K1W120 25 lbs 25 lbs (11.34 kg) (11.34 kg)
  • Page 3 Installation Instructions K1W/K1S Series DIMENSIONS K1W110 DYNAMIC LIFT ARM LENGTH RANGE STRAIGNT = MAX 1.38 FULL UP/DOWN = MIN 34.9 10.21 7.12 259.3 180.9 TILT RANGE 75 UP 10 DOWN MOUNTING PATTERN COMPATIBILITY 100 X 100 75 X 75 DYNAMIC HEIGHT ADJUST RANGE 14.07...
  • Page 4 K1W/K1S Series Installation Instructions K1S120 DYNAMIC LIFT ARM LENGTH RANGE STRAIGNT = MAX 1.83 6.75 FULL UP/DOWN = MIN 46.4 171.5 10.21 7.12 259.3 180.9 10 DOWN MOUNTING PATTERN COMPATIBILITY 100 X 100 75 X 75 6.08 154.5 K1W220 1.38 34.9 MOUNTING PATTERN 10 DOWN...
  • Page 5 Installation Instructions K1W/K1S Series K1S220 2.48 63.0 MOUNTING PATTERN COMPATIBILITY 100 X 100 10 DOWN 75 X 75 INTERFACE ROTATION RANGE DYNAMIC HEIGHT ADJUST RANGE 19.33 6.33 490.9 160.7 K1W22H 6.75 DYNAMIC LIFT ARM 171.5 LENGTH RANGE STRAIGHT ARM = MAX FULL UP/DOWN = MIN 10.21 7.12...
  • Page 6 K1W/K1S Series Installation Instructions K1S22H 6.75 DYNAMIC LIFT ARM 171.5 LENGTH RANGE STRAIGHT ARM = MAX FULL UP/DOWN = MIN 10.21 7.12 259.3 180.9 MOUNTING PATTERN INTERFACE COMPATIBILITY ROTATION 100 X 100 10 DOWN RANGE 75 X 75 HOOK BASE DISTANCE RANGE 0.22 4.06...
  • Page 7 Installation Instructions K1W/K1S Series LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
  • Page 8: Tools Required For Installation

    K1W/K1S Series Installation Instructions TOOLS REQUIRED FOR INSTALLATION 7/16” 1/8” 1/2” 3/16” (included) 1/8” (included) 5/32” (included with K1S120 and K1S22H only) PARTS A (1) [Arm assembly] (K1W120 shown) B (4/8)* D (4/8)* C (4/8)* *single display models/ M4x14mm M10x5.3x10 M4x25mm dual display models K1W models only!
  • Page 9: Assembly And Installation

    Installation Instructions K1W/K1S Series Assembly And Installation set screw side view (F) x 2 (G) x 2 Figure 1 Connecting K1W Series (wall mount) to Wall (arm not shown Determine mounting location on wall. for clarity) Use a stud finder to locate 2" x 4" wood stud. Use wall bracket (E) to mark and drill two 1/8”...
  • Page 10 K1W/K1S Series Installation Instructions Using 5/32” hex key (N), turn adjustment screw clockwise to lower mounting plate until it is able to easily slide into wall (arm not shown track. (See Figure 3) for clarity) Using 5/32” hex key (N), turn adjustment screw counter- clockwise to raise lower mounting plate until bracket is fully OFBU bracket secured to slat wall.
  • Page 11: Display Installation

    (J12) MODEL Max Weight Max Weight Allowed for EACH Capacity of Display Mounting System (J6) K1W110 25 lbs 25 lbs (11.34 kg) (11.34 kg) Figure 7 K1W120 25 lbs 25 lbs (11.34 kg) (11.34 kg)
  • Page 12 K1W/K1S Series Installation Instructions Carefully place display face down on protective surface. Position display with faceplate attached above mount. (See Figure 11) Connect faceplate to display Slide faceplate onto mounting head until quick release tab For flush mounting hole installation: clicks into place.
  • Page 13 Adjustments screw. (See Figure 16) Pitch Adjustment (non-array models) Adjust pitch to desired tilt position. (See Figure 14) K1W110 Adjust pitch tension screw to change the adjustment tension. (See Figure 14) Pivot Adjustment (non-array models) Adjust pivot position as desired. (See Figure 14) Use 3/16”...
  • Page 14: Display Removal

    K1W/K1S Series Installation Instructions NOTE: Array Bar Roll Adjustment Tension may also be adjusted with upper tension adjustment screw inside cable management cover and Loosen roll adjustment screws on back of array bracket. 1/8” hex key (N). (See Figure 17) (See Figure 19) Adjust roll of array bar as desired.
  • Page 15: Cable Management

    Installation Instructions K1W/K1S Series Cable Management Array Models Press insides of cable management covers at both ends to Install array cable clips (J7) to back of array. (See Figure 23) unhinge tabs on either end of cable management cover on Route cables through array cable clips (J7) as desired.
