Telematrix SIP Phone Setup Notes

Login into either type of set using a browser to enter the web administration user interface (UI). The best
process is to configure a single phone to register and have the features desired working successfully, and
then save that phone's configuration file as a "template" to be used for creating more configuration files.
Telematrix has developed a Mass Configuration Utility that will allow installers to take a template and
substitute values for as many phones/config files as necessary.
Start the process by plugging the 9600IP into a POE switch and obtaining the phone's IP address using
* *
the key sequence 4(I) 7(P) # ...you will hear an audible readout of the IP address.

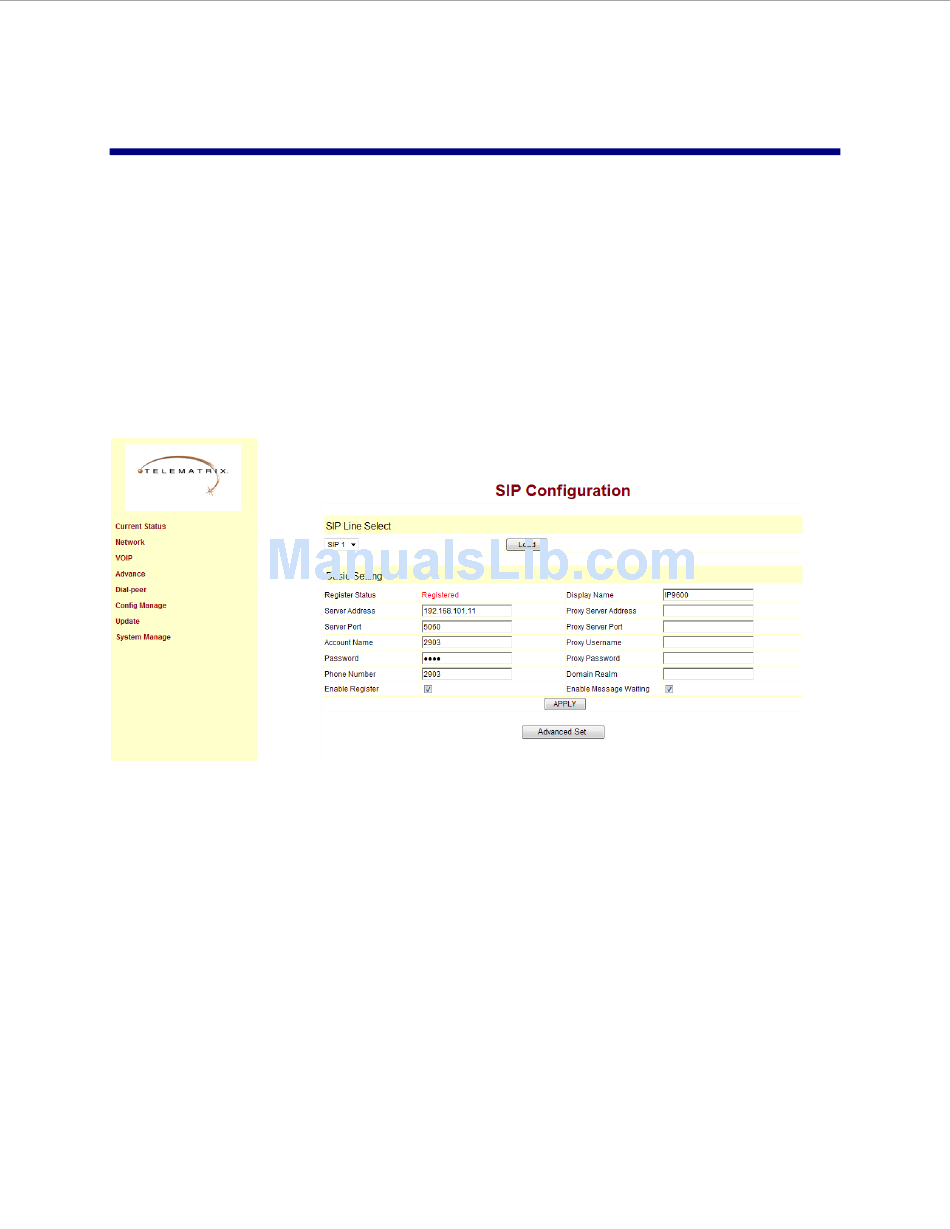

Access SIP Configuration Settings by browsing to VOIP -> SIP Config:
SIP Configuration entry of account settings and server settings
Account Name: This should be the number as programmed in the 3300 ICP followed by the IP
•
address of the 3300 ICP. In this example, the extension is 29015 and the ICPs IP address is
192.168.101.11.
Password: This is the password as programmed into the 3300 ICP for the device.
•
Phone Number: This is the number that will show on a Caller ID.
•
Display Name: This is the name that will show on a Caller ID.
•
Check on Enable Register, you can see the Register Status
•
Server Address: Enter the address of the 3300 ICP followed by the port as configured on the
•
3300 ICP (default is 5060).
