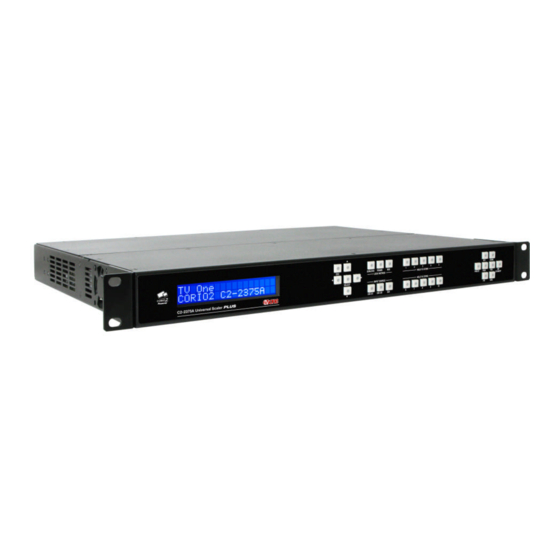

TV One C2-2375A Series Operation Manual

Universal scaler plus
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

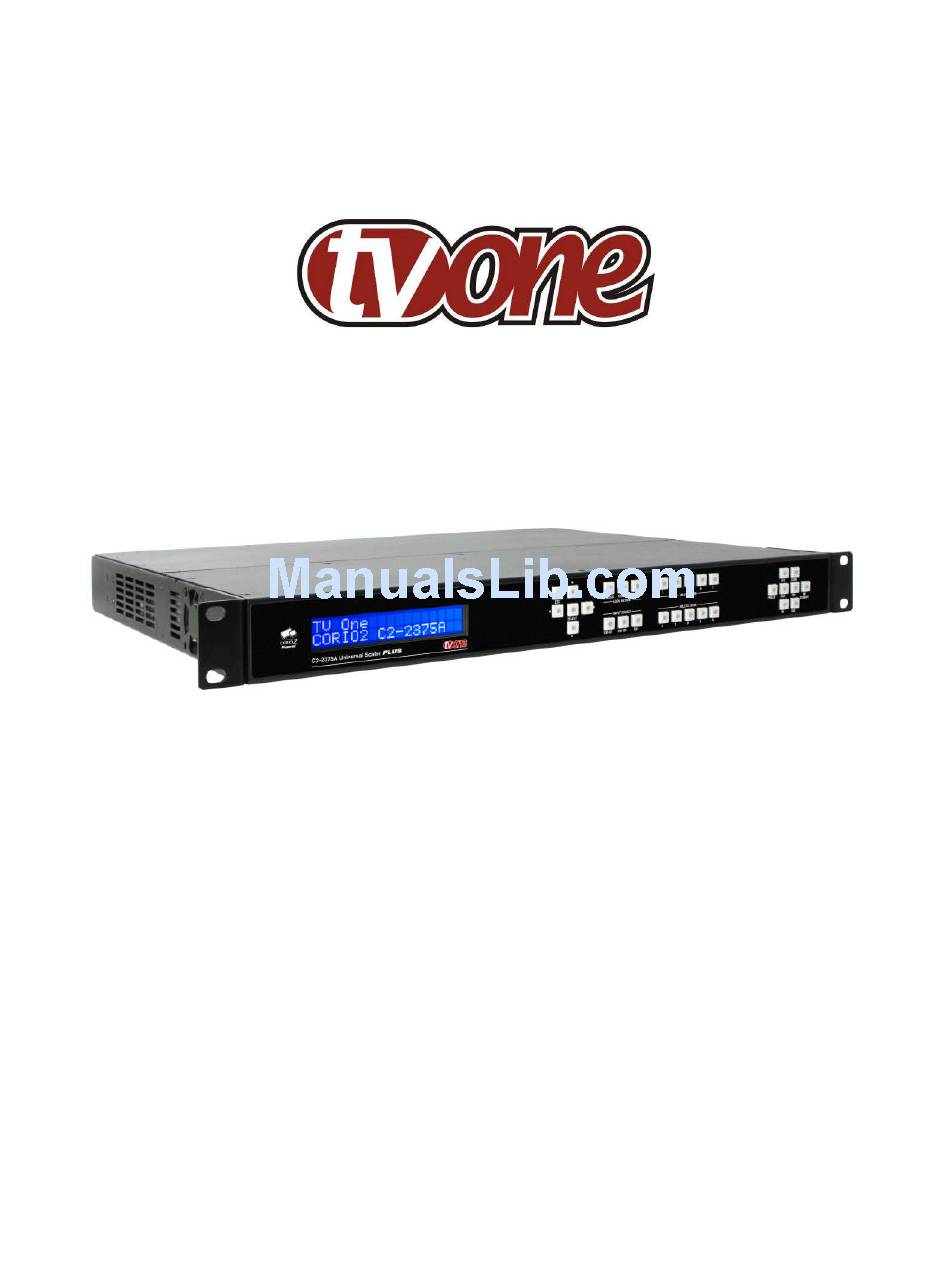

C2-2375A S
O
M
ERIES
PERATION
ANUAL
C2-2375A
Universal Scaler PLUS
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2-2375A Series and is the answer not in the manual?

Questions and answers

Related Manuals for TV One C2-2375A Series

Summary of Contents for TV One C2-2375A Series

  • Page 1 C2-2375A S ERIES PERATION ANUAL C2-2375A Universal Scaler PLUS Operation Manual...

  • Page 2: Table Of Contents

    C2-2375A S ERIES PERATION ANUAL TABLE OF CONTENTS DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTIONS ............3 CAPABILITY, DEVICE FEATURES AND PRODUCT FEATURES ..... 19 Device Capabilities....................
  • Page 3 C2-2375A S ERIES PERATION ANUAL 8.4.2 ‘Aspect adjust’ = ‘Advanced’................40 8.4.3 ‘Aspect adjust’ = ‘Pixel’ ..................40 Items Associated with the Adjust keyers group..........41 Items Associated with the Adjust sources group..........43 8.6.1 Menu items common to all inputs ..............43 8.6.2...
  • Page 4 C2-2375A S ERIES PERATION ANUAL 11.5 The Output image is distorted................86 11.6 Some colors appear to be incorrect on the CV/YC output........86 11.7 How can I reduce color smearing on CV connections?........86 11.8 I can no longer adjust the Output image resolution..........86 11.9...
  • Page 5 C2-2375A S ERIES PERATION ANUAL 16 CONTACT INFORMATION................. 96...

  • Page 6: Disclaimer

    C2-2375A S ERIES PERATION ANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in...

  • Page 7: Manual Version Information

    Release Date: November, 2010 Manual Copyright Notice This Operation Manual is the intellectual property of TV One, ©2006, 2007, 2008, 2009, 2010. No portion of this manual may be copied or reproduced in any manner or by any means, including, but not limited to electronic and electro-mechanical,...

  • Page 8: Important Safety Instructions

    C2-2375A S ERIES PERATION ANUAL IMPORTANT SAFETY INSTRUCTIONS To insure the best from this product, please read this manual carefully.  Read these instructions  Keep these Instructions  Heed all warnings  Follow all instructions  Do not use this apparatus near water ...
  • Page 9 If you did not receive the correct plug, DO NOT attempt to modify it. Instead, immediately contact your dealer or contact TV One at the sales office nearest to your geographic location and request the proper plug.
  • Page 10 C2-2375A S ERIES PERATION ANUAL CONSIGNE IMPORTANTE DE SECURITE Pour obtenir les meilleures performances avec ce produit, nous vous demandons de lire soigneusement ce manuel.  Lisez ces consignes  Conservez ces consignes  Respectez tous les avertissements  Respectez toutes les consignes ...
  • Page 11 Si vous n'avez pas reçu la bonne prise, N'ESSAYEZ PAS de la modifier. Vous devez au contraire immédiatement contacter votre revendeur ou le bureau de vente TV One le plus proche de chez vous pour demander la bonne prise. 2. 1 Propriété...
  • Page 12 C2-2375A S ERIES PERATION ANUAL WICHTIGE SICHERHEITSANWEISUNGEN Lesen Sie diese Bedienungsanleitung sorgfältig, um zu gewährleisten, dass Sie den optimalen Nutzen aus diesem Produkt ziehen.  Lesen Sie diese Anweisungen.  Bewahren Sie diese Anweisungen auf.  Beachten Sie alle Warnhinweise.
  • Page 13 Falls Sie nicht den richtigen Stecker erhalten haben, versuchen Sie NICHT, ihn zu ändern. Setzen Sie sich stattdessen mit Ihrem Fachhändler oder der Verkaufsniederlassung von TV One in Verbindung, die sich am nächsten an Ihrem Wohnort befindet, und fordern Sie den richtigen Stecker an.

  • Page 14: Instrucciones Importantes De Seguridad

    C2-2375A S ERIES PERATION ANUAL INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para garantizar el máximo rendimiento de este producto, lea cuidadosamente este manual.  Lea estas instrucciones  Guarde estas instrucciones  Respete todas las advertencias  Siga todas las instrucciones ...
  • Page 15 PERATION ANUAL Si no ha recibido la clavija correcta, NO intente modificarla. Póngase inmediatamente en contacto con su distribuidor o con TV One en la oficina de ventas más cercana a su localización geográfica y solicite la clavija adecuada. Propiedad intelectual Algunos chips con circuitos integrados presentes en este producto incluyen propiedad confidencial y/o secreta del sector.
  • Page 16 C2-2375A S ERIES PERATION ANUAL BELANGRIJKE VEILIGHEIDSINSTRUCTIE Om dit product optimaal te kunnen gebruiken, dient u deze handleiding aandacht te lezen.  Lees deze instructies  Bewaar deze instructies  Let op alle waarschuwingen  Volg alle instructies  Gebruik dit apparaat niet in de nabijheid van water ...
  • Page 17 Als u niet de juiste stekker hebt ontvangen, breng dan zelf GEEN wijzigingen aan. Neem in plaats daarvan direct contact op met uw dealer of met de afdeling verkoop van TV One die zich het dichtst bij u in de buurt bevindt en vraag om de juiste stekker.
  • Page 18 C2-2375A S ERIES PERATION ANUAL VIKTIGA SÄKERHETSANVISNINGAR För att få ut det bästa av din produkt bör du läsa denna bruksanvisning noggrant.  Läs dessa anvisningar  Spara dessa anvisningar  Rätta dig efter alla varningar  Följ alla instruktioner ...
  • Page 19 C2-2375A S ERIES PERATION ANUAL Intellektuell egendom Vissa IC-chip i denna produkt innehåller konfidentiellt material och/eller företagshemligheter. Du får därför inte kopiera, modifiera, anpassa, översätta eller distribuera innehållet eller använda reverse engineering, assemblering eller dekompilering på det.
  • Page 20 C2-2375A S ERIES PERATION ANUAL VIKTIGE SIKKERHETSANVISNINGER For at du skal få mest mulig ut av dette produktet, ber vi deg lese denne håndboken nøye.  Les disse anvisningene.  Ta vare på disse anvisningene.  Vær oppmerksom på alle anvisningene.
  • Page 21 Hvis du har fått feil støpsel, må du IKKE forsøke å modifisere det. I stedet må du straks kontakte forhandleren eller nærmeste salgskontor for TV One og be om riktig type støpsel. Opphavsrett Noen av IC-brikkene i dette produktet inneholder fortrolig informasjon og/eller fabrikkhemmeligheter.
  • Page 22 C2-2375A S ERIES PERATION ANUAL TÄRKEITÄ TURVALLISUUSOHJEITA Lue tämä opaskirja huolellisesti, jotta saat parhaan hyödyn tästä tuotteesta.  Lue nämä ohjeet  Säilytä nämä ohjeet  Ota kaikki varoitukset huomioon  Noudata kaikkia ohjeita  Älä käytä tätä laitetta veden lähellä...
  • Page 23 ERIES PERATION ANUAL Jos laitteen pistoke on väärä, ÄLÄ yritä muunnella sitä. Ota heti yhteys jälleenmyyjään tai lähimpään TV One -myyntikonttoriin ja pyydä oikeaa pistoketta. Immateriaaliomaisuus Jotkut tässä tuotteessa olevat IC-sirut sisältävät luottamuksellista ja/tai liikesalaisuusomaisuutta. Sen tähden sisältöä ei saa kopioida, muokata, kääntää,...

  • Page 24: Capability, Device Features And Product Features

    Ultimate flexibility The C2-2375A output signal format flexibility assures that the Native Resolution of virtually any display can be matched. Because of the resolution calculator (included in the CORIOtools suite), even new resolutions can be added to the unit. Signal parameter adjustments can be made for each video input and are stored in individual non-volatile memories for retrieval once the unit’s power has been...
  • Page 25 Upgradeability The C2-2375A also benefits from firmware upgradeability, thus reducing product obsolescence by allowing the installation of the latest version of firmware. This not only applies to the software used to control the unit, but also to the range of resolutions stored inside the unit, the addition of new features, and upgrades to the ®...

  • Page 26: Product Images

    C2-2375A S ERIES PERATION ANUAL PRODUCT IMAGES...

  • Page 27: Unpacking And Installation

    If you did not receive the correct cable, DO NOT attempt to modify it. Instead, immediately contact your dealer or contact TV One at the sales office nearest to your geographic location and request the proper cable.

  • Page 28: Front Panel Controls

    C2-2375A S ERIES PERATION ANUAL FRONT PANEL CONTROLS The range of buttons on the front of the unit provides the user with quick access for selecting a variety of inputs and features. The cross-hair (up/down/left/right) buttons on the front panel provides the user with a way of navigating the Liquid Crystal Display menus (LCD) which is detailed in a later section.

  • Page 29: Special Button Combinations And Functions

    C2-2375A S ERIES PERATION ANUAL Button Button Function Menu navigation Up / down / left / right / SELECT allow quick and easy access to & adjustment various menu settings. Press and hold SELECT to store buttons. current settings into memory. They will then be restored on power-on, or when a Restore is done.

  • Page 30: Saving Current Settings

    C2-2375A S ERIES PERATION ANUAL 6.2.1 Saving current settings Press and hold the SELECT button until a beep is heard and the unit shows ‘Settings stored’. 6.2.2 Locking front panel buttons & IR remote control This can be performed by pressing STANDBY/ON and FREEZE at the same time.

  • Page 31: Video Inputs And Outputs

    C2-2375A S ERIES PERATION ANUAL VIDEO INPUTS AND OUTPUTS The diagrams below show the left and right-hand halves of the rear panel. Computer & Video inputs The DVI-U inputs can accept:  Digital DVI-D or HDMI signals  Analog Composite Video ...

  • Page 32: Computer & Video Outputs

    C2-2375A S ERIES PERATION ANUAL The DVI-D input accepts DVI digital connections (but on a DVI-I socket for added flexibility). An EDID signal is used to ensure that the PC or DVD player outputting the DVI signal knows the available range of resolutions in the unit.

  • Page 33: Genlock Input

    C2-2375A S ERIES PERATION ANUAL The SDI output is active whenever the ‘Output res’ in ‘Adjust output 1’ is set to an SD/HD or 3G-SDI compatible resolution. Typically these are PAL, NTSC, 720p, 1080i and 1080p resolutions. Both SDI outputs are identical, and follow whatever Output 1 (e.g. DVI-U output 1) is showing.

  • Page 34: Menu Layout And Settings Adjustment

    C2-2375A S ERIES PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure employed in the C2-22375A and, more importantly, the individual menu items that allow you to take advantage of the power of the unit.

  • Page 35: Group Names And Descriptions

    C2-2375A S ERIES PERATION ANUAL function is related to a specific operational area of the unit, detailed by the text in the top line. There are two screens that appear before the Group Menus (sub-menus) are accessed. TV One C2-2375A The first is the ‘welcome’...

  • Page 36: Adjust Presets Menu Item

    C2-2375A S ERIES PERATION ANUAL 2. This unit has two outputs which have been split into two menus ‘Adjust output 1’ and ‘Adjust output 2’. The manual details both of these menus in the single section ‘Adjust outputs’. Adjust presets menu item Presets allow you to store up to 10 different setups of window size, position and keying controls.
  • Page 37 C2-2375A S ERIES PERATION ANUAL selected lock source (RGB1 in this example). The lock mode can be either Off, Genlock or Lock & Mix, with the operation of these shown in the following table: Lock mode Description The output resolution of the Output is defined by the setting for Output Resolution and there will be no background source visible.
  • Page 38 C2-2375A S ERIES PERATION ANUAL 1024 x 768 60Hz Output res. [28] Your unit can handle a very wide array of inputs and convert them all to a single output signal with defined characteristics. This output resolution will remain in place until changed or it may be overridden by the lock mode and source.
  • Page 39 C2-2375A S ERIES PERATION ANUAL Status Description Effect message No display There is no display attached Nothing will be output on the DVI connector. (HOTPLUG is low). Unavailable The device attached is not As the DVI output cannot be HDCP encrypted, then capable of support ing HDCP.

  • Page 40: Items Associated With The Adjust Windows Group

    C2-2375A S ERIES PERATION ANUAL source’s input – hence it should be turned Off it the CV/YC outputs are going to be used. Adjust outputs Stand. [NTSC-M/PAL-BDGHI] This menu item is only available when the Output resolution is set to PAL or NTSC.
  • Page 41 C2-2375A S ERIES PERATION ANUAL Adjust windows Window to adjust This menu item only appears on units with multiple windows or PIPs. It is used to select which one you want to modify. Alternatively, use one of the dedicated buttons on the front panel to choose the window to adjust.
  • Page 42 C2-2375A S ERIES PERATION ANUAL available on certain models), where the incoming video signal has a letterbox or pillarbox size (i.e. it has black areas at the top/bottom or sides). By adjusting the H/V values, you can crop out the black areas to correct the size on the final output screen.
  • Page 43 C2-2375A S ERIES PERATION ANUAL Adjust windows Temporal interp. [Off] This is a feature only present in advanced units only. It greatly improves the method of frame-rate conversion, by allowing the unit to merge frames together during the process. When ‘Off’, the unit will use frame-repetition when converting 50Hz to 60Hz (i.e. it has to duplicate every 5th frame), or frame-dropping when converting 60Hz to 50Hz (i.e.

  • Page 44: Extended Scaling Controls

    C2-2375A S ERIES PERATION ANUAL Units that support source labeling have this menu item available, which allows the label to be turned on or off on a window-by-window basis. Adjust windows Audio bars Certain units can display audio bar measurements and this menu item displays how many stereo-bars are shown.

  • Page 45: Aspect Adjust' = 'Advanced

    C2-2375A S ERIES PERATION ANUAL Simple Advanced Pixel Zoom level % [100] Zoom H/V [100]100 1.333:1 In [ 0],0 640,480 H/V zoom pan% [50] 50 H/V zoom pan% [50] 50 Out [ 0],0 640,480 H/V crop % [ 0] 0...

  • Page 46: Items Associated With The Adjust Keyers Group

    C2-2375A S ERIES PERATION ANUAL These menu items work together to specify the exact co-ordinates and size of the source image (within the video source) and the position and size of where this is placed in the output video signal – in other words the ‘In’ and ‘Out’ positions and sizes.
  • Page 47 C2-2375A S ERIES PERATION ANUAL This menu item allows you to swap the foreground and background images when Lock mode is set to Lock & Mix. It will have no effect in any other mode (since no background is present).

  • Page 48: Items Associated With The Adjust Sources Group

    C2-2375A S ERIES PERATION ANUAL The Y Key invert changes the keying characteristics with respect to what colors of the foreground image you wish to ‘key out’. Setting it to Off will cause the colour range that’s defined to be removed - remove the desired colors.
  • Page 49 C2-2375A S ERIES PERATION ANUAL Setting Result Fill The source is stretched to fill the output. (default) Aspect The source’s aspect ratio is maintained on the output. H-fit The source is stretched to fill the horizontal dimension of the output, with the vertical dimension stretched by the same amount (and possibly clipped).
  • Page 50 C2-2375A S ERIES PERATION ANUAL In most situations, the Audio input values would be different for each video source – so that when the first video source is selected, so is the first audio source (this is called ‘audio follow video’). The second video source then selects the second audio source, etc.

  • Page 51: Dvi Source Menu Items

    C2-2375A S ERIES PERATION ANUAL Mode Function Normal/weave The two interlaced fields are simply combined/weaved together. This will often show artifacts on moving images, but can be used when the input is known to be still. Auto Automatically selects Film 3:2 or Medium Range Motion Compensation (M.
  • Page 52 C2-2375A S ERIES PERATION ANUAL Status Description Effect message Inactive HDCP is not active HDCP-encrypted material cannot be received at the DVI by the unit. connector. Active HDCP is active at HDCP-encrypted material can be received by the DVI connector.

  • Page 53: Rgb Source Menu Items

    C2-2375A S ERIES PERATION ANUAL It should also be noted that some graphic cards will require your PC to be re-booted before they see that a change has occurred. If your unit allows ‘HDMI’ to be selected, this can also enable certain audio features depending on the abilities of your unit.

  • Page 54: Cv & Yc Source Menu Items

    C2-2375A S ERIES PERATION ANUAL pixel phase adjustment allows you to change the position (from 0 to 31) where the pixels are sampled, relative to the horizontal sync signal. To make this adjustment, select an RGB source and then provide an image from that source with fine detail, preferably with very sharp vertical lines.

  • Page 55: Still Image Store / Testcard Source Menu Items

    C2-2375A S ERIES PERATION ANUAL Saturation is the amount of color present in the image. Hue is the color “tint” parameter and the adjustment range is +90 degrees through to -90 degrees with 0 being the default. Source: YC1 Sharpness Within limits, you can enhance or soften the appearance of detail within an image.

  • Page 56: Items Associated With The Adjust Ethernet Group

    C2-2375A S ERIES PERATION ANUAL Adjust transitions Transition [Fade] This first adjustment controls the type of transition desired: ‘Cut’, ‘Fade’, ‘Wipe’ or ‘Push’. If you select ‘Cut’ or ‘Fade’, the only remaining menu items will be ‘Switching Fade Time’ and ‘Exit’. Selecting ‘Wipe’ or ‘Push’ exposes additional parameters.
  • Page 57 C2-2375A S ERIES PERATION ANUAL The network itself is usually segmented into a number of sub-networks. Small offices will generally just use one sub-network, with larger ones running many sub- networks that are linked together across a sub-network bridge. Sub-networks are split up by assigning different ranges of IP addresses to the different sub-networks.

  • Page 58: Items Associated With The Adjust Resolutions Group

    C2-2375A S ERIES PERATION ANUAL The IP address must be a unique address on your network, and also must be within the sub-net of your network. If you are unsure about which IP address to use or don’t have a unique IP address, ask your Network Administrator.
  • Page 59 C2-2375A S ERIES PERATION ANUAL TRY USING THE AUTOSET, SHRINK, SHRINK POS, TL & BR ADJUSTMENTS FIRST. Making adjustments here risks creating a non-standard resolution that is not displayable on a monitor. The resolutions and values within the database are industry standards and should not normally be altered by the user.
  • Page 60 C2-2375A S ERIES PERATION ANUAL 800 x 600 60 Hz Clks/l [1056] = 40.000MHz This option changes the total number of image pixels on one line of monitor video including the Horizontal sync pulse and blanking time. This is normally in a multiple of 8.

  • Page 61: Items Associated With The System Group

    C2-2375A S ERIES PERATION ANUAL 800 x 600 60 Hz H/V Sync [ 128] x 4 There are standards for all current computer and broadcast resolutions that specify the correct width of both Vertical and Horizontal synchronizing pulses. If you are creating a special, non-standard resolution, you may wish to adjust the pulse width to fit your new requirements.
  • Page 62 C2-2375A S ERIES PERATION ANUAL System SW date: 2006-7-11 This is an information page showing when the currently installed software was released. The information is useful to the user as he or she compares the date to the website information describing the current software release.
  • Page 63 C2-2375A S ERIES PERATION ANUAL System LED brightness % [ 90] This parameter is available on certain units and controls how bright the LEDs on the front panel appear. System LCD backlight [On] This parameter is available on certain units and allows the LCD backlight to be turned on and off.
  • Page 64 C2-2375A S ERIES PERATION ANUAL System Buzzer [ On] The screen labeled ‘Buzzer’ is actually the control for turning the “Beep” “On” or “Off”. Normally this is left in the “On” position to provide positive feedback that your data entries and parameter changes have been accepted.
  • Page 65 C2-2375A S ERIES PERATION ANUAL System Hours in Use This is another informational display for usage audit purposes. System Temp.C 30 33 43 45 Certain units have built-in temperature sensors, and if yours has such a feature then the above menu item will appear. If the ambient temperature of the internal components becomes excessively high or low, the unit will shut down to prevent harm.

  • Page 66: Serial Port

    C2-2375A S ERIES PERATION ANUAL SERIAL PORT Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’ plug on them.
  • Page 67 C2-2375A S ERIES PERATION ANUAL Note: Any command you send to the unit will be replied to either with an error code or with the actual changed value. This may be different to the one you sent; for example, if trying to set a value too high or too low.

  • Page 68: Serial / Ip Control Specification

    C2-2375A S ERIES PERATION ANUAL SERIAL / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support Serial and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via a Serial or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 69: Packet Format

    C2-2375A S ERIES PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 70 C2-2375A S ERIES PERATION ANUAL returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use.

  • Page 71: Function List

    C2-2375A S ERIES PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 72 C2-2375A S ERIES PERATION ANUAL Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16...
  • Page 73 C2-2375A S ERIES PERATION ANUAL 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp. Volume -16 to 15 AES/SDI Chan.
  • Page 74 C2-2375A S ERIES PERATION ANUAL In (top-left H) In (top-left V) In (H size) In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High...
  • Page 75 C2-2375A S ERIES PERATION ANUAL E.blnd size H 0.. limited by H width E.blnd size V 0.. limited by V height E.blnd gamma H 1..150 1=0.01, 150=1.50 E.blnd gamma V 1..150 1=0.01, 150=1.50 E.blnd comp cent 0..99 E.blnd comp side 0..99...
  • Page 76 C2-2375A S ERIES PERATION ANUAL Label H. Size 10..5F 249 0..8 Label V. Size 10..5F 24A 0..8 Label H. Position 10..5F 24D 0..3 (Off / Left / Center / Right) Label V. Position 10..5F 24E 0..3 (Off / Top / Middle / Bottom) Label char.
  • Page 77 C2-2375A S ERIES PERATION ANUAL M.comp.med., M.comp.high, Frame/bob (Film mode detected) 10..FF 0E3 0..1 = Not detected, Detected Diagonal interpolation 10..FF 22B 0..1 = Off, On Noise reduction 10..5F 23F 0..1 = Off, On Bright 30..5F 0BB 0..180 Contrast 30..5F 0BC 0..180...
  • Page 78 C2-2375A S ERIES PERATION ANUAL 1 = Normal 2 = Presets Tally input number 1 to 8 Tally preset to load 1 to 50 Adjust resolutions Note: You MUST set the 'Image to adjust' value to the correct value first, and only then change the other values - otherwise you may be adjusting the wrong entry.

  • Page 79: Examples

    C2-2375A S ERIES PERATION ANUAL Number of logos Read only Board temp. (deg.C) Read only Air temp. (deg.C) Read only Regulators temp.(deg.C) Read only PLD temp. (deg.C) Read only Fan speed (rpm) Read only Led brightness 0..100 LCD backlight 0..1 = Off, On...

  • Page 80: Reading And Writing Macros

    C2-2375A S ERIES PERATION ANUAL SOP CMD CHA WIN OUT FUN PAY CS EOP SOP CMD CHA WIN OUT FUN PAY CS EOP Set output 1 window B Source to RGB2 000011 D9 CR 000011 19 CR Set output 1 window A to Enable advanced aspect...

  • Page 81: Reading A Previously Stored Macro

    C2-2375A S ERIES PERATION ANUAL Menu text CHA FUNC Range of adjustment (decimal) (Hex) Macro Run macro 0..7 F1 0..1 = Run, Erase macro Number of items within 0..7 F4 Read Only macro Function to adjust 0..7 F2 0..4095 Value 0..7 F3...

  • Page 82: Run And Restore Macros

    C2-2375A S ERIES PERATION ANUAL 000001 3A CR 000001 7A CR Write the function for first item in macro 3 = Zoom 000086 C1 CR 000011 01 CR Write data for the first item = 100 000064 9E CR 000011 DE CR...
  • Page 83 C2-2375A S ERIES PERATION ANUAL Set to 720p 59.94Hz output 0000EB Set to 720p 60Hz output 0000EC Cycle presets (demo mode) 0100EE Select DVI-I1 as source 000200 Select DVI-I2 as source 000201 Select DVI-I3 as source 000202 Select DVI-I4 as source...
  • Page 84 C2-2375A S ERIES PERATION ANUAL Run Macro 5 00021D Run Macro 6 000267 Run Macro 7 000268 Add to Macro 1 020119 Add to Macro 2 02011A Add to Macro 3 02011B Add to Macro 4 02011C Add to Macro 5...
  • Page 85 C2-2375A S ERIES PERATION ANUAL Select CV1 as source for window A 00023F Select CV2 as source for window A 000240 Select CV3 as source for window A 000241 Select YC1 as source for window A 000242 Select YC2 as source for window A...
  • Page 86 C2-2375A S ERIES PERATION ANUAL Select RGB2 as source 00027D Select YUV1 as source 000264 Logo 1A toggle on/off 000265 Logo 2B toggle on/off 000266 Window 1A toggle on/off 00026D Window 2B toggle on/off 00026E Go to Lock menu item...

  • Page 87: Reset Command

    C2-2375A S ERIES PERATION ANUAL Erase Preset 3 280193 Erase Preset 4 280194 Erase Preset 5 280195 Erase Preset 6 280196 Erase Preset 7 280197 Erase Preset 8 280198 Erase Preset 9 280199 Erase Preset 10 28019A Set output to BLACK...

  • Page 88: Common Operations

    C2-2375A S ERIES PERATION ANUAL COMMON OPERATIONS This section provides step by step instructions for some common operations. 10.6 Operation of the Keyer Some units come equipped with a very powerful Luminance and Chrominance Keyer. The Keyer can take some time to master and below is a breakdown and series of simple steps to help you master the Keyer’s operation...
  • Page 89 C2-2375A S ERIES PERATION ANUAL to decrease the ‘min’ values and increase the ‘max’ values to broaden the range of colors keyed out. At this point, only the key color should remain transparent.

  • Page 90: Troubleshooting And Technical Support

    C2-2375A S ERIES PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of...

  • Page 91: There Is Excessive Flicker On The Output

    C2-2375A S ERIES PERATION ANUAL 11.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 92: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    C2-2375A S ERIES PERATION ANUAL 11.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 93: Return Procedure

    12.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued. You should...
  • Page 94 C2-2375A S ERIES PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in...

  • Page 95: Warranty Policy

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This...

  • Page 96: Connector Pinouts

    C2-2375A S ERIES PERATION ANUAL CONNECTOR PINOUTS 14.1 DVI-U connector PIN# SIGNAL PIN# SIGNAL T.M.D.S DATA 2- HOT PLUG DETECT T.M.D.S DATA 2+ T.M.D.S DATA 0- T.M.D.S 2/4 SHIELD T.M.D.S DATA 0+ Not used T.M.D.S DATA 0/5 SHIELD Not used...
  • Page 97 C2-2375A S ERIES PERATION ANUAL You can select the serial standard in the ‘System’ menu.

  • Page 98: Specifications

    C2-2375A S ERIES PERATION ANUAL SPECIFICATIONS 15.1 Video Inputs Connection: (CV, YC on DVI-U or BNC break-outs) Input impedance: 75 Ohm Television standards supported: NTSC and PAL CV/YC video decoder: 8-bit Digital De-Interlacing (NTSC / PAL up-conversion only): pixel-level motion adaptive with...

  • Page 99: Computer Digital Outputs

    C2-2375A S ERIES PERATION ANUAL Composite Video 1v p-p S-Video (YC) 1v p-p 15.6 Computer Digital Outputs Connection: DVI-D on DVI-I connector, supporting up to 162MHz maximum clock/pixel rate (1920x1200 @ 60Hz). C2-2000A series units with DVI input and output support HDCP.

  • Page 100: Reliability

    C2-2375A S ERIES PERATION ANUAL 15.11 Reliability MTBF has been calculated to be 35,000+ hours 15.12 Warranty See warranty policy for further details. 15.13 Regulatory Compliance Main unit conforms to FCC, CE, RoHS 15.14 Environmental Operating Temperature 0° to +50° C (+32° to +122° F) Operating Humidity 10% to 85%, Non-condensing Storage Temperature -10°...

  • Page 101: Contact Information

    PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...
