  • Page 1 C2-6000 S ERIES PERATION ANUAL C2-6000 Series Video Processor Operation Manual...

  • Page 2: Table Of Contents

    C2-6000 S ERIES PERATION ANUAL TABLE OF CONTENTS DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTION............3 CAPABILITY, DEVICE FEATURES AND PRODUCT FEATURES ..... 19 Device Capabilities.................... 19 Device Features ....................
  • Page 3 C2-6000 S ERIES PERATION ANUAL Items Associated with the Adjust outputs group..........31 Items Associated with the Adjust windows group..........34 8.4.1 Extended scaling controls.................. 38 8.4.2 ‘Aspect adjust’ = ‘Advanced’................38 8.4.3 ‘Aspect adjust’ = ‘Pixel’ ..................39 Items Associated with the Adjust keyers group..........40 Items Associated with the Adjust borders group ..........
  • Page 4 C2-6000 S ERIES PERATION ANUAL 11.1.2 Adjustment: ....................... 83 12 TROUBLESHOOTING AND TECHNICAL SUPPORT ........ 85 12.1 There is no picture on the Output..............85 12.2 The image is shifted and not fully viewable............85 12.3 The output resolutions no longer appear as expected........85 12.4 There is excessive flicker on the Output.
  • Page 5 C2-6000 S ERIES PERATION ANUAL 16.12 Accessories Included..................94 16.13 Mechanical ......................95 16.14 Optional Accessories..................95 17 CONTACT INFORMATION................. 96...

  • Page 6: Disclaimer

    DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in flight or as an adjunct to any surface, airborne or marine navigation system or any offshore marine activity, including control of any watercraft, or any use similar to those specifically herein mentioned is prohibited.

  • Page 7: Manual Version Information

    Caution: This equipment is intended for use in the manner prescribed in the Instruction Manual. Any user changes or modifications not expressly approved by TV One Multimedia Solutions could void the user’s authority to operate the equipment. Connecting this equipment to external devices requires no specially shielded cabling for FCC compliance.

  • Page 8: Important Safety Instruction

    C2-6000 S ERIES PERATION ANUAL IMPORTANT SAFETY INSTRUCTION To insure the best from this product, please read this manual carefully.  Read these instructions  Keep these Instructions  Heed all warnings  Follow all instructions  Do not use this apparatus near water ...
  • Page 9 PERATION ANUAL If you did not receive the correct plug, DO NOT attempt to modify it. Instead, immediately contact your dealer or contact TV One at the sales office nearest to your geographic location and request the proper plug. 2. 1...
  • Page 10 C2-6000 S ERIES PERATION ANUAL CONSIGNE IMPORTANTE DE SECURITE Pour obtenir les meilleures performances avec ce produit, nous vous demandons de lire soigneusement ce manuel.  Lisez ces consignes  Conservez ces consignes  Respectez tous les avertissements  Respectez toutes les consignes ...
  • Page 11 Si vous n'avez pas reçu la bonne prise, N'ESSAYEZ PAS de la modifier. Vous devez au contraire immédiatement contacter votre revendeur ou le bureau de vente TV One le plus proche de chez vous pour demander la bonne prise. 2. 1 Propriété...
  • Page 12 C2-6000 S ERIES PERATION ANUAL WICHTIGE SICHERHEITSANWEISUNGEN Lesen Sie diese Bedienungsanleitung sorgfältig, um zu gewährleisten, dass Sie den optimalen Nutzen aus diesem Produkt ziehen.  Lesen Sie diese Anweisungen.  Bewahren Sie diese Anweisungen auf.  Beachten Sie alle Warnhinweise. ...
  • Page 13 Falls Sie nicht den richtigen Stecker erhalten haben, versuchen Sie NICHT, ihn zu ändern. Setzen Sie sich stattdessen mit Ihrem Fachhändler oder der Verkaufsniederlassung von TV One in Verbindung, die sich am nächsten an Ihrem Wohnort befindet, und fordern Sie den richtigen Stecker an.
  • Page 14 C2-6000 S ERIES PERATION ANUAL INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para garantizar el máximo rendimiento de este producto, lea cuidadosamente este manual.  Lea estas instrucciones  Guarde estas instrucciones  Respete todas las advertencias  Siga todas las instrucciones  No use este aparato cerca del agua ...
  • Page 15 Si no ha recibido la clavija correcta, NO intente modificarla. Póngase inmediatamente en contacto con su distribuidor o con TV One en la oficina de ventas más cercana a su localización geográfica y solicite la clavija adecuada. Propiedad intelectual Algunos chips con circuitos integrados presentes en este producto incluyen propiedad confidencial y/o secreta del sector.
  • Page 16 C2-6000 S ERIES PERATION ANUAL BELANGRIJKE VEILIGHEIDSINSTRUCTIE Om dit product optimaal te kunnen gebruiken, dient u deze handleiding aandacht te lezen.  Lees deze instructies  Bewaar deze instructies  Let op alle waarschuwingen  Volg alle instructies  Gebruik dit apparaat niet in de nabijheid van water ...
  • Page 17 Als u niet de juiste stekker hebt ontvangen, breng dan zelf GEEN wijzigingen aan. Neem in plaats daarvan direct contact op met uw dealer of met de afdeling verkoop van TV One die zich het dichtst bij u in de buurt bevindt en vraag om de juiste stekker.
  • Page 18 C2-6000 S ERIES PERATION ANUAL VIKTIGA SÄKERHETSANVISNINGAR För att få ut det bästa av din produkt bör du läsa denna bruksanvisning noggrant.  Läs dessa anvisningar  Spara dessa anvisningar  Rätta dig efter alla varningar  Följ alla instruktioner ...
  • Page 19 C2-6000 S ERIES PERATION ANUAL Om du inte fick rätt stickkontakt FÅR DU INTE försöka anpassa den. Kontakta i stället omedelbart butiken eller TV Ones närmaste försäljningsställe och be att få rätt stickkontakt. Intellektuell egendom Vissa IC-chip i denna produkt innehåller konfidentiellt material och/eller företagshemligheter.
  • Page 20 C2-6000 S ERIES PERATION ANUAL VIKTIGE SIKKERHETSANVISNINGER For at du skal få mest mulig ut av dette produktet, ber vi deg lese denne håndboken nøye.  Les disse anvisningene.  Ta vare på disse anvisningene.  Vær oppmerksom på alle anvisningene. ...
  • Page 21 Hvis du har fått feil støpsel, må du IKKE forsøke å modifisere det. I stedet må du straks kontakte forhandleren eller nærmeste salgskontor for TV One og be om riktig type støpsel. Opphavsrett Noen av IC-brikkene i dette produktet inneholder fortrolig informasjon og/eller fabrikkhemmeligheter.
  • Page 22 C2-6000 S ERIES PERATION ANUAL TÄRKEITÄ TURVALLISUUSOHJEITA Lue tämä opaskirja huolellisesti, jotta saat parhaan hyödyn tästä tuotteesta.  Lue nämä ohjeet  Säilytä nämä ohjeet  Ota kaikki varoitukset huomioon  Noudata kaikkia ohjeita  Älä käytä tätä laitetta veden lähellä ...
  • Page 23 ERIES PERATION ANUAL Jos laitteen pistoke on väärä, ÄLÄ yritä muunnella sitä. Ota heti yhteys jälleenmyyjään tai lähimpään TV One -myyntikonttoriin ja pyydä oikeaa pistoketta. Immateriaaliomaisuus Jotkut tässä tuotteessa olevat IC-sirut sisältävät luottamuksellista ja/tai liikesalaisuusomaisuutta. Sen tähden sisältöä ei saa kopioida, muokata, kääntää, jakaa, takaisinmallintaa, mallintaa symbolisella konekielellä...

  • Page 24: Capability, Device Features And Product Features

    CAPABILITY, DEVICE FEATURES AND PRODUCT FEATURES Device Capabilities ® The C2-6000 series uses four proprietary CORIO 2 scaling engines to perform its functions, offering a powerful toolset for any application requiring high quality video signal conversion or image manipulation. All units feature four video processing and scaling engines, with video mixing, keying, fading, and source-labeling capabilities.
  • Page 25 C2-6000 S ERIES PERATION ANUAL All units benefit from firmware upgradeability, thus reducing product obsolescence by allowing the installation of the latest version of firmware. This not only applies to the software used to control the unit, but also to the range of resolutions stored inside the unit, the addition of new features, and ®...

  • Page 26: Product Images

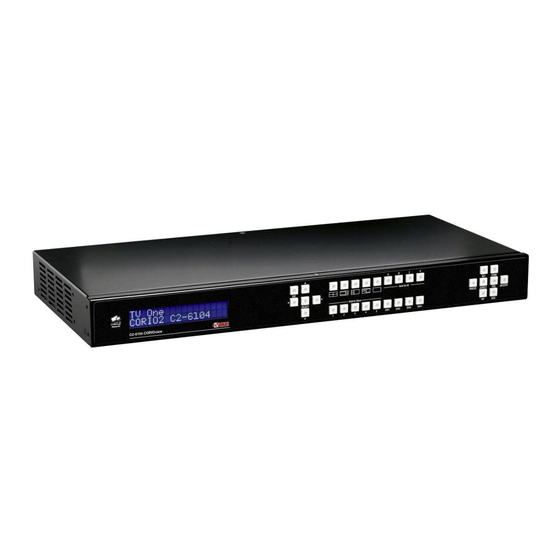

    C2-6000 S ERIES PERATION ANUAL PRODUCT IMAGES Your C2-6000 product should look like the unit below. The rear of the unit will vary depending on the model number, supporting different inputs and outputs.

  • Page 27: Unpacking And Installation

    If you did not receive the correct cable, DO NOT attempt to modify it. Instead, immediately contact your dealer or contact TV One at the sales office nearest to your geographic location and request the proper adaptor.

  • Page 28: Front Panel Controls

    The range of buttons on the front of the unit provides the user with quick access for selecting a variety of inputs and features. Since all the units in the C2-6000 series are different, some may show different input selection buttons than that shown below (e.g. DVI-I1 could be SDI1).

  • Page 29: Menu Navigation Buttons

    C2-6000 S ERIES PERATION ANUAL window. SIZE Jumps to the ‘Shrink’ menu item to allow the current window to be re-sized. STANDBY Hold in to put the unit into Standby (power-save) mode. Press once to come out of Standby mode. Menu navigation buttons The LCD is controlled from the front panel by using these buttons.

  • Page 30: Factory Reset

    C2-6000 S ERIES PERATION ANUAL 6.4.3 Factory Reset If you wish to restore all operational parameters to their original condition (for example, if saved settings prevent the unit from working with your display monitor), hold the STANDBY/ON and the SELECT button in together until two beeps are heard.

  • Page 31: Video Inputs And Outputs

    C2-6000 S ERIES PERATION ANUAL VIDEO INPUTS AND OUTPUTS C2-6104 This unit has 4x DVI-I inputs, 1x DVI-I background input and 1x DVI-I output. C2-6204 This unit has 4x SDI inputs, 1x DVI-I background input, 1x DVI-I output and 1x SDI output.

  • Page 32: Sdi/Hd/3G-Sdi Inputs (C2-6204 Only)

    C2-6000 S ERIES PERATION ANUAL SDI/HD/3G-SDI inputs (C2-6204 only) These are the available serial digital interface inputs supported:  270Mbit/s (standard definition, 480i, 576i)  1.485Gbit/s (720p, 1080i60 / 1080p30)  2.97Gbit/s (1080p60) Computer & Video outputs The DVI-I output supports: ...
  • Page 33 C2-6000 S ERIES PERATION ANUAL INPUT 1 Scaler & Keyer A Mixer Window A Scaler & Keyer B INPUT 2 Window B INPUT 3 Scaler & Keyer C Window C INPUT 4 Scaler & Keyer D Cross-point Window D Lock DVI-I Keyer Z source Z...

  • Page 34: Menu Layout And Settings Adjustment

    C2-6000 S ERIES PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure employed in the C2-6000 series and, more importantly, the individual menu items that allow you to take advantage of the power of the unit. You’ll be using the menu navigation buttons and the Liquid Crystal Display (LCD) to view the options and settings available to you.

  • Page 35: The High Level Menu Structure

    There are two screens that appear before the Group Menus (sub-menus) are accessed. CORIO2 TV One The first is the ‘welcome’ display shown above indicating the model of the unit. www.tvone.com SW: 65. PT: 12, BT: 13 Moving to the next menu item displays the firmware information screen (the numbers on your unit will be different to those shown).

  • Page 36: Items Associated With The Adjust Outputs Group

    C2-6000 S ERIES PERATION ANUAL Note that the ‘Advanced menus’ menu item must be ‘On’ to activate certain menu items. Items Associated with the Adjust outputs group This menu group allows adjustments to be made that specifically affect the output of the unit, including output resolution and locking/overlaying onto a computer or video source.
  • Page 37 C2-6000 S ERIES PERATION ANUAL source (e.g. NTSC), or for scaling one resolution to another while avoiding any potential frame-rate conversion artifacts. 'H/V shift' can be used to align the output to the input more accurately, but this may cause instability until the lock is re-acquired ('Frm.lock' will flash). Before turning the Lock feature on, you first must select a valid Lock source.
  • Page 38 C2-6000 S ERIES PERATION ANUAL Please also see the HDCP menu item in ‘Adjust sources’, as this controls availability of HDCP at the DVI input. The status message given in brackets has the following meaning: Status Description Effect message Unavailable The device attached is not As the DVI output cannot be HDCP encrypted, capable of supporting...

  • Page 39: Items Associated With The Adjust Windows Group

    C2-6000 S ERIES PERATION ANUAL or YC input may have a high jitter. However, this is not always compatible with a CV/YC output where the colour sub-carrier should not be de-jittered and needs to follow a Lock source’s input – hence it should be turned Off it the CV/YC outputs are going to be used.
  • Page 40 C2-6000 S ERIES PERATION ANUAL The source display screen allows the input source for the currently selected window to be changed. The top line of the display shows the detected characteristics of the signal. Valid Input sources match those available on the front of the unit.
  • Page 41 C2-6000 S ERIES PERATION ANUAL Adjust windows H/V out shift [ 0] [ 0] This positions the selected Window horizontally and vertically on the monitor. This should only be used for ‘fine tuning’ and should not normally require adjustment – use the Shrink H/V adjustment when your image is less than 100% Shrink value.
  • Page 42 C2-6000 S ERIES PERATION ANUAL When ‘Off’, the unit will use frame-repetition when converting 50Hz to 60Hz (i.e. it has to duplicate every 5th frame), or frame-dropping when converting 60Hz to 50Hz (i.e. it has to drop every 6 frame). When ‘On’, smooth blending is applied so that frames are not lost, but blended together at the appropriate times.

  • Page 43: Extended Scaling Controls

    C2-6000 S ERIES PERATION ANUAL This Menu item fades the selected layer, and is only available on models with overlay abilities. Adjustment range is from solid to fully transparent. Note: This menu item only appears on multi-channel scalers: Adjust Windows Layer priority abABZ [ 3] This adjustment selects the order of the window layers.

  • Page 44: Aspect Adjust' = 'Pixel

    C2-6000 S ERIES PERATION ANUAL This item allows the independent setting of the horizontal and vertical zoom values. The third number (1.333 in the example) is the Aspect Ratio resulting from the adjustments, which is automatically calculated for you based on the incoming resolution and the H &...

  • Page 45: Items Associated With The Adjust Keyers Group

    C2-6000 S ERIES PERATION ANUAL In the example above, ‘In’ has been set to 300,150 as its top-left source co- ordinate, with a size of 750,400. ‘Out’ has been set to 50,50 (i.e. close to the top left) with a size of 250,300. The scaler will then ensure that the whole of the source (of size 750 by 400) is scaled to the required output (of size 250 x 300).
  • Page 46 C2-6000 S ERIES PERATION ANUAL Input Lock Swap Foreground Background Output source source (keyed) (non-keyed) resolution NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC (XGA is 1024x768) You will see that the Swap between foreground and background has no effect on the output resolution as this is always set by the Lock source.

  • Page 47: Items Associated With The Adjust Borders Group

    C2-6000 S ERIES PERATION ANUAL Items Associated with the Adjust borders group The adjust borders menu allows the border function of your unit to be enabled – with one border being available for each Window, Logo and Lock source. Note that the layer priority of the Border is the same as the Window source that it is ‘attached’...

  • Page 48: Items Associated With The Adjust Sources Group Relating To Source Labeling

    C2-6000 S ERIES PERATION ANUAL Items Associated with the Adjust sources group relating to source labeling The ‘Adjust Sources’ menu group accesses the parameters associated with each input present on your unit. Parameters relating to the video signal are detailed in a later section – this section solely relates to the source labelling function.

  • Page 49: Items Associated With The Adjust Sources Group

    C2-6000 S ERIES PERATION ANUAL Source: DVI-I1 Lbl for/bck col [Wht] [TrB] This menu item lets you change the color of the text foreground and the background. Colors available are shown in the table below: Menu name Color Black Blue Green Cyan Magenta...

  • Page 50: Menu Items Common To All Inputs

    C2-6000 S ERIES PERATION ANUAL Source: RGB1 Source to adj [RGB1] This menu item selects the input connection for which you want to make adjustments to. As in the image above, changes will only be made to the source connected to RGB1. Once the selection has been made, all changes made using the following operating parameters will only apply to the selected input.
  • Page 51 C2-6000 S ERIES PERATION ANUAL Source: RGB1 BR size adj. 0] [ 0] This menu item allows manual positioning of the Bottom and Right portion of the image. These settings are often used to correct the position of a PC signal on an input, or to eliminate any undesired noise at the top or bottom of a PAL or NTSC video source.
  • Page 52 C2-6000 S ERIES PERATION ANUAL Option Description Show Shows all picture break-up and instabilities. Freeze Freezes the latest frame – un-freezes as soon as the source becomes stable again. Blue (default) Turns the window blue, to represent source loss. Black Turns the window black.

  • Page 53: Dvi Source Menu Items

    C2-6000 S ERIES PERATION ANUAL Source : RGB1 Noise reduction [Off] This menu item allows the user to specify whether the source has noise reduction applied to it. This is performed by averaging the video signal over a number of fields – but ignoring areas where motion has occurred. If motion blurring is seen, it is recommended to turn this setting off.
  • Page 54 C2-6000 S ERIES PERATION ANUAL with the monitor. In the case of the your unit, it tells the graphic card what resolutions are compatible with it. The above menu lets the user select which of 8 EDID data blocks are ‘shown’ to a PC or other DVI source.

  • Page 55: Rgb Source Menu Items

    C2-6000 S ERIES PERATION ANUAL Using the above, up to 6 custom EDID settings can be stored in the CORIO2 unit, ready for recall later. This is useful to simulate another display being attached to a graphic card. 8.8.3 RGB Source Menu Items Source: RGB1 Autoset status [Inactive]...

  • Page 56: Cv & Yc Source Menu Items

    C2-6000 S ERIES PERATION ANUAL This menu item lets you adjust the individual RGB or YUV/YPbPr signals, in case one component is at a different contrast to other, or if they all need to be boosted or lowered. 8.8.4 CV & YC Source Menu Items Of the above Source Menu items, the Autoset sense and Autoset status functions, RGB type and Pixel phase are specific to RGB signals only.

  • Page 57: Still Image Store / Testcard Source Menu Items

    C2-6000 S ERIES PERATION ANUAL 8.8.5 Still Image Store / Testcard Source Menu Items Source : TC1 Testcard [ 0] This item is only available for units supporting Still Image Stores (SIS) or Testcards (TC) – which are the same thing, but may be named differently depending on your unit.

  • Page 58: Items Associated With The Adjust Ethernet Group

    C2-6000 S ERIES PERATION ANUAL Adjust transitions Wipe size [100] Wipe Size sets the ‘granularity’ of the ‘Wipe’ effect and so is only shown when ‘Wipe’ is the transition type. The smaller the number, the more elements there are to the wipe. To clarify by example, if you select the Diamond wipe effect and set a small number into the Wipe Size parameter, you will have a large number of Diamonds present in the transition.

  • Page 59: Items Associated With The Adjust Resolutions Group

    C2-6000 S ERIES PERATION ANUAL Adjust the last 2 numbers to set the sub-net address (also know as sub-net mask) of your network. Again, if in doubt ask your Network Administrator. Adjust ethernet IP gtwy. [ 10] 1 2 123 Enter your network’s gateway IP address into this menu item.
  • Page 60 C2-6000 S ERIES PERATION ANUAL there might be times when it is necessary to create a custom resolution with specific parameters. If circumstances require you to make such a change, please read the following specific notes: 1. Any changes made to this database take effect instantly and are also stored immediately in non-volatile memory.
  • Page 61 C2-6000 S ERIES PERATION ANUAL display devices, such as TFT monitors, will display an image with an odd moiré effect – such as soft vertical bands spread evenly across the image. 800 x 600 60 Hz Lines/f [ 628] = 60.317 Hz This menu controls the total number of lines of video present in the image which includes the vertical Sync pulse, the blanking period and the active...

  • Page 62: Items Associated With The System Group

    C2-6000 S ERIES PERATION ANUAL If you are creating a special, non-standard resolution, you may wish to adjust the pulse width to fit your new requirements. The H/V Sync screen is where that is accomplished. Like the H/V Start adjustment, you must use an oscilloscope when making these adjustments so that you know exactly how many milliseconds or microseconds of pulse width you have created.
  • Page 63 C2-6000 S ERIES PERATION ANUAL System SW date: 2006-7-11 This is an information page showing when the currently installed software was released. The information is useful to the user as he or she compares the date to the website information describing the current software release. Normally, the user will examine the added features of each new software release and determine if an update is worth doing in their particular operation.
  • Page 64 C2-6000 S ERIES PERATION ANUAL System OSD on power up [On] This parameter controls whether the ‘welcome’ screen is displayed or not on power up for units with an on-screen display – it can be disabled as required. This is useful when a unit is installed as part of an overall system. System LED brightness % [ 90]...
  • Page 65 C2-6000 S ERIES PERATION ANUAL System Resolutions This screen is an informational screen showing the total number of the defined resolutions in the resolution database. Future firmware releases may increase the total number of resolutions defined in the database. System Logos / T-cards If your units supports Logos or Still Images / Testcards then this screen will display how many are present in the memory of the units.
  • Page 66 C2-6000 S ERIES PERATION ANUAL System Fan speed (rpm) 6000 Certain units have built-in fans to keep the unit cool. The fan speed is monitored and if it deviates from normal parameters too much, this will be taken as an indication of insufficient airflow over critical components and shutdown action will be taken.

  • Page 67: Serial Port

    C2-6000 S ERIES PERATION ANUAL SERIAL PORT Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’...
  • Page 68 C2-6000 S ERIES PERATION ANUAL Note: Any command you send to the unit will be replied to either with an error code or with the actual changed value. This may be different to the one you sent; for example, if trying to set a value too high or too low.

  • Page 69: Serial / Ip Control Specification

    C2-6000 S ERIES PERATION ANUAL SERIAL / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support Serial and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via a Serial or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 70: Packet Format

    C2-6000 S ERIES PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 71 C2-6000 S ERIES PERATION ANUAL Bit 6 = ACK bit. Should be set to 0 for messages to the unit. ACK=1 returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use.

  • Page 72: Function List

    C2-6000 S ERIES PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 73 C2-6000 S ERIES PERATION ANUAL Preset store Set to 1 to store – automatically resets to 0. Preset erase Set to 1 to erase – automatically resets to 0. Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16...
  • Page 74 C2-6000 S ERIES PERATION ANUAL 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp. Volume -16 to 15 AES/SDI Chan. 1 source 0x00 to 0x07 = SDI1-1 to SD1-8 0x08 to 0x0F = SDI2-1 to SDI2=8 AES/SDI Chan.
  • Page 75 C2-6000 S ERIES PERATION ANUAL In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High Image smoothing 0..2 = Off, Med, High Image flip...
  • Page 76 C2-6000 S ERIES PERATION ANUAL E.blnd comp side 0..99 Logos (on certain models only) Logo enable 0..1 = Off, On Logo number 0..9 Logo selection H/V out shift (H) 0..100 % H/V out shift (V) 0..100 % Max fade level 0..100% Layer priority 0..5...
  • Page 77 C2-6000 S ERIES PERATION ANUAL EDID capture entry# 10..1F 244 0..7 to specify EDID entries 1..Mon EDID capture Grab 10..1F 245 Set to 1 to Grab. Auto-resets to 0. HDCP advertise (DVI) 10..1F 237 0=Off, 1=On HDCP status (DVI) 10..1F 238 0=Inactive, 1=Active TL pos.
  • Page 78 C2-6000 S ERIES PERATION ANUAL Adjust audio (on certain models only) Source to adj 0x00 to 0x07 = SDI1-1 to SD1-8 0x08 to 0x0F = SDI2-1 to SDI2=8 0x10 to 0x1F = AES1 to AES16 Volume trim -128 to 127 Delay adjust -100 to 5000 Adjust transitions (on certain models only)

  • Page 79: Examples

    C2-6000 S ERIES PERATION ANUAL System SW (Software version) Read only PT (Product type) Read only BT (Board type) Read only Advanced menus 0..1, Off, On Autoset Sense 0..3 = Low, medium, high, v.high OSD on Power up 0..1, Off, On RGB1 termination 0..2, Off, On, Auto Store...

  • Page 80: Reading And Writing Macros

    C2-6000 S ERIES PERATION ANUAL Read is 6 bytes shorter than a Write). Each character shown below is sent as a ASCII character so F0400 is sent as ‘F’ ‘0’ ‘4’ ‘0’ ‘0’. Packet sent Packet returned SOP CMD CHA WIN OUT FUN PAY CS EOP SOP CMD CHA WIN OUT FUN PAY CS EOP...

  • Page 81: Reading A Previously Stored Macro

    C2-6000 S ERIES PERATION ANUAL Menu text CHA FUNC Range of adjustment (decimal) (Hex) Macro Run macro 0..7 F1 0..1 = Run, Erase macro Number of items within 0..7 F4 Read Only macro Function to adjust 0..7 F2 0..4095 Value 0..7 F3 Value for Function 10.5.1 Reading a previously stored Macro...

  • Page 82: Run And Restore Macros

    C2-6000 S ERIES PERATION ANUAL Clear macro 000001 3A CR 000001 7A CR Write the function for first item in macro 3 = Zoom 000086 C1 CR 000011 01 CR Write data for the first item = 100 000064 9E CR 000011 DE CR Write the function for the second = shrink 000087 C2 CR...
  • Page 83 C2-6000 S ERIES PERATION ANUAL Set to 480p output 0000EA Set to 720p 59.94Hz output 0000EB Set to 720p 60Hz output 0000EC Cycle presets (demo mode) 0100EE Select DVI-I1 as source 000200 Select DVI-I2 as source 000201 Select DVI-I3 as source 000202 Select DVI-I4 as source 0002A2...
  • Page 84 C2-6000 S ERIES PERATION ANUAL Run Macro 5 00021D Run Macro 6 000267 Run Macro 7 000268 Add to Macro 1 020119 Add to Macro 2 02011A Add to Macro 3 02011B Add to Macro 4 02011C Add to Macro 5 02011D Add to Macro 6 020167...
  • Page 85 C2-6000 S ERIES PERATION ANUAL Select YC1 as source for window A 000242 Select YC2 as source for window A 000243 Select YC3 as source for window A 000244 Select TC1 as source for window A 000245 Select TC2 as source for window A 000246 Select OUT1 as source for window A 000247...
  • Page 86 C2-6000 S ERIES PERATION ANUAL Window 1A toggle on/off 00026D Window 2B toggle on/off 00026E Go to Lock menu item 00027E Output 1 toggle on/off 00027F Output 2 toggle on/off 000280 Select UNI1 as source for window A 000281 Select UNI2 as source for window A 000282 Select UNI3 as source for window A 000283...

  • Page 87: Reset Command

    C2-6000 S ERIES PERATION ANUAL Erase Preset 8 280198 Erase Preset 9 280199 Erase Preset 10 28019A Set output to BLACK 00029B Set output to WHITE 00029C Toggle edge blend lines on/off 00029D Cycle scaler inputs 0002A3 I.e. insert the 6 digit code from above into the following text string: F041041024F######??<CR>...

  • Page 88: Common Operations

    C2-6000 S ERIES PERATION ANUAL COMMON OPERATIONS This section provides step by step instructions for some common operations. 11.1 Operation of the Keyer Some units come equipped with a very powerful Luminance and Chrominance Keyer. The Keyer can take some time to master and below is a breakdown and series of simple steps to help you master the Keyer’s operation When adjusting the values, please bear in the mind the following: The Y value is the Luminance value, so 0 is black and 255 is very bright...
  • Page 89 C2-6000 S ERIES PERATION ANUAL may require you to decrease the ‘min’ values and increase the ‘max’ values to broaden the range of colors keyed out. At this point, only the key color should remain transparent.

  • Page 90: Troubleshooting And Technical Support

    C2-6000 S ERIES PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of the problem handy: Whether the problem happens only at specific times or has only just started occurring (and what other things have changed at the same time).

  • Page 91: There Is Excessive Flicker On The Output

    C2-6000 S ERIES PERATION ANUAL 12.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 92: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    C2-6000 S ERIES PERATION ANUAL 12.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 93: Return Procedure

    13.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued.
  • Page 94 C2-6000 S ERIES PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in warranty for repair without a Return Authorization Number.

  • Page 95: Warranty Policy

    The liability of TV One with respect to any defective products will be limited to the repair or replacement of such products. In no event shall TV One be...

  • Page 96: Connector Pinouts

    C2-6000 S ERIES PERATION ANUAL CONNECTOR PINOUTS 15.1 DVI-I connector PIN# SIGNAL PIN# SIGNAL T.M.D.S DATA 2- HOT PLUG DETECT T.M.D.S DATA 2+ T.M.D.S DATA 0- T.M.D.S DATA 2/4 SHIELD T.M.D.S DATA 0+ Not used T.M.D.S DATA 0/5 SHIELD Not used Not used DDC CLOCK Not used...
  • Page 97 C2-6000 S ERIES PERATION ANUAL...

  • Page 98: Specifications

    ANUAL SPECIFICATIONS See product front and rear diagrams for details of product I/O. Not all units in the C2-6000 series have all the inputs and outputs listed here – e.g. some have the SDI in/out and some do not. 16.1 Computer Input DVI-D (on DVI-I connector) supporting up to 162MHz (1920x1200 @ 60Hz).

  • Page 99: Scaling / Sampling / Memory

    C2-6000 S ERIES PERATION ANUAL 3:2 pull-down for 24 fps film sources. 16.6 Scaling / sampling / memory Size and position: automatic via AutoSet or Manual Image size: 50 user-definable presets (presets 6 to 10 pre-defined) Image freeze: one video frame Settings memory: non-Volatile Zoom range: variable to 10x Zoom (1000%) Shrink range: variable to 10%...

  • Page 100: Mechanical

    C2-6000 S ERIES PERATION ANUAL 16.13 Mechanical Size (H x W x D): 1.725” x 17” x 7.92” (44 x 431 x 201mm) Weight (Net): 7.0 lbs (3.2 kg) 16.14 Optional Accessories RM-110 Rear-rack support rails ZDB-2038 DVI Male to 5-BNC Female Adapter ZDH-2040 DVI Male to VGA Female Adapter...

  • Page 101: Contact Information

    PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...
