Options - Icom IC-F9511S Instruction Manual

4

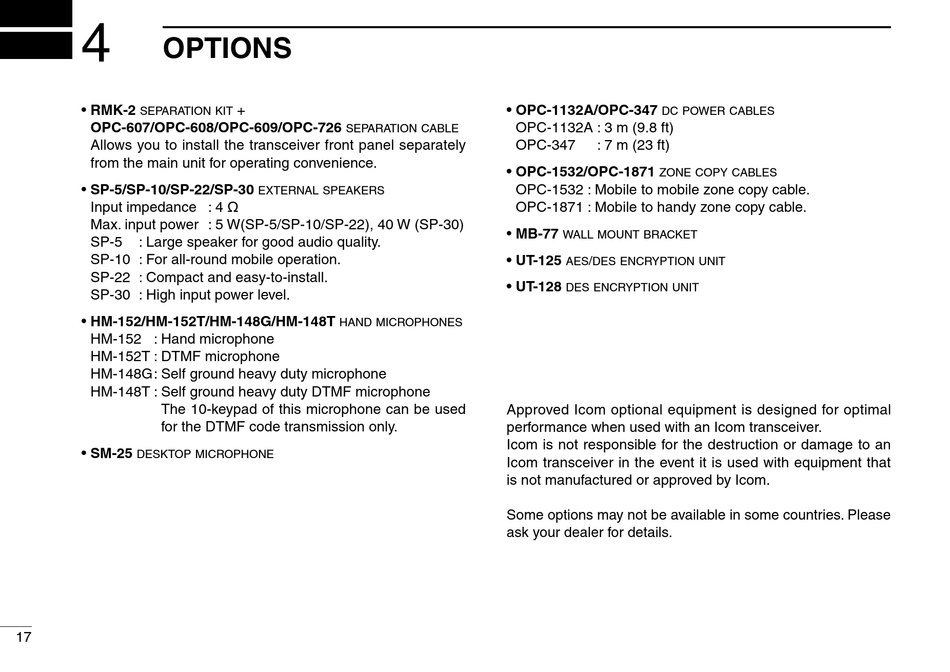

OPTIONS

• RMK-2
separation kit
OPC-607/OPC-608/OPC-609/OPC-726
Allows you to install the transceiver front panel separately
from the main unit for operating convenience.
• SP-5/SP-10/SP-22/SP-30
Input impedance : 4 ø
Max. input power : 5 W(SP-5/SP-10/SP-22), 40 W (SP-30)
SP-5 : Large speaker for good audio quality.
SP-10 : For all-round mobile operation.
SP-22 : Compact and easy-to-install.
SP-30 : High input power level.
• HM-152/HM-152T/HM-148G/HM-148T
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148G : Self ground heavy duty microphone
HM-148T : Self ground heavy duty DTMF microphone
The 10-keypad of this microphone can be used
for the DTMF code transmission only.
• SM-25
desktop microphone
17
+
separation cable
external speakers
hand microphones
• OPC-1132A/OPC-347
dc power cables
OPC-1132A : 3 m (9.8 ft)
OPC-347 : 7 m (23 ft)
• OPC-1532/OPC-1871
zone copy cables
OPC-1532 : Mobile to mobile zone copy cable.
OPC-1871 : Mobile to handy zone copy cable.
• MB-77
wall mount bracket
• UT-125
/
aes des encryption unit
• UT-128
des encryption unit
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event it is used with equipment that
is not manufactured or approved by Icom.
Some options may not be available in some countries. Please
ask your dealer for details.
