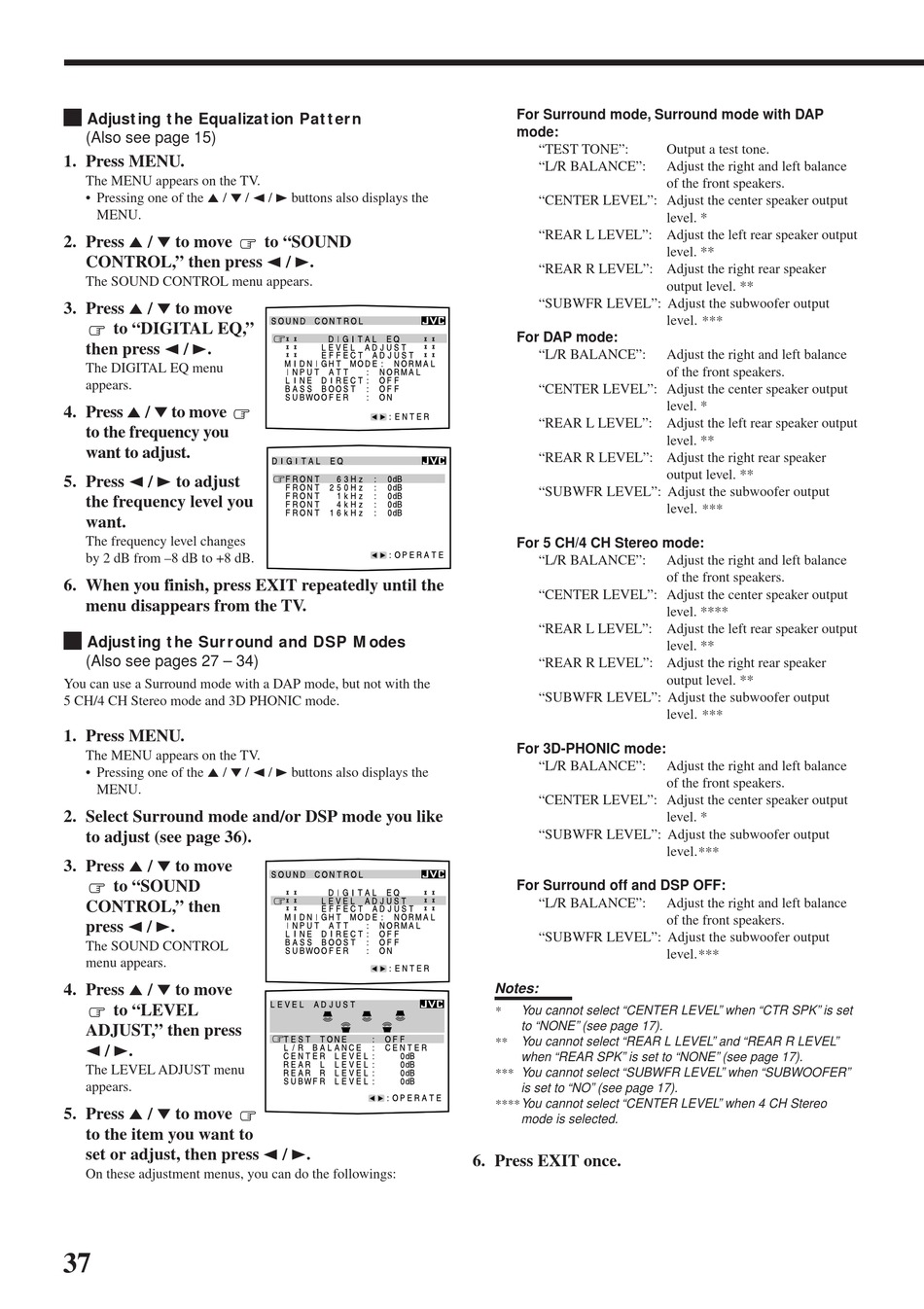

Adjusting the Equalization Pattern

(Also see page 15)
1. Press MENU.
The MENU appears on the TV.
• Pressing one of the 5 / ∞ / 2 / 3 buttons also displays the
MENU.
2. Press 5 / ∞ to move
CONTROL," then press 2 / 3.
The SOUND CONTROL menu appears.
3. Press 5 / ∞ to move
to "DIGITAL EQ,"
then press 2 / 3.
The DIGITAL EQ menu
appears.
4. Press 5 / ∞ to move
to the frequency you
want to adjust.
5. Press 2 / 3 to adjust
the frequency level you
want.
The frequency level changes
by 2 dB from –8 dB to +8 dB.
6. When you finish, press EXIT repeatedly until the
menu disappears from the TV.

Adjusting the Surround and DSP Modes

(Also see pages 27 – 34)
You can use a Surround mode with a DAP mode, but not with the
5 CH/4 CH Stereo mode and 3D PHONIC mode.
1. Press MENU.
The MENU appears on the TV.
• Pressing one of the 5 / ∞ / 2 / 3 buttons also displays the
MENU.
2. Select Surround mode and/or DSP mode you like
to adjust (see page 36).
3. Press 5 / ∞ to move
to "SOUND
CONTROL," then
press 2 / 3.
The SOUND CONTROL
menu appears.
4. Press 5 / ∞ to move
to "LEVEL
ADJUST," then press
2 / 3.
The LEVEL ADJUST menu
appears.
5. Press 5 / ∞ to move
to the item you want to
set or adjust, then press 2 / 3.
On these adjustment menus, you can do the followings:
37
to "SOUND
For Surround mode, Surround mode with DAP
mode:
"TEST TONE":
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"REAR L LEVEL": Adjust the left rear speaker output
"REAR R LEVEL": Adjust the right rear speaker
"SUBWFR LEVEL": Adjust the subwoofer output
For DAP mode:
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"REAR L LEVEL": Adjust the left rear speaker output
"REAR R LEVEL": Adjust the right rear speaker
"SUBWFR LEVEL": Adjust the subwoofer output
For 5 CH/4 CH Stereo mode:
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"REAR L LEVEL": Adjust the left rear speaker output
"REAR R LEVEL": Adjust the right rear speaker
"SUBWFR LEVEL": Adjust the subwoofer output
For 3D-PHONIC mode:
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"SUBWFR LEVEL": Adjust the subwoofer output
For Surround off and DSP OFF:
"L/R BALANCE":
"SUBWFR LEVEL": Adjust the subwoofer output
Notes:
* You cannot select "CENTER LEVEL" when "CTR SPK" is set
to "NONE" (see page 17).
** You cannot select "REAR L LEVEL" and "REAR R LEVEL"
when "REAR SPK" is set to "NONE" (see page 17).
*** You cannot select "SUBWFR LEVEL" when "SUBWOOFER"
is set to "NO" (see page 17).
**** You cannot select "CENTER LEVEL" when 4 CH Stereo
mode is selected.
6. Press EXIT once.
Output a test tone.
Adjust the right and left balance
of the front speakers.
level. *
level. **
output level. **
level. ***
Adjust the right and left balance
of the front speakers.
level. *
level. **
output level. **
level. ***
Adjust the right and left balance
of the front speakers.
level. ****
level. **
output level. **
level. ***
Adjust the right and left balance
of the front speakers.
level. *
level.***
Adjust the right and left balance
of the front speakers.
level.***
