JVC MX-J300 Service Manual page 22

MX-J300
< Cassette mechanism section >

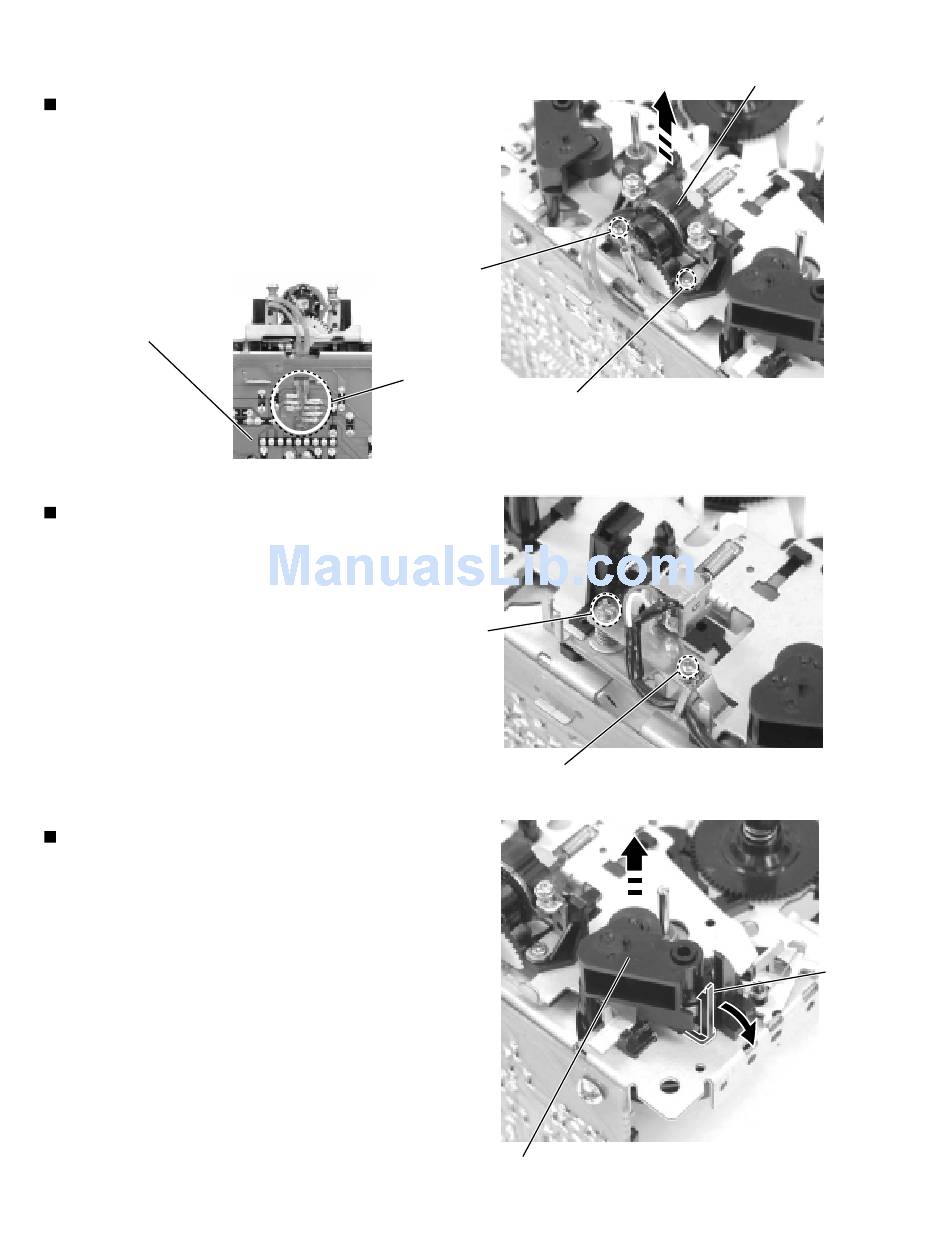

Removing the R/P head assembly
1. Unsolder the head wire from the cassette
mechanism board.
2. Remove the two screws A retaining the R/P head
assembly.
Refer to the figure for soldering
Cassette mechanism board
Removing the R/B head assembly
1. Loosen the screw B attaching the P/B head.
2. Remove the screws C retaining the R/B head
assembly.
Removing the Pinch roller assembly
1. Pull the tab a outward and remove the pinch roller
upward.
1-22
(See Fig.1to2)
Sold part
Fig.2
(See Fig.3)
(See Fig.4)
A
A
Fig.1
B
C
Fig.3
Pinch roller
Fig.4
R/P head assembly
Tab a
