Compact component system
Hide thumbs
Table of Contents

Advertisement

Quick Links

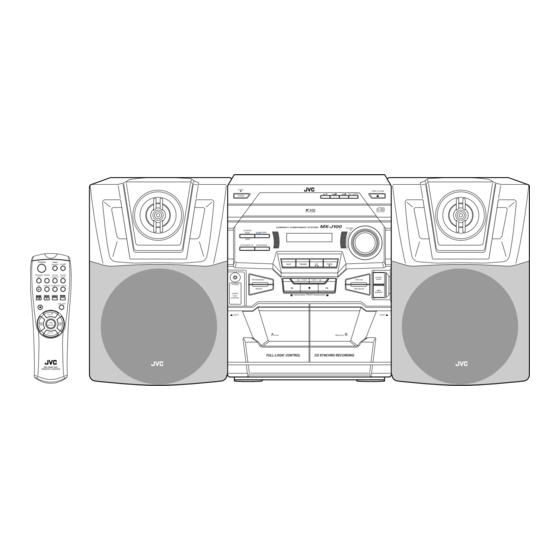

COMPACT COMPONENT SYSTEM
MX-J100
Consists of CA-MXJ100 and SP-MXJ100.
POWER
TIMER
ON/OFF SLEEP
PROGRAM
REPEAT
ACTIVE
SOUND
/SET
BASS EX.
MODE
CD
TAPE A/B TUNING MODE FM MODE
CD
TAPE
FM/AM
AUX
DISC SKIP
+
VOL.
FADE
MUTING
–
VOL.
RM–SMXJ100J
REMOTE CONTROL
SP-MXJ100
CA-MXJ100
STANDBY
POWER
COUNTER
RESET
CLOCK/TIMER
DEMO
ACTIVE BASS EX.
SOUND MODE
PROGRAM/SET
PHONES
REPEAT
COMPU
PLAY
CONTROL
EJECT
FULL-LOGIC CONTROL
INSTRUCTIONS
OPEN / CLOSE
CD
1
CD
2
CD
3
DISC CHANGE
COMPACT
PLAY & EXCHANGER
DIGITAL AUDIO
VOLUME
+
–
AUX
FM/AM
CD
TAPE
CD REC
TAPE A/B
START
- TUNING
TUNING
+
REC/PAUSE
A
B
DUBBING
–
PRESET
+
EJECT
PLAY
REC/PLAY
CD SYNCHRO RECORDING
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
SP-MXJ100
COMPACT
DIGITAL AUDIO
LVT0472-001C
[J]

Advertisement

Table of Contents
loading

Related Manuals for JVC SP-MXJ100J

Summary of Contents for JVC SP-MXJ100J

  • Page 1 COMPACT COMPONENT SYSTEM MX-J100 Consists of CA-MXJ100 and SP-MXJ100. SP-MXJ100 POWER TIMER ON/OFF SLEEP PROGRAM REPEAT ACTIVE SOUND /SET BASS EX. MODE TAPE A/B TUNING MODE FM MODE TAPE FM/AM DISC SKIP VOL. FADE MUTING – VOL. RM–SMXJ100J REMOTE CONTROL INSTRUCTIONS CA-MXJ100 STANDBY...
  • Page 2 Warnings, Cautions and Others Mises en garde, précautions et indications diverses CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated...
  • Page 3 For Canada/pour le Canada CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.
  • Page 4 Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual About This Manual This manual is organized as follows: •...

  • Page 5: Table Of Contents

    Contents Location of the Buttons and Controls ... 3 Getting Started ... 6 Common Operations ... 9 Listening to FM and AM Broadcasts ... 11 Playing Back CDs ... 12 Playing Back Tapes ... 14 Recording ... 15 Using the Timers ... 16 Maintenance ...

  • Page 6: Location Of The Buttons And Controls

    Location of the Buttons and Controls Become familiar with the buttons and controls on your unit. STANDBY POWER COUNTER RESET CLOCK/TIMER DEMO ACTIVE BASS EX. SOUND MODE PROGRAM/SET PHONES REPEAT COMPU PLAY CONTROL EJECT PLAY & EXCHANGER FM/AM TAPE - TUNING TUNING –...

  • Page 7: Front Panel

    Display Window SLEEP CD-SYNC PRGM PRESET REPEAT ALL 1 CD See pages in the parentheses for details. Front Panel 1 Carousel 2 POWER button and STANDBY lamp (9) 3 Display window 4 CLOCK/TIMER button (9, 16) 5 COUNTER RESET button (15) DEMO button (8) 6 SOUND MODE button (10) 7 ACTIVE BASS EX.

  • Page 8: Remote Control

    Remote Control POWER TIMER ON/OFF SLEEP PROGRAM REPEAT ACTIVE SOUND /SET BASS EX. MODE TAPE A/B TUNING MODE FM MODE TAPE FM/AM DISC SKIP VOL. FADE MUTING – VOL. RM–SMXJ100J REMOTE CONTROL STANDBY POWER PLAY & EXCHANGER COUNTER RESET CLOCK/TIMER DEMO ACTIVE BASS EX.

  • Page 9: Getting Started

    Getting Started Unpacking After unpacking, check to be sure that you have all the following items. The number in the parentheses indicates the quantity of the pieces supplied. • AM loop antenna (1) • FM antenna (1) • Remote control (1) •...

  • Page 10: Connecting Speakers

    Insert the end of the speaker cord into the terminal. Match the polarity of the speaker terminals: Red (+) to red (+) and black (–) to black (–). Release the finger from the clamp.

  • Page 11: Connecting Other Equipment

    Connecting Other Equipment You can connect an audio equipment — used only as a playback device. When you connect and use this equipment, refer also to its manual. Be sure that the plugs of the audio cords are color coded: White plugs and jacks are for left audio signals, and red ones for right audio signals.

  • Page 12: Common Operations

    Common Operations Setting the Clock Before operating the unit any further, first set the clock built in this unit. • There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

  • Page 13: Adjusting The Volume

    Adjusting the Volume You can adjust the volume level only while the unit is turned Turn VOLUME clockwise to increase the volume or counterclockwise to decrease it. When using the remote control, press VOL. + to increase the volume or press VOL. – to decrease it. For private listening Connect a pair of headphones to the PHONES jack.

  • Page 14: Listening To Fm And Am Broadcasts

    Listening to FM and AM Broadcasts Tuning in a Station Press FM/AM. The unit automatically turns on and tunes in the previously tuned station (either FM or AM). • Each time you press the button, the band alternates between FM and AM. Select a station.

  • Page 15: Playing Back Cds

    Playing Back CDs Loading CDs Press 0 OPEN/CLOSE on the unit. The unit automatically turns on and the carousel comes out. Place one or two discs correctly on the front slots of the carousel, with its label side up. CORRECT •...

  • Page 16: Basic Cd Operations

    Basic CD Operations While playing a CD, you can do the following operations. To exchange CDs during playback of another Press DISC CHANGE to eject and exchange the CD. To locate a particular point in a track During play, press and hold 1 or ¡.

  • Page 17: Playing Back Tapes

    Playing Back Tapes Playing Back a Tape Press EJECT 0 for the deck you want to use. For Deck A Put a cassette in, with the exposed part of the tape down. • You can play back only type I. Close the cassette holder gently.

  • Page 18: Recording

    Recording IMPORTANT: • It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic embodied therein.

  • Page 19: Using The Timers

    Using the Timers There are three types of timers available — Recording Timer, Daily Timer and Sleep Timer. Before using the timers, you need to set the clock built in the unit. (See page 9.) Using Recording and Daily Timer With Recording Timer, you can make a tape of a radio broadcast automatically.
  • Page 20 Set the off-time you want the unit to turn off (on standby). 1) Press 4 or ¢ to set the hour, then press PROGRAM/ SET. 2) Press 4 or ¢ to set the minute, then press PROGRAM/SET. Set the volume level when the unit is turned on.

  • Page 21: Using Sleep Timer

    Using Sleep Timer With Sleep Timer, you can fall asleep to music. You can set Sleep Timer when the unit is operating. How Sleep Timer actually works The unit automatically turns off after the specified time length passes by. On the remote control ONLY: Press SLEEP.

  • Page 22: Maintenance

    Maintenance To get the best performance of the unit, keep your discs, tapes, and mechanism clean. Handling discs • Remove the disc from its case by holding it at the edge while pressing the center hole lightly. • Do not touch the shiny surface of the disc, or bend the disc.

  • Page 23: Troubleshooting

    1 kHz with no Power consumption: Dimensions (approx.): 270 mm x 317 mm x 380 mm (W/H/D) Mass (approx.): Supplied accessories See page 6. Speaker section — SP-MXJ100 ype: Speaker units: Power handling capacity: 40 W Impedance: Frequency range: Sound pressure level: 87 dB/w•m...
  • Page 24 Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level of performance for which JVC is world famous. The JVC service and engineering organization stands behind our products.
  • Page 25 WHAT WE WILL DO: If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers.
  • Page 26 VICTOR COMPANY OF JAPAN, LIMITED 0100KSMMDWSAM...
