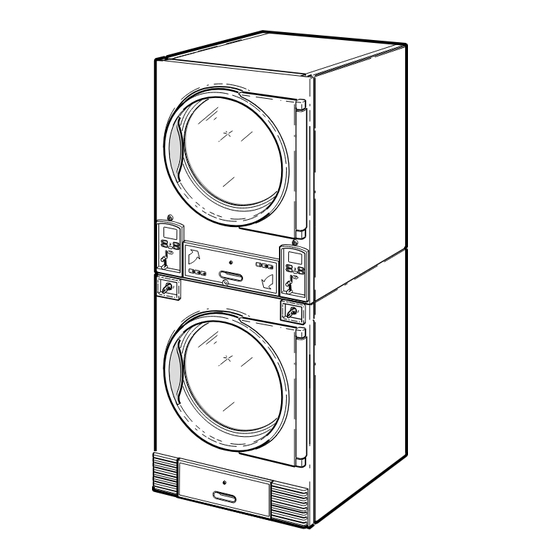

- Page 1 On-Premise Laundry Planning Handbook T477C T477C T30 and T45 Tumblers Refer to Installation manual for full instructions. 4-08-43R5 August 2011...
-
Page 2: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Tumblers – T30 and T45... Introduction... Model Identification ... -
Page 3: Tumblers - T30 And T45
Tumblers – T30 and T45 Introduction Model Identification IPD30STG2-ITT30L IPD45STG2-ITT45L Includes models with the following control suffixes: 3O – DX4 OPL 3V – DX4 vended 3X – DX4 prep for coin © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 4 Tumblers – T30 and T45 Serial Plate Multiply 0.252 1055 Inch 25.4 Inches W.C. 0.036 Inches W.C. 0.249 lb/inch (psi) 6.895 28.32 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Conversion Table To Obtain Multiply kCal Pounds/sq.
-
Page 5: Specifications And Dimensions
Gas Models 1/2 in. NPT 73,000 (21.4, 77) Electric Models 21 kW Steam Models 3/4 in. NPT (111,000) Tumblers – T30 and T45 67 dBA (305) 33 x 30 (838 x 762) 2 x 45 (2 x 20.5) (283) (2.3) 1/2 in. -
Page 6: Cabinet Dimensions
(636 mm) 29.37 in. (746 mm) NOTE: To meet ADA compliance, install a 4 inch (102 mm) riser on T30 models only. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 49 in. 48.25 in. (1245 mm) (1226 mm) 50.4 in. -
Page 7: Exhaust Outlet Locations
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4-08-43 TMB1969N Rear Exhaust 36.54 in. 4.25 in. (928 mm) (108 mm) 40.88 in. 4.75 in. (1038 mm) (121 mm) Tumblers – T30 and T45 TMB1969N 62.42 in. (1585 mm) 66.00 in. (1676 mm) -
Page 8: Gas Connection Locations
Tumblers – T30 and T45 Gas Connection Locations 1/2 in. NPT Models Non-CE and Non-Australian CE and Australian © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT TMB1970N Gas Connection 75.20 in. 1.74 in. (1910 mm) (44 mm) 75.28 in. -
Page 9: Electrical Connection Locations
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4-08-43 ELECTRIC Electric Service 1.75 in. 35.63 in. (44 mm) (905 mm) 1.75 in. (44 mm) Tumblers – T30 and T45 TMB1971N TMB1971N Electric Models 73.21 in. 2.28 in. (1859 mm) (58 mm) -
Page 10: Steam Connection Locations
Tumblers – T30 and T45 Steam Connection Locations Models 73.93 in. (Upper) (1877 mm) 36.35 in. (Lower) (923 mm) NOTE: All connections use 3/4 inch NPT pipe. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Inlet 6.29 in. -
Page 11: Installation
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4-08-43 Tumblers – T30 and T45 IMPORTANT: Warranty is void unless tumbler is installed according to instructions in this manual. Installation should comply with minimum... - Page 12 12 in. (305 mm) Minimum Clearance 24 in. (610 mm) Minimum, 36 in. (914 mm) recommended for maintenance purposes. Provision for Make-Up Air: Minimum 1.5 square feet T30 models, minimum 2 square feet T45 models. Location for reference only. May be anywhere behind tumbler.
-
Page 13: Exhaust Requirements
The required make-up air opening to the outside for each tumbler (includes both pockets) is: 220 square inches (1418 sq. cm) for T30 models 288 square inches (1856 sq. cm) for T45 models Make-up air openings with louvers will restrict airflow. -
Page 14: Individual Venting
Tumblers – T30 and T45 IMPORTANT: For best performance provide an individual exhaust duct for each tumbler. Do not install a hot water heater in a room containing tumblers. It is better to have the water heater in a separate room with a separate air inlet. -
Page 15: Manifold Venting
The collector duct may be rectangular or square in cross section, as long as the area is not reduced. Provisions MUST be made for lint removal and cleaning of the collector duct. Tumblers – T30 and T45 TMB2103N TMB2103N... - Page 16 Tumblers – T30 and T45 The vent collector system must be designed so the static back pressure measured 12 inches (305 mm) from the exhaust outlet does not exceed the maximum allowable pressure specified on the installation sticker on the rear of tumbler. Static back pressure must be measured with all tumblers vented into the collector operating.
- Page 17 26 in. (660 mm) 27 in. (686 mm) 28 in. (711 mm) 30 in. (762 mm) Table 2 Tumblers – T30 and T45 Outlet Duct Diameter 45° Typical 10 in. (254 mm) Duct 10 in. (254 mm) 15 in. (381 mm) 18 in.
- Page 18 Tumblers – T30 and T45 CONTINUE TO A NOTE: Where the exhaust duct pierces a combustible wall or ceiling, the opening MUST be sized per local codes. Duct Station © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 19: Electrical Requirements For Gas And Steam Models
Electrical connections should be made only by a qualified electrical contractor in accordance with all applicable local and national requirements. For T30 Gas and Steam Models (For Total Machine): Terminal Block Serial Plate Voltage... - Page 20 Tumblers – T30 and T45 For T45 Gas Models (For Total Machine): Terminal Block Serial Plate Connections Voltage Required 208–240V/60Hz/1ph L1, L2, Neutral and ground L1, L2, L3 and ground 200–208V/60Hz/3ph L1, L2, L3 and ground 240V/60Hz/3ph L1, Neutral and ground...
-
Page 21: Electrical Requirements For Electric Models
460-480V/60Hz/3ph* and ground * These serial plate voltages are only options available on the T30 electric models. Current (Amp) is for one pocket only. ** Per heater on T30 electric models, each has two heaters. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
