OWNER'S MANUAL

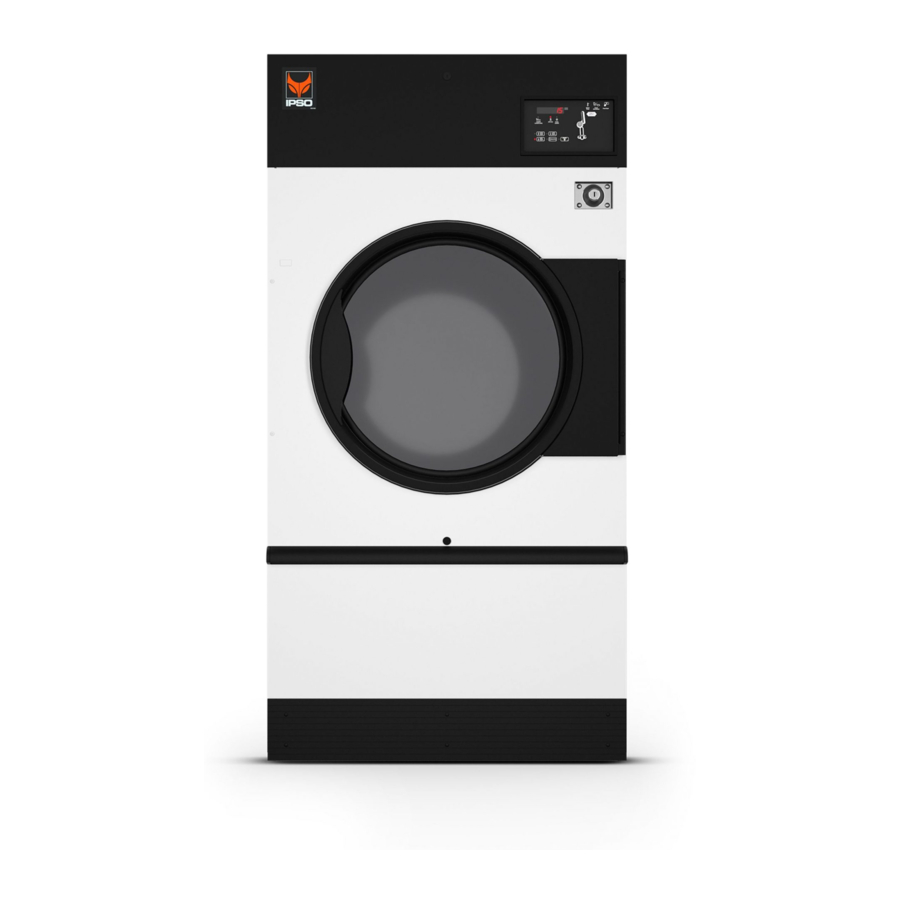

50 lb. DR LAUNDRY DRYER
Shown with manual double
timer control system
Technical specifications
Installation instructions
Operating instructions
DR50
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER
MAN DR2050 (ECN
Maintenance
IPSO - USA
3101 South Haven Highway 77, Suite A
Panama City, FL, 32405
Phone: (850)271-8486
)
9/99
D0567
Advertisement
Table of Contents
Related Manuals for IPSO DR50
Summary of Contents for IPSO DR50
- Page 1 Technical specifications Installation instructions Operating instructions DR50 THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER MAN DR2050 (ECN 9/99 Maintenance IPSO - USA 3101 South Haven Highway 77, Suite A Panama City, FL, 32405 Phone: (850)271-8486 D0567...
-
Page 2: Safety Instructions
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WARNING: clothes dryer produces combustible lint and should be exhausted outside the building. The dryer and the area around the dryer should be kept free of lint. - Page 3 ATTENTION: L’ACHETEUR DOIT PLACER L’AVERTISSEMENT SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE: AVERTISSEMENT. Assurez-vous de bien suivre les instructions donnees dans cette notice pour reduire au minimum le risque d’incendie ou d’explosion ou pour eviter tuot dommage materiel, toute blessure ou la mort. __ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre...
- Page 4 WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials. Do not put into this dryer flammable items such as baby bed mattresses, throw rugs,undergarments (brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing excessive heat and possible fire.
-
Page 5: Cissell Dryer Warranty
IPSO’s factory, transportation prepaid, within the applicable warranty period and found by IPSO to have been defective, and in no event shall IPSO be liable for damages of any kind, whether for any injury to persons or property or for any special or consequential damages. -
Page 6: Table Of Contents
Contents Safety Instructions ... 2-4 Cissell Dryer Warranty ... 5 Table of Contents ... 6 Symbols ... 7 Unpacking / General Installation ...8-9 Technical Data and Dimensions ... 10-11 Electric Connections ... 12 Gas Connections ... 13 Gas Piping Installation ... 14-15 Gas service Installation Instructions ... -
Page 7: Symbols
The following symbols are used in this manual and/or on the machine. S y m b o l NOTE! Hot! Do Not Touch Heiß! Nicht Beruhren Haute temperature! Ne pas toucher Caliente! no tocar dangerous tension dangereuse Gefährliche Spannung tension peligrosa M a r c h e E i n... -
Page 8: Unpacking / General Installation
Unpacking/General Installation (All Dryers) UNPACKING GENERAL INSTALLATION (ALL DRYERS) Upon arrival of the equipment, any damage in shipment should be reported to the carrier immediately. Upon locating permanent location of a unit, care should be taken in movement and placement of equipment. See outline clearance diagrams for correct dimensions. - Page 9 Unpacking/General Installation (All Dryers) GENERAL INFORMATION D R Y E R “COOL-DOWN” CYCLE REPLACEMENT P A R T S The dryer is so designed that when an operator opens the dryer door, the basket and exhaust fan stop. expect fast drying from the laundry dryer. properly and effectively moved through the basket and exhausted through a lint trap to the atmosphere.
-
Page 10: Technical Data And Dimensions
50 lb. Dryer Dimensions - Standard Gas, Steam and Electric Heated " " " " " Page 10... - Page 11 Steam Conn. ELECTR IC BOX CON. Electric 9.1“(230 mm) Inlet Gas Conn. 16.33“(415 mm) 6.3“(160 mm) EXHAUST 12.1“(307 mm) DR50 Dryer Dimensions - Gas ( I l l u s t r a t i o n ) Page 11...
-
Page 12: Electric Connections
Electric connection Dryers must be electrically grounded by a separate #14 or larger green wire from the grounding terminal within the Service Connection Box, to a cold water pipe. In all cases, the grounding method must comply with local electrical code requirements; or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CA C22.1. -
Page 13: Gas Connections
Gas connection The gas supply pipe should be connected to the gas tap (I), which is on the right next to the wiring box on the back. It is very important to have the connections done by a qualified technician, in order to make sure that the installation is effected in accordance with the prevailing standards and instructions. -
Page 14: Gas Piping Installation
PIPING INSTALLATION Gas Piping Installation 1. The installation must conform with local codes, or in the absence of local codes with the National Fuel Gas Code as, ANSI Z223.1 or the CAN/CGA- B149, Installation Codes. 2. Check identification nameplate for type of gas for dryer. -
Page 15: Gas Piping Installation
Gas Piping Installation (Illustrations) The dryer and it’s individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (.04 bar). The dryer must be isolated from the gas supply piping system by closing it's individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (.04 bar). -
Page 16: Gas Service Installation Instructions
Gas Service Installation Instructions SERVICE INSTALLATION INSTRUCTIONS PRESSURE REGULATOR LIQUIFIED PETROLEUM GASES The size of the gas service pipe is dependant upon many variables, such as tees, lengths, etc. Specific pipe size should be obtained from the gas supplier. Refer to the “Gas Pipe Size”... -
Page 17: Gas Pipe Size Chart
TOTAL BTU/HR (for LP Gas correct TOTAL total BTU/HR below by KCAL multiplying by .6) H O U R 60,000 15000 20000 80,000 25200 100,000 30200 120,000 35200 140,000 160,000 40300 45300 180,000 50400 200,000 75600 300,000 100800 400,000 126000 500,000 151200 600,000... -
Page 18: Dryer Installation With Multiple Exhaust
Dryer Installation With Multiple Exhaust For Exhaust Duct less than 14 feet (5 m) and 2 elbows equivalent and less than 0.3 inches (8 mm) static pressure. Area of section “A-A” must be equal to the sum of dryer exhaust pipes entering multiple exhaust pipe. - Page 19 Dryer Installation with Multiple Exhaust DRYER INSTALLATION WITH MULTIPLE EXHAUST For Exhaust Duct more than 14 feet (5 m) and 2 elbows equivalent and more than 0.3 inches (8 mm) static pressure. (See illustration on page 21.) 1. Make-up air from outside building may enter enclosure from top or side walls.
-
Page 20: Dryer Make-Up Air Requirements
Suggested Minimum Dryer Make-up Air Requirements Dryer Dryer Pocket Model Capacity C 30 13.6 C 30 E/S 13.6 C 30 ST 13.6 C 50 22.7 C 50 E/S 22.7 C 75 C 75 E/S C 75 ST HD80 36.3 C 110 C 110 E/S C 125 56.7... -
Page 21: Dryer Installation With Seperate Exhaust
Dryer Installation With Separate Exhaust (Preferred) DRYER INSTALLATION WITH SEPARATE EXHAUST (PREFERRED) For ductwork less than 14 feet (5 m) and 2 elbows equivalent and less than 0.3 inches (8 mm) static pressure: NEVER exhaust the dryer into a chimney. NEVER install wire mesh screen over the exhaust or make-up air area. -
Page 22: Exhaust And Venting
Exhaust and Venting Nothing is more important than air flow for the proper operation of a clothes dryer. A dryer is a pump which draws make-up air from the out-of-doors, through the heater, through the clothes and then forces the air through the exhaust duct back to the out-of-doors. Just as in a... -
Page 23: Rules For Safe Operation Of Dryer
Rules for Safe Operation of Dryer 1. Be sure your dryer is installed properly in accordance with the recommended instructions. 2. CAUTION Be safe—shut main electrical power supply and gas supply off externally before attempting service. 3. CAUTION Never use drycleaning solvents: gasoline, kerosene, or other flammable liquids in the dryer. -
Page 24: Direct-Spark Ignition Operation
Direct-Spark DIRECT SPARK IGNITION OPERATION Ignition Operation NOTE: dryers manufactured are equipped with the (direct spark ignition) modules. dryer efficiency and to reduce dryer operating costs. burner is directly ignited from a spark electrode. provides an electrical path for a small amount of sensing current to allow gas valve operation. - Page 25 The DSI module is powered by a 24 volts AC suppled by a step-down trans- former in series with eight safety interlocks: A. Timer switching device (1) B. Main door and lint door switches (2) C. Sail switch (1) D. Under basket and burner housing thermal safety switches (2) E .
-
Page 26: General Maintenance
GENERAL MAINTENANCE General Maintenance 1. Clean lint trap daily. Remove lint before or after each day of operation. A clean lint trap will increase the efficiency of the dryer and the moisture-laden air will be exhausted outside more quickly. 2. Keep basket and sweep sheets clean. Clean as often as needed. -
Page 27: General Maintenance
GENERAL MAINTENANCE ( c o n t i n u e d ) 10. Check gas pressure periodically. General Maintenance 7. Periodically clean and examine exhaust system. 8. Keep dryer area clean and free of gasoline, combustible materials and other flammable liquids or vapors. -
Page 28: Operating Instruction For Double Timer
OPERATING INSTRUCTION - DOUBLE TIMER OPERATING INSTRUCTIONS - DOUBLE TIMER MODELS 1. After loading the dryer with water washed clothes, close the loading door. 2. Turn the 60 minute drying (heat) timer to the desired time. 3. Turn the 60 minute cooling (air) to the desired time. 4. -
Page 29: Parts
R e f . P a r t N o . D e s c r i p t i o n N o . CSA50037WH J a c k e t f a s / e l e c t r i c ( w h i t e ) CSA-50050WH Jacket steam (white) TU7733... -
Page 30: Control Door Assembly
CONTROL DOOR ASSEMBLY CSA-01423WH R e f . Complete control door assy. N o t e : Door rod assy. is not part of above complete assy. P a r t N o . D e s c r i p t i o n CSA-01424WH C o n t r o l d o o r a s s y . -
Page 31: Front Panel Assembly
FRONT PANEL ASSEMBLY R e f . N o . P a r t N o . D e s c r i p t i o n SB-00915-0 S c r e w s e l f d r i l l i n g # 1 0 - 1 6 X 5 / 8 CSA-01566WH Front panel, welded assy.-Coin CSA-01565WH... -
Page 32: Thermostat Assembly
THERMOSTAT ASSEMBLY R e f . N o . P a r t N o . D e s c r i p t i o n EA-00607-0 Thermostat knob CA-13213-0 Thermostat bracket EA-00606-0 T h e r m o s t a t CA-13215-0 Thermostat bracket adapter TU3624... -
Page 33: Wire Box Assembly
R e f . N o . WIRE BOX ASSEMBLY P a r t N o . D e s c r i p t i o n CSA-01608WH Wire box door assy complete TUT316 Light LED 24V EA-11614-0 Timer-manual 24V - 60 min. complete EA-00619-0 S w i t c h - s t a r t CA-13170-0... -
Page 34: Door Assembly
R e f . P a r t N o . D e s c r i p t i o n N o . MSD-00864WH Complete door assy (consists of items 1 thru 9 only) MD-00362-0 Door Glass - clear MD-00354-0 G a s k e t - d o o r g l a s s - s t r a i g h t TU3163... -
Page 35: Lint Door Assembly
LINT DOOR ASSEMBLY For OPL models only. R e f . P a r t N o . D e s c r i p t i o n N o . CSA-01430WH Complete Asm - WMC50 OPL CSA-01428WH Complete Asm - WMC50 Coin CSA-01099WH L i nt d oo r w / la t c h h ol e s( w h it e ) O PL CSA-01429WH... -
Page 36: Basket & Spider Assembly
BASKET & SPIDER ASSEMBLY R e f . P a r t N o . D e s c r i p t i o n N o . CSA-01541-0 Basket & Spyder Asm.WMC50 - S.S. CSA-01632-0 Basket & Spyder Asm.WMC50 - Galv. CSA-01540-0 S t a i n l e s s s t e e l b a s k e t a s s y . -
Page 37: Rear View
REAR VIEW R e f . P a r t N o . D e s c r i p t i o n N o . CA-12073-0 Top panel TU7733 S c r e w s e l f d r i l l i n g 8 - 1 8 * 1 / 2 " CA-11936-0 C o v e r p l a t e CA-12016-0... -
Page 38: Air Switch Assembly
R e f . P a r t N o . D e s c r i p t i o n N o . CSA-01334-0 S a i l s w i t c h a s s y . c o m p l e t e CA-11854-0 B r a c k e t s a i l s w i t c h SB-00955-0... - Page 39 BASKET BEARINGS, SUPPORT, AND SHEAVE R e f . P a r t N o . D e s c r i p t i o n N o . DA-11912-0 P u l l e y - b a s k e t P a r t o f p u l l e y DA-11914-0 C249...
-
Page 40: Motor & Fan Assembly
MOTOR & FAN ASSEMBLY- NON-REVERSING R e f . P a r t N o . N o . DA-00494-0 DA-00447-0 TU2814 TU5439 DSA-00782-0 SB-00842-0 SB-00836-0 DSA-00773-0 SB-00813-0 SB-00847-0 I B 1 4 0 VSB134 TU4787 DA-00460-0 SB-00847-0 DA-00510-0 DA-00511-0 TU2473 TU2474 D e s c r i p t i o n... -
Page 41: Idler Assembly
IDLER ASSEMBLY R e f . P a r t N o . D e s c r i p t i o n N o . DA--11904-0 I d l e r p u l l e y 1 1 " DA-00917-0 Basket belt - non-reversing - AX70 DA-00497-0... -
Page 42: Rear Control Panel Assembly
R e f . P a r t N o . D e s c r i p t i o n N o . ESA-00966-0 Wire box assy, rear, gas - 115V - 2 timer ESA-00974-0 Wire box assy, rear, gas - 208/240V - 2 timer CA-11935-0 Rear wiring box SB-00868-0... -
Page 43: Gas Heating Unit Assembly
R e f . P a r t N o . D e s c r i p t i o n N o . GSA-0778-0 Comp. assy. - Nat. gas GSA-00255-0 Housing gas burner TU11613-0 Lock washer 10 external tooth SB-00831-0 Screw 10-32*3/8"...
