IPSO DR30 Owner's Manual

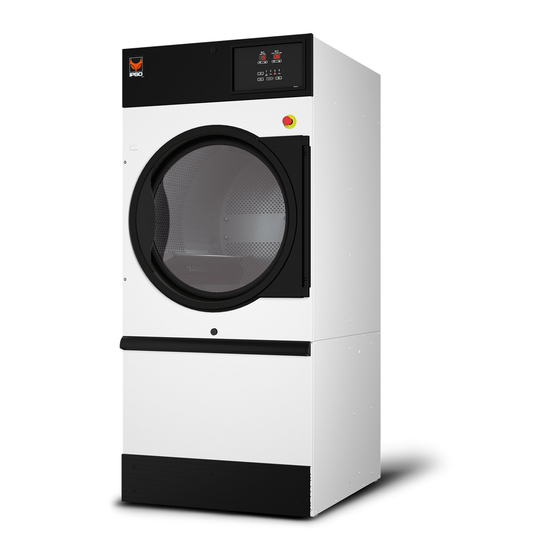

30 lb. dr laundry dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

- USA
OWNER'S MANUAL
30 lb. DR LAUNDRY DRYER
Shown with manual
double timer
control system
Technical specifications
Installation instructions
Operating instructions
Maintenance
IPSO - USA
DR30
3101 South Haven Highway 77, Suite A
Panama City, FL, 32405
Phone: (850)271-8486
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER
MAN DR2030 (ECN5652)
9/99
D0566

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IPSO DR30

Summary of Contents for IPSO DR30

  • Page 1 Technical specifications Installation instructions Operating instructions Maintenance IPSO - USA DR30 3101 South Haven Highway 77, Suite A Panama City, FL, 32405 Phone: (850)271-8486 THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER MAN DR2030 (ECN5652)

  • Page 2: Safety Instructions

    IMPORTANT NOTICES—PLEASE READ For optimum efficiency and safety, we recommend that you read the manual before operating the equipment. Store this manual in a file or binder and keep for future reference. WARNING: Purchaser must post the following notice in a prominent location: WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.
  • Page 3 ATTENTION: L’ACHETEUR DOIT PLACER L’AVERTISSEMENT SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE: AVERTISSEMENT. Assurez-vous de bien suivre les instructions donnees dans cette notice pour reduire au minimum le risque d’incendie ou d’explosion ou pour eviter tuot dommage materiel, toute blessure ou la mort. __ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre...
  • Page 4 WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials. Do not put into this dryer flammable items such as baby bed mattresses, throw rugs, undergarments (brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing excessive heat and possible fire.

  • Page 5: Cissell Dryer Warranty

    IPSO’s factory, transportation prepaid, within the applicable warranty period and found by IPSO to have been defective, and in no event shall IPSO be liable for damages of any kind, whether for any injury to persons or property or for any special or consequential damages.

  • Page 6: Table Of Contents

    Contents Safety Instructions ................2-4 Cissell Dryer Warranty ............... 5 Table of Contents ................6 Symbols ....................7 Unpacking / General Installation ............8-9 Technical Data and Dimensions ............10-11 Electric Connections ................12 Gas Connections ................. 13 Gas Piping Installation ............... 14-15 Gas service Installation Instructions ..........

  • Page 7: Symbols

    SYMBOLS The following symbols are used in this manual and/or on the machine. Symbol Description Symbol Rotation in two directions Rotation dans les deux sens NOTE! Drehbewigung in zwei Richtungen Movimiento rotativo en los dos sentidos Hot! Do Not Touch Heiß! Nicht Beruhren Direction of rotation Haute temperature! Ne pas toucher...

  • Page 8: Unpacking / General Installation

    Unpacking/General Installation (All Dryers) UNPACKING Upon arrival of the equipment, any damage in shipment should be reported to the carrier immediately. Upon locating permanent location of a unit, care should be taken in movement and placement of equipment. See outline clearance diagrams for correct dimensions. Remove all packing material such as: tape, manuals, skid, Leveling: Use spirit level on top of dryer.
  • Page 9 Unpacking/General Installation (All Dryers) The dryer is so designed that when an operator opens the dryer GENERAL door, the basket and exhaust fan stop. You can expect fast drying INFORMATION from a laundry dryer. Hot, dry air is properly and effectively moved through the basket and exhausted through a lint trap to the atmosphere.

  • Page 10: Technical Data And Dimensions

    30 lb. Dryer Dimensions - Standard Gas, Steam and Electric Heated " " " " " Page 10...
  • Page 11 DR30 Dryer Dimensions - Gas (Illustration) Page 11...

  • Page 12: Electric Connections

    Electric connection Dryers must be electrically grounded by a separate #14 or larger green wire from the grounding terminal within the Service Connection Box, to a cold water pipe. In all cases, the grounding method must comply with local electrical code requirements; or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CA C22.1.

  • Page 13: Gas Connections

    Gas connection The gas supply pipe should be connected to the gas tap (I), which is on the right next to the wiring box on the back. It is important to have the connections done by a qualified technician, in order to ensure that the installation is in accordance with the prevailing standards and instructions.

  • Page 14: Gas Piping Installation

    Gas Piping Installation 1. The installation must conform with local codes, or in the GAS PIPING absence of local codes with the National Fuel Gas Code, INSTALLATION ANSI Z223.1 or the CAN/CGA-B149, Installation Codes. 2. Check Identification Nameplate for type of gas for dryer.
  • Page 15 Gas Piping Installation (Illustrations) The dryer and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (.04 bar). The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (.04 bar).

  • Page 16: Gas Service Installation Instructions

    Gas Service Installation Instructions The size of the gas service pipe is dependant upon many variables, GAS SERVICE such as tees, lengths, etc. Specific pipe size should be obtained from INSTALLATION the gas supplier. Refer to the “Gas Pipe Size” chart in this manual for INSTRUCTIONS general gas pipe size information.

  • Page 17: Gas Pipe Size Chart

    Gas Pipe Size Chart TOTAL BTU/HR GAS PIPE SIZE FOR 1000 BTU (250 KCAL) NATURAL GAS (for LP Gas correct AT 7” W.C. (17.5MM) PRESSURE TOTAL total BTU/HR below by KCAL multiplying by .6) In figuring total length of pipe, make allowance for tees and elbows. H O U R (25 ft.) (50 ft.)

  • Page 18: Dryer Installation With Multiple Exhaust

    Area of section “A-A” must be equal to the sum of dryer exhaust pipes entering multiple exhaust pipe. (See chart below.) DR30 No. of Dryers 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24...
  • Page 19 Dryer Installation with Multiple Exhaust DRYER INSTALLATION For exhaust duct more than 14 feet (5 m) and 2 elbows equivalent and more than 0.3 inches (8 mm) static pressure. WITH MULTIPLE EXHAUST 1. Make-up air from outside the building may enter enclosure from top or side walls.

  • Page 20: Dryer Make-Up Air Requirements

    Suggested Minimum Dryer Make-up Air Requirements Dryer Dryer Pocket Maximum Air Flow Duct Size For Required Make-up Model Capacity Rate per Pocket Service Connection Air Area per Pocket m3/h inch sq. in. cm2 C 30 13.6 1190 C 30 E/S 13.6 C 30 ST 13.6...

  • Page 21: Dryer Installation With Separate Exhaust

    Dryer Installation With Separate Exhaust (Preferred) For ductwork less than 14 feet (5 m) and 2 elbows equivalent and less DRYER INSTALLATION than 0.3 inches (8 mm) static pressure: WITH SEPARATE EXHAUST (PREFERRED) NEVER exhaust the dryer into a chimney. NEVER install wire mesh screen over the exhaust or make-up air area.

  • Page 22: Exhaust And Venting

    Exhaust and Venting Nothing is more important than air flow for the proper operation of a clothes DRYER AIR FLOW dryer. A dryer is a pump which draws make-up air from the out-of-doors, INSTALLATION through the heater, through the clothes and then forces the air through the exhaust duct back to the out-of-doors.

  • Page 23: Rules For Safe Operation Of Dryer

    Rules for Safe Operation of Dryer RULES FOR SAFE 1. Be sure your dryer is installed properly in accordance with the recommended instructions. OPERATION OF 2. CAUTION DRYER Be safe—shut main electrical power supply and gas supply off externally before attempting service. 3.

  • Page 24: Direct-Spark Ignition Operation

    Direct-Spark Ignition Operation NOTE: All dryers manufactured are equipped with the DSI (Direct Spark DIRECT SPARK Ignition) modules. These are designed to increase dryer efficiency and to IGNITION reduce dryer operating costs. The main burner is directly ignited from a spark OPERATION electrode.

  • Page 25: Direct-Spark Ignition Operation

    DIRECT SPARK IGNITION OPERATION FLOW CHART The DSI module is powered by a 24 volt AC supplied by a step-down transformer in series with eight safety interlocks: A. Timer Switching Device (1) B. Main Door and Lint Door Switches (2) C.

  • Page 26: General Maintenance

    General Maintenance 1. Clean lint trap daily. Remove lint before or after each day of GENERAL MAINTENANCE operation. A clean lint trap will increase the efficiency of the dryer and the moisture-laden air will be exhausted outside more quickly. 2. Keep basket and sweep sheets clean. Clean as often as needed.
  • Page 27 General Maintenance 7. Periodically clean and examine exhaust system. GENERAL MAINTENANCE ( c o n t i n u e d ) 8. Keep dryer area clean and free of gasoline, combustible materials and other flammable liquids or vapors. 9. Do not obstruct the flow of combustion (make-up) air and ventilating air.

  • Page 28: Operating Instruction For Double Timer

    OPERATING INSTRUCTION - DOUBLE TIMER OPERATING INSTRUCTIONS - DOUBLE TIMER MODELS 1. After loading the dryer with water washed clothes, close the loading door. 2. Turn the 60 minute drying (heat) timer to the desired time. 3. Turn the 60 minute cooling (air) to the desired time. 4.

  • Page 29: Parts

    FRONT VIEW Ref. Part No. Description Ref. Part No. Description CSA50036WH Jacket gas/electric (white) CSA-50051WH Jacket steam (white) TU7733 Screw self drilling 8-18 X 1/2” CB36 Screw -hex 1/4-20 X 1/2” CA-11987-0 Top panel TU2846 Lockwasher 1/4” medium CA-11546-0 Cover plate (non-coin models) TU2847 Washer 1/4”...

  • Page 30: Control Door Assembly

    CONTROL DOOR ASSEMBLY CSA-01582WH Complete control door assy. - Simple microprocessor CSA-01407WH Complete control door assy. - Double Timer Note: Door rod assy. is not part of above complete assy. Ref. Part No. Description CSA-01578WH Control door assy. - Simple microprocessor CSA-01408WH Control door assy.

  • Page 31: Front Panel Assembly

    FRONT PANEL ASSEMBLY Ref. Part No. Description SB-00915-0 Screw self drilling #10-16 X 5/8 CSA-01564WH Front panel, welded assy.-Coin CSA-01563WH Front panel, welded assy-OPL TU5158 Latch & catch asm. CA-00675-1 Insulation SB-00924-0 Screw 4-40*3/8 taptite SB-00938-0 Washer 4 external tooth CA-00699-0 Bezel - Coin box ESA-00862-0...

  • Page 32: Thermostat Assembly

    THERMOSTAT ASSEMBLY - DOUBLE TIMER NOTE: Items 1 thru 6 mounted in front wire Ref. Part No. Description box. Items 7 thru 12 are mounted under the basket EA-00607-0 Thermostat knob CA-13213-0 Thermostat bracket EA-00606-0 Thermostat CA-13215-0 Thermostat bracket adapter TU3624 Screw 6 - 32 X 1/4”...

  • Page 33: Wire Box Assembly

    WIRE BOX ASSEMBLY - DOUBLE TIMER Ref. Part No. Description CSA-01608WH Wire box door assy complete TUT316 Light LED 24V EA-11614-0 Timer-manual 24V - 60 min. complete EA-00619-0 Switch - start CA-13170-0 Overlay- dual timer non-rev CSA-01607WH Wire box door . SB-00865-0 Screw-self drilling #6-20 X 12”...

  • Page 34: Door Assembly

    DOOR ASSEMBLY Ref. Part No. Description MSD-00859WH Complete door assy (consists of items 1 thru 9 only) MD-00362-0 Door Glass - clear MD-00354-0 Gasket - door glass - straight TU5158 Latch & catch pin asm. MD-00337-0 Magnet - reed switch MD-00338-0 Gasket - door rim TU2874...

  • Page 35: Lint Door Assembly

    LINT DOOR ASSEMBLY For OPL models only. Ref. Part No. Description CSA-01386WH Complete Asm - WMC30 OPL CSA-01465WH Complete Asm - WMC30 Coin CSA-01387WH Lint door w/latch holes(white) OPL CSA-01098WH Lint door w/lock holes(white) Coin CA-00833-0 Kickplate SB-00949-0 Fastener plastic kickplate CA-11930-0 Insulation lower frontpanel WMC30 SB-00915-0...

  • Page 36: Basket & Spider Assembly

    BASKET & SPIDER ASSEMBLY Ref. Part No. Description CSA-01539-0 Basket & Spider Asm.WMC30 - S.S. CSA-01637-0 Basket & Spider Asm.WMC30 - Galv. CSA-01538-0 Stainless steel basket assy. CSA-01636-0 Galvanized basket assy. CSA-01434-0 Spider assy. TU5439 Screw-cap 5/16-18 X 3/4" TU2814 Lock washer 5/16"...

  • Page 37: Rear View

    REAR VIEW Ref. Part No. Description CA-11987-0 Top panel TU7733 Screw self drilling 8-18*1/2" CA-11936-0 Cover plate CA-11975-0 Backpanel TU7733 Screw self drilling 8-18*1/2" Page 37...

  • Page 38: Air Switch Assembly

    AIR SWITCH ASSEMBLY Ref. Part No. Description CSA-01334-0 Sail switch assy. complete CA-11854-0 Bracket sailswitch SB-00955-0 Screw phillips #4 X 3/4" TU7733 Screw self drilling 8-18*1/2" CSA-01669-0 Sailswitch plate and rod assy. SB-00954-0 Clip-twin-Tinnerman EA-00618-0 Microswitch Page 38...
  • Page 39 BASKET BEARINGS, SUPPORT, AND SHEAVE Ref. Part No. Description Ref. Part No. Description DA-11911-0 Pulley - basket Part of pulley TU5887 IB140 Washer 3/8" C249 Hex nut 5/16-18" IB139 Screw 3/8-16*1-1/4" SB-00876-0 Stud - 5/16 - 18” IB139 Screw 3/8-16*1-1/4" DSA-00728-0 Bearing box assy.

  • Page 40: Motor & Fan Assembly

    MOTOR & FAN ASSEMBLY- NON-REVERSING Ref. Part No. Description DA-00428-0 Fan motor 1/2 HP 115/208/230/60/50/1 TU2814 Lock washer 5/16” TU5439 Screw-cap 5/16-18 X 3/4" DSA-00801-0 Motor mount w/a - non-rev. SB-00842-0 Nut, grip, Tinnerman SB-00836-0 Screw, phillips, pancake head DSA-00773-0 Fan (12") SB-00813-0 Nut 1/2-20"...

  • Page 41: Idler Assembly

    IDLER ASSEMBLY Ref. Part No. Description Ref. Part No. Description C249 Hex Nut 5/16-18" DA--00531-0 Idler pulley 9” TU2814 Lock Washer 5/16" DA-00523-0 Basket belt - non-reversing - AX66 VSB130 Washer 5/16" DA-00523-0 Basket belt -reversing - AX66 SB-00935-0 Screw 5/16”-18 X 3” FB124 Screw 5/16-18*1"...

  • Page 42: Rear Control Panel Assembly

    REAR CONTROL PANEL ASSEMBLY - NON-REVERSING DOUBLE TIMER MODELS-GAS ONLY Ref. Part No. Description ESA-00966-0 Wire box assy, rear, gas - 115V - 2 timer ESA-00974-0 Wire box assy, rear, gas - 208/240V - 2 timer Ref. Part No. Description CA-11935-0 Rear wiring box SB-00868-0...

  • Page 43: Gas Heating Unit Assembly

    GAS HEATING UNIT Ref. Part No. Description Ref. Part No. Description OP314 Union (gas pipe) GSA-00508-0 Manifold assy. GSA-00784-0 Comp. assy. - Nat. gas TU7733 Screw self drilling 8-18X1/2" TU7733 Screw self drilling 8-18X1/2" GSA-00775-0 Comp. assy. - LP gas EA-00245-0 Thermostat HI LIMIT -330 GSA-00255-0...
