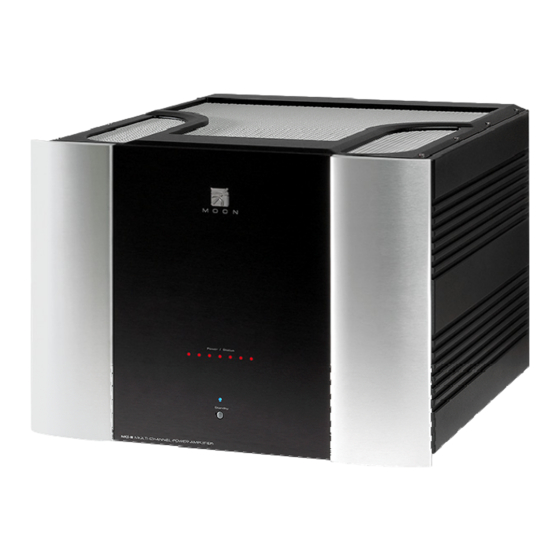

moon Mc-8 Owner's Manual

moon Mc-8 Owner's Manual

Evolution series reference multi-channel power amplifier
Hide thumbs Also See for Mc-8:

Advertisement

Quick Links

Owner's Manual
Evolution Series
MC-8
Reference Multi-Channel Power Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mc-8 and is the answer not in the manual?

Questions and answers

Summary of Contents for moon Mc-8

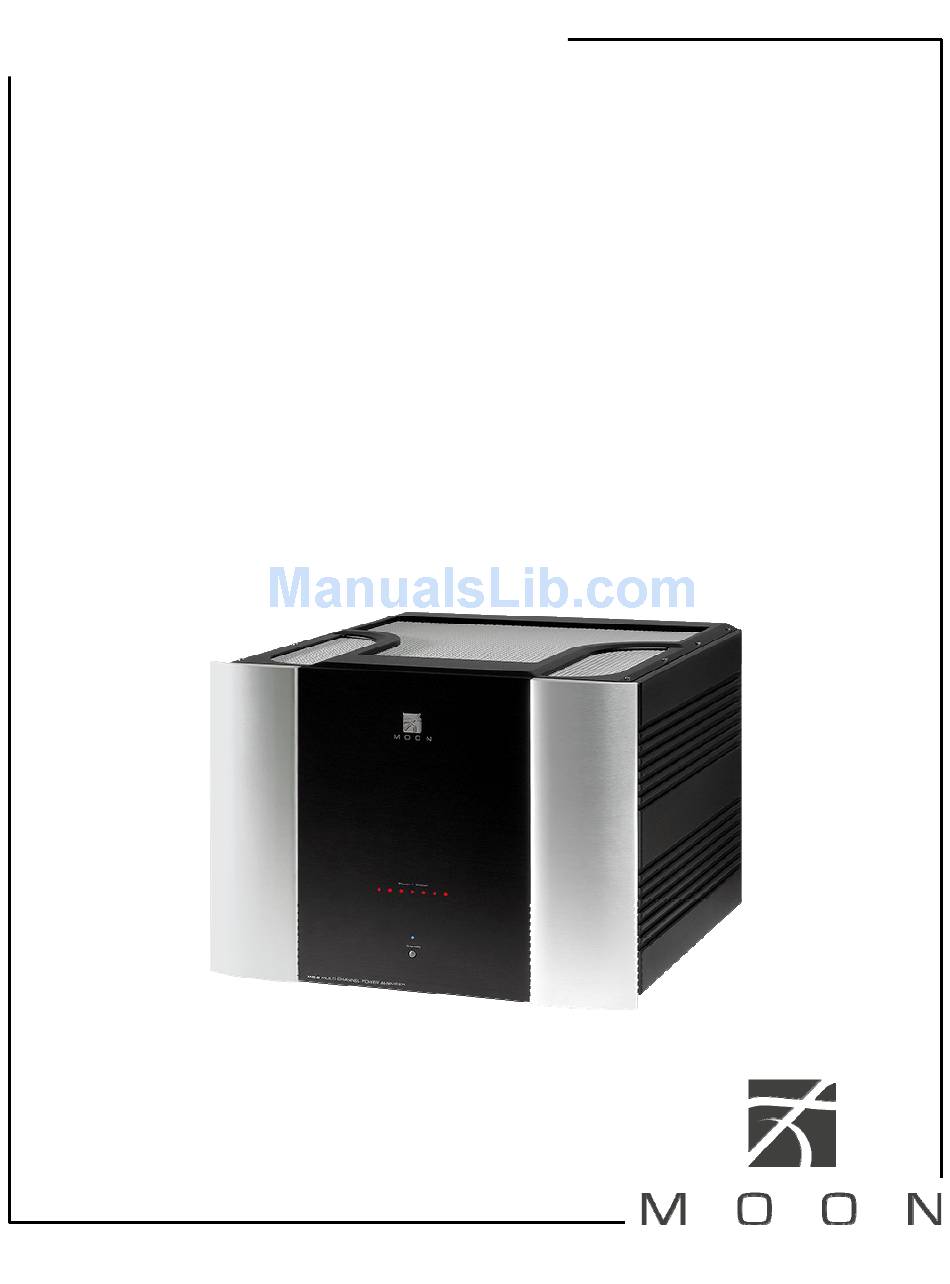

  • Page 1 Owner’s Manual Evolution Series MC-8 Reference Multi-Channel Power Amplifier...
  • Page 3: Important Safety Instructions

    MC-8 Reference Multi-Channel Power Amplifier Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 4 To prevent shock hazard, all three connections must ALWAYS be used. Connect the MOON MC-8 only to an AC source of the proper voltage; Both the shipping box and rear panel serial number label will indicate the correct voltage. Use of any other voltage will likely damage the unit and void the warranty AC extension cords are NOT recommended for use with this product.
  • Page 5: Table Of Contents

    MC-8 Reference Multi-Channel Power Amplifier Table of Contents Introduction ............. 6 Unpacking............7 Installation & Placement ........7 Rear Panel Layout ..........8 Connecting the MC-8 ........9 Balanced Operation ........... 9 Operating the MC-8 ........10 Troubleshooting ..........10 Remote Operation ...........
  • Page 6: Introduction

    The performance of Your MOON MC-8 Multi-Channel Amplifier incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the more important features: An oversized power supply employing a custom...
  • Page 7: Unpacking

    As well, the amplifier should be placed on a solid level The MC-8 is capable of delivering very high power surface. You should avoid placing it near a heat output...
  • Page 8: Rear Panel Layout

    MC-8 Reference Multi-Channel Power Amplifier Rear Panel Layout Figure 1: MOON MC-8 Rear panel The rear panel will look similar to Figure 1 (above). inputs, you must first remove the factory Each channel has one balanced (differential) input installed “dummy” XLR jumpers (see figure 2...
  • Page 9: Connecting The Mc-8

    MC-8 directly into this NEMA 6-20 AC by warranty. outlet and avoid using an extension cord. In the event that you do not already have a NEMA 6-20 AC wall outlet in your listening room, we Don’t hesitate to use high quality interconnect...
  • Page 10: Operating The Mc-8

    MC-8 power amplifier turns off one or more channels or will not power up, there may very well If your MC-8 still doesn’t power up, turn off the be DC present in one (or more) of the amplifier’s main power switch and check the AC fuse. If the...
  • Page 11: Remote Operation

    12V triggers; will turn on automatically. The same rule applies The 12V trigger output on the CP-8 is connected to when you put the CP-8 into Standby mode. the 12V trigger input on the top MC-8 (using a 1/8” ____________________________________________________________________________________...
  • Page 12: Specifications

    Each additional channel 4 lbs. / 2 kgs. Shipping Weight ..240 lbs. / 108 kgs. NOTE: If you require the RS-232 codes for your MC-8, please visit the "Contact Us" page and complete the "Information request" form on our website at www.simaudio.com.
