Summary of Contents for moon W-3

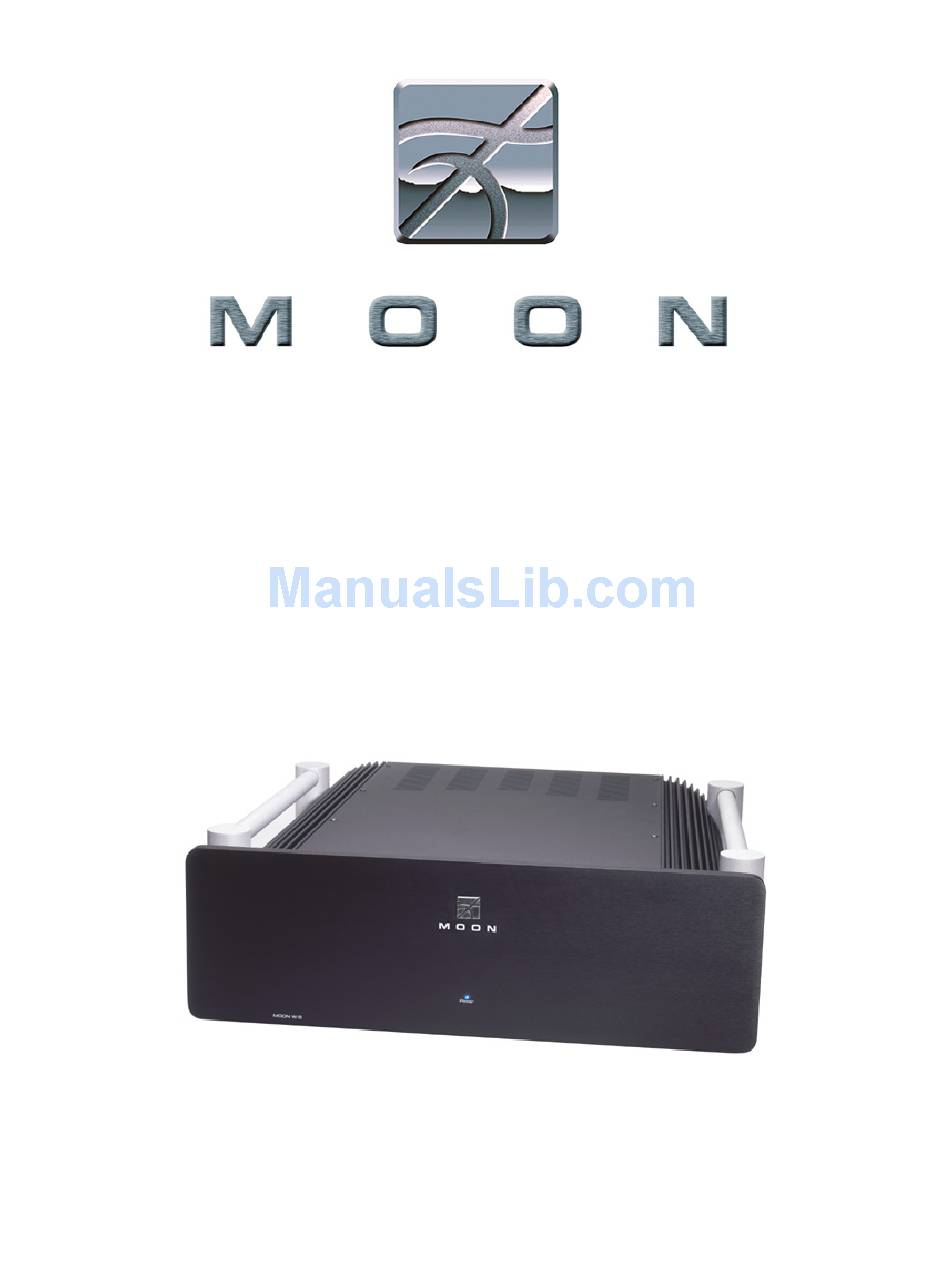

- Page 1 Stereo Power Amplifier ___________________________________________________________________________ Owner’s Manual...
-
Page 2: Table Of Contents
MOON W-3 Stereo Power Amplifier Congratulations... 3 Introduction ... 4 Unpacking and Warnings ... 5 Installation Tips ... 6 Rear Panel ... 7 Connecting the W-3... 8 Balanced Operation ... 9 Bridged-Mono Operation... 10 Operating the W-3... 11 Specifications ... 12 Service and Warranty ... -
Page 3: Congratulations
MOON amplifiers are so musically satisfying. The performance of your W-3 will continue to improve during the first three weeks of use. This is the result of a “break-in” period required for the numerous high quality electronic parts used throughout this amplifier. -
Page 4: Introduction
MOON W-3 Stereo Power Amplifier Introduction Your MOON W-3 Stereo power amplifier incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the more important features: Proprietary “Advanced Renaissance” Technology which eliminates feedback. The results are as follows: Real-time amplification is achieved since interactions from the speaker back to the amplifier are virtually eliminated;... -
Page 5: Unpacking And Warnings
Unpacking and Warning! The MOON W-3 Stereo power amplifier is a large and heavy component that should be removed from its box with care. We strongly advise that you seek another person to help lift the amplifier out of its box, and place it in its final location. -
Page 6: Installation Tips
These tips will easily scratch most surfaces, therefore it’s advisable to follow these instructions: 1) Place your W-3 on a soft surface (i.e. carpet) and carefully turn it so that it rests on its side. 2) Screw one tip onto each of the four cones. -
Page 7: Rear Panel
“-”. The reason for two single-ended RCA connectors per channel is as follows: In the event that you wish to operate the MOON W-3 Stereo power amplifier in balanced mode using RCA terminated interconnects. Furthermore, some preamplifiers invert phase and, as a result, their output signal requires phase correction;... -
Page 8: Connecting The W-3
W-3. In the event that this can’t be avoided, you should ensure that any cables coming into contact with each other are crossed at ninety degree angles to minimize the contact area. -
Page 9: Balanced Operation
Volts. When these two inverted signals on a balanced line are input into a differential power amplifier such as the MOON W-3 Stereo power amplifier, any noise picked up by the interconnect will be eliminated since a differential circuit amplifies only the difference between these two signals: Noise on a balanced interconnect will be equal on both conductors and therefore not be processed. -
Page 10: Bridged-Mono Operation
Figure 3. One lead from the “Y” adapter should plug into the “+” input of one channel and the second lead must plug into the “-” input of the W-3’s other channel. You must insert the two “dummy” RCA terminator plugs, supplied with your W-3 amplifier, into the female RCA input connectors that are not being used. -
Page 11: Operating The W-3
Player). If your W-3 still doesn’t power up, turn off the main power switch and check the AC fuse. If the fuse appears OK, put it back in its socket and then try to power up again the usual way. If the fuse is blown, replace it with a fuse of the same rating, and repeat the above process. -
Page 12: Specifications
MOON W-3 Stereo Power Amplifier Specifications Configuration ... Stereo Power Supply Transformer ... 1.1kVA Power Supply Capacitance ... 108,000µF Class Of Operation ... A/AB Design ... Fully Balanced Differential to output stage Input Impedance ... 47,500 Input Sensitivity ... 900mV Output Device Type ... -
Page 13: Service And Warranty
Service and Warranty (U.S.A and Canada only) Please take the time to complete and mail the warranty card supplied with your MOON W-3 Stereo power amplifier. This card is necessary to activate your full warranty, as well as allowing you to receive information on new products and services.
