5. Connect the monitor cable to the external port of the PCIe graphics card that is
installed in the PCIe-2 slot (fourth slot from the bottom); see
Your graphics card might require a DVI cable to connect to your monitor.
FIGURE 2-3
6. Connect any additional external devices to the workstation's other connectors.
2.4

Powering On the Workstation

To power on the workstation:
1. Turn on the power to the monitor and to all external devices.
2. Turn the power switch on the rear of the workstation to the On ( | ) position.
3. Press and release the power switch on the front panel.

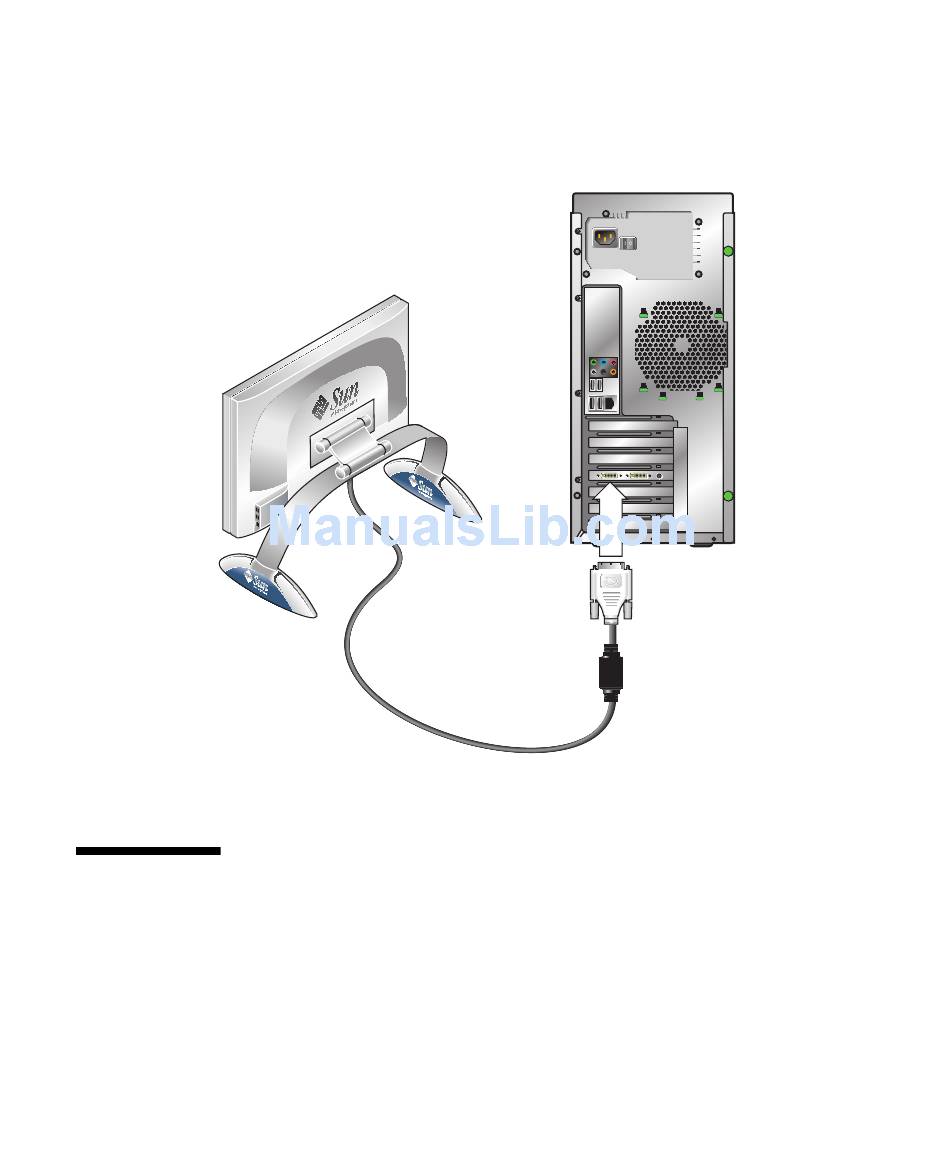

Connecting the Monitor to the System Image
Chapter 2 Unpacking, Cabling, and Powering the Sun Ultra 24 Workstation
.
FIGURE 2-3
2-5
