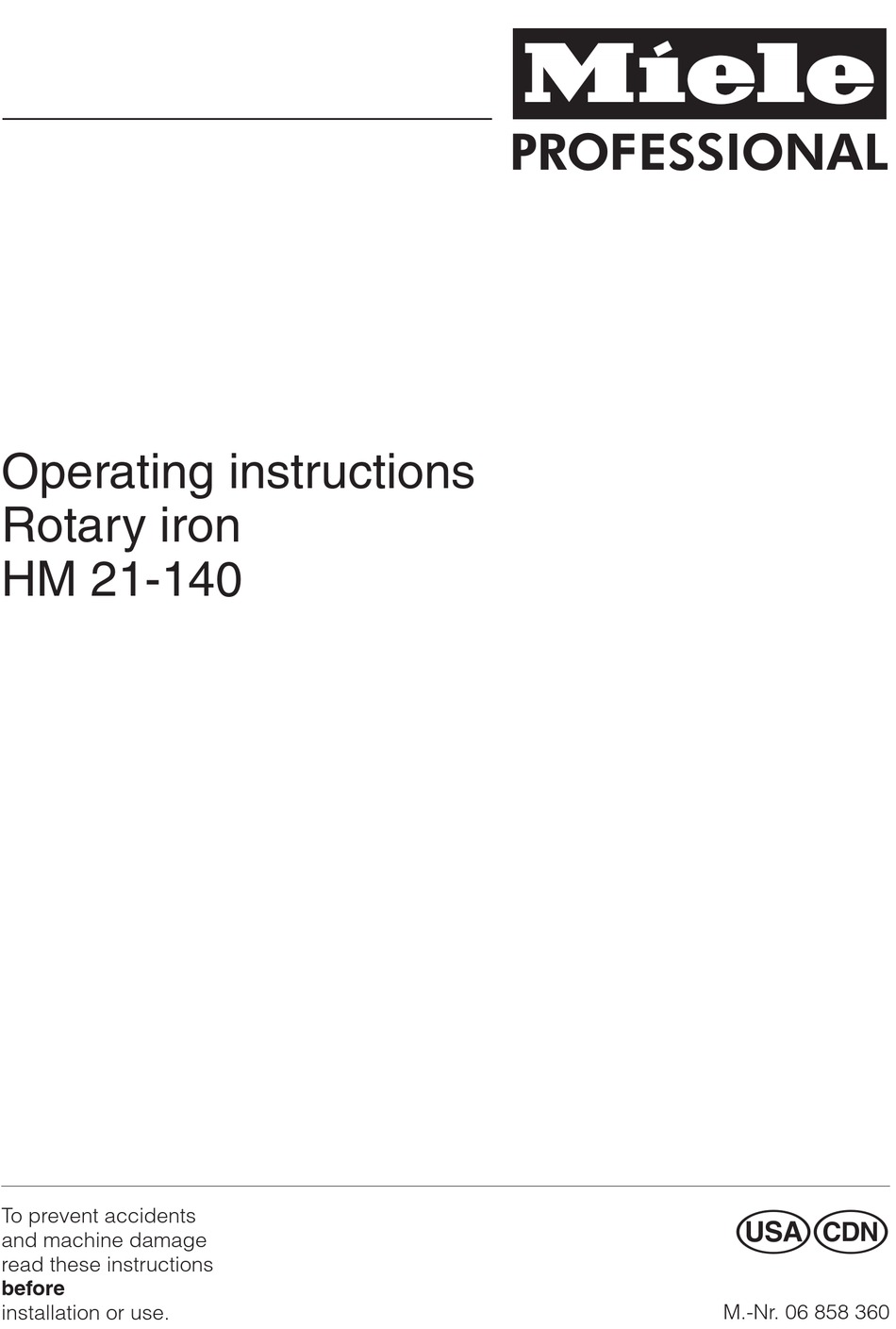

- Page 1 Operating instructions Rotary iron HM 21-140 To prevent accidents and machine damage read these instructions before M.-Nr. 06 858 360 installation or use.
-
Page 2: Table Of Contents
Miele Ironing Handbook........ -
Page 3: Important Safety Instructions
Faulty components must only be Consult a qualified electrician if in doubt. replaced with genuine Miele spare parts. The manufacturer cannot be held Only genuine Miele spare parts can responsible for damage which is the direct... -
Page 4: Guide To The Rotary Iron
Guide to the rotary iron a Heater plate with finger guard g Laundry wipe off unit b Roller h 4 height adjustable feet c Temperature selector i Foot pedal switch d Feed board j Emergency release (power failure) e Control panel k Ironing table f Laundry compartment... - Page 5 Guide to the rotary iron a Roller speed selector b % "Heating" indicator c On/Off button To turn the rotary iron on and off. The indicator lights when the machine is turned d h "Start" button To start ironing. The heater plate lowers to the roller and the roller turns.
- Page 6 Guide to the rotary iron Roller speed selector Finger guard The roller speed can be increased by turning the selector clockwise and decreased by turning it counterclockwise. Temperature selector The finger guard is a safety feature to prevent injuries. When the finger guard is lifted, the roller stops and the heater plate raises off the roller.
- Page 7 Guide to the rotary iron Foot pedal switch Coin mechanism Switch position 1 (inactive) Ironing 1 = Coin slot Switch position 2 Steaming After inserting a coin or token the preprogrammed running time is displayed. Switch position 3 Lifting the heater plate 2 = Coin return button 3 = Coin return 4 = Running time display...
-
Page 8: Use
Correct dampness Ironing tips For best results, the residual moisture of the – To avoid creasing stop the roller, pull the laundry should be 25%. item back slightly and smooth out. If necessary, dampen again with a wet cloth Laundry which contains more than 50% or spray bottle. -
Page 9: Turning The Rotary Iron On
Turning the rotary iron on ^ Select the desired temperature with the temperature selector. ^ Plug the machine in and press the 0 - I (On/Off) button. The On/Off indicator lights. Rotary iron with coin mechanism The running time display lights. ^ Insert coins or token. -
Page 10: Testing The Finger Guard
Testing the finger guard The finger guard is a safety feature and should be checked before each use of the rotary iron. ^ Press the h "Start" button. The heater plate lowers and the roller turns. ^ Lift the finger guard. The roller stops and the heater plate rises off the roller. -
Page 11: Ironing
Ironing ^ Release the foot pedal switch after feeding the item in. The heater plate lowers down to the roller. Rotary iron with coin mechanism ^ Insert the prepared laundry by feeding it At the end of the pre-programmed running over the feed board. -
Page 12: Frequently Asked Questions
Frequently asked questions Power failure Protecting the roller and iron cover – During breaks and after ironing the heater In the event of a power failure, pull the plate should be raised. The roller and the emergency release lever up. iron cover durability will be increased. -
Page 13: Cleaning And Care
Miele. ^ Wash the heavily soiled cover with a prewash, a 203°F (95°C) program and See the "Miele Ironing Handbook" for further spin. It should not be washed if only information. slightly discolored (yellowing normal). -
Page 14: After Sales Service
When contacting Technical Service please quote the model (M.-Nr.) and serial number (Fabr.-Nr.) of the machine. These can be found on the silver data plate. Only use original Miele spare parts for maintenance or repairs on this machine. -
Page 15: Guide To The Data Plate Symbols
Guide to the data plate symbols 1 Machine type 15 Electric heating 2 Serial number/Year of production * 16 Fuse (on site) 3 Voltage/Frequency 17 Steam heating indirect 4 Fuse rating 18 Steam heating direct 5 Drive motor 19 Gas heating 6 Plate diameter/Plate quantity * 20 Commissioning date 7 Drum data... -
Page 17: Miele Ironing Handbook
Miele Ironing Handbook... -
Page 18: Introduction
Introduction General notes on ironing Fabrics suitable for ironing Correctly ironed laundry will be smooth, Different types of fabric react differently to crease-free and not misshapen. However, in being ironed. Cottons and linens expand order to achieve this, the correct when wet, and ironing at a high temperature combination of mechanical energy, heat and and pressure will make these fabrics... - Page 19 Introduction Washing items prior to ironing Cleaning and caring for heater plate The washing process is very important. Regular cleaning and maintenance of the Follow the manufacturers guidelines on heater plate is essential for the protection of detergent. It too much detergent is used and the motor and the roller cover, and helps to is not fully rinsed, residues can be left on the prolong the life of the machine.
-
Page 20: Caring For Your Rotary Iron
Caring for your rotary iron Accessories for cleaning Waxing and cleaning Nomex cleaning cloth At the end of the workday or as needed max. 284°F (140°C) (to clean light deposits): apply a small For daily removal of residue and starch from quantity of Cleanpaste with a clean wax the roller. - Page 21 Caring for your rotary iron How to use the cloth with pouch General notes – Use separate cloths for ironing wax and Cleanpaste. The amount and frequency of application can vary according to use, as a general rule "Less is more". –...
-
Page 22: Frequently Asked Questions
Pressure is uneven Contact Miele Technical Service Have the exhaust ducting checked – Padding has deteriorated Replace padding (contact Miele Technical Service) – around the exhaust ducting After use, turn off the heat and run the iron for 5 minutes –... - Page 23 – Fabrics attract static during Increase the residual moisture in the items to be ironed – ironing Contact Miele Technical Service to adjust the exhaust – emission levels Provide rubber insulation mats for users to stand on – Use a static reducing detergent or fabric softener...
-
Page 25: Installation Instructions
Installation Instructions... -
Page 26: Installation Site
Installation instructions Condensate trap The rotary iron should be installed by a Miele trained installer. Installation site Do not operate the rotary iron in a room where cleaning machines are operated with solvents containing CFC. These vapors could damage the machine. -
Page 27: Electrical Connection
Installation instructions Electrical connection All electrical work must be performed by a qualified service technician in accordance with all applicable codes and standards. ^ Regard the data plate, wiring diagram, conversion and installation plan. The wiring diagram is located under the cover of the right side column. -
Page 28: Help To Protect The Environment
Help to protect the environment Disposal of the packing materials Disposal of an old appliance The packing materials protect the appliance Old appliances may contain materials that during shipping. They have been designed can be recycled. Please contact your local to be biodegradable and recyclable. - Page 32 All rights reserved / 1806 06 858 360 / 00...
