INSTALLATION INSTRUCTIONS

1. Remove all packing materials from the oven cavity and the feature sticker from the oven door panel
(if available). Check the unit for any damage, such as a misaligned door, damaged door seals around the
door or dents inside the oven cavity or on the door. If there is any damage, please do not operate the oven
until it has been checked by the SHARP SERVICE CENTRE and repaired, if necessary.
2. Accessories provided
1) Turntable
3. Place the roller stay in the coupling on the oven fl oor, then place the turntable on to the roller stay,
ensuring it is located fi rmly. Refer to OVEN DIAGRAM below. NEVER operate the oven without the roller
stay and turntable.
4. This oven is designed to be used on a countertop only. It should not be installed in any area where heat
and steam are generated, for example, next to a conventional oven unit.
The oven should be installed so as not to block ventilation openings.
Allow space of at least 15cm from top of the oven for air ventilation.
This oven is not designed to be built-in to a wall or cabinet.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or
personal injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage and frequency must correspond to the one indicated on the rating plate on the back of
the oven.
6. This appliance must be earthed:
The wires in power supply cord are coloured in accordance with the following code:
As the colours of the wires in the power supply cord of this appliance may not correspond with the
coloured marking identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured brown.

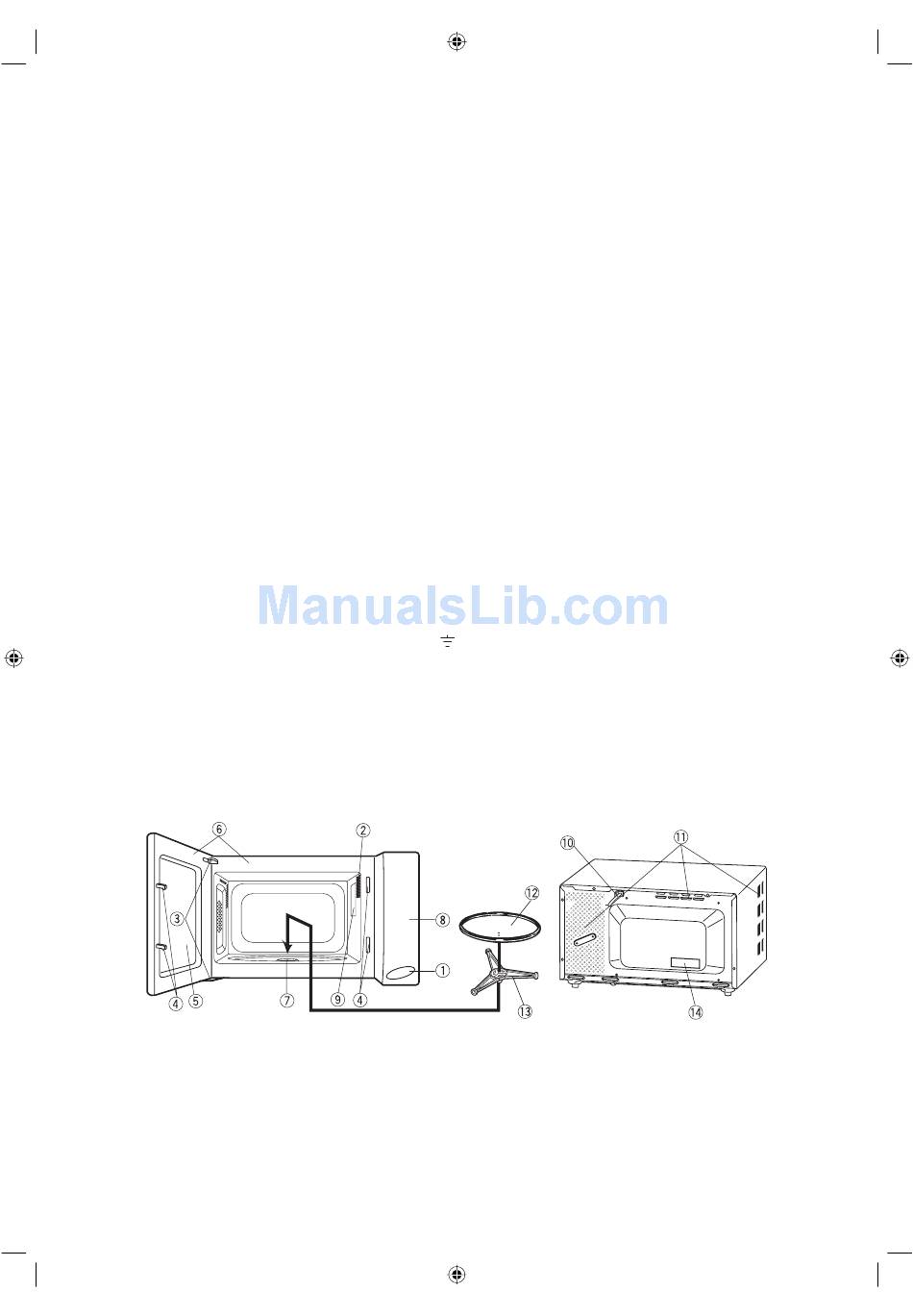

OVEN DIAGRAM

1. Door open button
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing surfaces
7. Coupling
8. Control panel
R-222R [01 EN].indd 3 R-222R [01 EN].indd 3
2) Roller Stay 3) Operation Manual (with Cookbook Section)
IMPORTANT
Green-and-yellow :
Blue
Brown
E – 3
Earth
: Neutral
: Live
or coloured green or green-and-yellow.
9. Waveguide cover
(Do not remove)
10. Power supply cord
11. Ventilation openings
12. Turntable
13. Roller stay
14. Rating label
