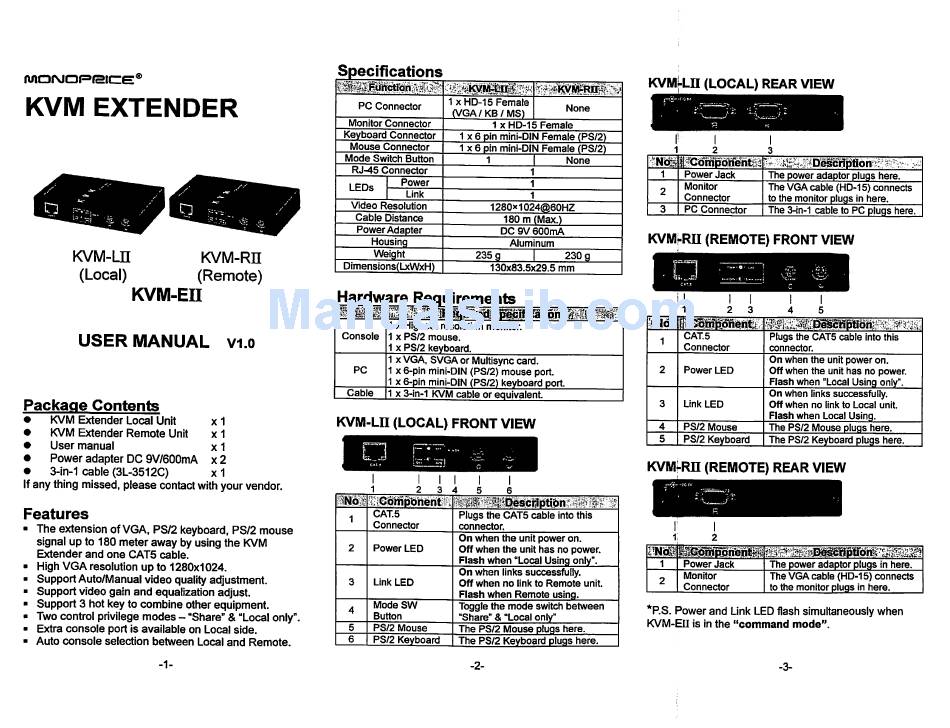

Monoprice KVM-LII User Manual

KVM EXTENDER
KVM-Ln
(Local)
KVM-Rn
(Remote)
KVM-EH
USER MANUAL vi.o
Package Contents
• KVM Extender Local Unit x 1
• KVM Extender Remote Unit x 1
• User manual x 1
• Power adapter DC 9V/600mA x 2
• 3-in-1 cable (3L-3512C) x 1
If any thing missedt please contact with your vendor.
Features
■ The extension of VGA, PS/2 keyboard, PS/2 mouse
signal up to 180 meter away by using the KVM
Extender and one CAT5 cable.
■ High VGA resolution up to 1280x1024.
■ Support Auto/Manual video quality adjustment.
- Support video gain and equalization adjust.
■ Support 3 hot key to combine other equipment.
• Two control privilege modes - "Share" & "Local only".
- Extra console port is available on Local side.
■ Auto console selection between Local and Remote.
Specifications
PC Connector
Monitor Connector
Keyboard Connector
Mouse Connector
Mode Switch Button
RJ-45 Connector
LEDs
Power
Link
Video Resolution
Cable Distance
Power Adapter
Housing
Weight
Dimensions(LxWxH)
1xHD-15 Female
(VGA/KB/MS)
None
1 xHD-15 Female
1 x 6 pin mini-DIN Female (PS/2)
1 x 6 pin mini-DIN Female (PS/2)
None
128Qx1Q24@60HZ
180 m (Max.)
DC 9V 600mA
Aluminum
235 g
130x83.5x29.5 mm
.230JL
KVM-LH (LOCAL) REAR VIEW
(REMOTE) FRONT VIEW
Hardware Requirements
Console
PC
Cable
1 x Highest resolution monitor,
x PS/2 mouse,
x PS/2 keyboard.
x VGA, SVGA or Multisync card,
x 6-pin mini-DIN (PS/2) mouse port.
x 6-pin mini-DIN (PS/2) keyboard port.
x 3-in-1 KVM cable or equivalent.

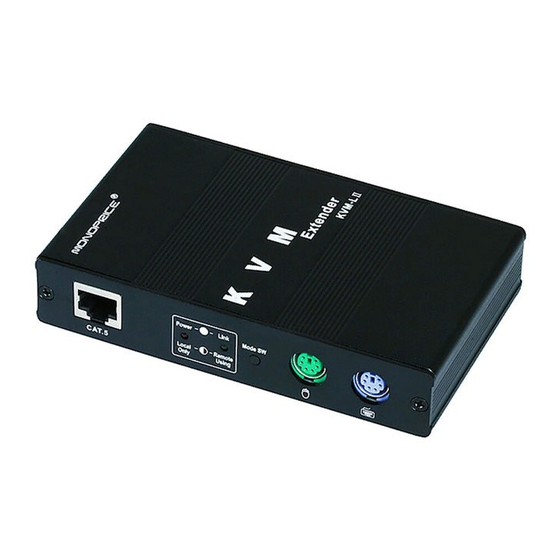

KVM-LH (LOCAL) FRONT VIEW
KVM-RII (REMOTE) REAR VIEW
CAT.5
Connector
Power LED
Link LED
Mode SW
Button
PS/2 Mouse
PS/2 Keyboard
Plugs the CAT5 cable into this
connector.
On when the unit power on.
Off when the unit has no power.
Flash when "Local Ustnq only".
On when links successfully.
Off when no link to Remote unit.
Flash when Remote usinq.
Toggle the mode switch between
"Share" & "Local only"
The PS/2 Mouse plugs here.
The PS/2 Keyboard oluqs here.
*P.S. Power and Link LED flash simultaneously when
KVM-EII is in the "command mode".
