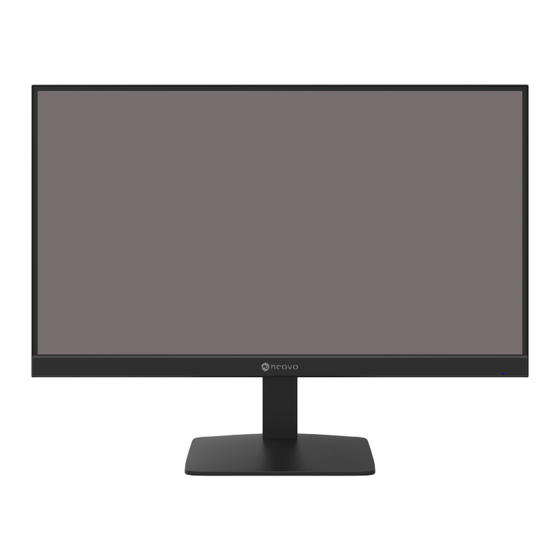

SC-2203 LCD Monitor
User Manual
www.agneovo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-2203 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AG Neovo SC-2203

  • Page 1 SC-2203 LCD Monitor User Manual www.agneovo.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 5 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 7 Notice for the LCD Monitor ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................8 1.2 Installation ..............................
  • Page 3 TABLE OF CONTENTS 7.1 Display Specifications .......................... 37 7.2 Display Dimensions ..........................38...
  • Page 4: Safety Information

    SAFETY INFORMATION WEEE Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 5: Precautions

    PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 6: Cautions When Using

    Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience.
  • Page 7: Cleaning And Maintenance

    PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time.
  • Page 8: Chapter 1: Product Description

    CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Monitor Base Stand Quick Start Guide HDMI Cable Power Cord Quick Start Guide SC-2402 LCD Monitor SC-2402_Quick Guide_V010...
  • Page 9: Installation

    PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Pinch the latches on the base and then attach the base to the arm. Ensure the base latches are secured to the slots on the arm. 2. Place the LCD monitor with the screen side down on a cushioned surface. 3.
  • Page 10: Adjusting The Tilt

    Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard.
  • Page 11: Overview

    PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View Power status indicator: Indicates the operating status of the monitor: • Blue – Power On mode. • Amber – Standby mode. • LED off – Off mode.
  • Page 12: Control Panel

    PRODUCT DESCRIPTION 1.3.2 Control Panel (Menu) (Auto) MENU OSD menu ON/OFF. Hot Key: Source Key • When OSD menu is ON, navigate through adjustment icons or adjust a function. When OSD menu is ON, navigate through adjustment icons or adjust a function. Hot Key: Auto adjust for VGA •...
  • Page 13: Rear View

    PRODUCT DESCRIPTION 1.3.3 Rear View HDMI CVBS AC power input. COMPOSITE (CVBS) OUT: Connect Composite (CVBS) signals output. COMPOSITE (CVBS) IN: Connect Composite (CVBS) signals input. HDMI IN: Connect HDMI signals input. VGA IN: Connect VGA signals input.
  • Page 14: Chapter 2: Making Connections

    CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1.
  • Page 15: Connecting Input Source Signals

    MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • HDMI Connect one end of an HDMI cable to the HDMI connector of the LCD monitor and the other end to the HDMI connector of the computer. •...
  • Page 16: Connecting A Video Device

    MAKING CONNECTIONS 2.3 Connecting a Video Device • CVBS OUT Connect one end of a composite cable to the CVBS OUT connector of the LCD monitor and the other end to the CVBS IN connector of the external display. • CVBS IN Connect one end of a composite cable to the CVBS IN connector of the LCD monitor and the other end to the CVBS OUT port of the video device.
  • Page 17: Chapter 3: Using The Lcd Monitor

    CHAPTER 3: USING THE LCD MONITOR 3.1 Turning on the Power 1. Plug the power cord to a power outlet or power supply. 2. Press the key on the control panel (Menu) (Auto) Power Key When the LCD monitor is turned on, press the key to turn off the LCD monitor.
  • Page 18: Displaying The Osd Menu

    USING THE LCD MONITOR 3.2 Displaying the OSD Menu Press the 1(MENU) key to open the OSD menu. Press the 1(MENU) key again to close the OSD menu. For more information on adjusting settings, refer to page 22. VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST...
  • Page 19: Selecting A Source

    USING THE LCD MONITOR 3.3 Selecting a Source Press the ▲ key to call out the source selection menu. INPUT SOURCE HDMI CVBS (Menu) UP Key (Auto) The following menu appears on the screen: INPUT SOURCE HDMI CVBS Press the ▲ key continuously to select the desired input source. Then press the 2 (AUTO) key to confirm or wait until the source menu disappears from the screen automatically.
  • Page 20: Auto Adjusting The Screen (For Vga Source Only)

    USING THE LCD MONITOR 3.4 Auto Adjusting the Screen (For VGA Source Only) Auto Adjustment function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase. Press the 2(AUTO) key to perform auto adjustment for VGA source. (Menu) AUTO ADJUSTING...
  • Page 21: Locking The Control Keys

    USING THE LCD MONITOR 3.5 Locking the Control Keys Locking the control keys helps to prevent unwanted access to the LCD monitor settings. Press the 1(MENU) key for 5 seconds to lock all keys except for Power. VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST...
  • Page 22: Chapter 4: On Screen Display Menu

    CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Operation Display the main menu screen. Press 1(MENU) on the control panel. VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST BLACK LEVEL SATURATION SHARPNESS GAMMA COLOUR TEMPERATURE NEUTRAL ADVANCED CONTROL Enter the submenu.
  • Page 23: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference VIDEO Refer to page 24. PICTURE MODE BRIGHTNESS CONTRAST BLACK LEVEL SATURATION TINT SHARPNESS GAMMA COLOUR TEMPERATURE ADVANCED CONTROL AUTO ADJUST AUTO COLOUR SETTING Refer to page 28. LANGUAGE BACKLIGHT OSD TIMER...
  • Page 24: Chapter 5: Adjusting The Lcd Monitor

    CHAPTER 5: ADJUSTING THE LCD MONITOR 5.1 VIDEO Menu 1. Press 1(MENU) on the control panel to call out the OSD window. 2. Press ▲ / ▼ to select and then press 2(AUTO) to enter the VIDEO menu. VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST...
  • Page 25 ADJUSTING THE LCD MONITOR Item Function Operation Range SATURATION Adjusts the colour saturation. Press ▲ / ▼ to adjust the 0 to 100 value. Note: This menu item is only available for HDMI and CVBS sources. TINT Adjusts the colour tint. 0 to 100 Note: This menu item is only available for CVBS source.
  • Page 26 ADJUSTING THE LCD MONITOR Item Function Operation Range ADVANCED Configures advanced control settings. Press 2(AUTO). CONTROL • “NOISE REDUCTION” - Reduces 1 Press ▲ / ▼. the noise in the picture due to poor 2 Press 2(AUTO) MIDDLE reception or poor picture quality. (repeatedly) to select HIGH the setting.
  • Page 27 ADJUSTING THE LCD MONITOR Item Function Operation Range AUTO ADJUST • “H.POSITION (Horizontal Position)” - 1 Press ▲ / ▼. 0 to 100 Moves the screen image to the left or 2 Press 2(AUTO). .POS, V.POS, PHASE, CLOCK right. 3 Press ▲ / ▼ to adjust •...
  • Page 28: Setting Menu

    ADJUSTING THE LCD MONITOR 5.2 SETTING Menu 1. Press 1(MENU) on the control panel to call out the OSD window. 2. Press ▲ / ▼ to select and then press 2(AUTO) to enter the SETTING menu. SETTING LANGUAGE English BACKLIGHT OSD TIMER 30SEC OSD TRANSPARENCY...
  • Page 29 ADJUSTING THE LCD MONITOR Item Function Operation Range STANDBY Enables or disables standby mode. Press 2(AUTO) (repeatedly) to select the Note: The amount of time for the display setting. to enter standby varies depending on the “SOURCE DETECT” setting. If the “SOURCE DETECT”...
  • Page 30 ADJUSTING THE LCD MONITOR Item Function Operation Range ANTI-BURN-IN Protects the display from “burn-in” or ▼ . 1 Press ▲ / “afterimage” symptoms when the display 2 Press 2(AUTO) to has not being used for a period of time. enter the submenu. SETTING ANTI-BURN-IN ENABLE...
  • Page 31: Info Menu

    ADJUSTING THE LCD MONITOR 5.4 INFO Menu 1. Press 1(MENU) on the control panel to call out the OSD window. 2. Press ▲ / ▼ to select and then press 2(AUTO) to enter the INFORMATION menu. INFORMATION INPUT: HDMI RESOLUTION: 1280x720 HORIZONTAL FREQ: 45.6KHz...
  • Page 32: Chapter 6: Appendix

    CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the INVALID FORMAT the graphics card of the computer refresh rate of the graphics card.
  • Page 33: Timing

    CHAPTER 6: APPENDIX 6.2 Timing HDMI 720 x 400p @ 70 Hz 720 x 400p @ 70 Hz 1920 x 1080p at 50 Hz 640 x 480p @ 60 Hz 640 x 480p @ 60 Hz 1920 x 1080p at 60 Hz 640 x 480p @ 72 Hz 640 x 480p @ 72 Hz 1920 x 1080i at 50 Hz...
  • Page 34: Troubleshooting

    APPENDIX 6.3 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •...
  • Page 35: Transporting The Lcd Monitor

    APPENDIX 6.4 Transporting the LCD Monitor To transport the LCD monitor for repair or shipment, place the monitor in its original packaging box. 1. Remove the base stand. Press on the release latch and detach the base stand from the LCD monitor. Release latch 2.
  • Page 36 APPENDIX 3. Place the lower foam cushion inside the box. 4. Place the LCD monitor down in the box. 5. Place the upper foam cushion on the top of the LCD monitor. 6. Place the accessories on the designated area (if necessary). 7.
  • Page 37: Chapter 7: Specifications

    CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications SC-2203 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 21.45” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.241 mm Brightness 280 cd/m Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178° Display Colour 16.7M...
  • Page 38 SPECIFICATIONS 7.2 Display Dimensions AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2024 AG Neovo. All rights reserved. SC-2203 Eprel registration number: 1949709 SC2230_UM_V010...
