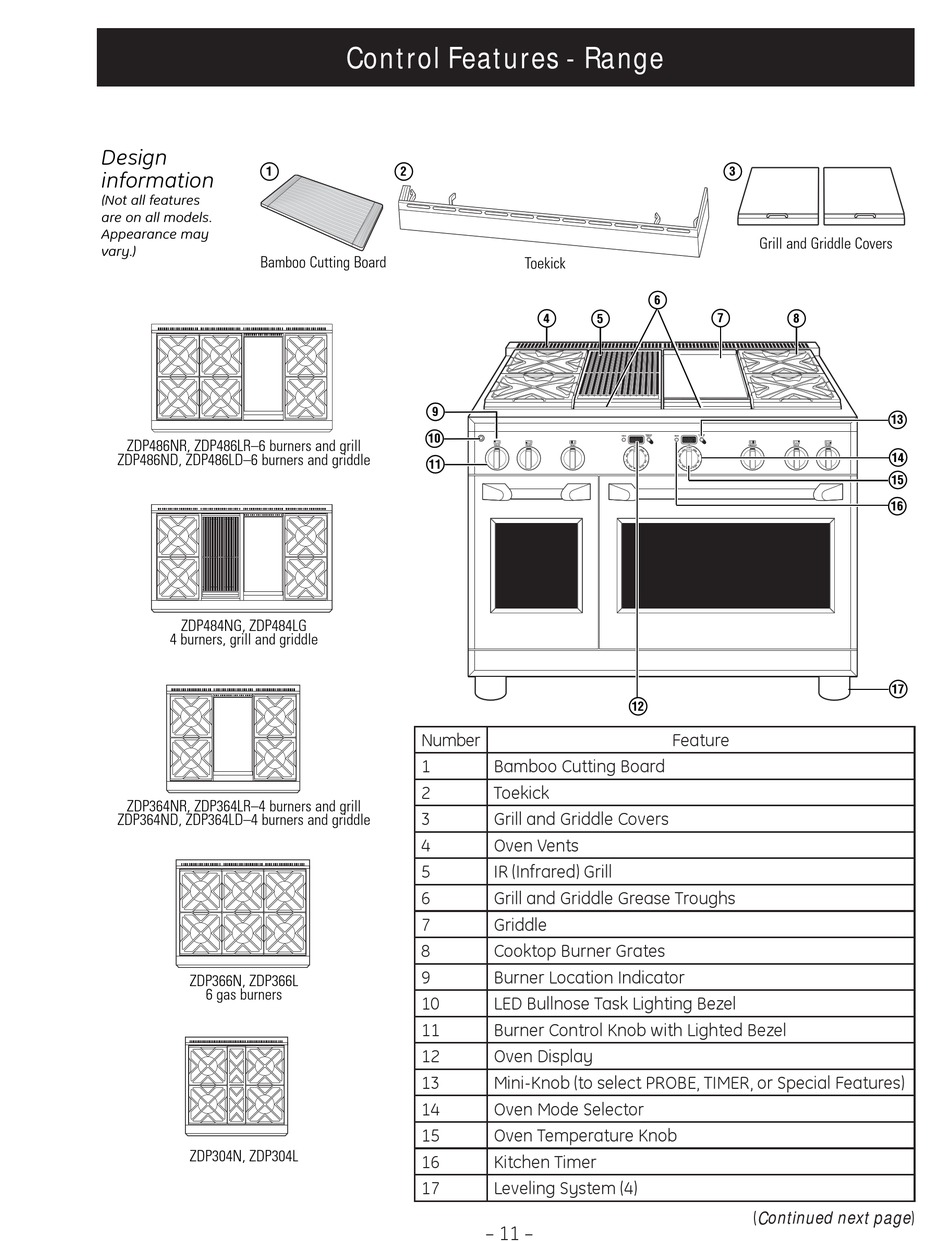

Control Features - Range - GE Monogram ZDP486ND Technical Service Manual

Design
1
information
(Not all features
are on all models.
Appearance may
vary.)
Bamboo Cutting Board
ZDP486NR, ZDP486LR–6 burners and grill
ZDP486ND, ZDP486LD–6 burners and griddle
ZDP484NG, ZDP484LG
4 burners, grill and griddle
ZDP364NR, ZDP364LR–4 burners and grill
ZDP364ND, ZDP364LD–4 burners and griddle
ZDP366N, ZDP366L
6 gas burners
ZDP304N, ZDP304L

Control Features - Range

2
Toekick
9
10
11
Double oven model shown includes a small oven.
Number
1 Bamboo Cutting Board
Feature Index
2 Toekick
1 Bamboo Cutting Board
2 Toekick
3 Grill and Griddle Covers
3 Grill and Griddle Covers
4 Oven Vents
4 Oven Vents
5 IR (Infrared) Grill
5 IR (Infrared) Grill
6 Grill and Griddle Grease Troughs
6 Grill and Griddle Grease Troughs
7 Griddle
7 Griddle
8 Cooktop Burner Grates
8 Cooktop Burner Grates
9 Burner Location Indicator
9 Burner Location Indicator
10 LED Bullnose Task Lighting Control
10 LED Bullnose Task Lighting Bezel
11 Burner Control Knob with Lighted Bezel
11 Burner Control Knob with Lighted Bezel
12 Oven Display
12 Oven Display
13 Mini-Knob
13 (to select PROBE, TIMER or Special Features) Mini-Knob (to select PROBE, TIMER, or Special Features)
14 Oven Mode Selector
14 Oven Mode Selector
15 Oven Temperature Knob
15 Oven Temperature Knob
16 Kitchen Timer
16 Kitchen Timer
17 Leveling System (4)
17 Leveling System (4)
– 11 –
6
4 5 7
12
Feature
3
Grill and Griddle Covers
8
13
14
15
16
17
Page
37
——
——
17
12, 13
37
14
11, 36
——
——
11, 30
16
16, 30
16
16
16, 28
(Continued next page)
